System Components: Inputs - Processing - Outputs

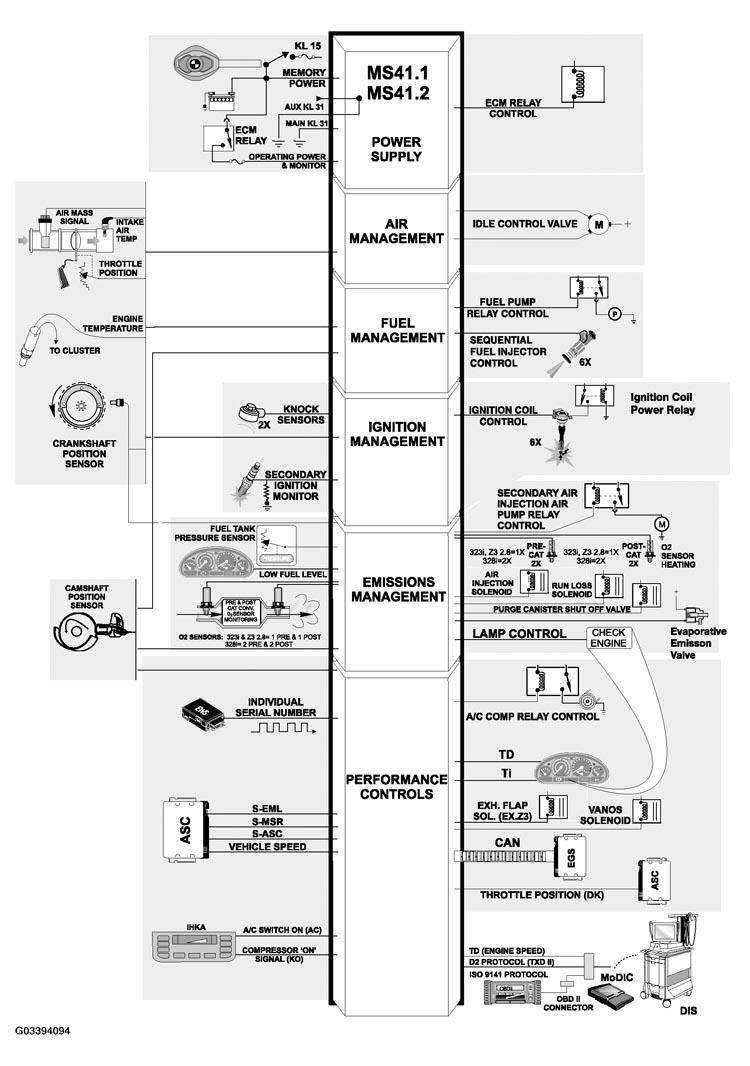

Fig 1: Identifying System Inputs & Outputs (1 Of 2)

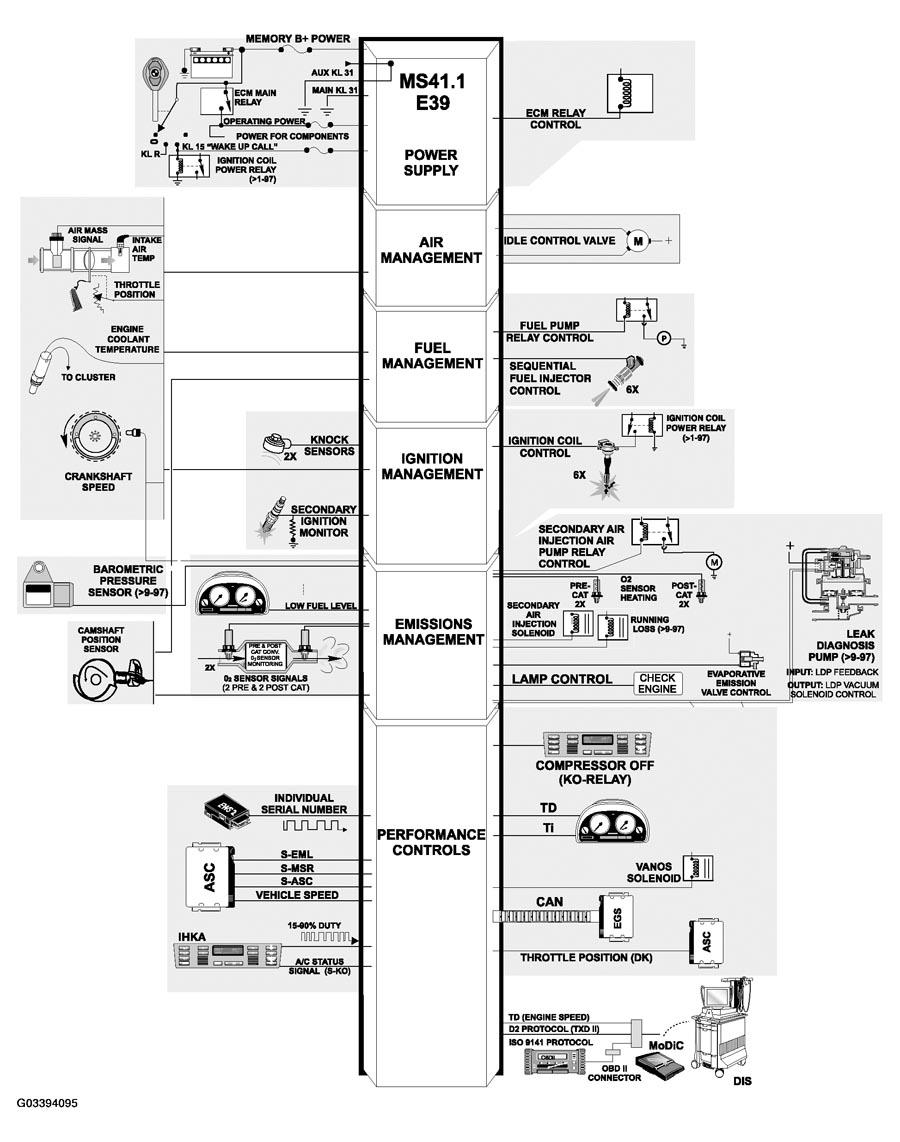

Fig 2: Identifying System Inputs & Outputs (2 Of 2)
