DSC III Road Speed Signal

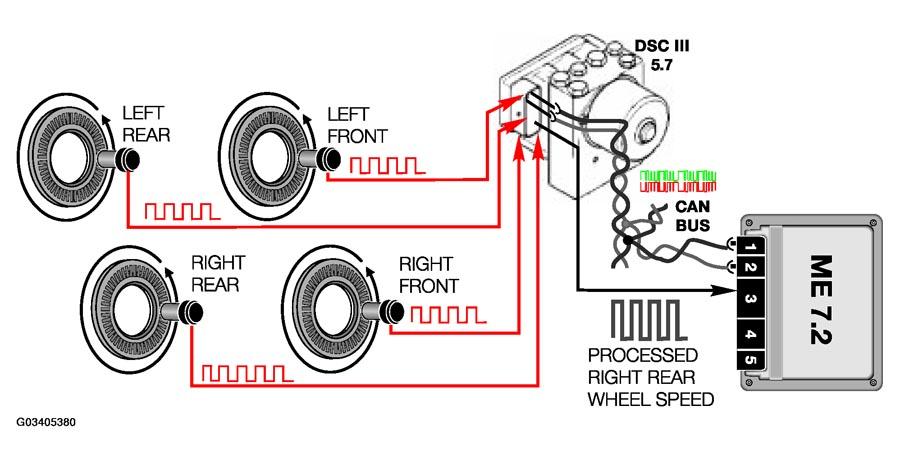

ME 7.2 receives the road speed signal directly from the DSC III control module for maximum vehicle speed management. The DSC control module provides a processed output of the right rear wheel speed sensor as a digital square wave signal. The frequency of the signal is proportional to the speed of the vehicle (48 pulses per one revolution of the wheel).
The cruise control function (FGR) of the ME 7.2 also monitors vehicle speed from the redundant vehicle speed CAN bus signal. The CAN bus speed signal is provided by the DSC III control module and based on the combined average of both front wheel speed signals.
Additionally, ME 7.2 monitors all four wheel speed signals via CAN bus signalling to detect abrupt fluctuations in vehicle speed signals for the purpose of detecting rough road surfaces. This is continuously monitored as part of the OBD II emission requirements providing a correction factor for misfire detection plausibility. Earlier systems only monitored the right rear speed signal input from DSC.
