Radiator Outlet Temp Sensor

First seen on the MS 42.0 control system, the ME 7.2 uses an additional water temperature sensor located on the radiator outlet.

ME 7.2 requires this signal to monitor the water temperature leaving the radiator for precise activation of the IHKA auxiliary fan.

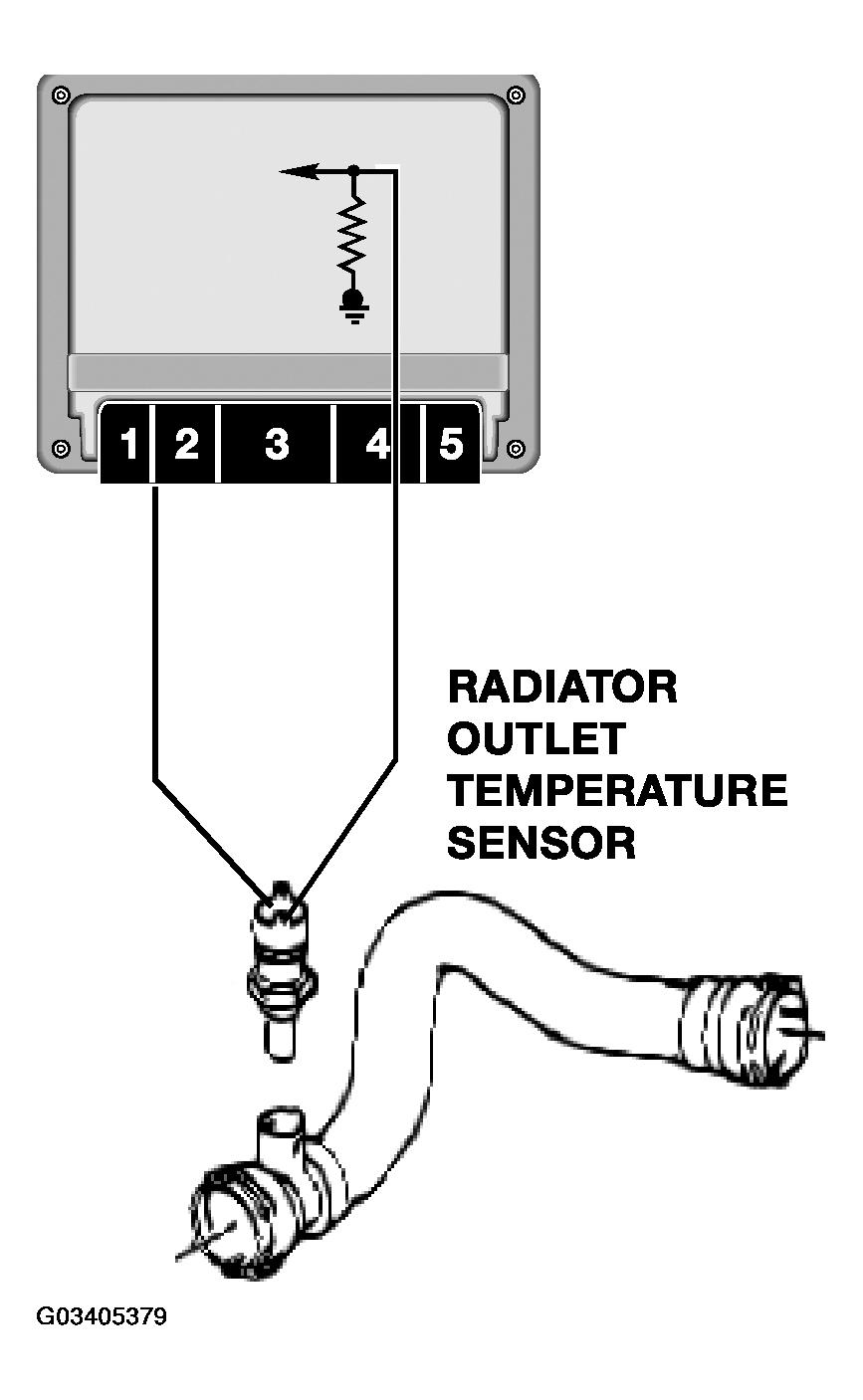

Fig 1: Radiator Outlet Temp Sensor & Circuit Diagram
G03405379
