Integrated Ambient Barometric Pressure Sensor
The ME 7.2 Control Module contains an integral ambient barometric pressure sensor. The sensor is part of the SKE and is not serviceable. The internal sensor is supplied with 5 volts. In return it provides a linear voltage of approx. 2.4 to 4.5 volts representative of barometric pressure (altitude).

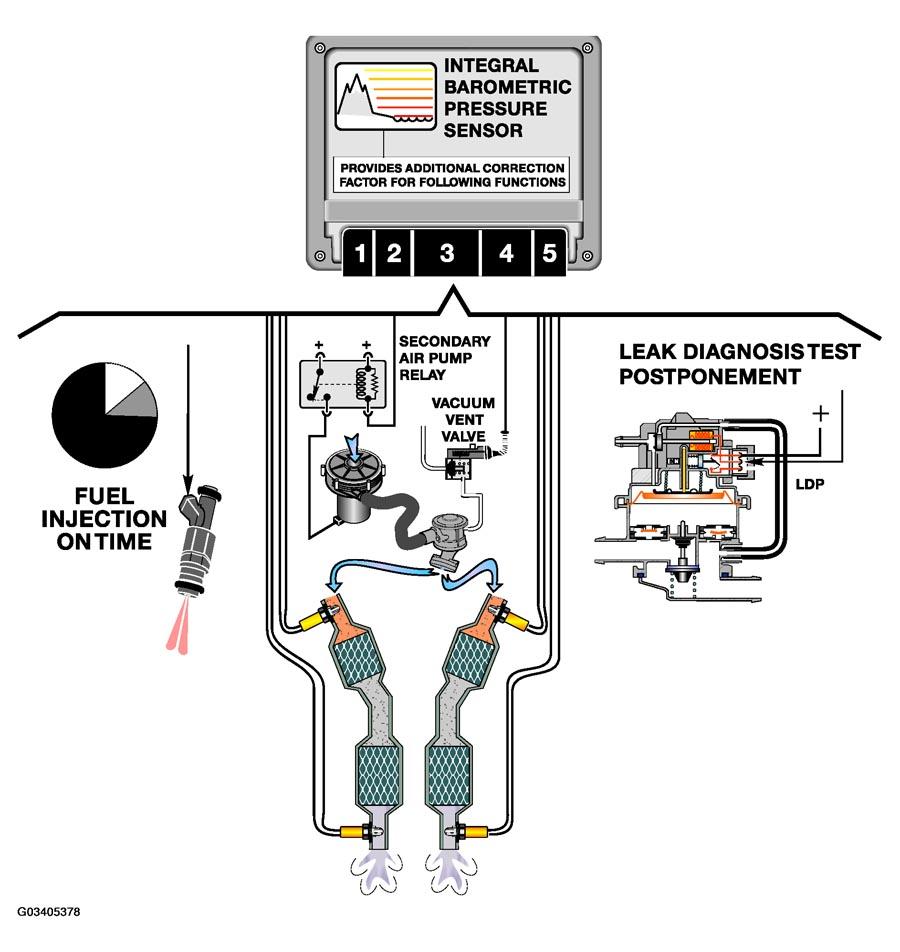

The ME 7.2 monitors barometric pressure for the following reasons:
- The barometric pressure signal along with calculated air mass provides an additional correction factor to further refine injection "on" time.
- Provides a base value to calculate the air mass being injected into the exhaust system by the secondary air injection system. This correction factor alters the secondary air injection "on" time, optimizing the necessary air flow into the exhaust system.
- To recognize downhill driving to postpone start of evaporative emission leakage diagnosis.
