Ms 42.0 I-P-O

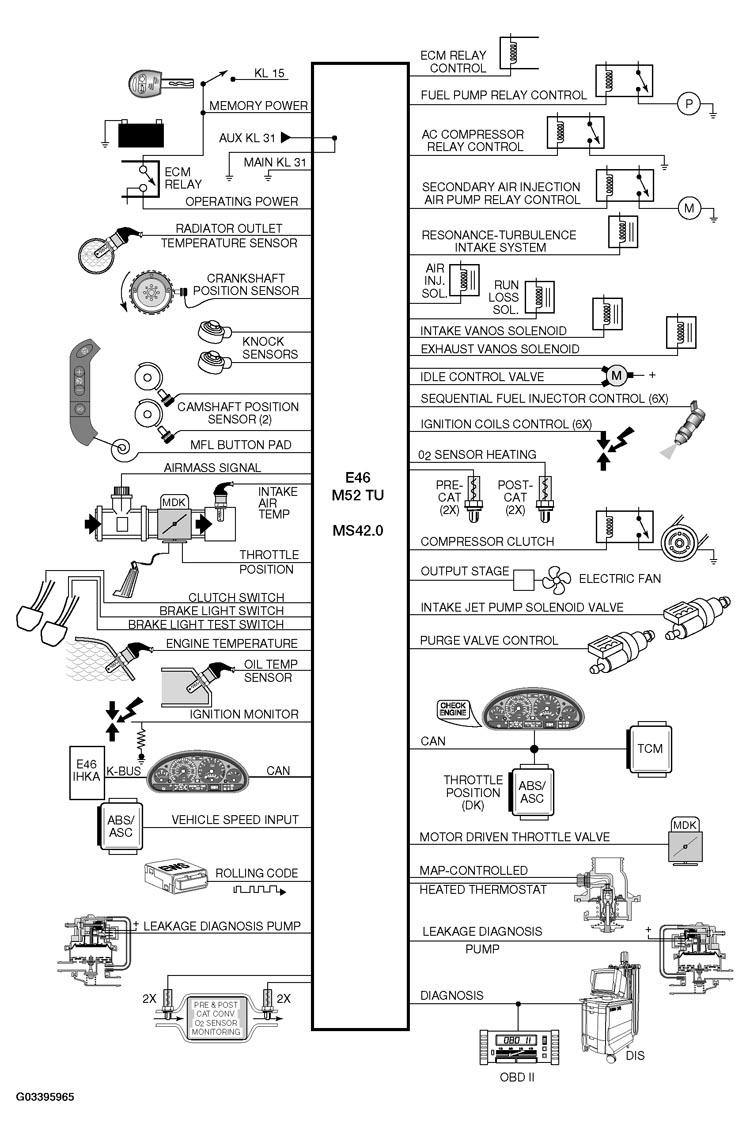

Fig 1: ECM Communication Diagram
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
