Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

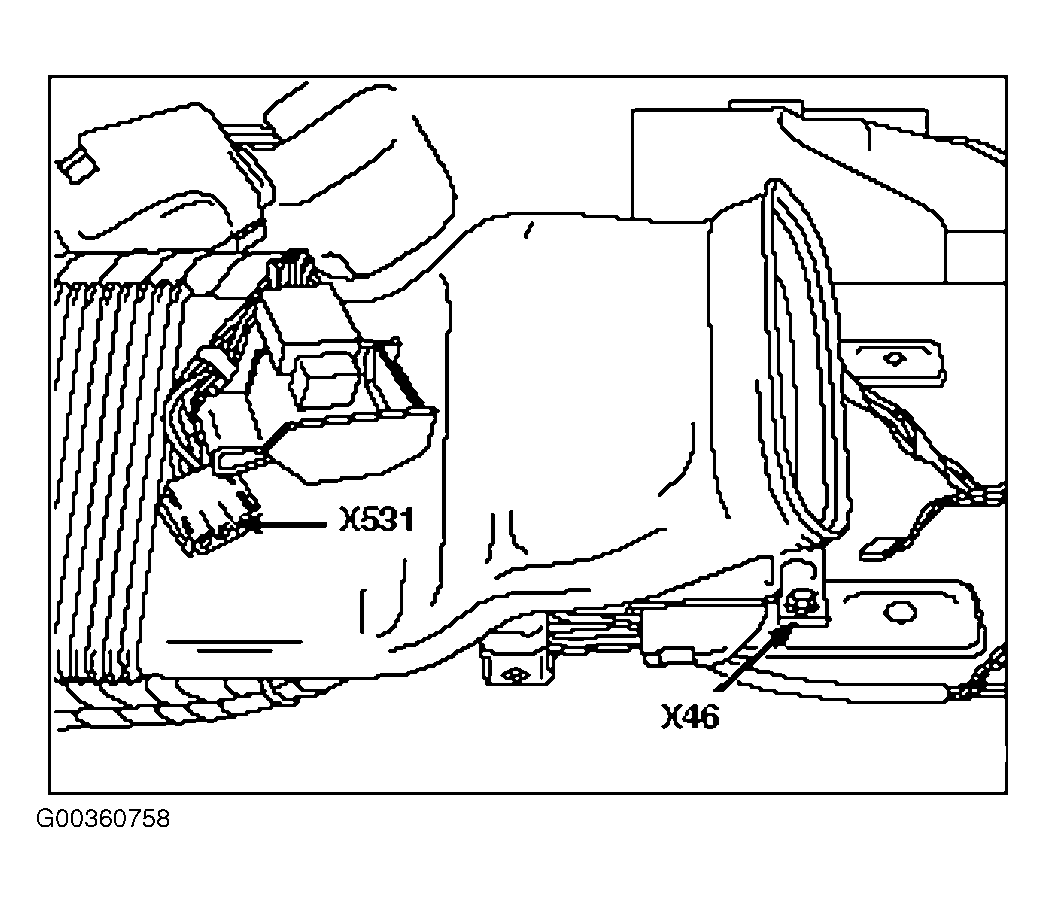

Fig 1: Rear Center Console

G00360758

Courtesy of BMW OF NORTH AMERICA, INC.

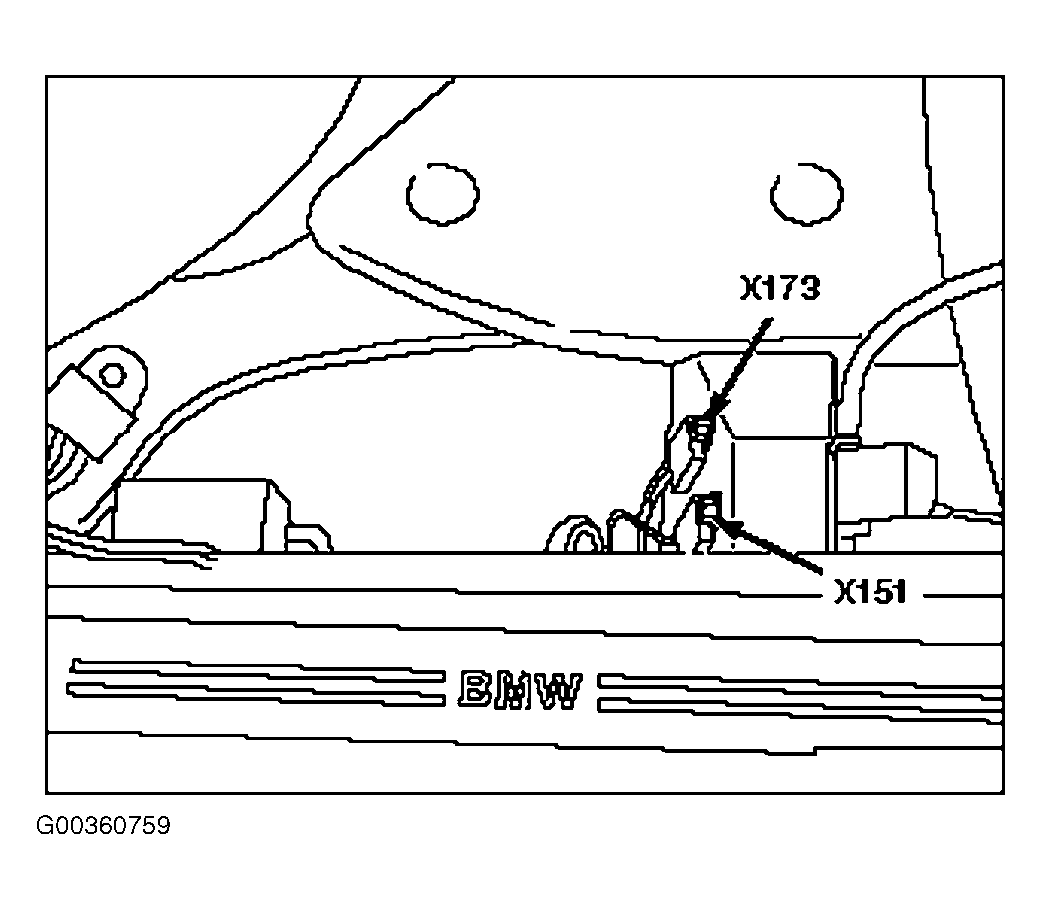

Fig 2: Left Door Sill

G00360759

Courtesy of BMW OF NORTH AMERICA, INC.

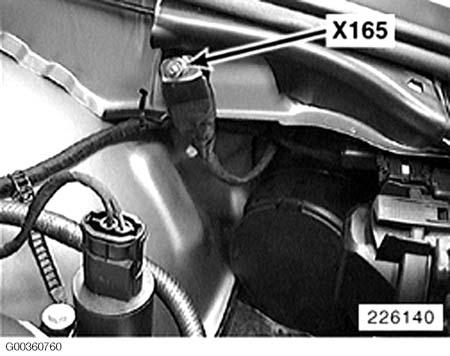

Fig 3: Left Front Of Engine Compartment

G00360760

Courtesy of BMW OF NORTH AMERICA, INC.

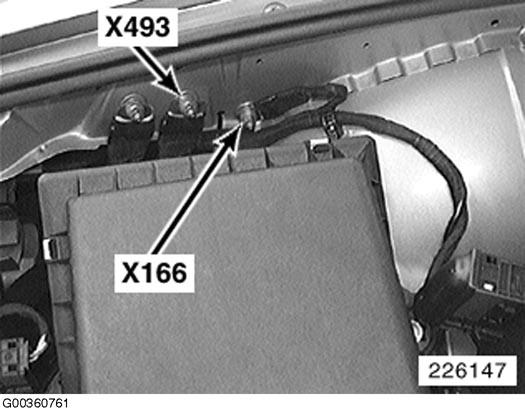

Fig 4: Right Front Of Engine Compartment

G00360761

Courtesy of BMW OF NORTH AMERICA, INC.

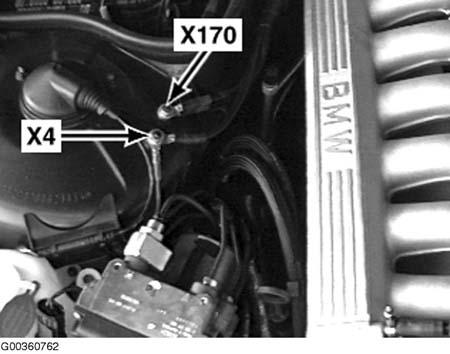

Fig 5: Right Side Of Engine Compartment

G00360762

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 6: Under Glove Box

G00360763

Courtesy of BMW OF NORTH AMERICA, INC.

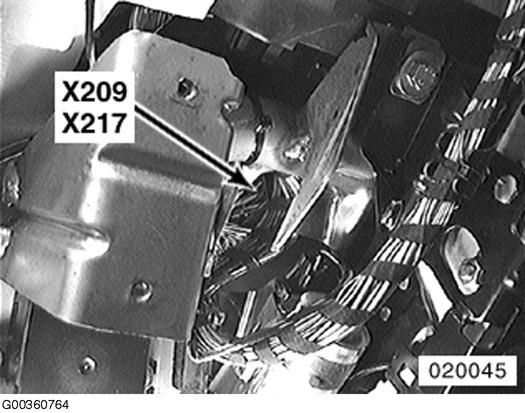

Fig 7: Left Side Of Dash

G00360764

Courtesy of BMW OF NORTH AMERICA, INC.

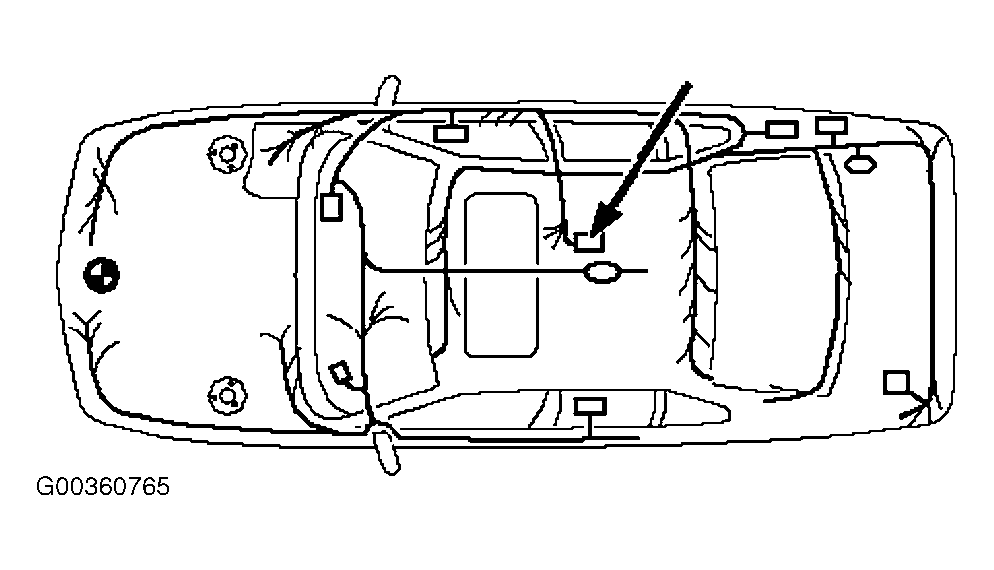

Fig 8: Under Rear Center Console

G00360765

Courtesy of BMW OF NORTH AMERICA, INC.

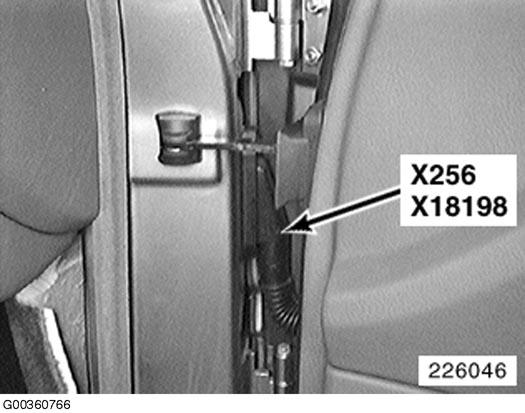

Fig 9: Right "A" Pillar

G00360766

Courtesy of BMW OF NORTH AMERICA, INC.

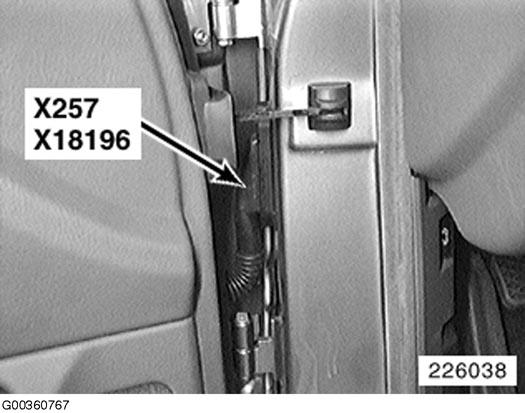

Fig 10: Left "A" Pillar

G00360767

Courtesy of BMW OF NORTH AMERICA, INC.

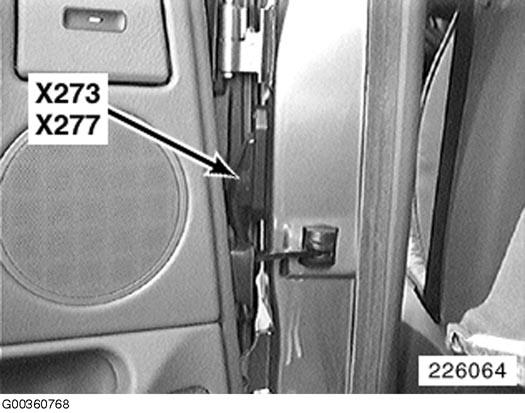

Fig 11: Left "B" Pillar

G00360768

Courtesy of BMW OF NORTH AMERICA, INC.

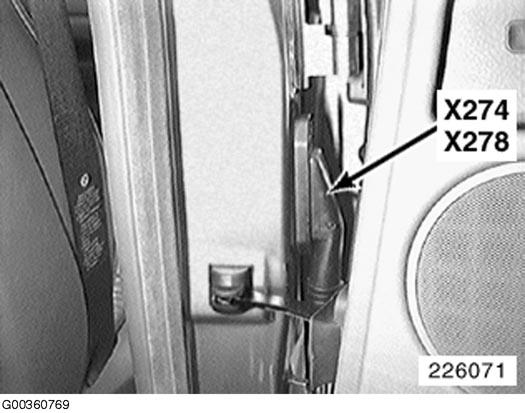

Fig 12: Right "B" Pillar

G00360769

Courtesy of BMW OF NORTH AMERICA, INC.

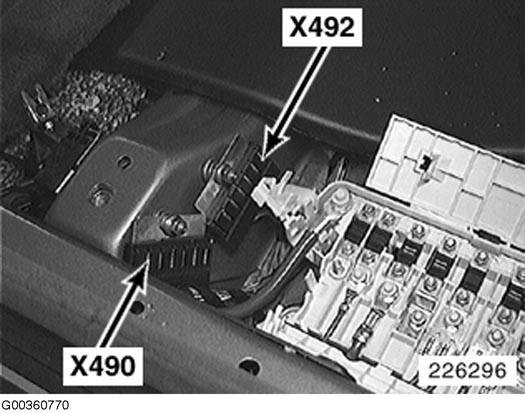

Fig 13: Right Door Sill

G00360770

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 14: Right "C" Pillar

G00360771

Courtesy of BMW OF NORTH AMERICA, INC.

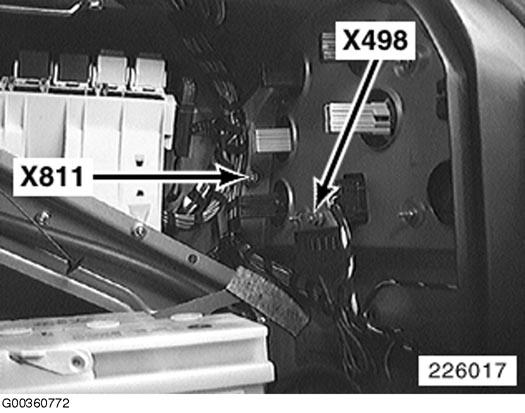

Fig 15: Right Rear Of Luggage Compartment

G00360772

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 16: Under Glove Box

G00360773

Courtesy of BMW OF NORTH AMERICA, INC.

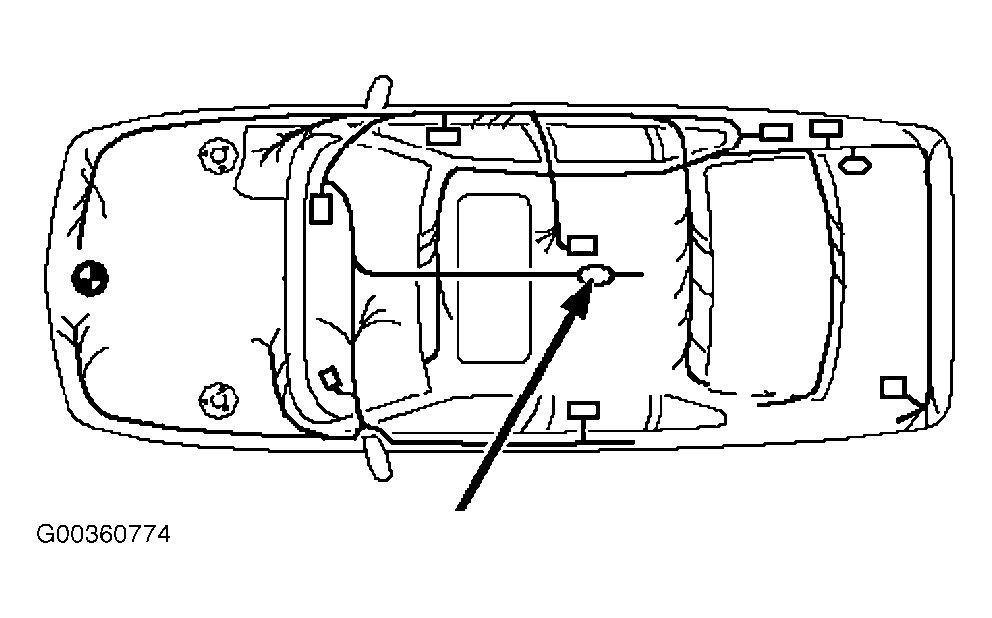

Fig 17: Under Rear Of Center Console

G00360774

Courtesy of BMW OF NORTH AMERICA, INC.

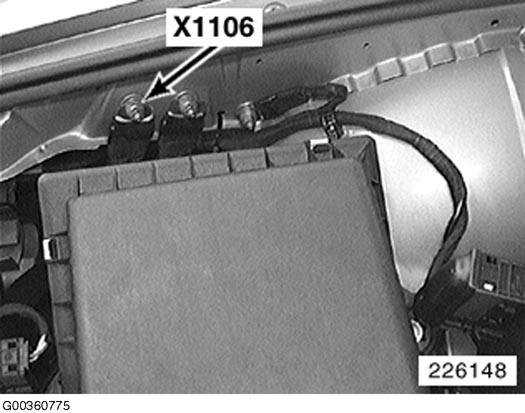

Fig 18: Right Front Of Engine Compartment

G00360775

Courtesy of BMW OF NORTH AMERICA, INC.

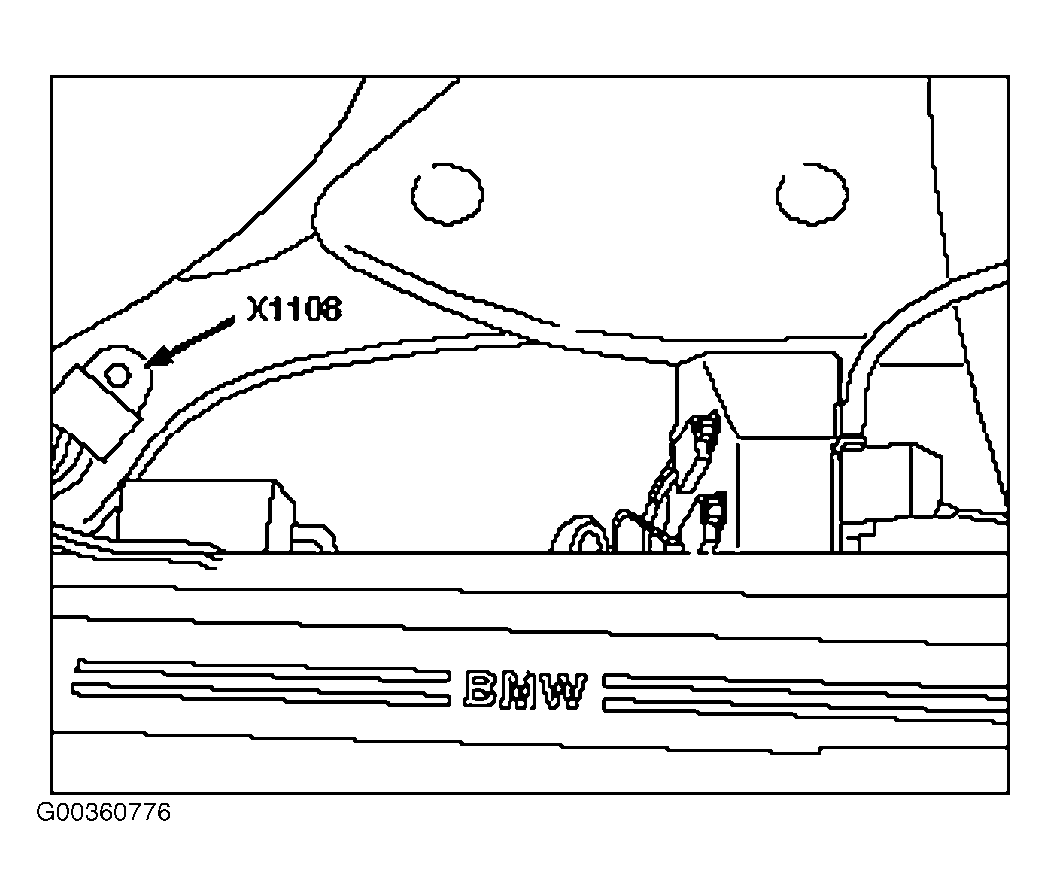

Fig 19: Left Door Sill

G00360776

Courtesy of BMW OF NORTH AMERICA, INC.

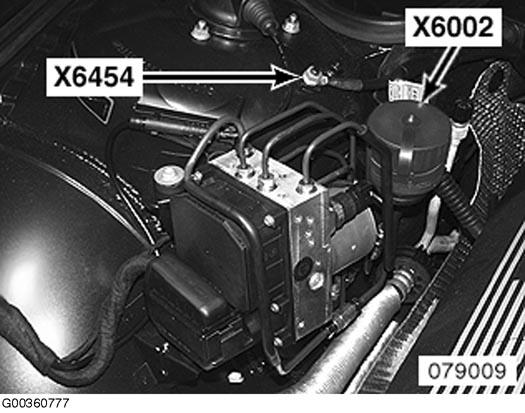

Fig 20: Right Side Of Engine Compartment

G00360777

Courtesy of BMW OF NORTH AMERICA, INC.

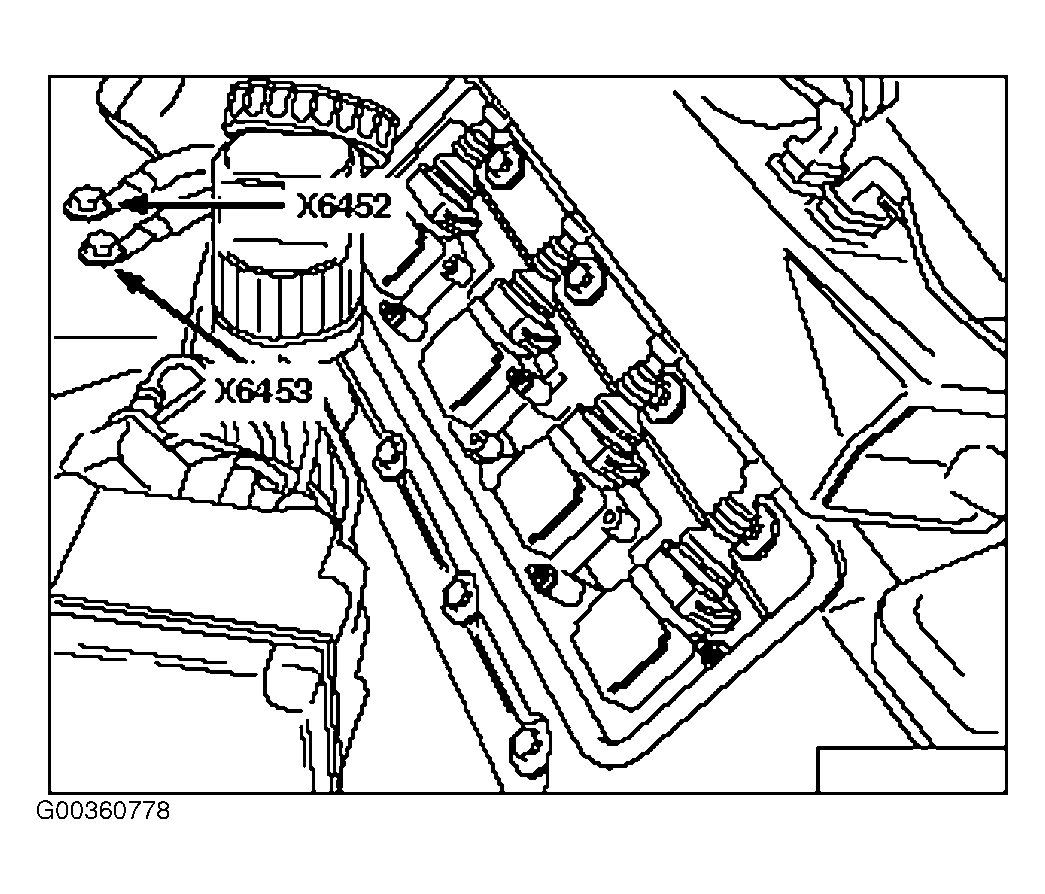

Fig 21: Right Front Shock Tower

G00360778

Courtesy of BMW OF NORTH AMERICA, INC.

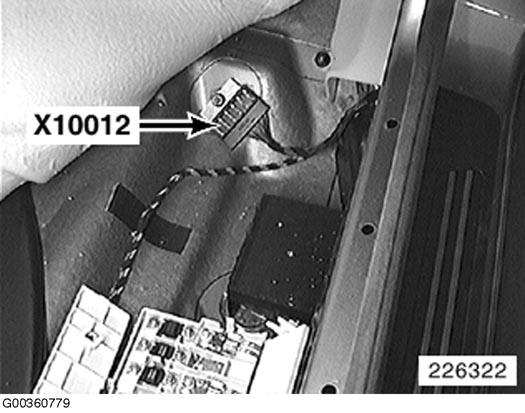

Fig 22: Right Side Of Right Footwell

G00360779

Courtesy of BMW OF NORTH AMERICA, INC.

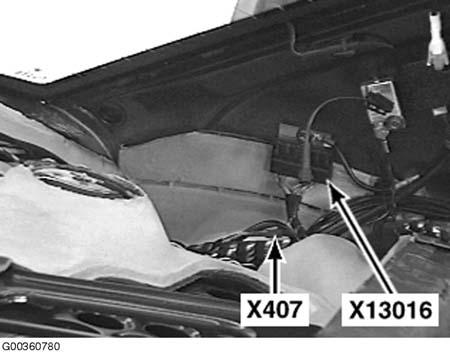

Fig 23: Left "C" Pillar

G00360780

Courtesy of BMW OF NORTH AMERICA, INC.

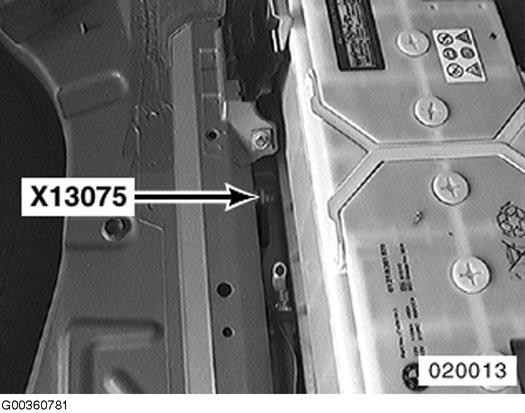

Fig 24: Right Rear Of Luggage Compartment

G00360781

Courtesy of BMW OF NORTH AMERICA, INC.

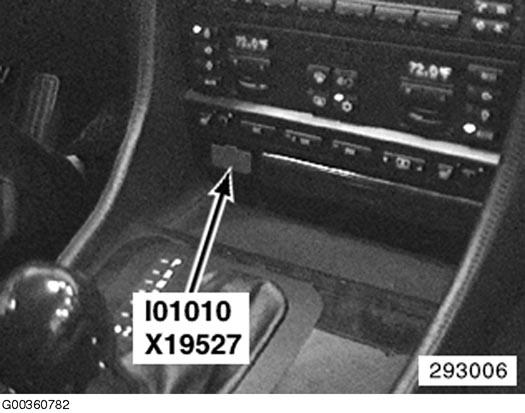

Fig 25: Center Console

G00360782

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 26: Behind Glove Box

G00360783

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 27: Right Kick Panel

G00360784

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 28: Below Center Console

G00360785

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 29: Left Front Door

G00360786

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 30: Right Front Door

G00360787

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 31: Front Of Roof

G00360788

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 32: Right Side Of Engine Compartment

G00360789

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 33: Right Side Of Engine Compartment

G00360790

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 34: Below Right Side Of Rear Seat

G00360791

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 35: Left Side Of Luggage Compartment

G00360792

Courtesy of BMW OF NORTH AMERICA, INC.

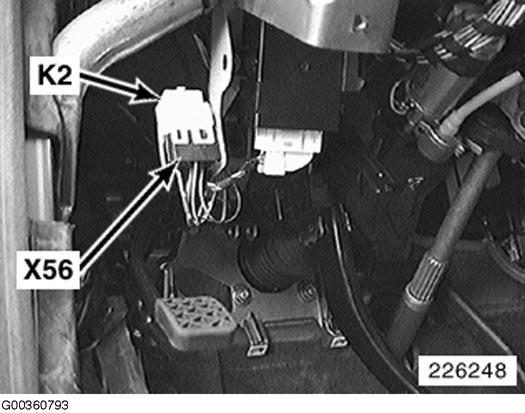

Fig 36: Left Side Of Dash

G00360793

Courtesy of BMW OF NORTH AMERICA, INC.

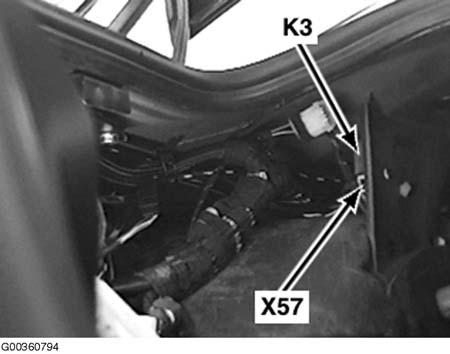

Fig 37: Left Front Of Luggage Compartment

G00360794

Courtesy of BMW OF NORTH AMERICA, INC.

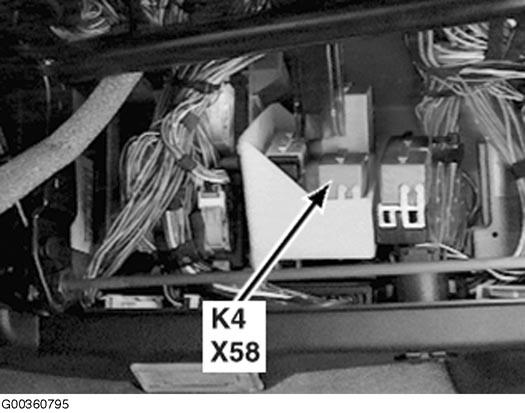

Fig 38: Behind Glove Box

G00360795

Courtesy of BMW OF NORTH AMERICA, INC.

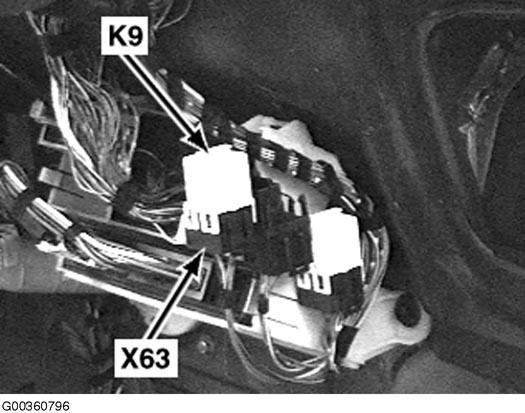

Fig 39: Behind Glove Box

G00360796

Courtesy of BMW OF NORTH AMERICA, INC.

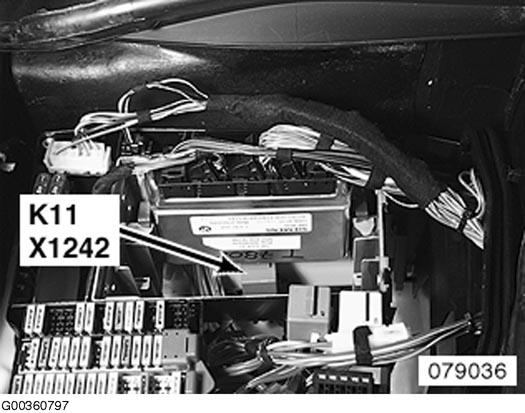

Fig 40: Right Rear Of Engine Compartment

G00360797

Courtesy of BMW OF NORTH AMERICA, INC.

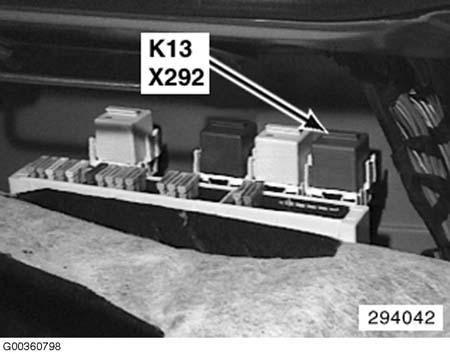

Fig 41: Right Rear Of Luggage Compartment

G00360798

Courtesy of BMW OF NORTH AMERICA, INC.

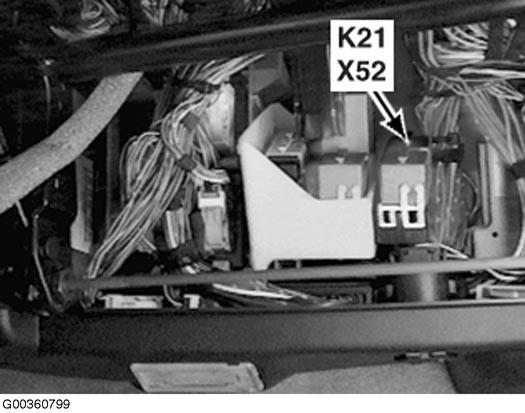

Fig 42: Behind Glove Box

G00360799

Courtesy of BMW OF NORTH AMERICA, INC.

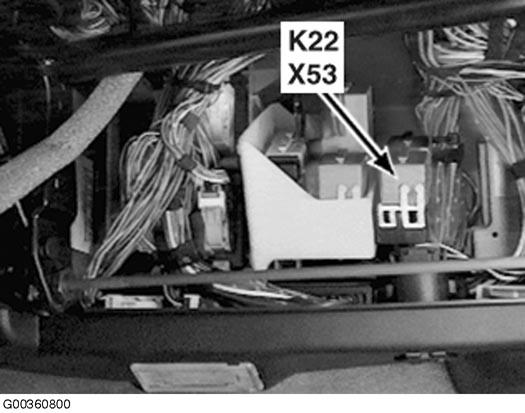

Fig 43: Behind Glove Box

G00360800

Courtesy of BMW OF NORTH AMERICA, INC.

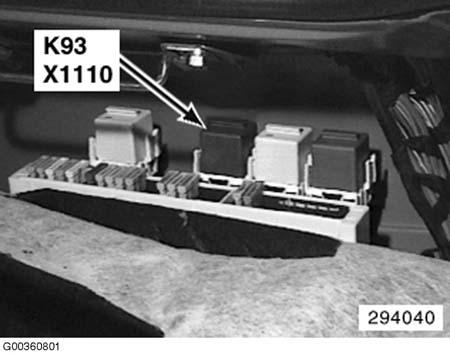

Fig 44: Right Rear Of Luggage Compartment

G00360801

Courtesy of BMW OF NORTH AMERICA, INC.

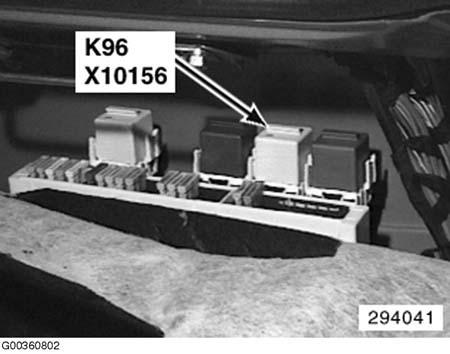

Fig 45: Right Rear Of Luggage Compartment

G00360802

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 46: Right Side Of Luggage Compartment

G00360803

Courtesy of BMW OF NORTH AMERICA, INC.

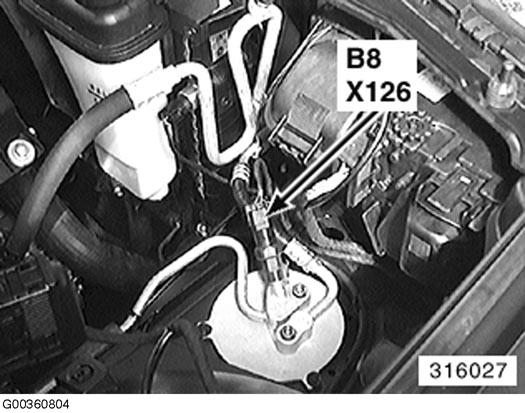

Fig 47: Right Front Of Engine Compartment

G00360804

Courtesy of BMW OF NORTH AMERICA, INC.

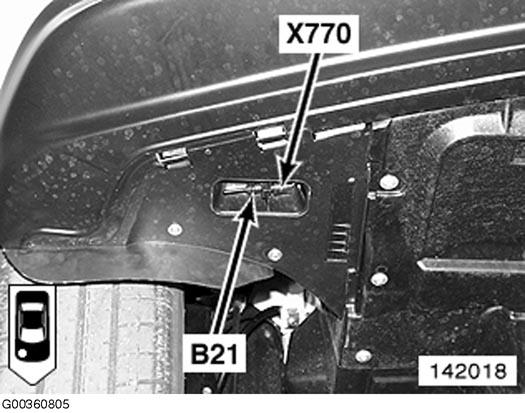

Fig 48: Under Right Front Of Vehicle

G00360805

Courtesy of BMW OF NORTH AMERICA, INC.

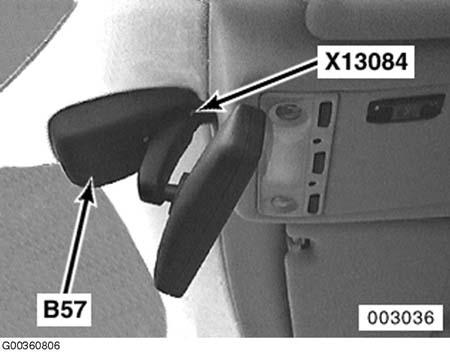

Fig 49: Near Rear View Mirror

G00360806

Courtesy of BMW OF NORTH AMERICA, INC.

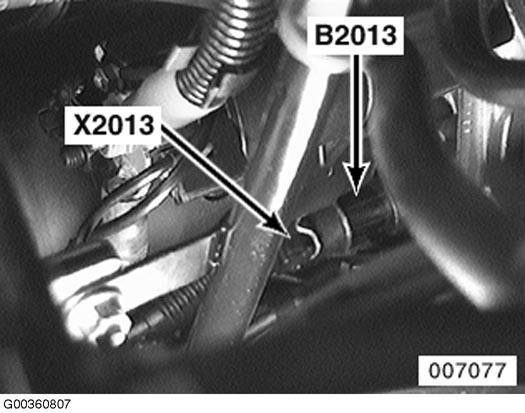

Fig 50: Lower Left Side Of Engine

G00360807

Courtesy of BMW OF NORTH AMERICA, INC.

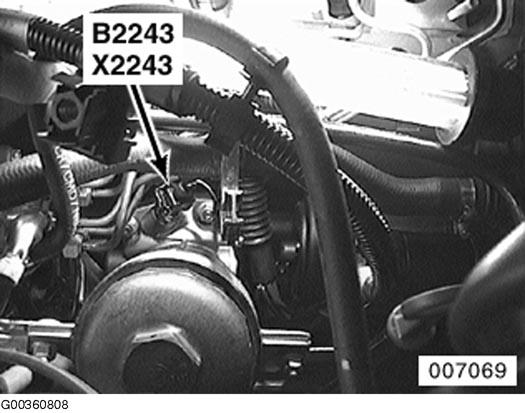

Fig 51: Lower Left Side Of Engine

G00360808

Courtesy of BMW OF NORTH AMERICA, INC.

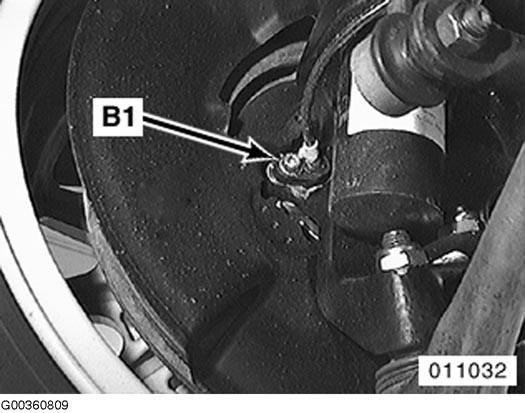

Fig 52: Right Front Wheel Hub

G00360809

Courtesy of BMW OF NORTH AMERICA, INC.

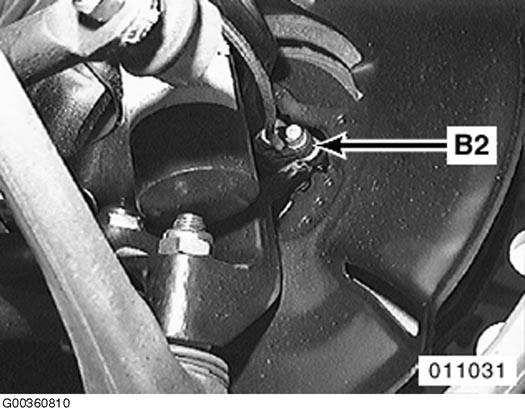

Fig 53: Left Front Wheel Hub

G00360810

Courtesy of BMW OF NORTH AMERICA, INC.

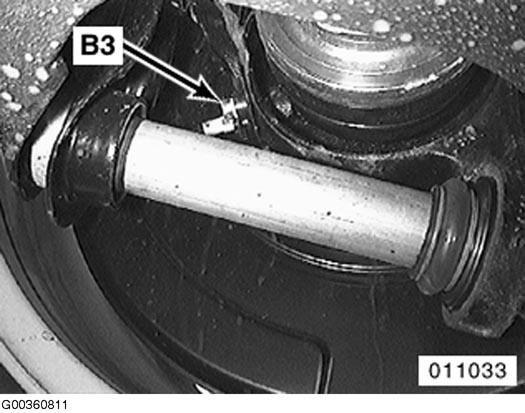

Fig 54: Right Rear Wheel Hub

G00360811

Courtesy of BMW OF NORTH AMERICA, INC.

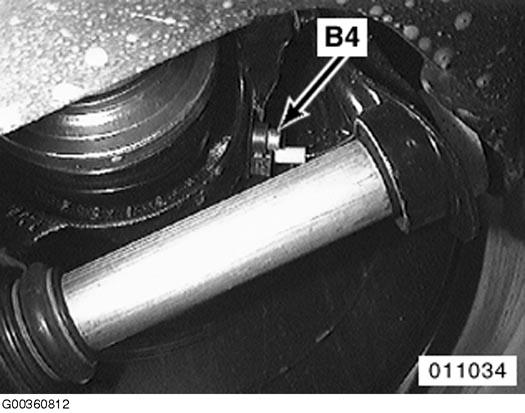

Fig 55: Left Rear Wheel Hub

G00360812

Courtesy of BMW OF NORTH AMERICA, INC.

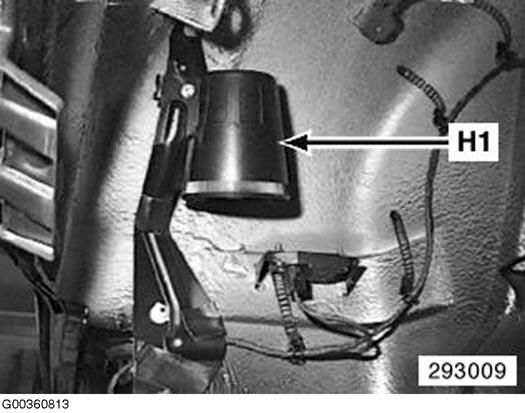

Fig 56: Right Rear Wheelwell

G00360813

Courtesy of BMW OF NORTH AMERICA, INC.

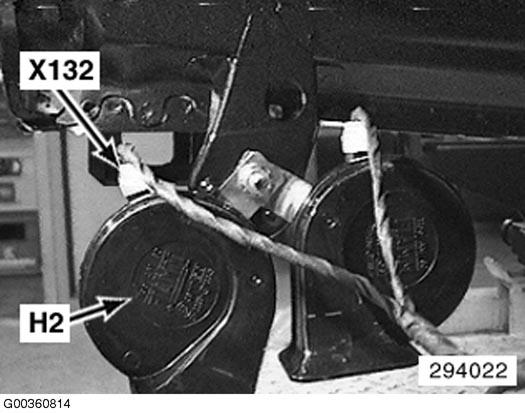

Fig 57: Under Right Front Bumper

G00360814

Courtesy of BMW OF NORTH AMERICA, INC.

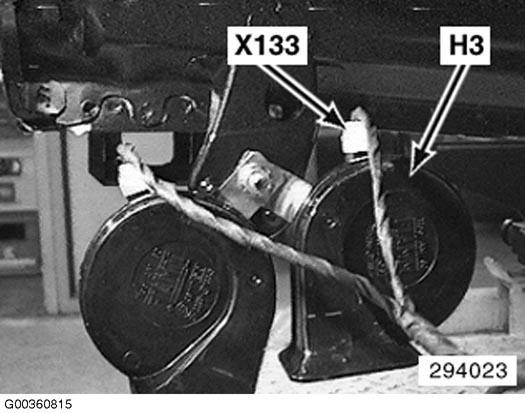

Fig 58: Under Right Front Bumper

G00360815

Courtesy of BMW OF NORTH AMERICA, INC.

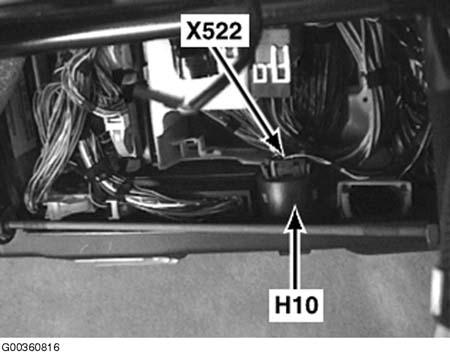

Fig 59: Under Glove Box

G00360816

Courtesy of BMW OF NORTH AMERICA, INC.

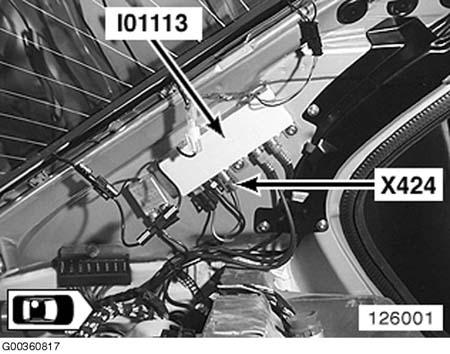

Fig 60: Left "C" Pillar

G00360817

Courtesy of BMW OF NORTH AMERICA, INC.

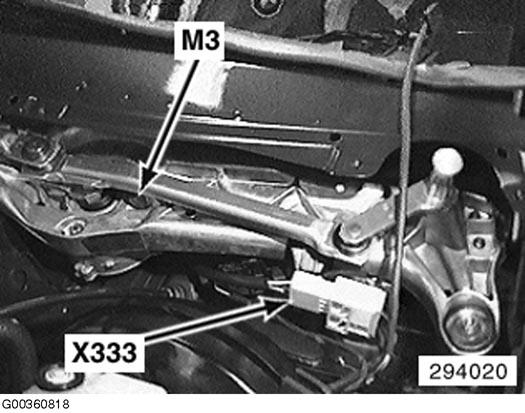

Fig 61: Left Rear Of Engine Compartment

G00360818

Courtesy of BMW OF NORTH AMERICA, INC.

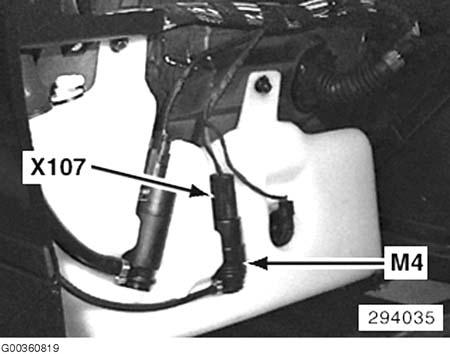

Fig 62: Washer Reservoir

G00360819

Courtesy of BMW OF NORTH AMERICA, INC.

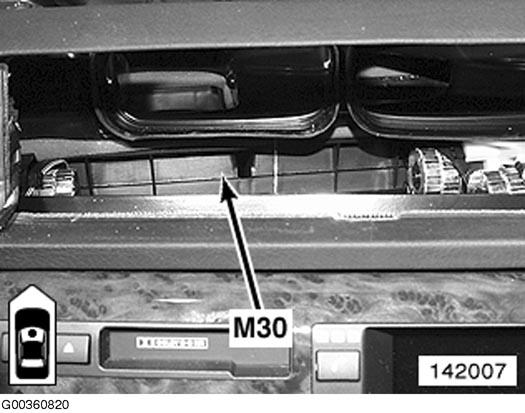

Fig 63: Behind Center Of Dash

G00360820

Courtesy of BMW OF NORTH AMERICA, INC.

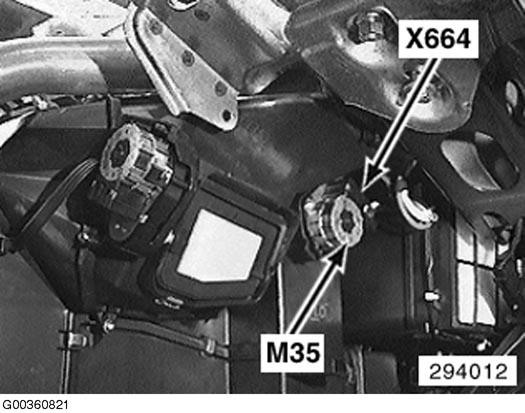

Fig 64: Left Side Of Right Footwell

G00360821

Courtesy of BMW OF NORTH AMERICA, INC.

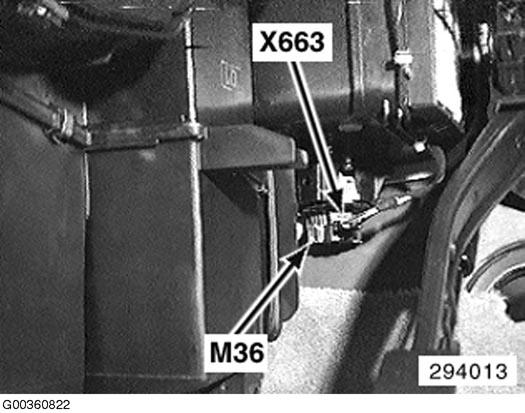

Fig 65: Left Side Of Right Footwell

G00360822

Courtesy of BMW OF NORTH AMERICA, INC.

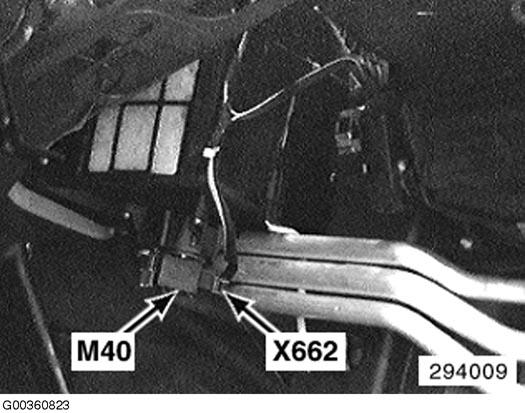

Fig 66: Right Side Of Left Footwell

G00360823

Courtesy of BMW OF NORTH AMERICA, INC.

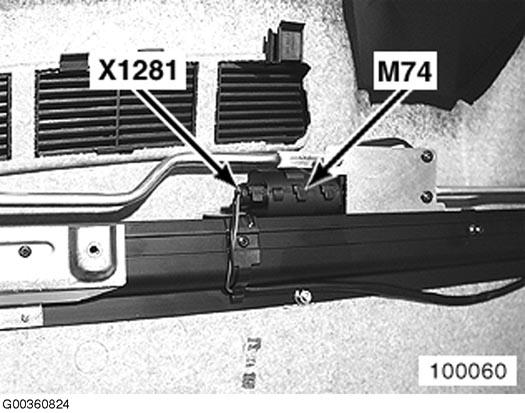

Fig 67: Under Rear Window Shelf

G00360824

Courtesy of BMW OF NORTH AMERICA, INC.

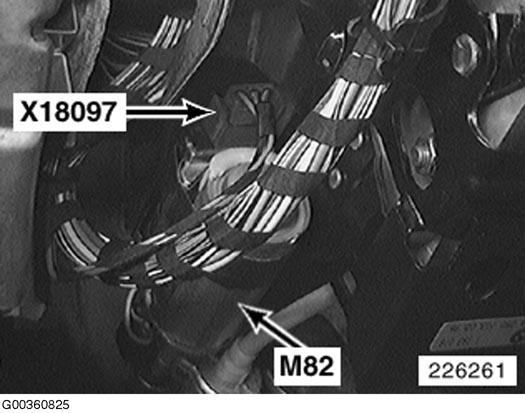

Fig 68: Steering Column

G00360825

Courtesy of BMW OF NORTH AMERICA, INC.

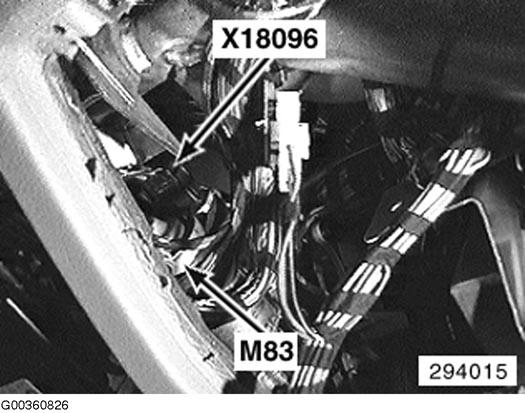

Fig 69: Steering Column

G00360826

Courtesy of BMW OF NORTH AMERICA, INC.

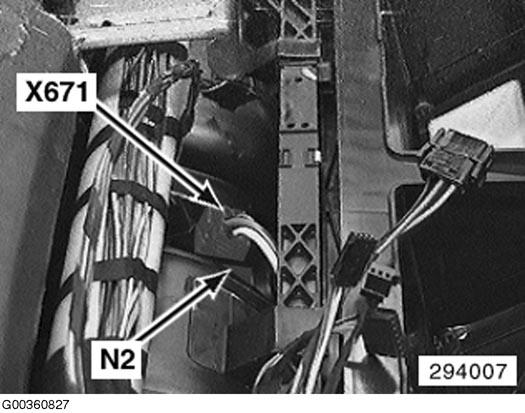

Fig 70: Behind Top Center Of Dash

G00360827

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 71: Right "C" Pillar

G00360828

Courtesy of BMW OF NORTH AMERICA, INC.

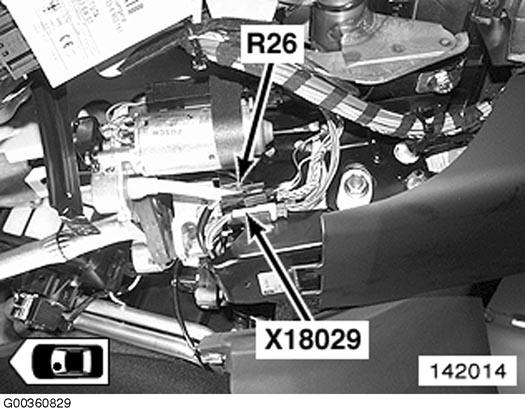

Fig 72: Steering Column

G00360829

Courtesy of BMW OF NORTH AMERICA, INC.

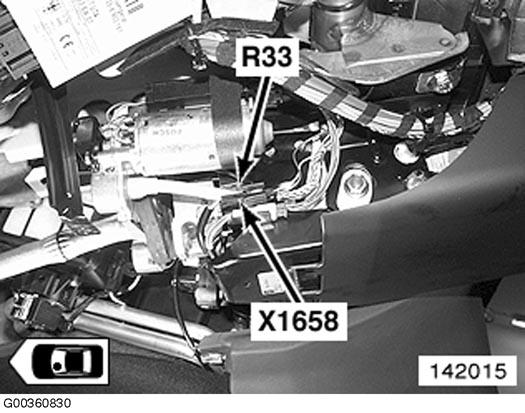

Fig 73: Steering Column

G00360830

Courtesy of BMW OF NORTH AMERICA, INC.

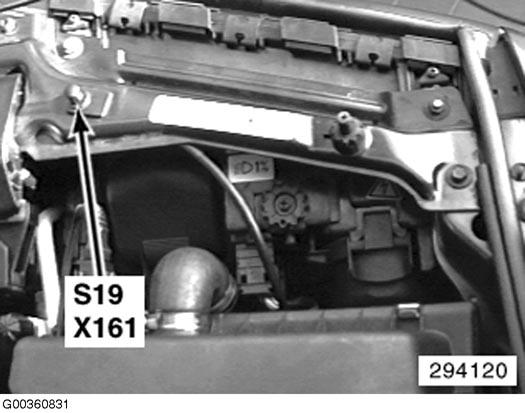

Fig 74: Right Front Of Engine Compartment

G00360831

Courtesy of BMW OF NORTH AMERICA, INC.

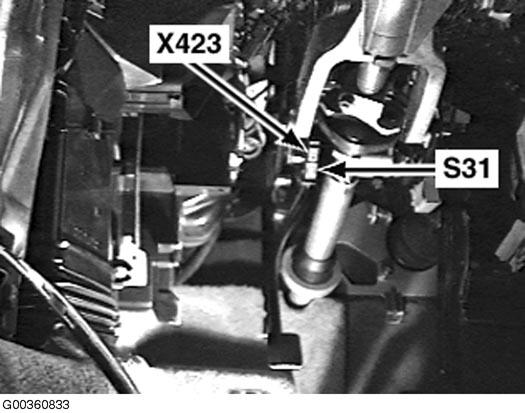

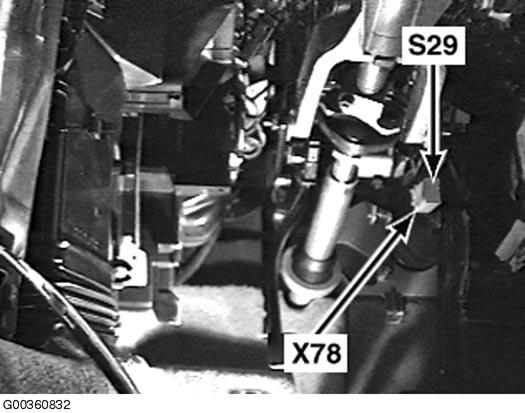

Fig 75: Left Side Of Dash

G00360832

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 76: Left Side Of Dash

G00360833

Courtesy of BMW OF NORTH AMERICA, INC.

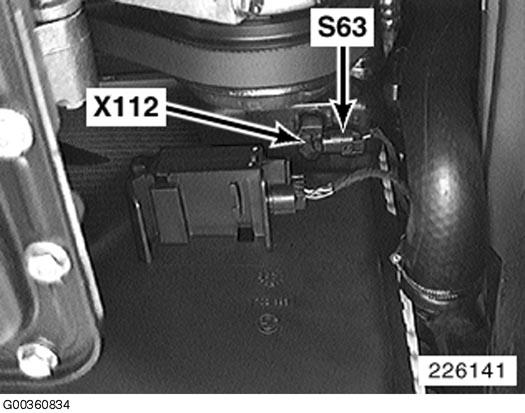

Fig 77: Right Front Of Engine Compartment

G00360834

Courtesy of BMW OF NORTH AMERICA, INC.

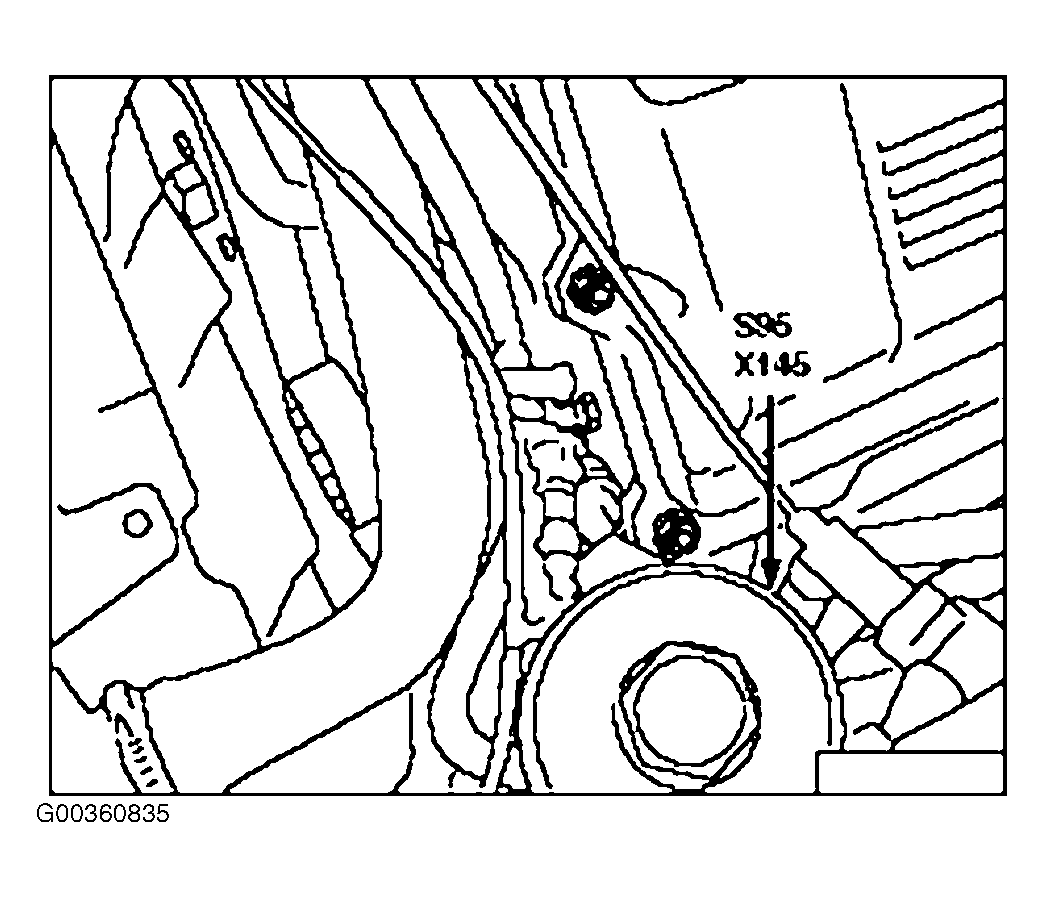

Fig 78: Left Front Of Engine Compartment

G00360835

Courtesy of BMW OF NORTH AMERICA, INC.

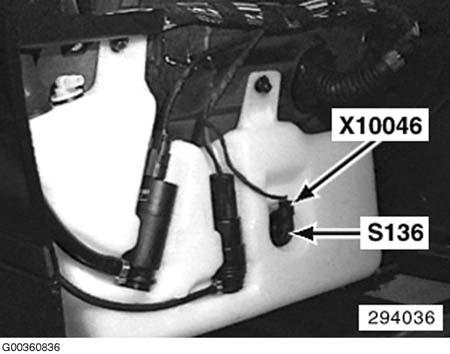

Fig 79: Washer Reservoir

G00360836

Courtesy of BMW OF NORTH AMERICA, INC.

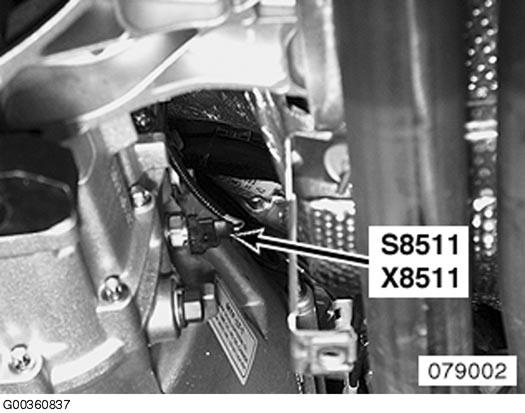

Fig 80: Right Side Of Transmission

G00360837

Courtesy of BMW OF NORTH AMERICA, INC.

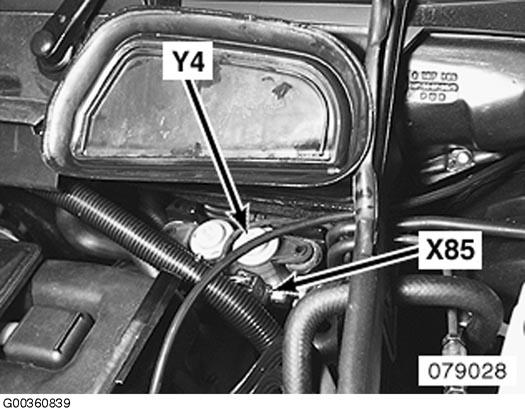

Fig 81: Left Rear Of Engine Compartment

G00360839

Courtesy of BMW OF NORTH AMERICA, INC.

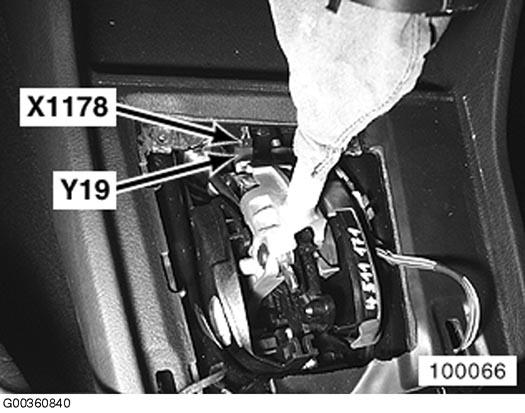

Fig 82: Below Center Console

G00360840

Courtesy of BMW OF NORTH AMERICA, INC.

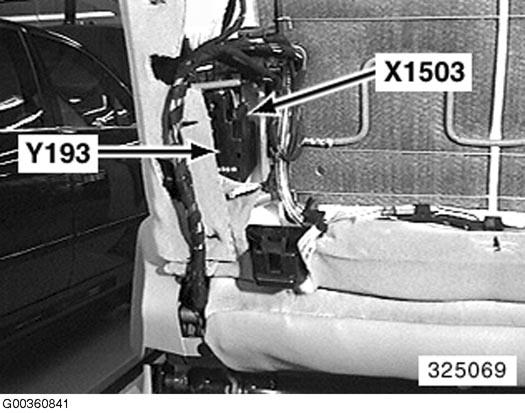

Fig 83: Driver's Seatback

G00360841

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 84: Passenger's Seatback

G00360842

Courtesy of BMW OF NORTH AMERICA, INC.

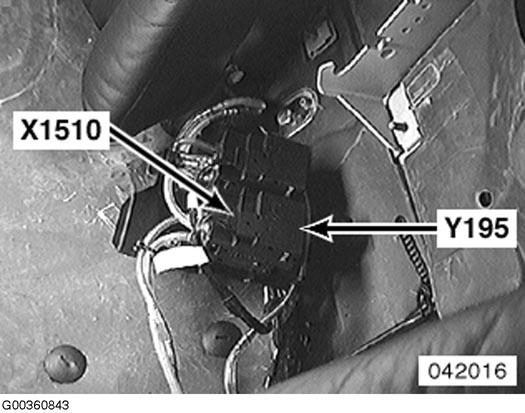

Fig 85: Below Rear Seat

G00360843

Courtesy of BMW OF NORTH AMERICA, INC.

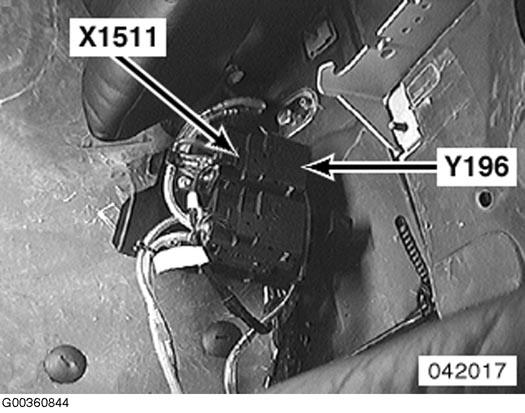

Fig 86: Below Rear Seat

G00360844

Courtesy of BMW OF NORTH AMERICA, INC.

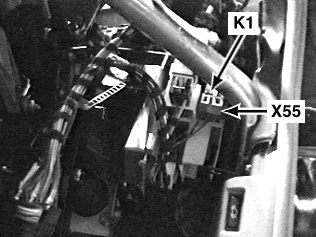

Fig 87: Under Left Side Of Dash

G00017566

Courtesy of BMW OF NORTH AMERICA, INC.
