Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

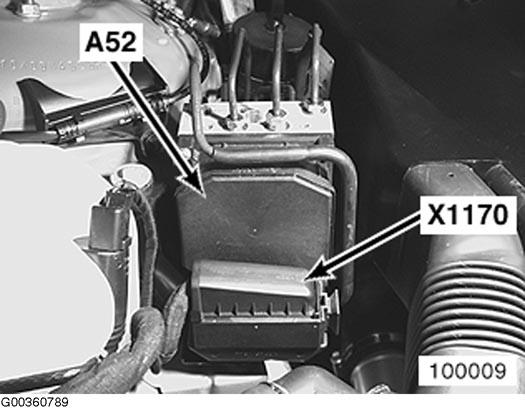

| ABS/ASC Control Module (A52) | Right side of engine compartment. See Figure. |

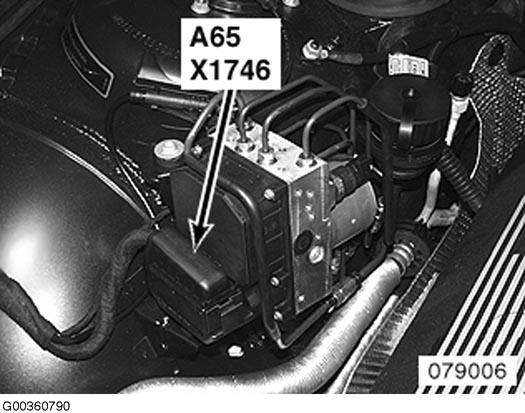

| ABS/DSC Control Module (A65) | Right side of engine compartment. See Figure. |

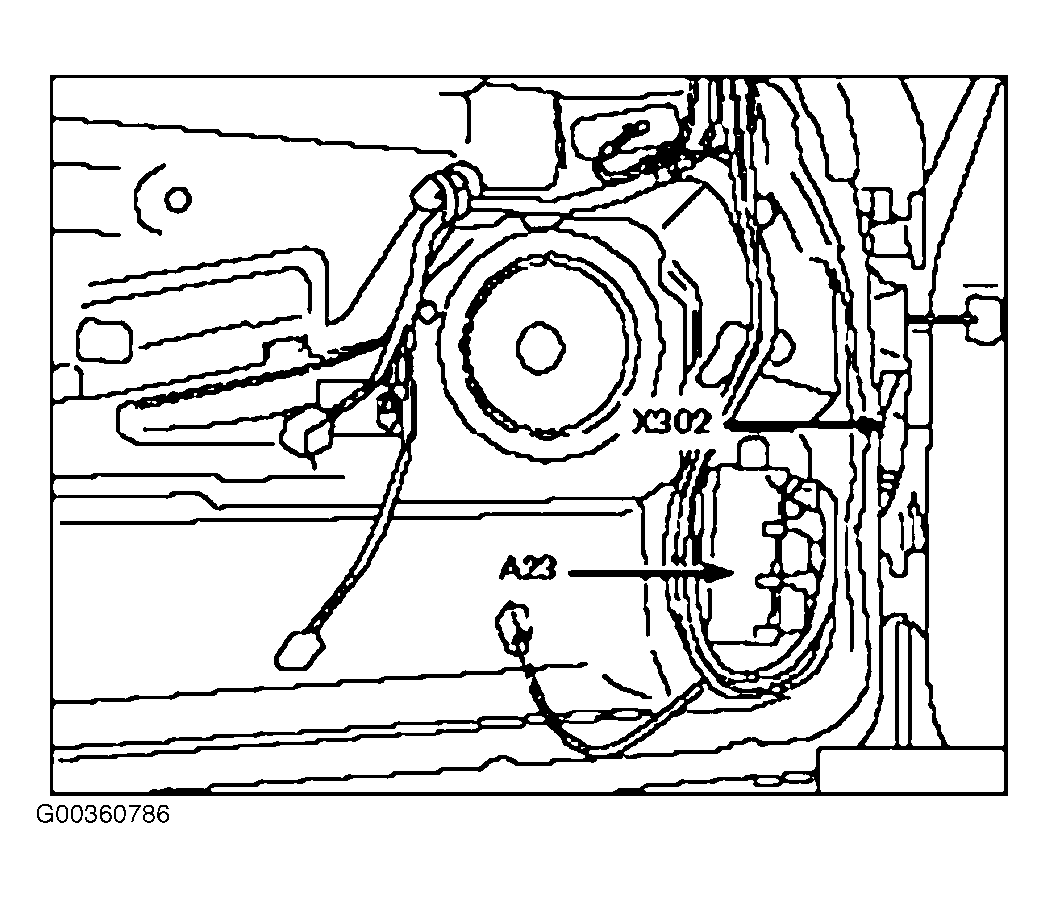

| Driver's Door Module (A23) | Left front door. See Figure. |

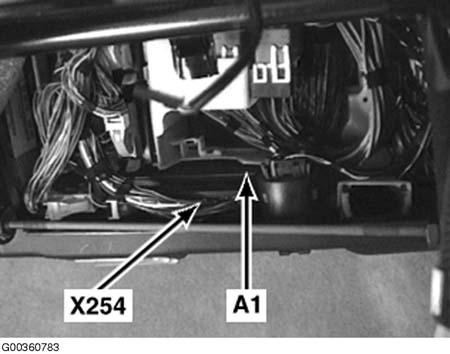

| General Module (A1) | Behind glove box. See Figure. |

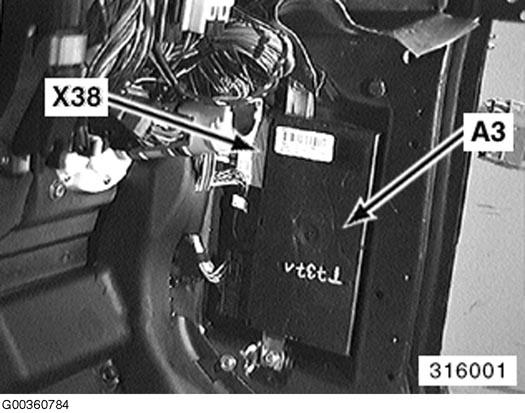

| Light Module (A3) | Right kick panel. See Figure. |

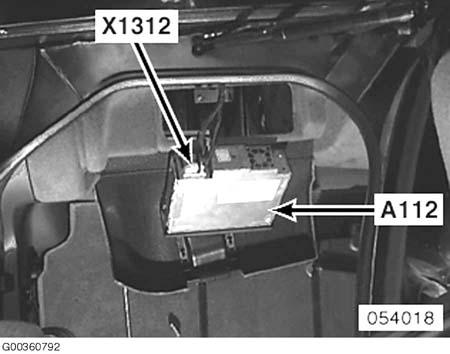

| Navigation Control Module (A112) | Left side of luggage compartment. See Figure. |

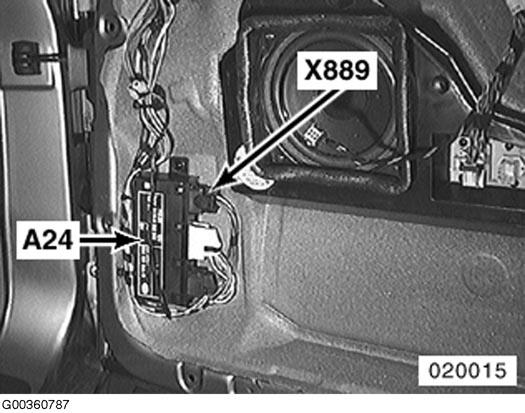

| Passenger's Door Module (A24) | Right front door. See Figure. |

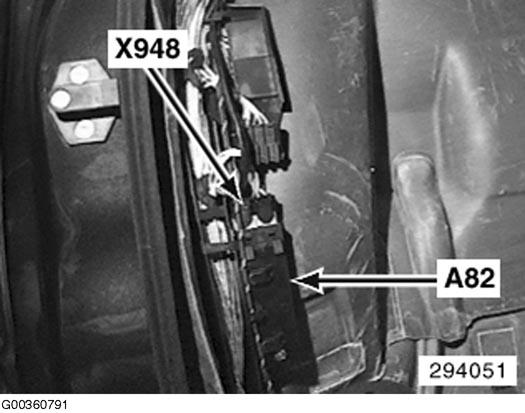

| Sun Blind Control Module (A82) | Below right side of rear seat. See Figure. |

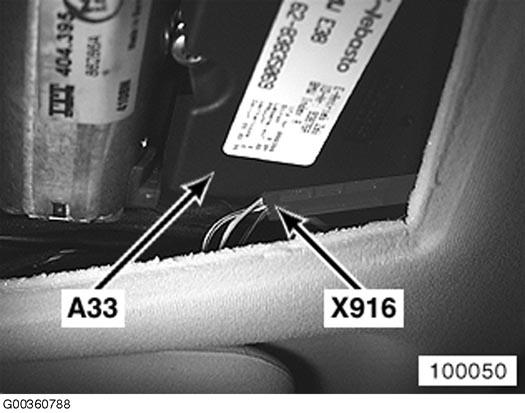

| Sunroof Module (A33) | Front of roof. See Figure. |

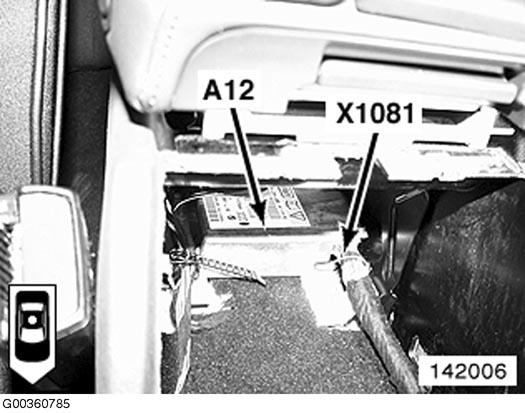

| Supplemental Restraint System Control Module (A12) | Below center console. See Figure. |
