13 00 002 Checking function of Digital Engine Electronics (DME)

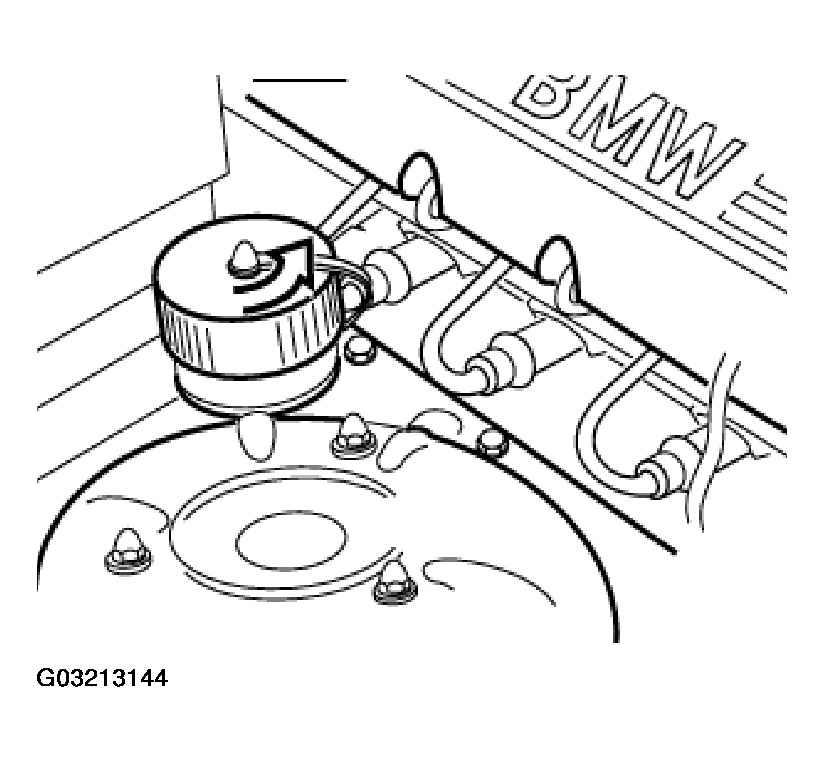

Diagnostic connector in engine compartment:

Connect up MoDiC or BMW DIS.

Interrogate DME fault memory.

Note down fault messages stored in memory.

Further information on troubleshooting in line with DIS or MoDiC instructions.

Fig 1: [Checking Digital Engine Electronics Function]

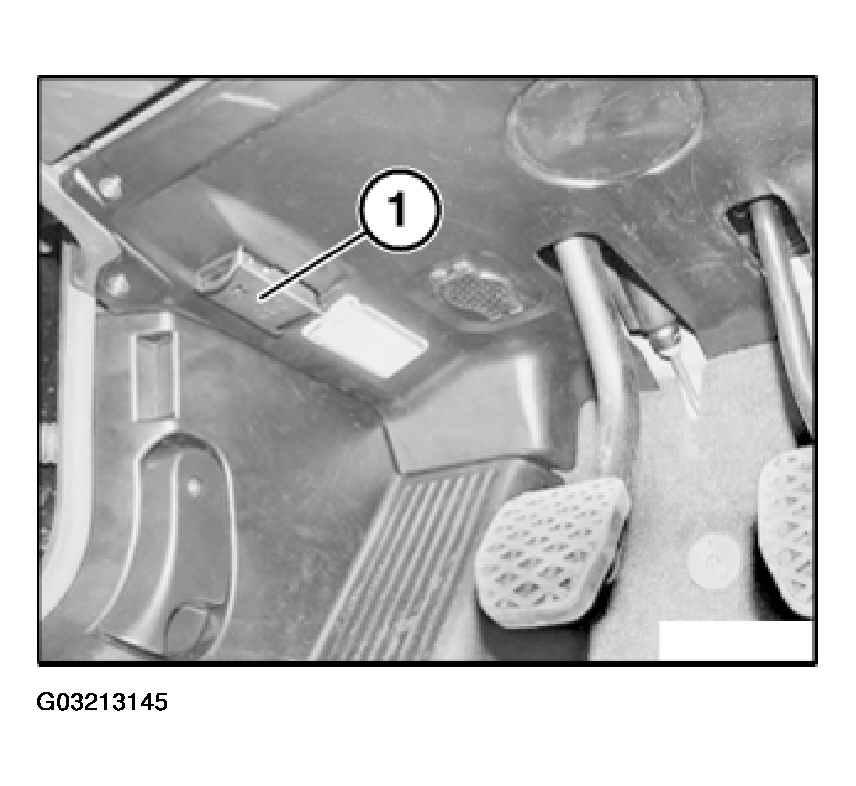

OBD socket (1) in driver's footwell:

Same procedure as above.

Fig 2: Locating OBD Socket In Driver'S Footwell
