Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

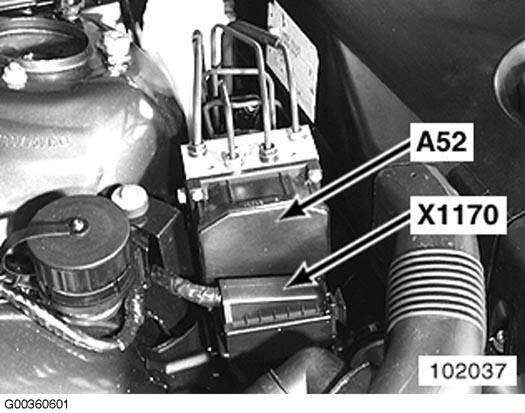

| ABS/ASC Control Module (A52) | Right side of engine compartment. See Figure. |

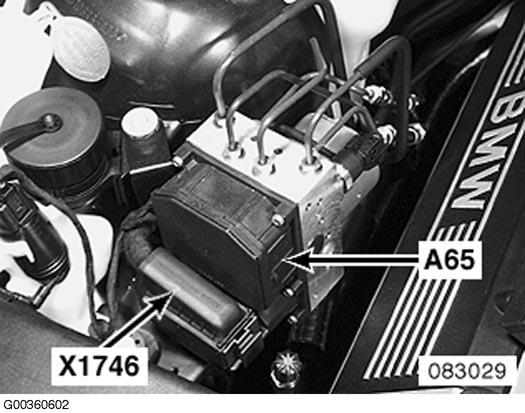

| ABS/DSC Control Module (A65) | Right side of engine compartment. See Figure. |
| AGS Transmission Control Module | Right rear of engine compartment. |

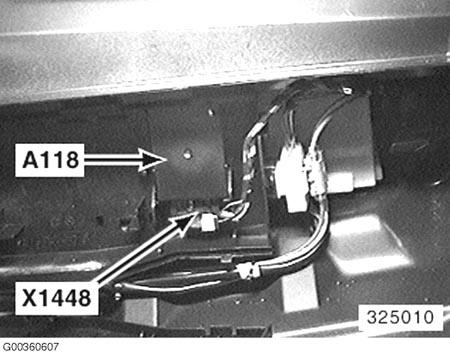

| Air Suspension Control Unit (A118) | Right side of spare tire. See Figure. |

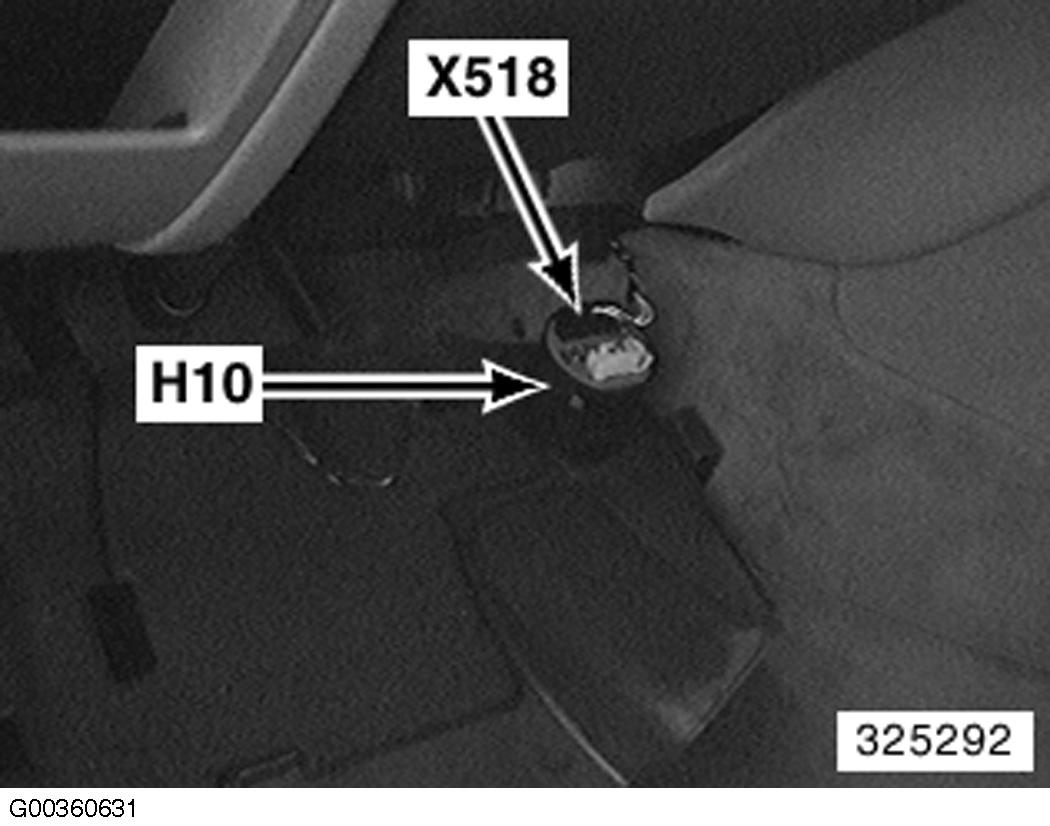

| Chime Module (H10) | Driver's footwell. See Figure. |

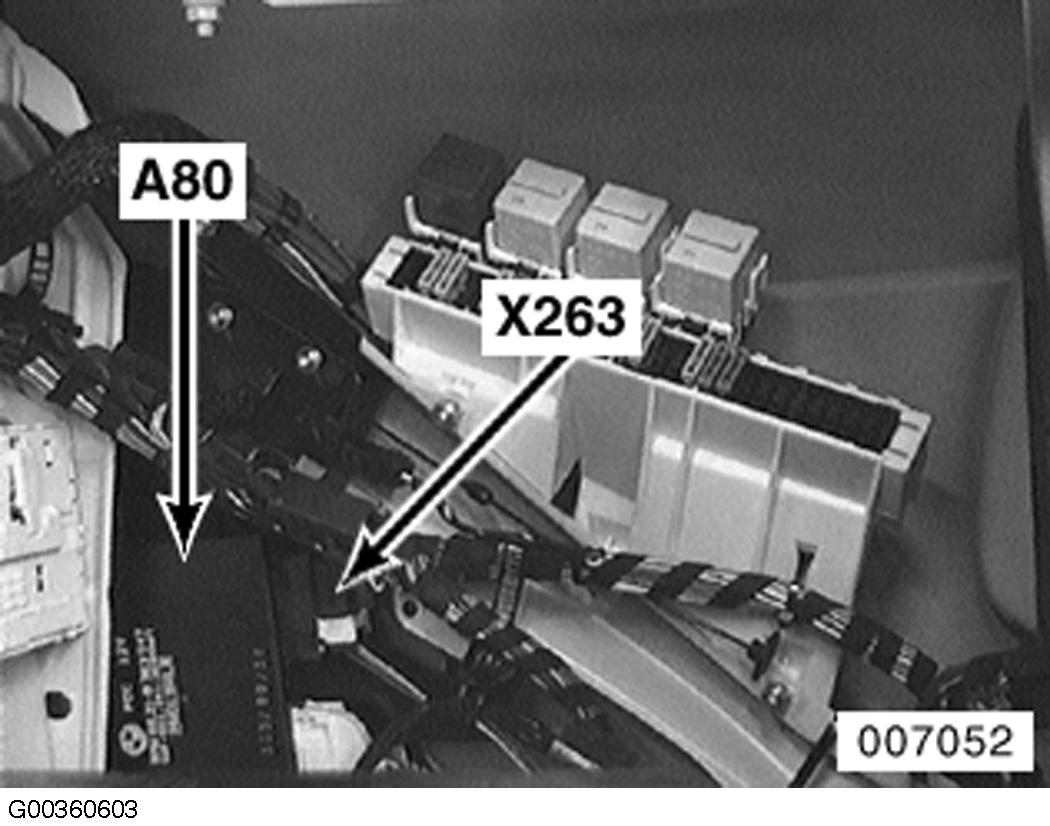

| Electronic Shock Absorber Control Module (EDC) (A80) | Right rear of luggage compartment. See Figure. |
| Engine Control Module (DME) | Left rear of engine compartment. |

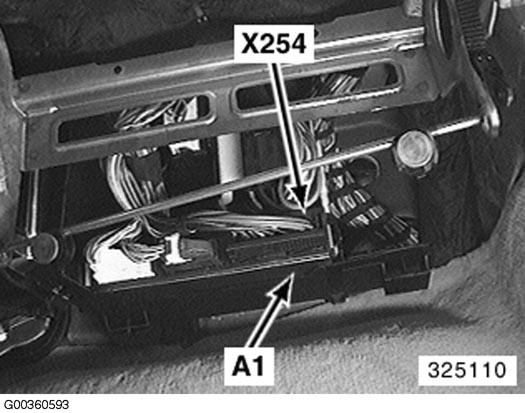

| General Module (A1) | Behind glove box. See Figure. |

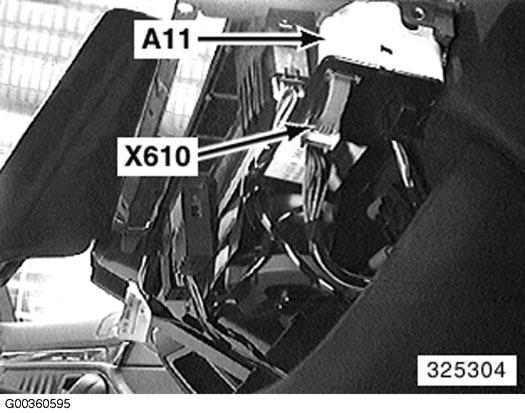

| Heating And A/C Control Module (A11) | Center console. See Figure. |

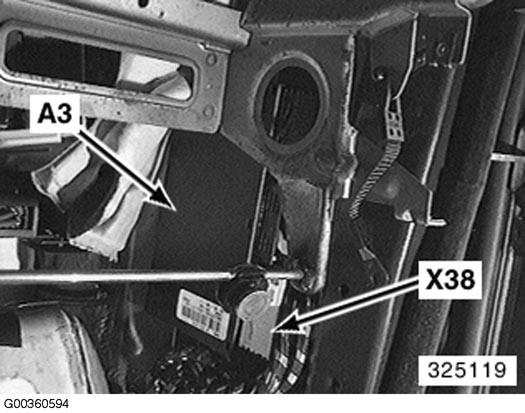

| Light Module (A3) | Left kick panel. See Figure. |

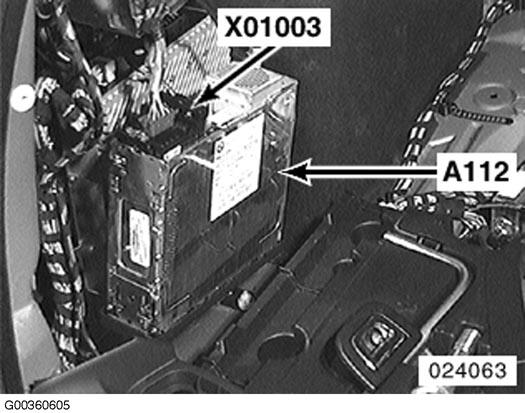

| Navigation Control Module (A112) (Sedan) | Left rear of luggage compartment. See Figure. |
| Navigation Control Module (A112) (Wagon) | Left side of luggage compartment. See Figure. |

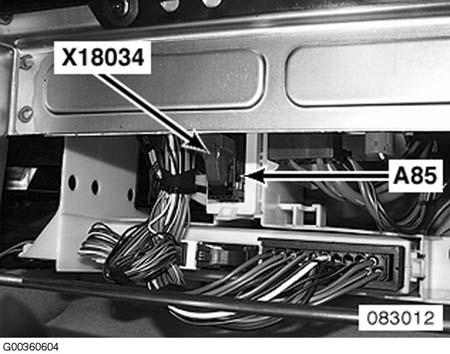

| RDC Control Module (A85) | Behind glove box. See Figure. |

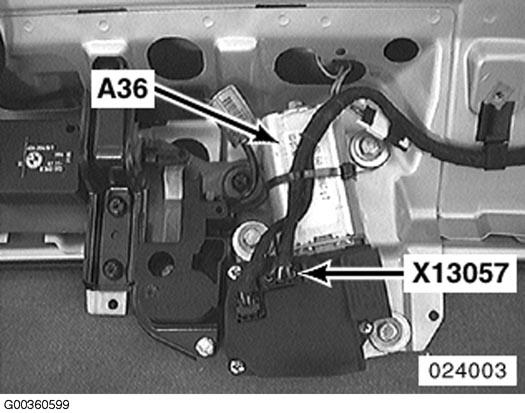

| Rear Intermittent Wipe/Wash Control Unit (A36) (Wagon) | Liftgate. See Figure. |

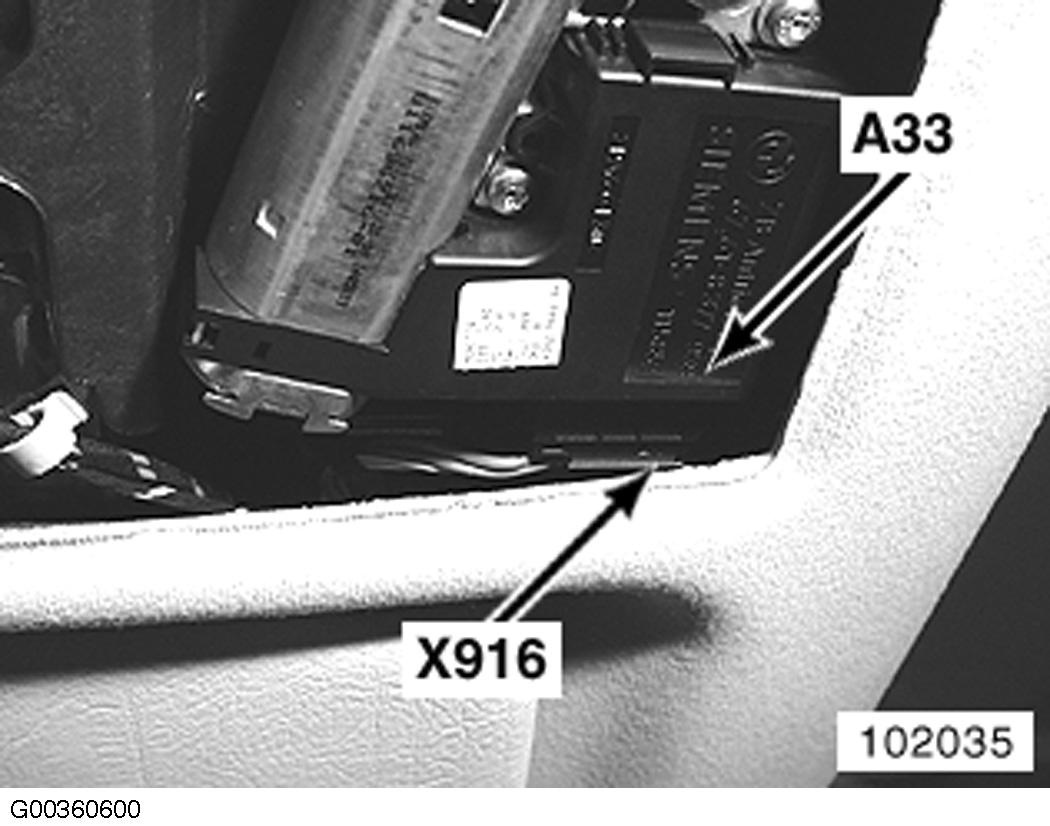

| Sunroof Module (A33) | Front of roof. See Figure. |

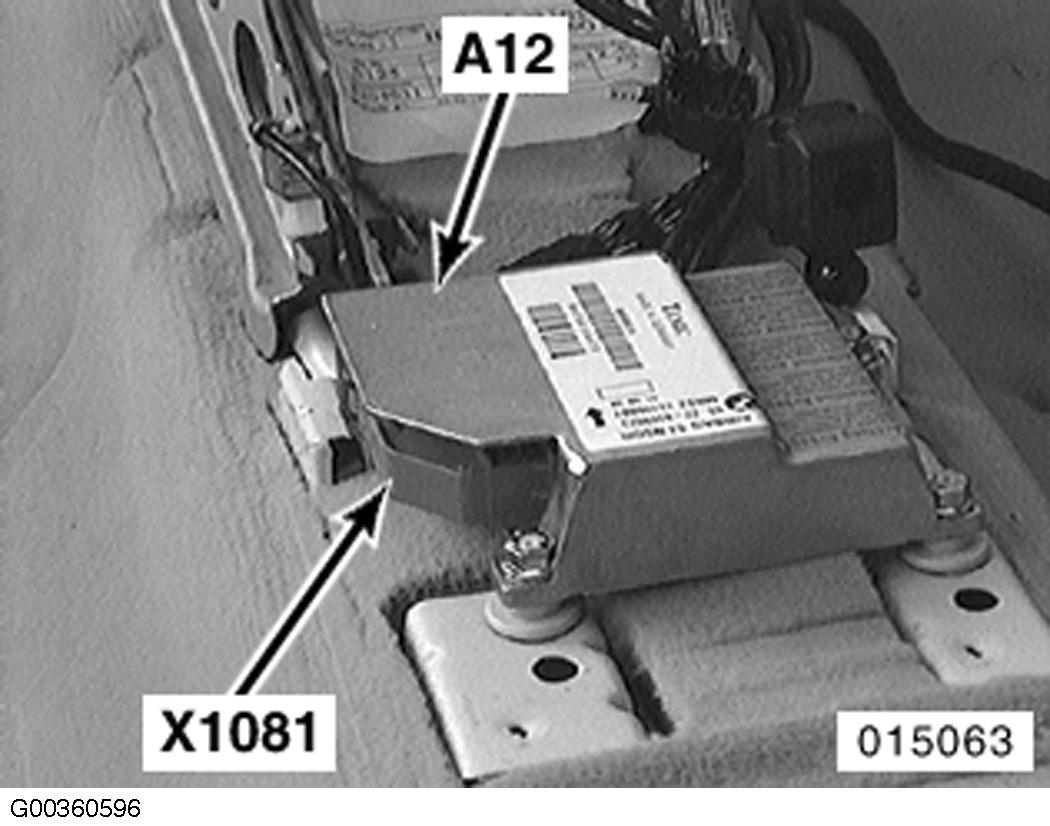

| Supplemental Restraint System Control Module (A12) | Rear center console. See Figure. |
