Relays & Solenoids: Relays

For fuel pump relay, see FUEL DELIVERY under FUEL SYSTEM. For relay locations, see DME & FUEL PUMP RELAY LOCATION table. See Fig 1-Fig 30 .

DME & FUEL PUMP RELAY LOCATION

Application		Location
X5
DME Relay		Right Rear Corner Of Engine Compartment, Next To DME PCM
Fuel Pump Relay		Behind Glovebox
Z8
DME Relay		Right Rear Corner Of Engine Compartment, Next To DME PCM
Fuel Pump Relay		In Right Rear Of Storage Compartment
3-Series (Z3)
DME Relay		Right Rear Corner Of Engine Compartment, Next To DME PCM
Fuel Pump Relay		Under Left Side Of Instrument Panel, Next To Kick Panel
3-Series (E46)
DME Relay		Left Rear Corner Of Engine Compartment, In Relay/PCM Box
Fuel Pump Relay		Behind Glove Box
5-Series & 7-Series
DME Relay		Right Rear Corner Of Engine Compartment, Next To DME PCM
Fuel Pump Relay		Right Side Of Trunk

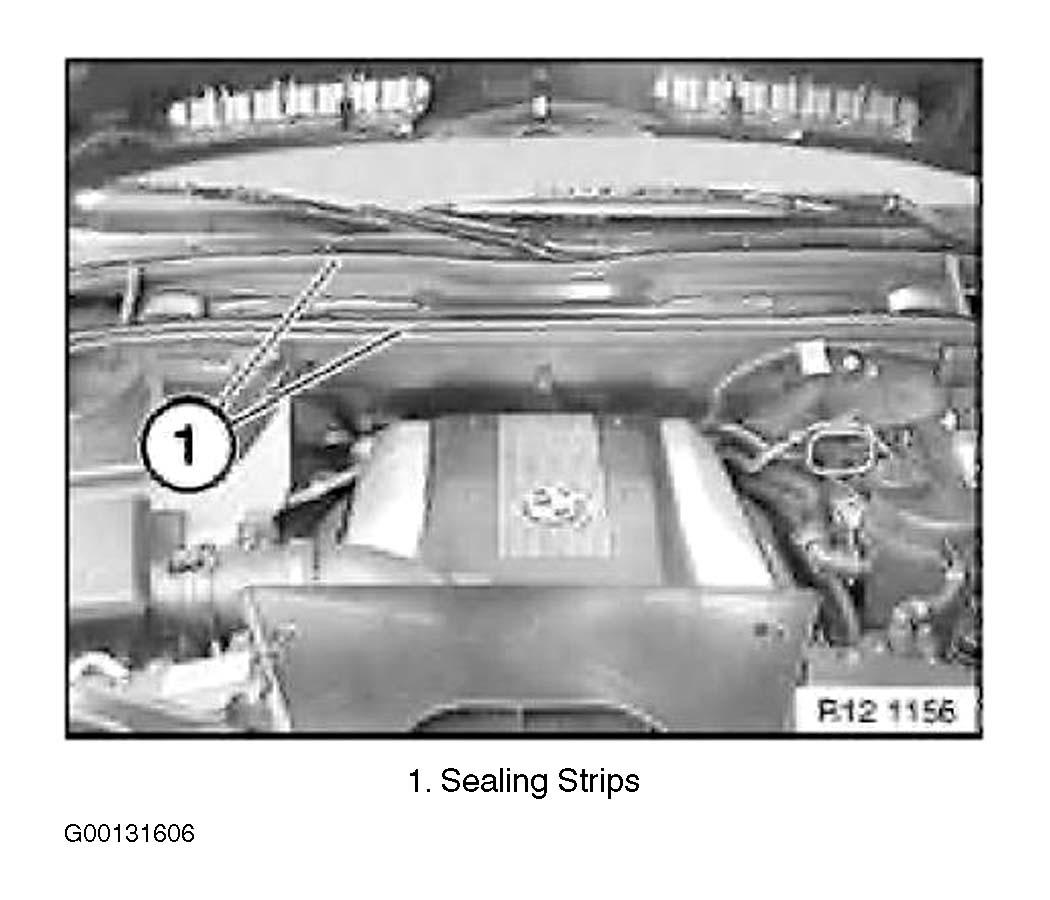

Fig 1: Locating DME Relay; Removing Sealing Strips (X5)

G00131606

Courtesy of BMW OF NORTH AMERICA, INC.

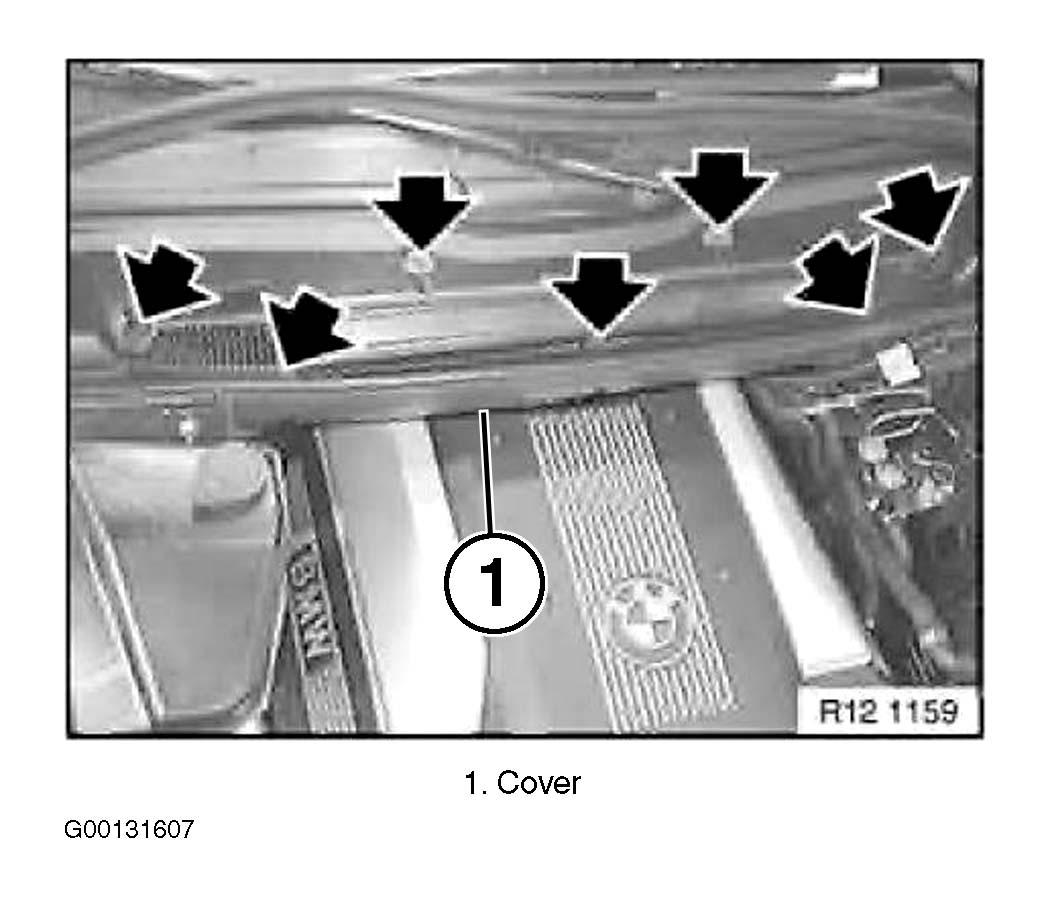

Fig 2: Locating DME Relay; Removing Cover (X5)

G00131607

Courtesy of BMW OF NORTH AMERICA, INC.

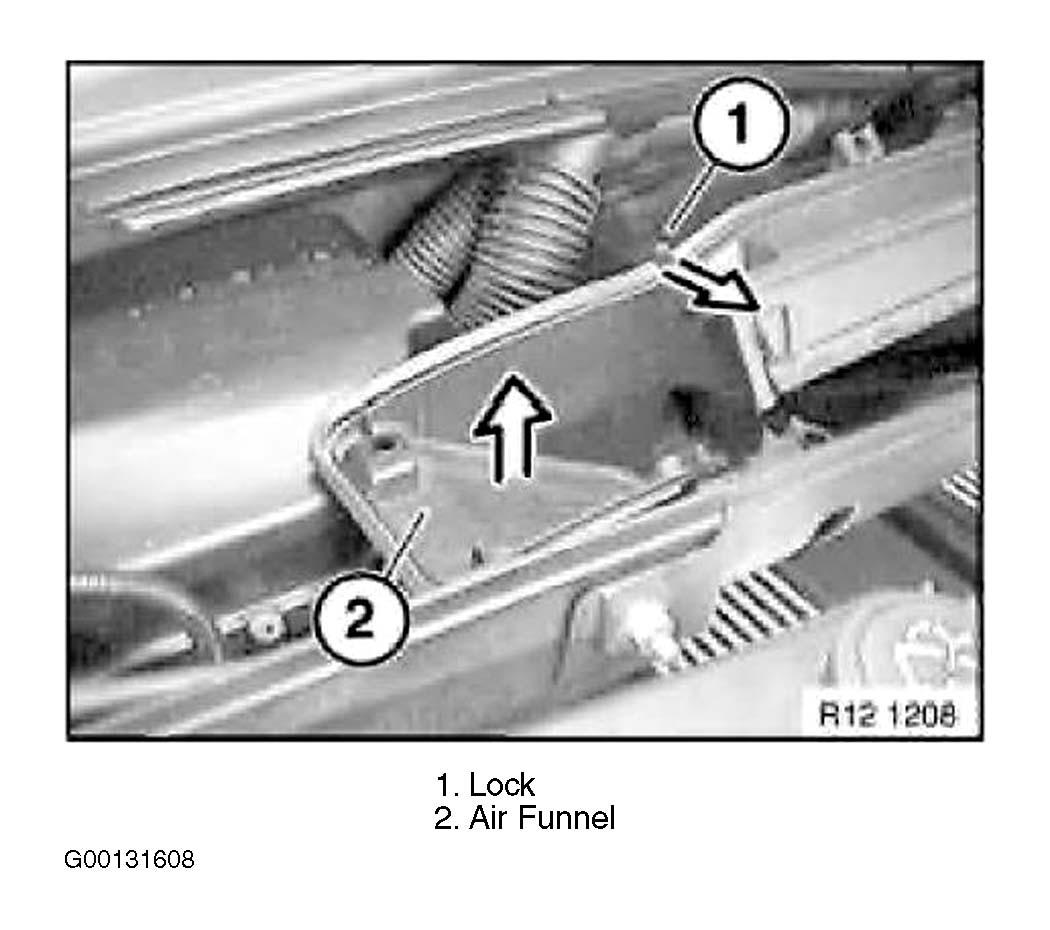

Fig 3: Locating DME Relay; Removing Air Funnel (X5)

G00131608

Courtesy of BMW OF NORTH AMERICA, INC.

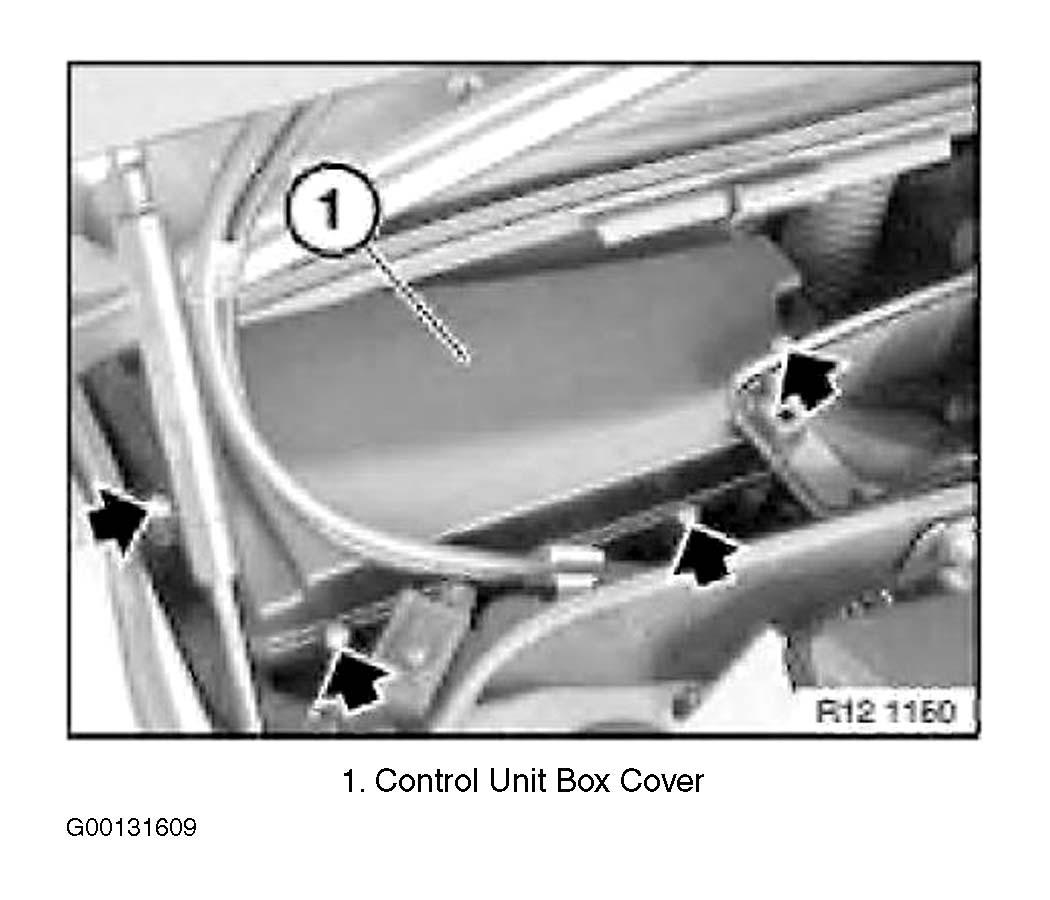

Fig 4: Locating DME Relay; Removing Control Unit Box Cover (X5)

G00131609

Courtesy of BMW OF NORTH AMERICA, INC.

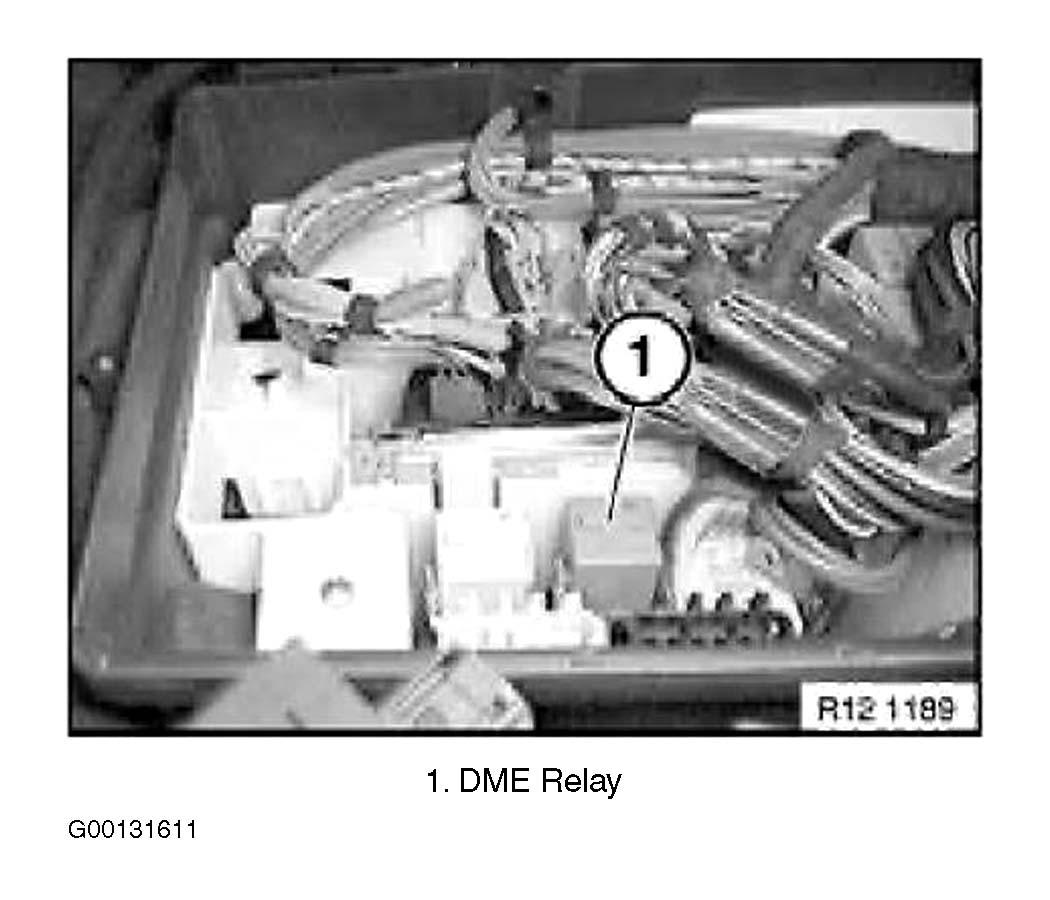

Fig 5: Locating DME Relay In Relay/Fuse Box (X5)

G00131611

Courtesy of BMW OF NORTH AMERICA, INC.

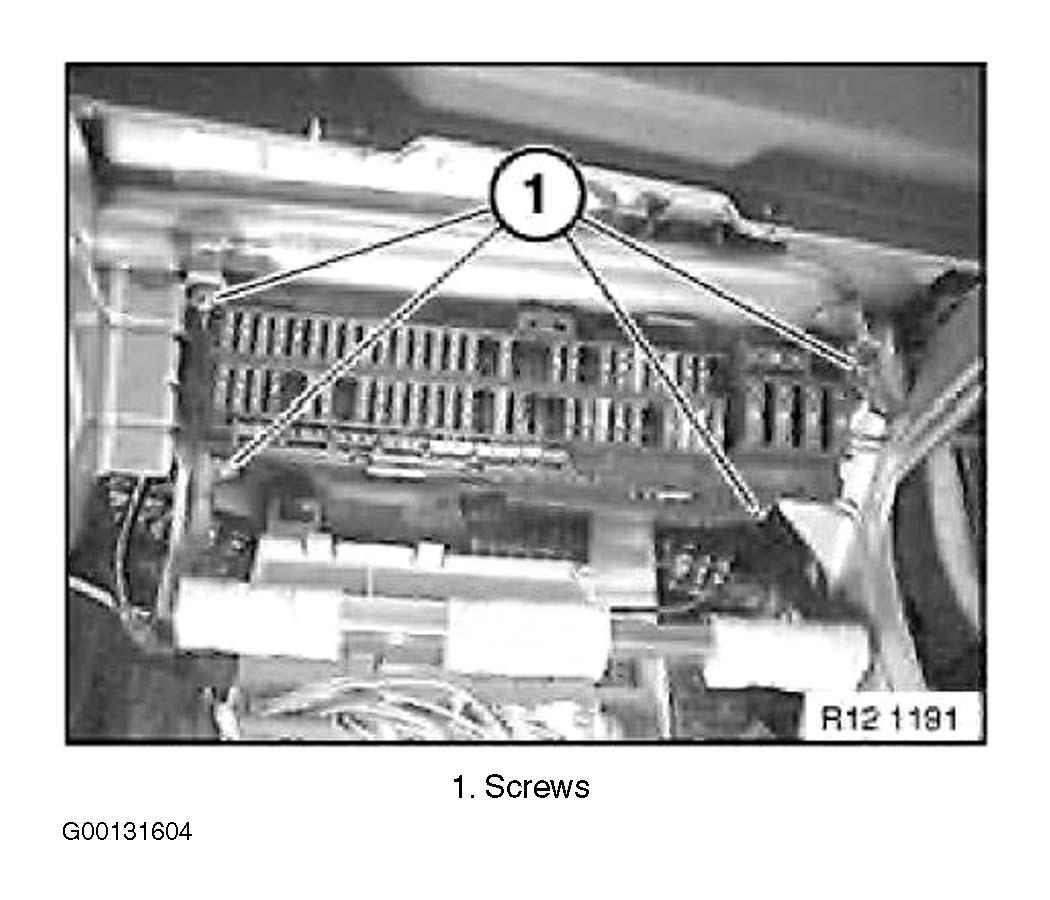

Fig 6: Locating Fuel Pump Relay; Removing Fuse Box (X5)

G00131604

Courtesy of BMW OF NORTH AMERICA, INC.

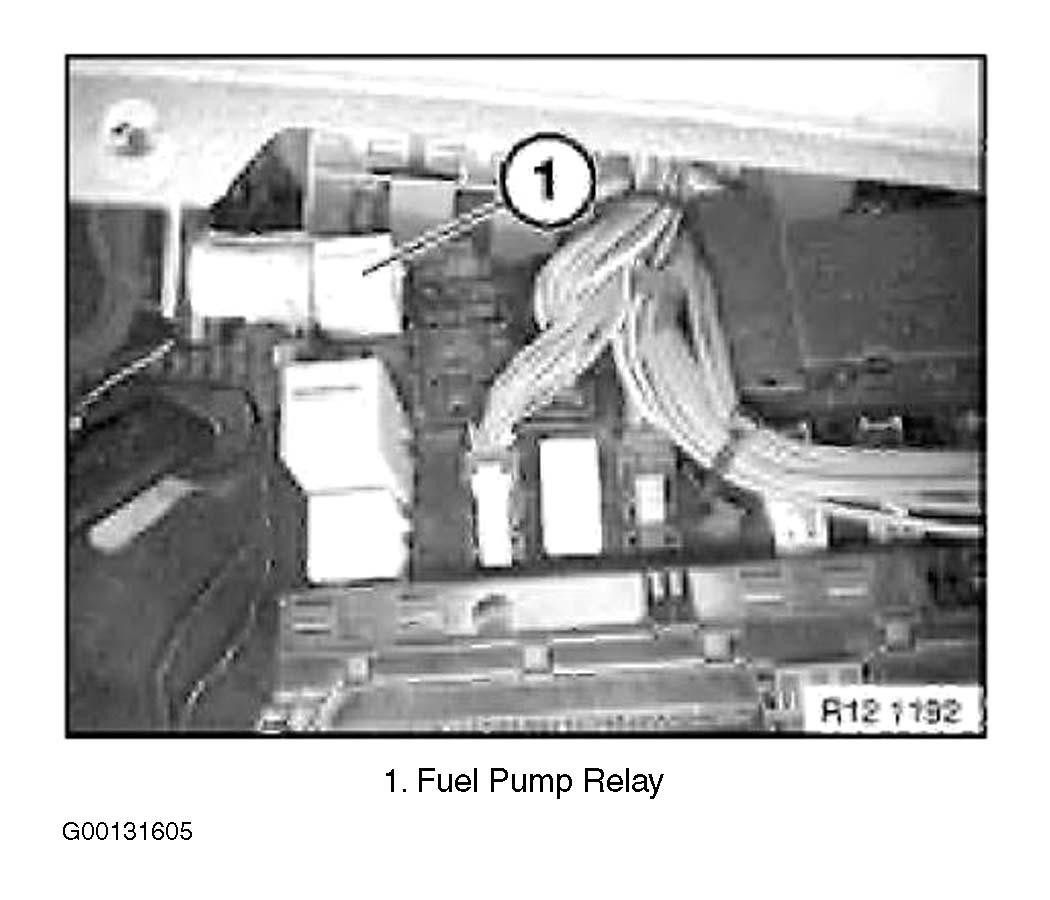

Fig 7: Locating Fuel Pump Relay Under Fuse Box (X5)

G00131605

Courtesy of BMW OF NORTH AMERICA, INC.

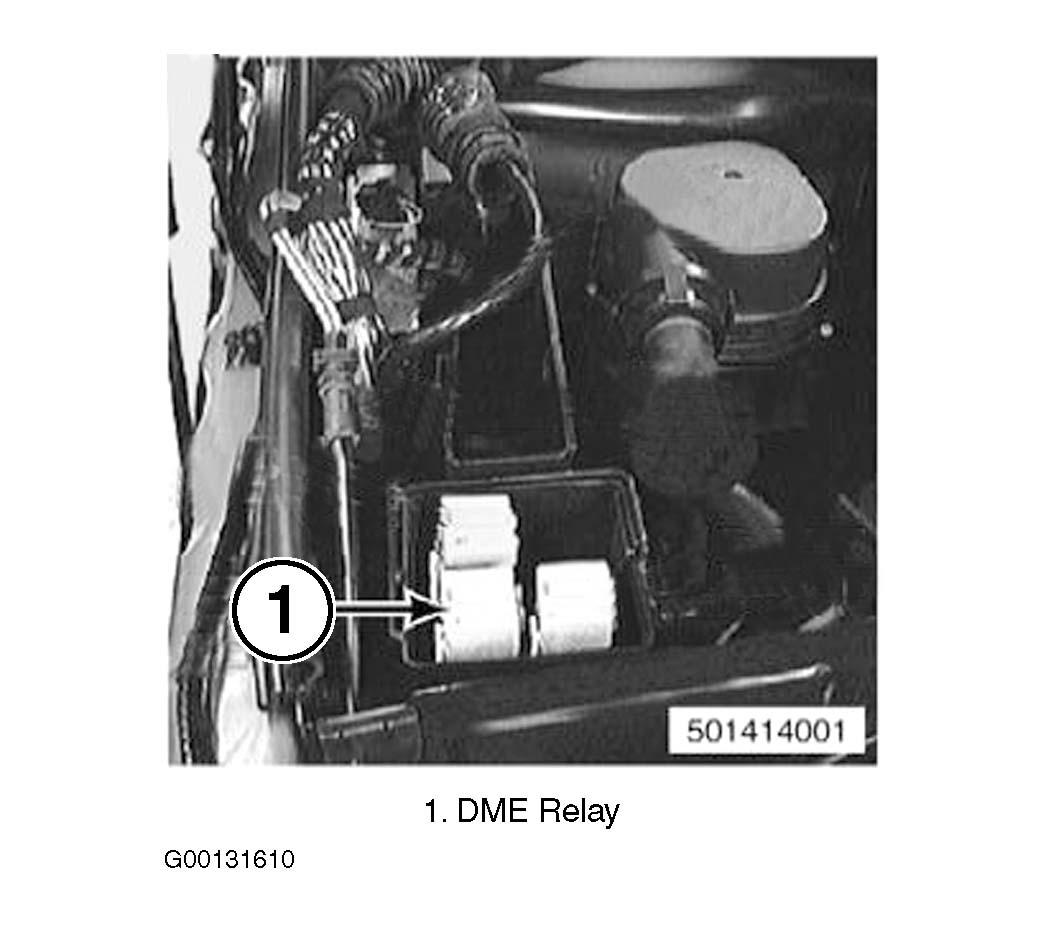

Fig 8: Locating DME Relay (Z3)

G00131610

Courtesy of BMW OF NORTH AMERICA, INC.

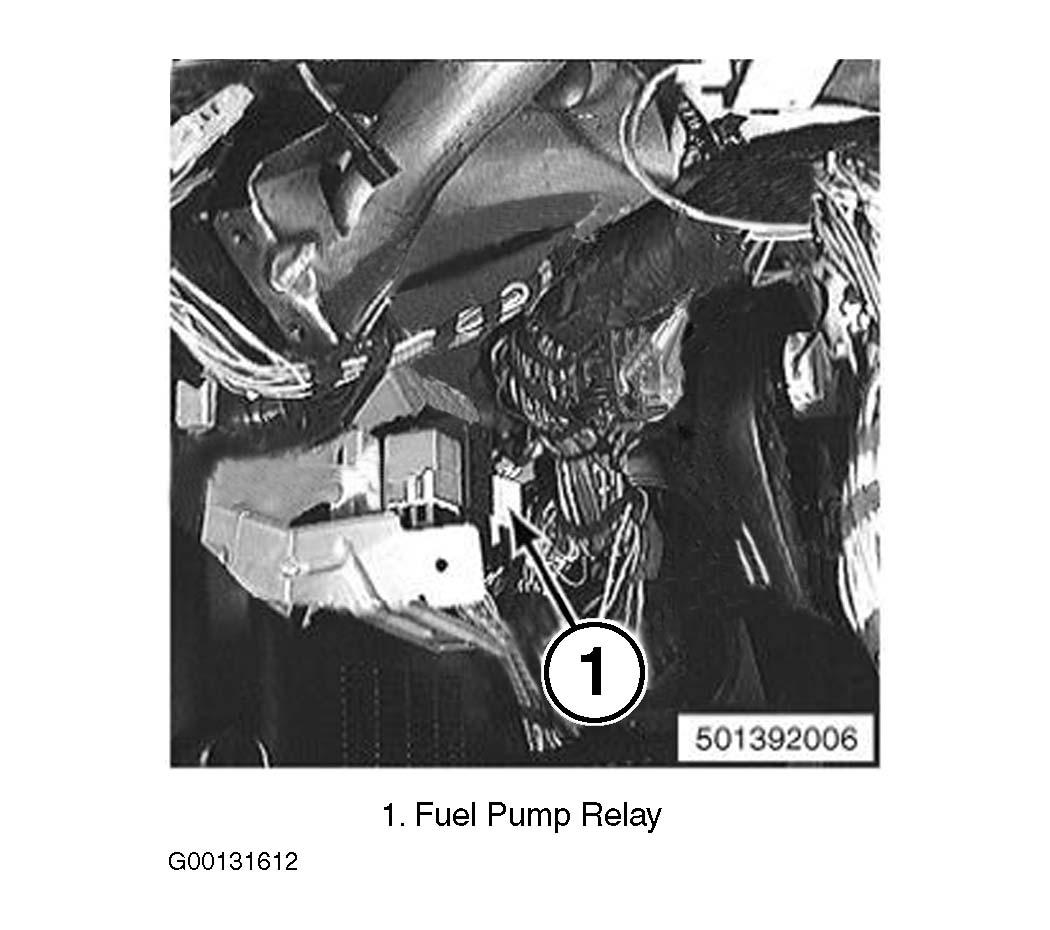

Fig 9: Locating Fuel Pump Relay (Z3)

G00131612

Courtesy of BMW OF NORTH AMERICA, INC.

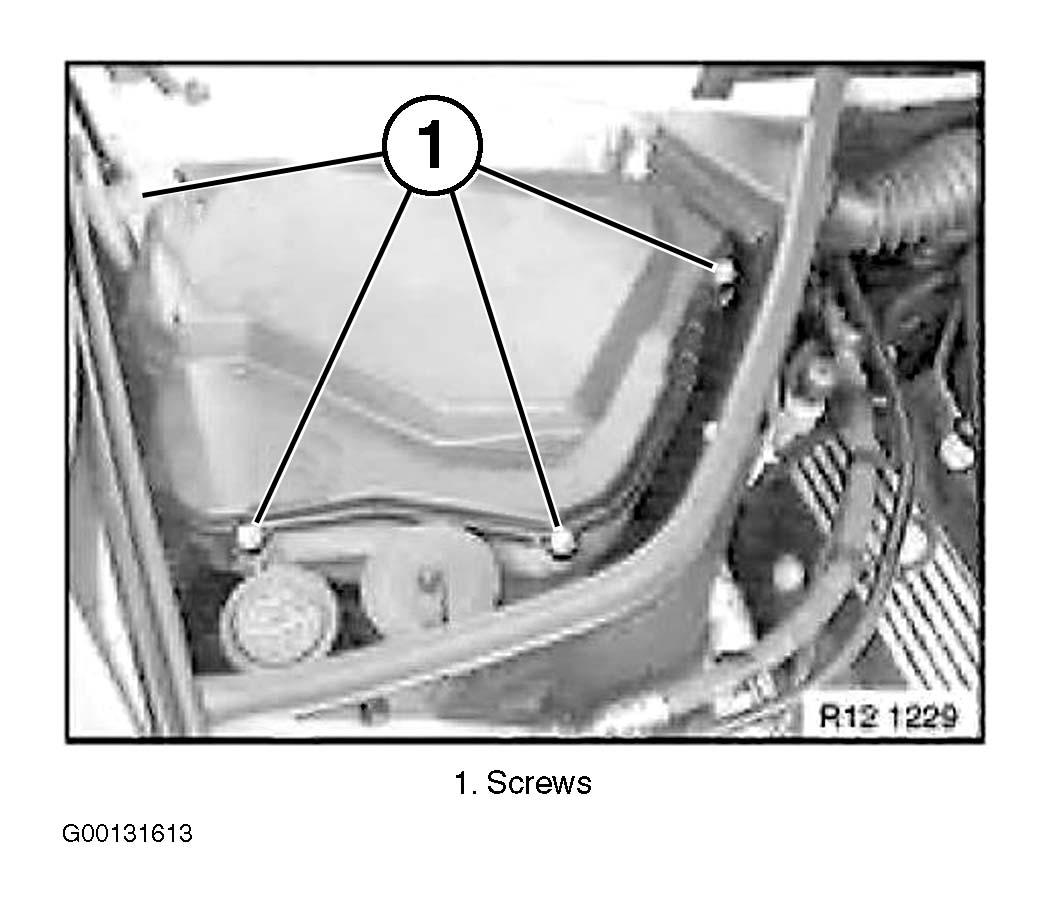

Fig 10: Locating DME Relay; Removing Electronics Box Cover (Z8)

G00131613

Courtesy of BMW OF NORTH AMERICA, INC.

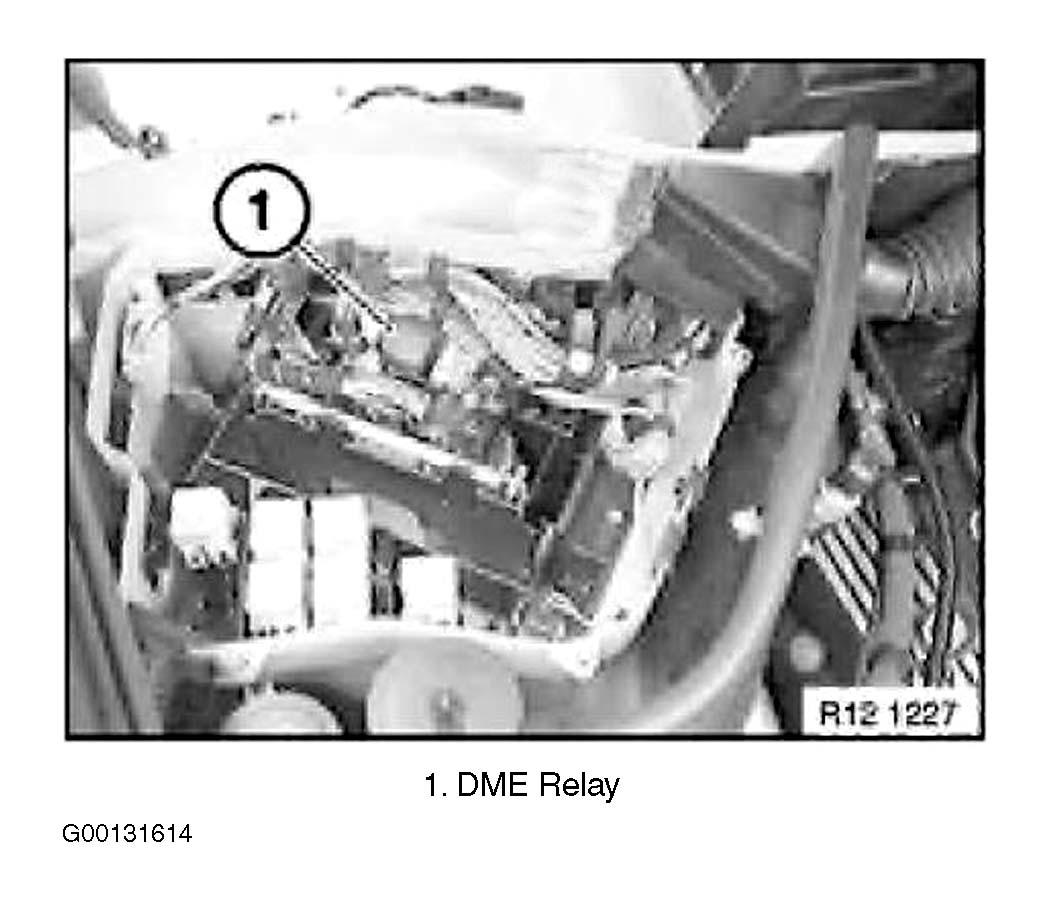

Fig 11: Locating DME Relay (Z8)

G00131614

Courtesy of BMW OF NORTH AMERICA, INC.

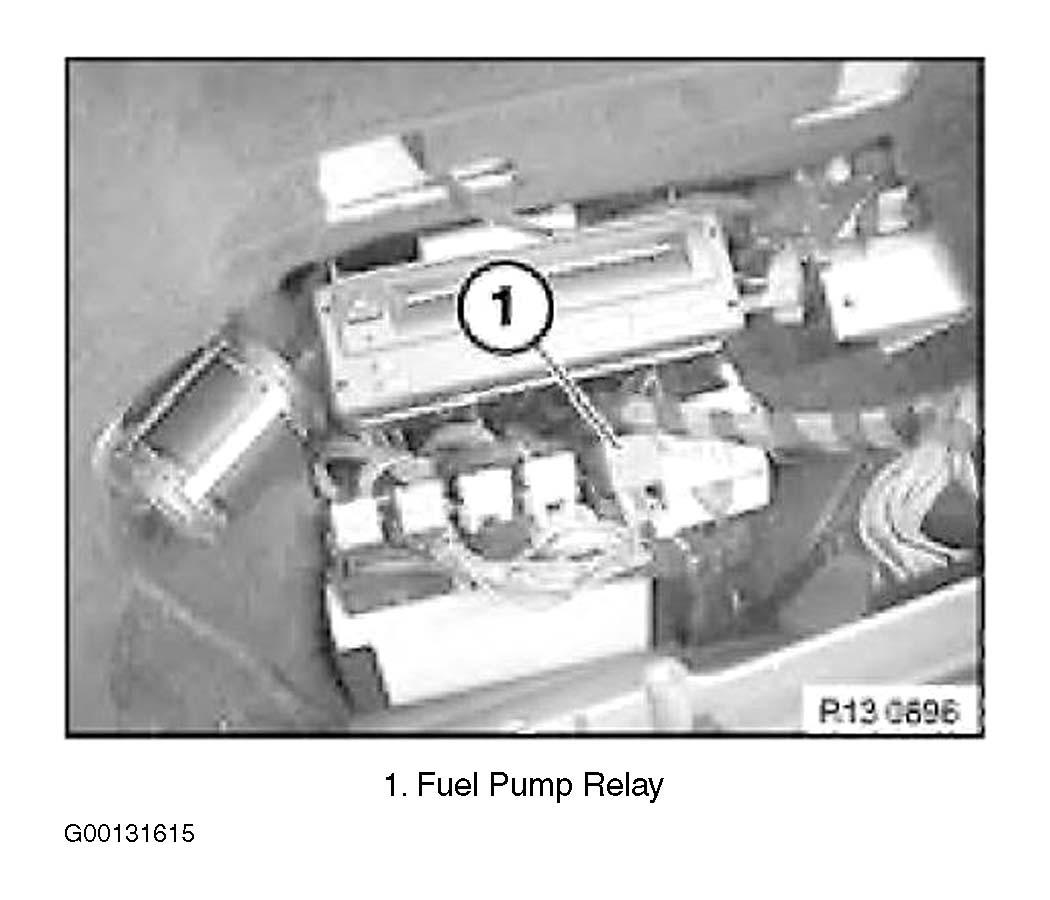

Fig 12: Locating Fuel Pump Relay (Z8)

G00131615

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 13: Locating DME Relay (3-Series - E46)

G00131623

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 14: Locating Fuel Pump Relay; Removing Glovebox Light (3-Series - E46)

G00131616

Courtesy of BMW OF NORTH AMERICA, INC.

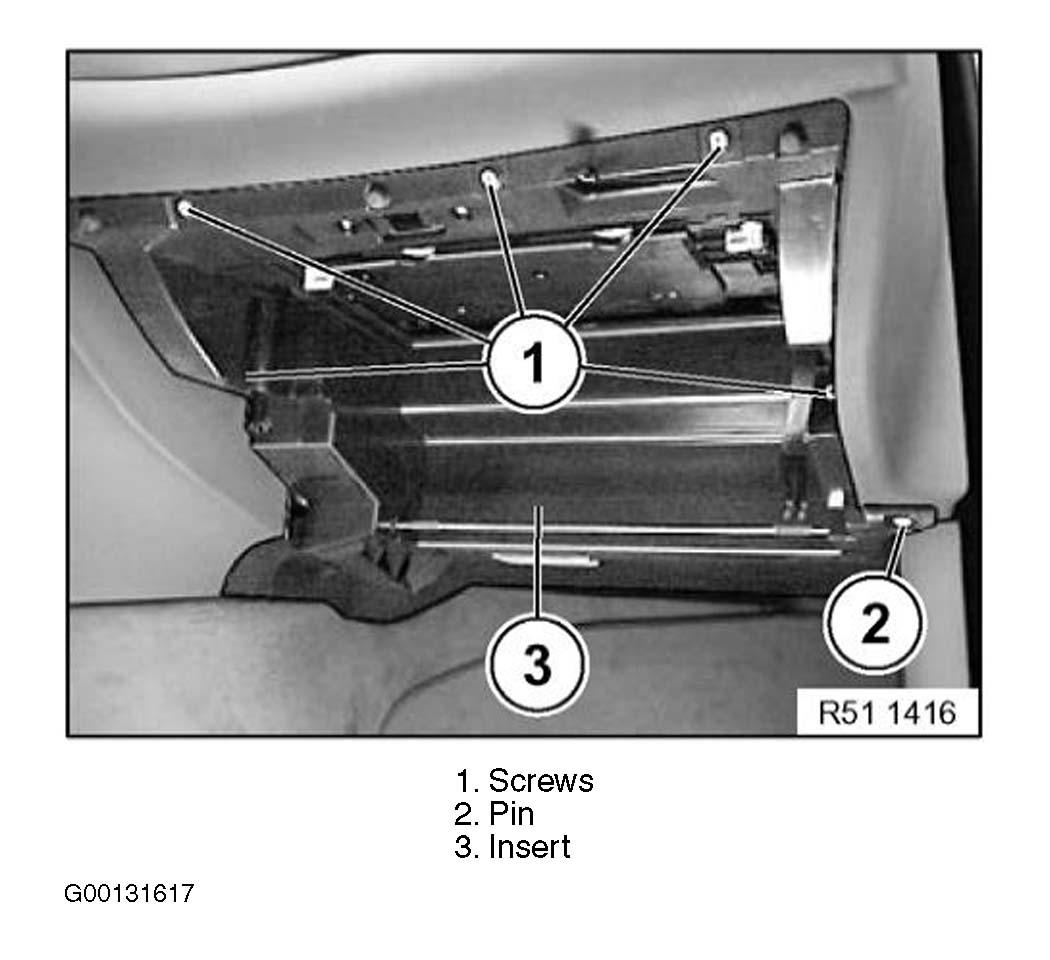

Fig 15: Locating Fuel Pump Relay; Removing Insert (3-Series - E46)

G00131617

Courtesy of BMW OF NORTH AMERICA, INC.

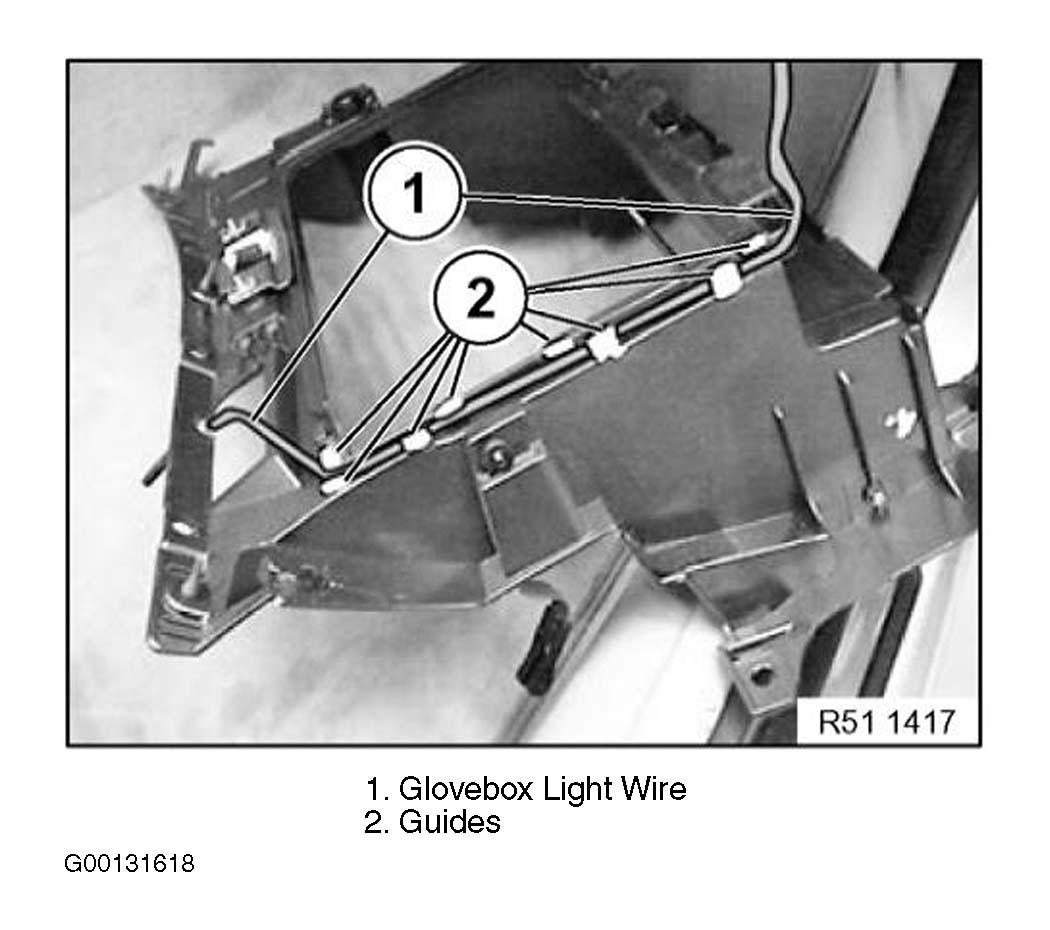

Fig 16: Locating Fuel Pump Relay; Removing Light Wire From Guides (3-Series - E46)

G00131618

Courtesy of BMW OF NORTH AMERICA, INC.

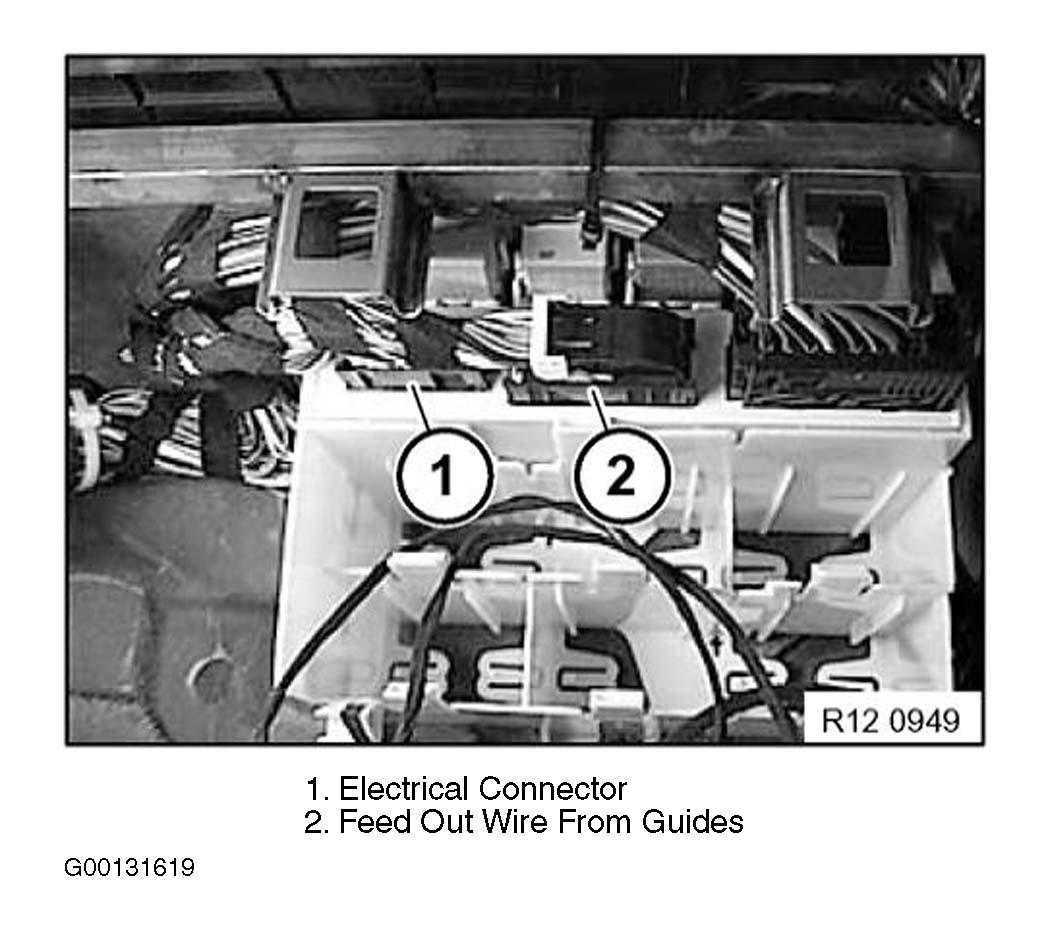

Fig 17: Locating Fuel Pump Relay; Removing Wiring From Guides (3-Series - E46)

G00131619

Courtesy of BMW OF NORTH AMERICA, INC.

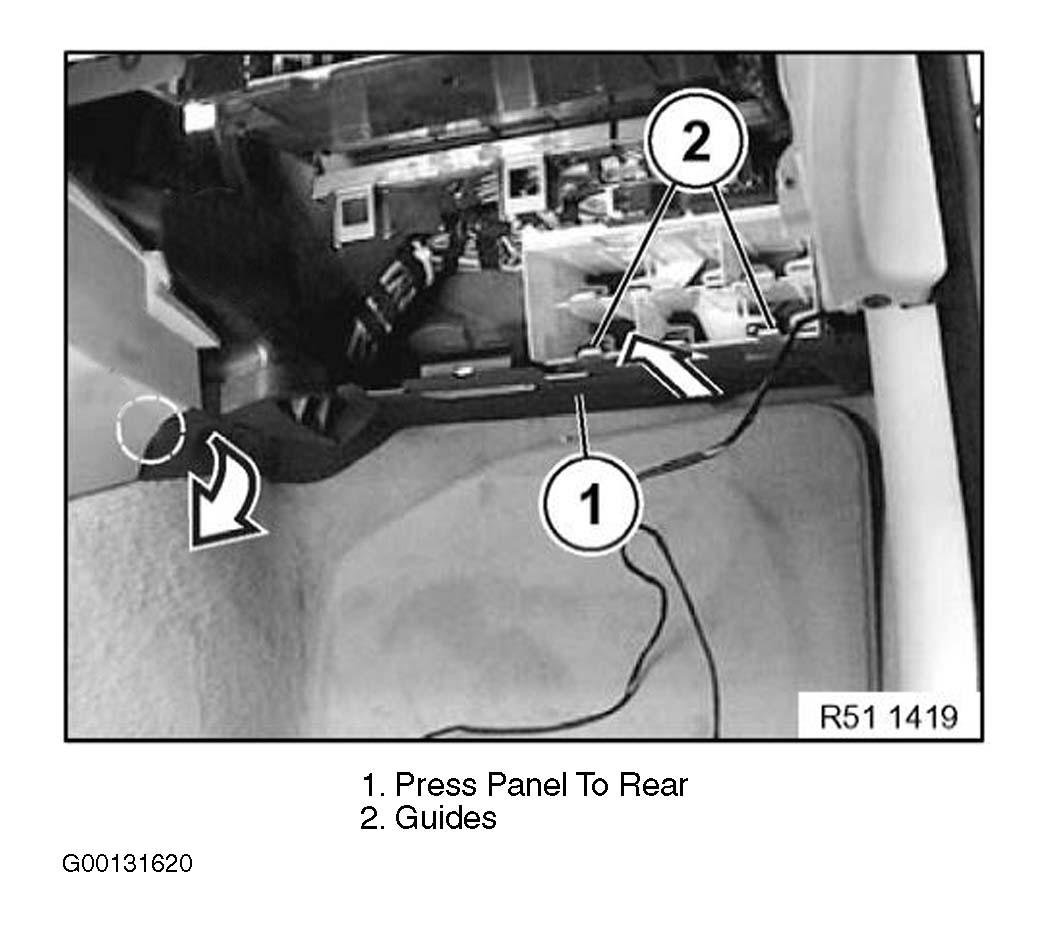

Fig 18: Locating Fuel Pump Relay; Pressing Panel Rearward (3-Series - E46)

G00131620

Courtesy of BMW OF NORTH AMERICA, INC.

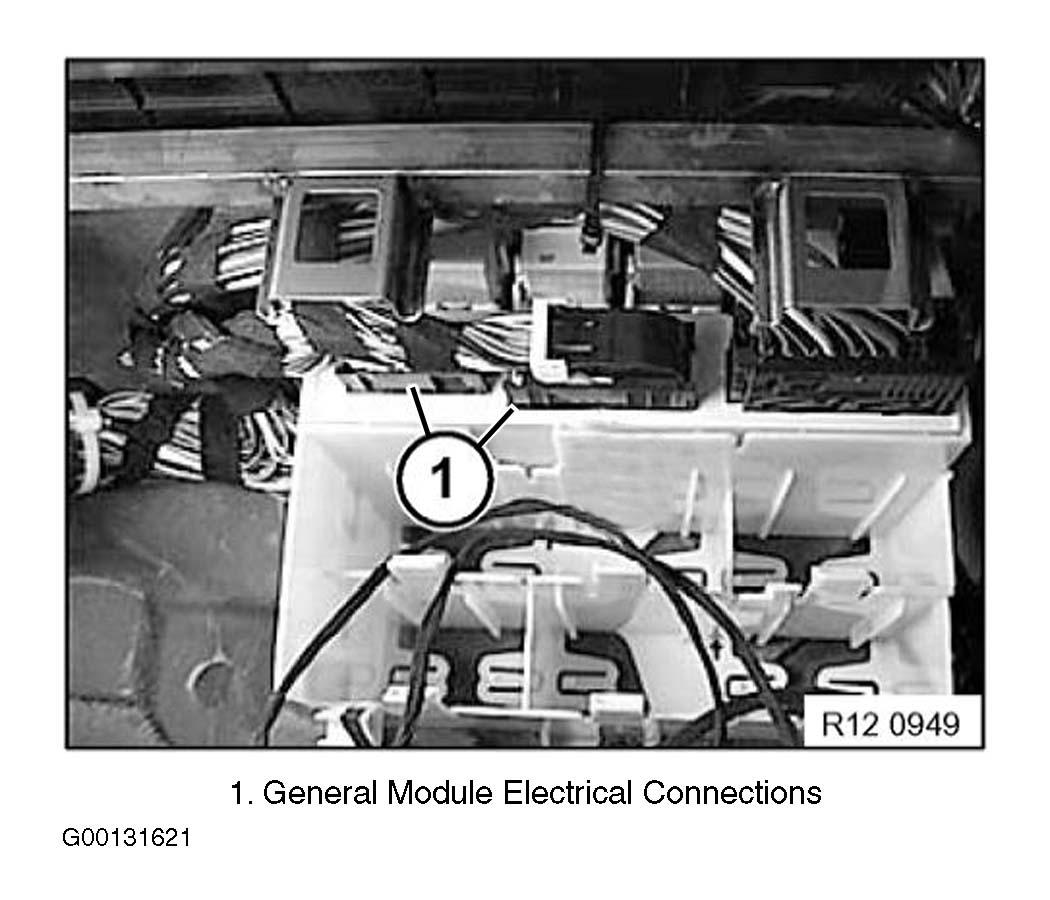

Fig 19: Locating Fuel Pump Relay; Disconnecting General Module Electrical Connections (3-Series - E46)

G00131621

Courtesy of BMW OF NORTH AMERICA, INC.

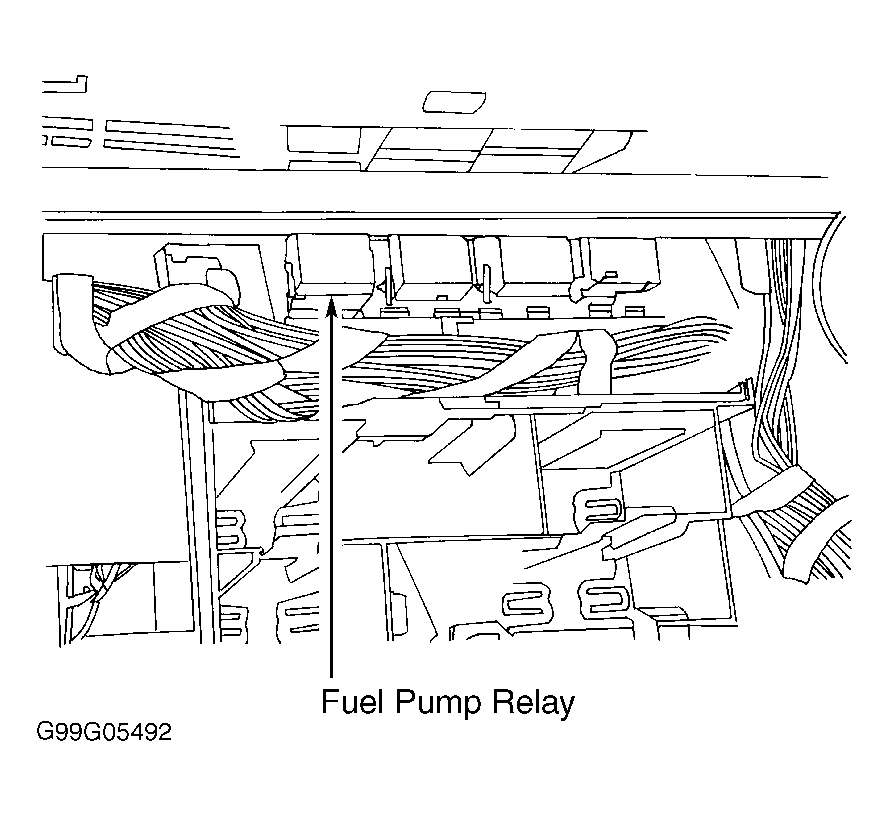

Fig 20: Locating Fuel Pump Relay; Version No. 1 (3-Series - E46)

G99G05492

Courtesy of BMW OF NORTH AMERICA, INC.

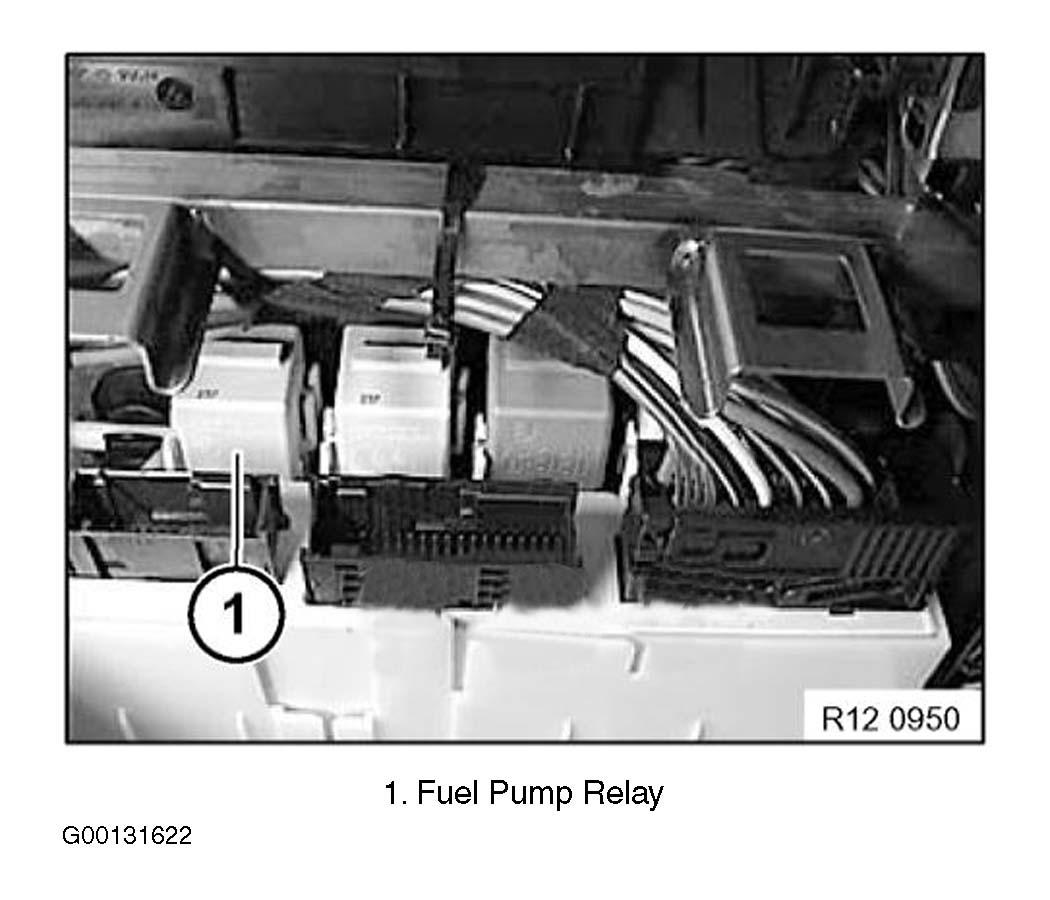

Fig 21: Locating Fuel Pump Relay; Version No. 2 (3-Series - E46)

G00131622

Courtesy of BMW OF NORTH AMERICA, INC.

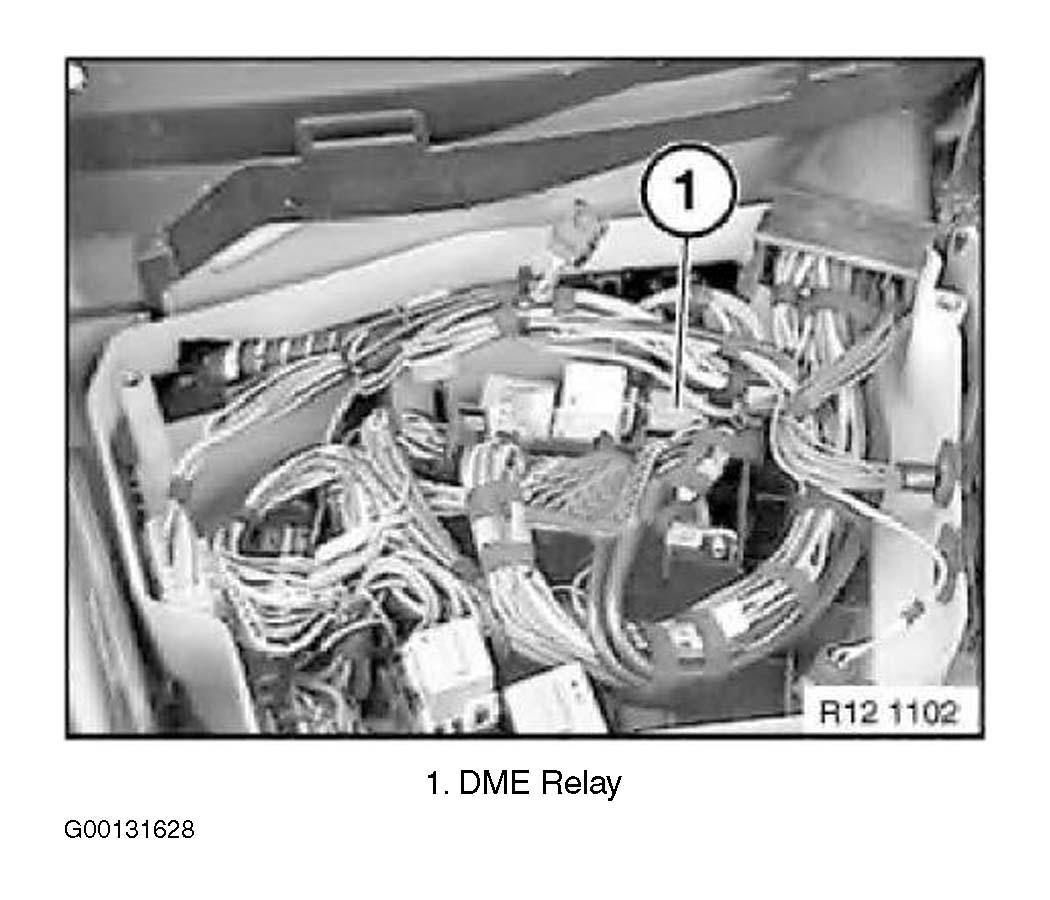

Fig 22: Locating DME Relay (5-Series - M5)

G00131628

Courtesy of BMW OF NORTH AMERICA, INC.

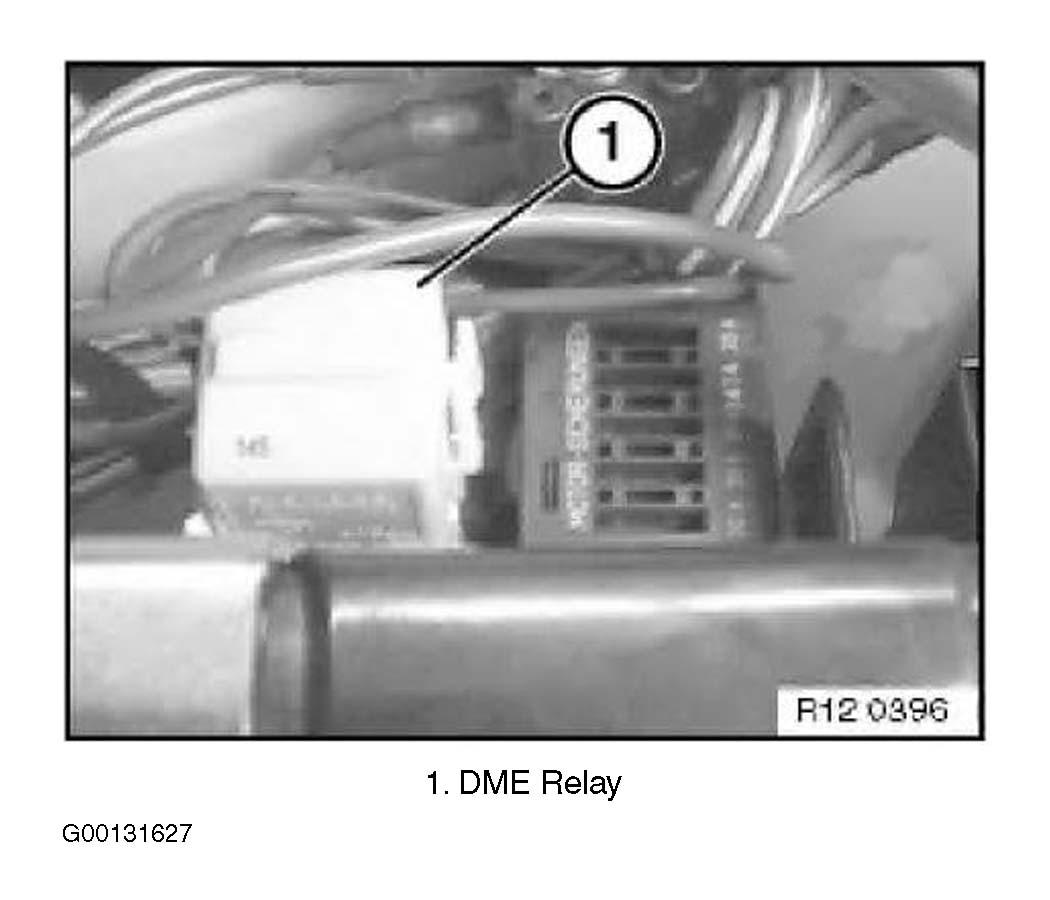

Fig 23: Locating DME Relay (5-Series - Except M5)

G00131627

Courtesy of BMW OF NORTH AMERICA, INC.

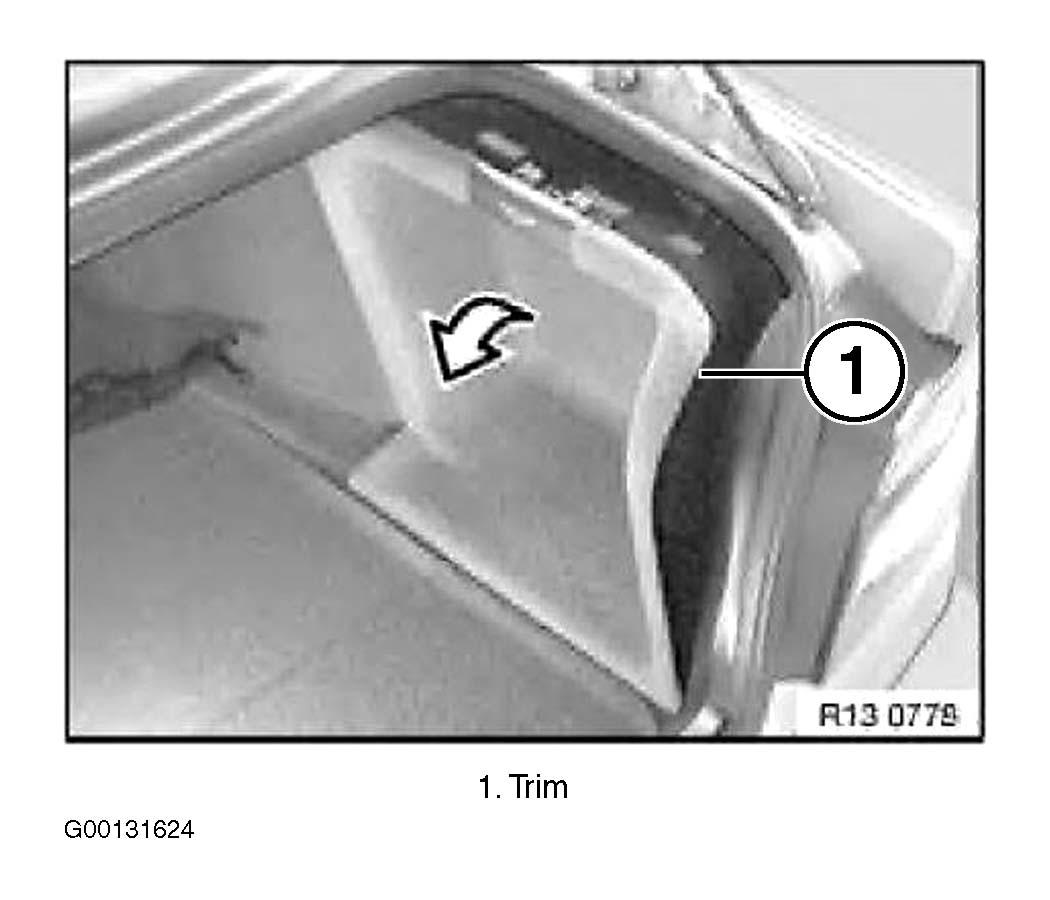

Fig 24: Locating Fuel Pump Relay (5-Series - Version No. 1) - 1 Of 2

G00131624

Courtesy of BMW OF NORTH AMERICA, INC.

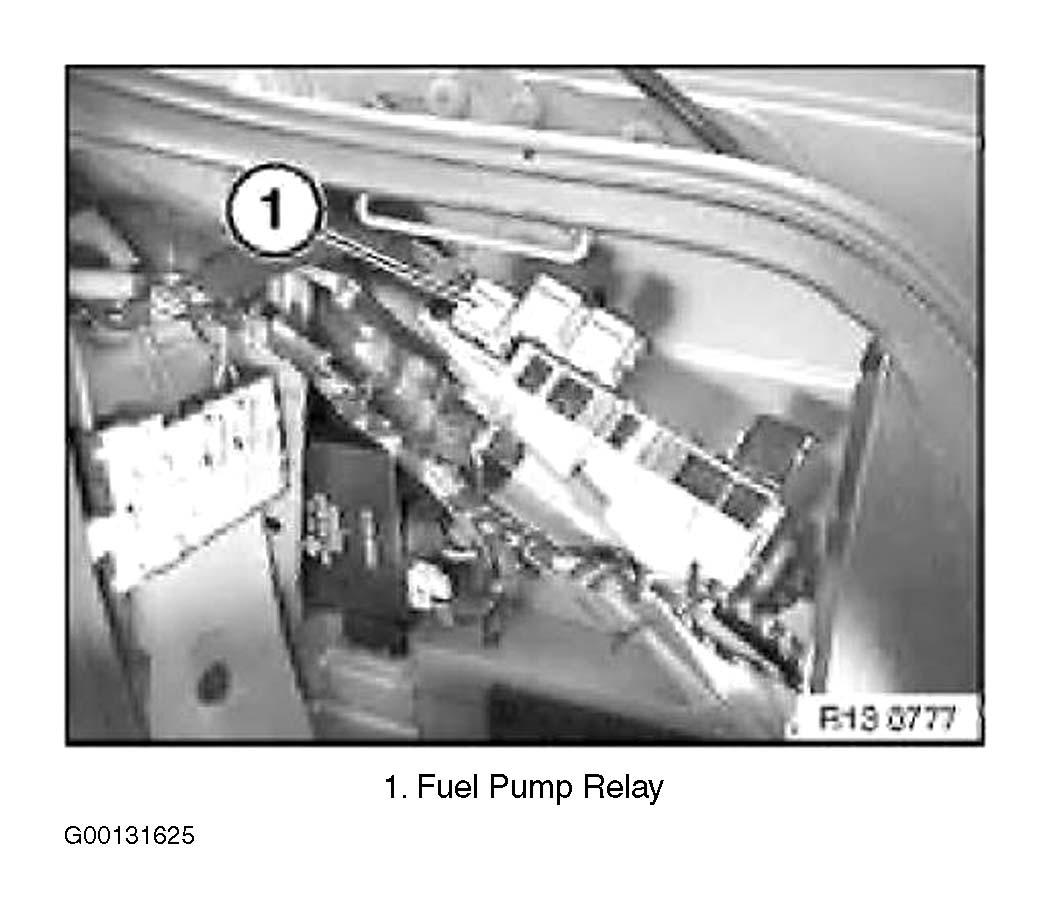

Fig 25: Locating Fuel Pump Relay (5-Series - Version No. 1) - 2 Of 2

G00131625

Courtesy of BMW OF NORTH AMERICA, INC.

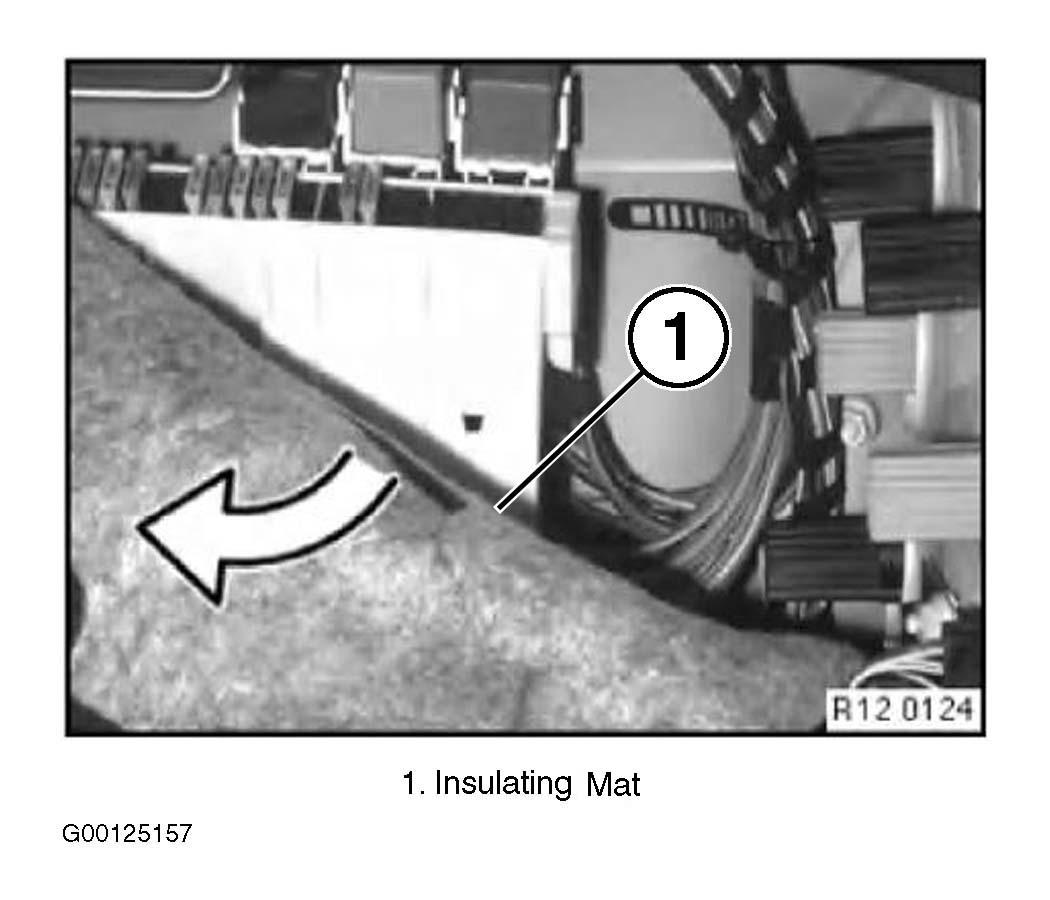

Fig 26: Locating Fuel Pump Relay (5-Series & 7-Series - Version No. 2) - 1 Of 2

G00125157

Courtesy of BMW OF NORTH AMERICA, INC.

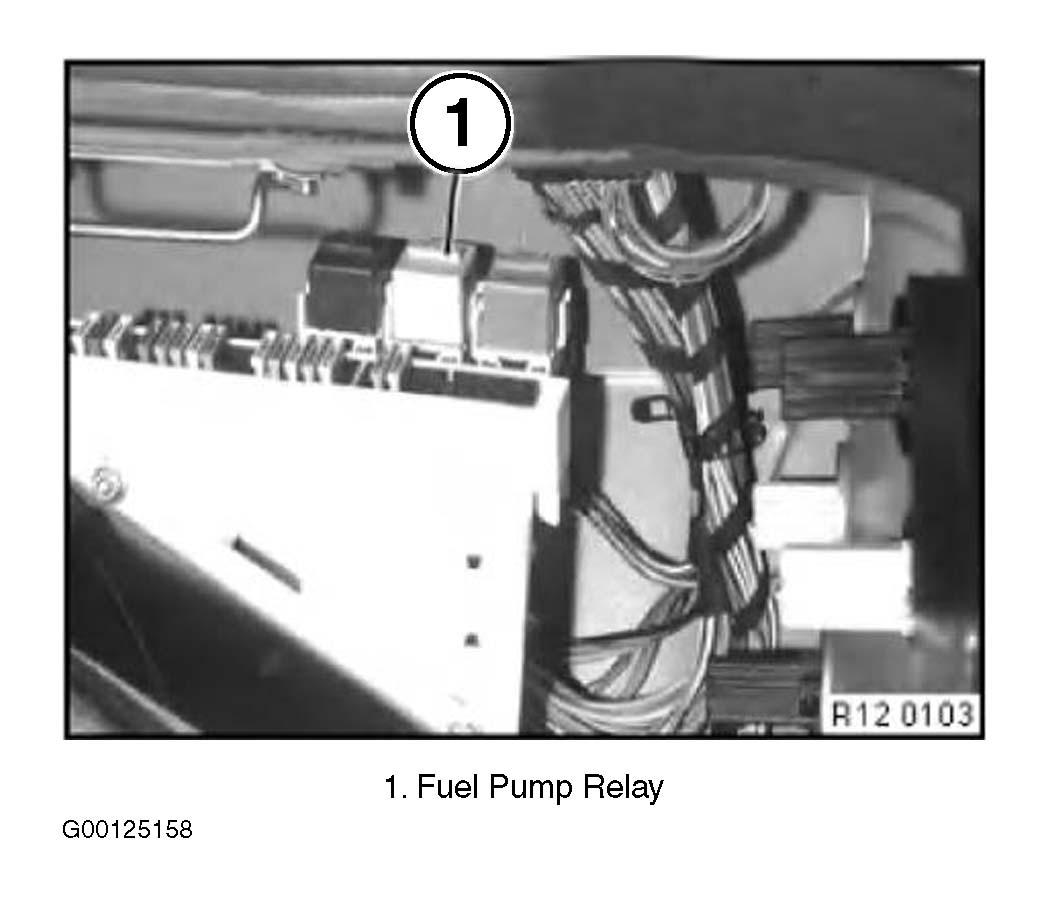

Fig 27: Locating Fuel Pump Relay (5-Series & 7-Series - Version No. 2) - 2 Of 2

G00125158

Courtesy of BMW OF NORTH AMERICA, INC.

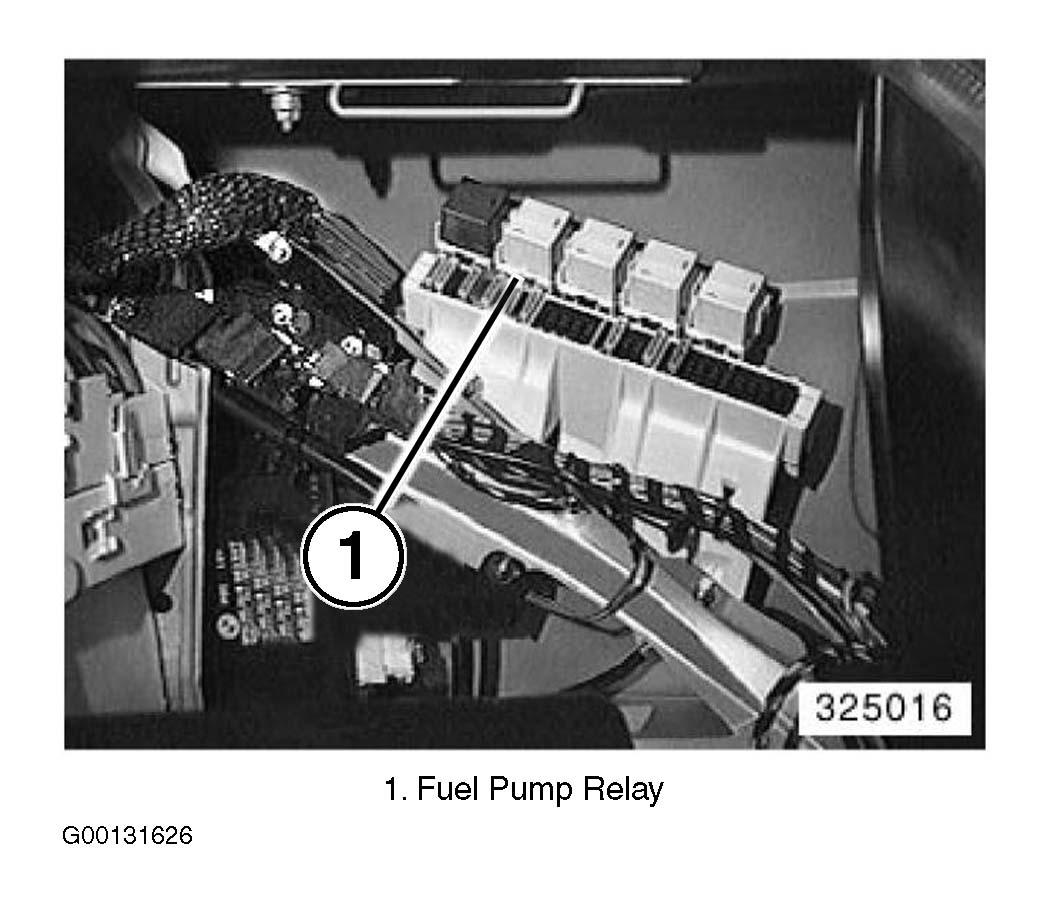

Fig 28: Locating Fuel Pump Relay (5-Series & 7-Series - Version No. 3)

G00131626

Courtesy of BMW OF NORTH AMERICA, INC.

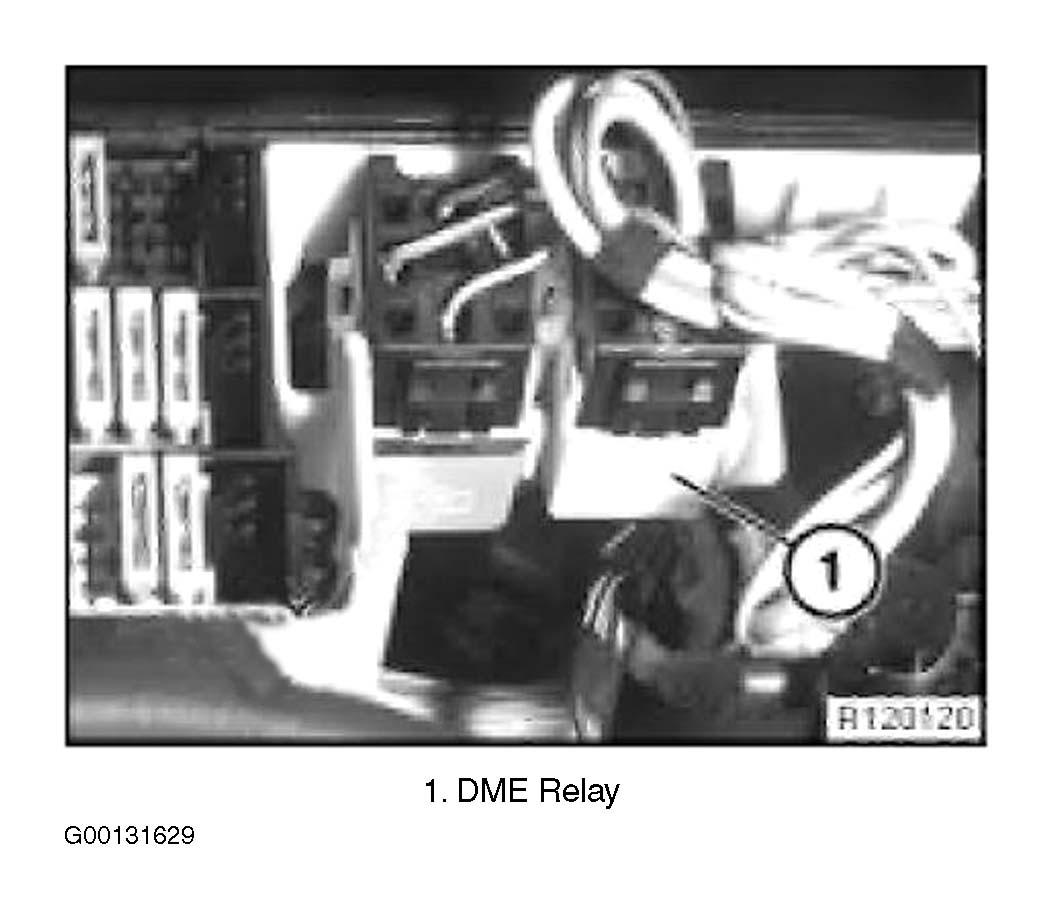

Fig 29: Locating DME Relay (7-Series - V8)

G00131629

Courtesy of BMW OF NORTH AMERICA, INC.

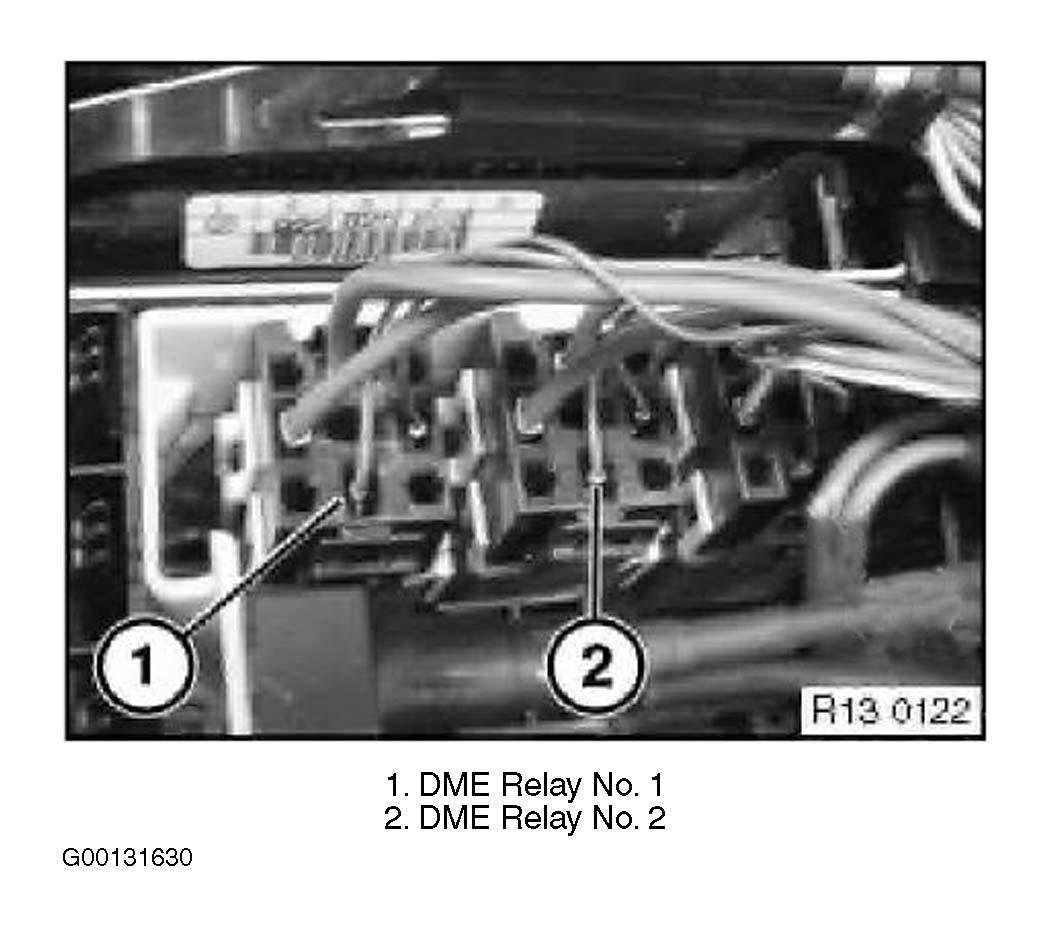

Fig 30: Locating DME Relays (7-Series - V12)

G00131630

Courtesy of BMW OF NORTH AMERICA, INC.
