BMW Operating Fluids - Air Conditioning And Heating (64 05.13)

Freon®

The refrigerant Freon® R12 is used in most BMW automobiles with an air conditioner up through the 1992 model year. It has a boiling point of -29.8°C (sea level), at which the refrigerant is transformed from a liquid into a gaseous state. This boiling point, however, is not constant. It is displaced in the direction of higher temperatures as pressure increases.

Freon® R12 complies with the requirements expected of a safety refrigerant. Freon® is not combustible and does not turn into an explosive mixture with air. It is also odorless and non-toxic. Conformance with certain safety regulations is essential to the handling of refrigeration systems.

There are currently no BMW-approved alternative refrigerants to R12.

See S.I. Bulletin B 64 02 92 (3495) .

Safety Warning

• Avoid any contact with liquid refrigerant, since this could cause frostbite. Protect eyes with safety goggles and hands with gloves. Contact a doctor without delay in case of an accident.
• Freon® R12 is heavier than air, so this refrigerant must not be discharged in closed rooms. There is danger of asphyxiation in a sunken work area (pit). Do not store bottles of refrigerant at temperatures above 113°F/45°C or heat them.
• Never weld on or near a system filled with refrigerant. Heat could cause excessive pressure and an explosion. In addition, Freon® R12 will decompose at high temperature or when subjected to an open flame. The resulting decomposition products would be hazardous to health.
• Make sure you read the container label instructions completely prior to use.
• Obtain and use the correct type of refrigerant recovery/recycling machine. Follow the directions included in the machine's instruction manual.

HFC-134a

The refrigerant HFC-134a (also known as R-134a) is used as of the following models with an air conditioner:

• 1992 E32/M30 from March 1992 production
• 1993 E34, E36, 325iC. E31, E32 from August 1992 production

This environmentally friendly refrigerant performs similar functions as Freon® R12, but the refrigerants Freon® R12 and R-134a must NEVER be mixed or combined in any way under any circumstances. See T.R.I. 64 01 92 (2121) for general information, S.I. Bulletin B 64 10 92 (3536) for overall description and diagnostic procedure, and S.I. Bulletin B 64 02 92 (3495) for non-approved refrigerants.

Safety Warning

• Always wear eye protection and gloves while handling refrigerant or servicing air conditioning systems.
• Avoid breathing R-134a and lubricant vapor or mist. Exposure may irritate eyes, nose, throat, and lungs. Use only approved service equipment to discharge A/C systems. If accidental system discharge occurs, ventilate work area before resuming service.
• If refrigerant or compressor oil contacts the skin or eyes, large quantities of cool water should be used to flush the affected area.
• Never heat a refrigerant container with an open flame. Keep all refrigerants away from open flames, since burning refrigerant can produce poisonous gas.
• Under no circumstances should R-134a service equipment or vehicle A/C systems be pressure tested with air/R-134a mixtures. Some mixtures of air and R-134a have been shown to be combustible at elevated pressures.

  The use of compressed air (shop air) for leak detection in R-134a systems could result in fire or explosion causing injury or property damage. In addition, introducing compressed air into A/C systems or components contaminates the system and/or refrigerant with moisture.

• Obtain and use the correct type of refrigerant recovery/recycling machine. Follow the directions included in the machine's instruction manual.

Oil Used in Freon®-Charged Systems:

A mineral-based oil is used. The oil level in the compressor must be checked before filling an air conditioner with refrigerant. It can be checked only if the system is without refrigerant.

Always check the oil level each time a new system is filled with Freon® R12 or after repairs. The oil level is very important for the entire air conditioning system. Part of the oil (approx. 25% depending on amount of refrigerant) is mixed with the refrigerant and is continuously circulated in the system. This oil lubricates the moving parts of the system, such as the expansion valve and compressor.

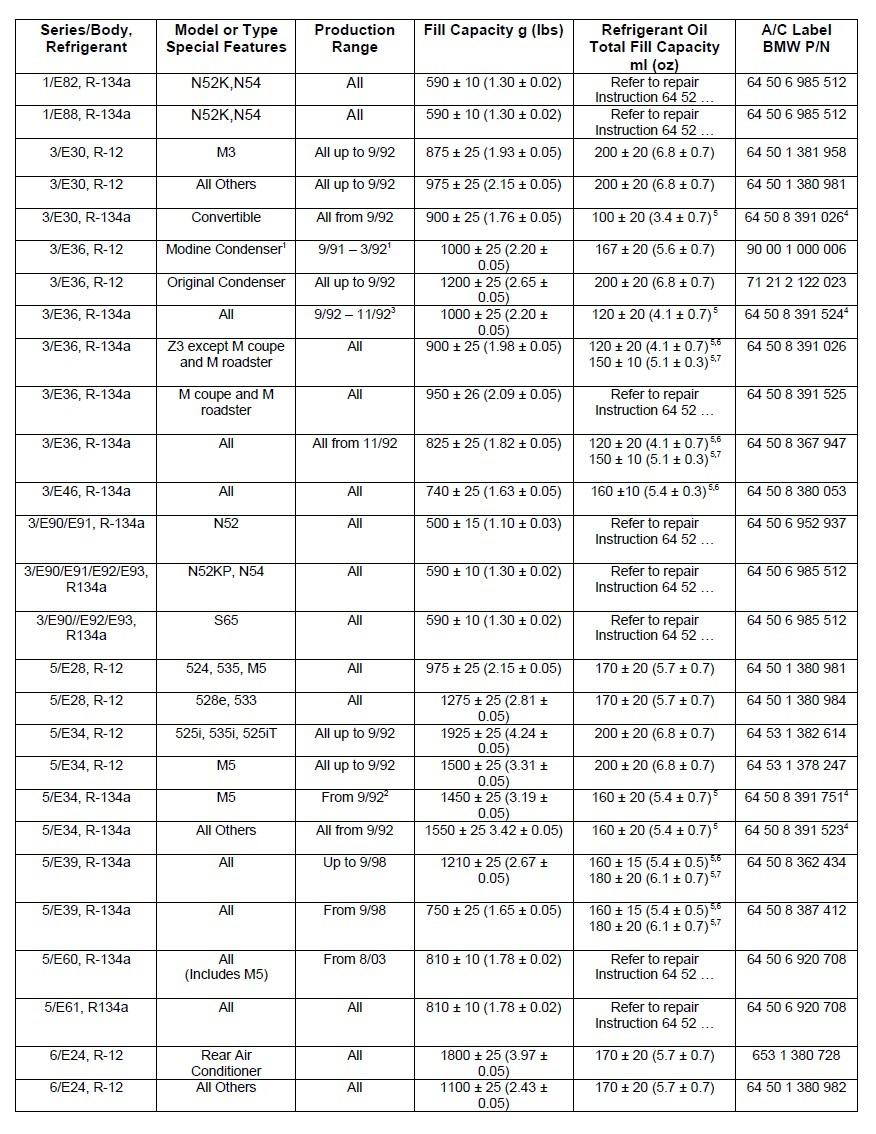

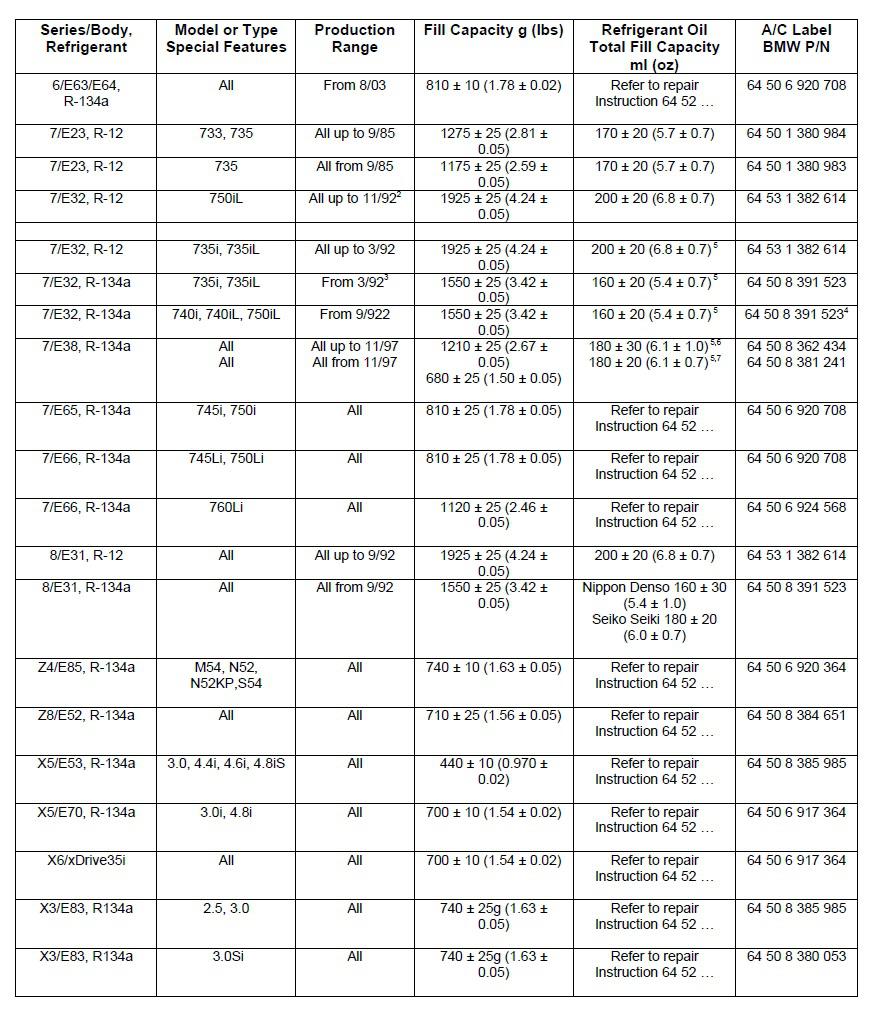

Oil Used in R-134a-Charged Systems:

A synthetic oil is used, which is totally different than the mineral-based oils used in Freon® R12 systems.

R-134a systems require Polyalkylene Glycol lubricants, often referred to as "PAG" oil. Use of R-12 compressor oil in R-134a systems will cause the compressor to seize and fail. The R-12 mineral oil does not stay in solution in R-134a. In addition, R-134a compressor should not be used in an R-12 system. Long term damage and corrosion will result.

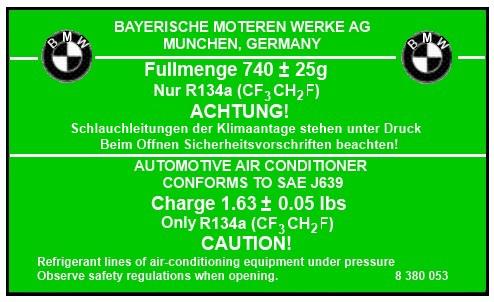

The GREEN R-134a system labels, usually located near the top side of the fan shroud in the engine compartment, will display the refrigerant requirement for R-134a systems. An example is illustrated.

R-12 systems will have a BLACK label in a similar location.

PAG oil should only be stored in its original container, and sealed as tightly as possible. PAG oil is totally devoid of moisture when packaged, and will absorb moisture readily (hygroscopic) if exposed to the atmosphere, rendering it useless. Dispose of all extracted lubricants from A/C systems. Never reuse old compressor oil. Contaminated PAG oil should never be added to the air-conditioning system, and old PAG oil is typically contaminated with moisture. R-134a is even more sensitive to moisture contamination than R-12 systems, and because of the desiccant material change (refer to "Receiver-Dryer"), the capacity per volume of the receiver-dryer is typically less.

See T.R.I. 64 01 92 .

PAG oil may be obtained from BMW of North America.

1. BMW Part No. 82 11 1 468 042.
