Area Of Impact

The airbag(s) will only activate during a frontal impact and then only when the collision is within a 60° arc, equidistant to the vehicle center line.

The front airbag sensors are spring loaded inertia type switches. The weighted roller will move forward, in the event of a frontal impact, closing the contacts of the sensor.

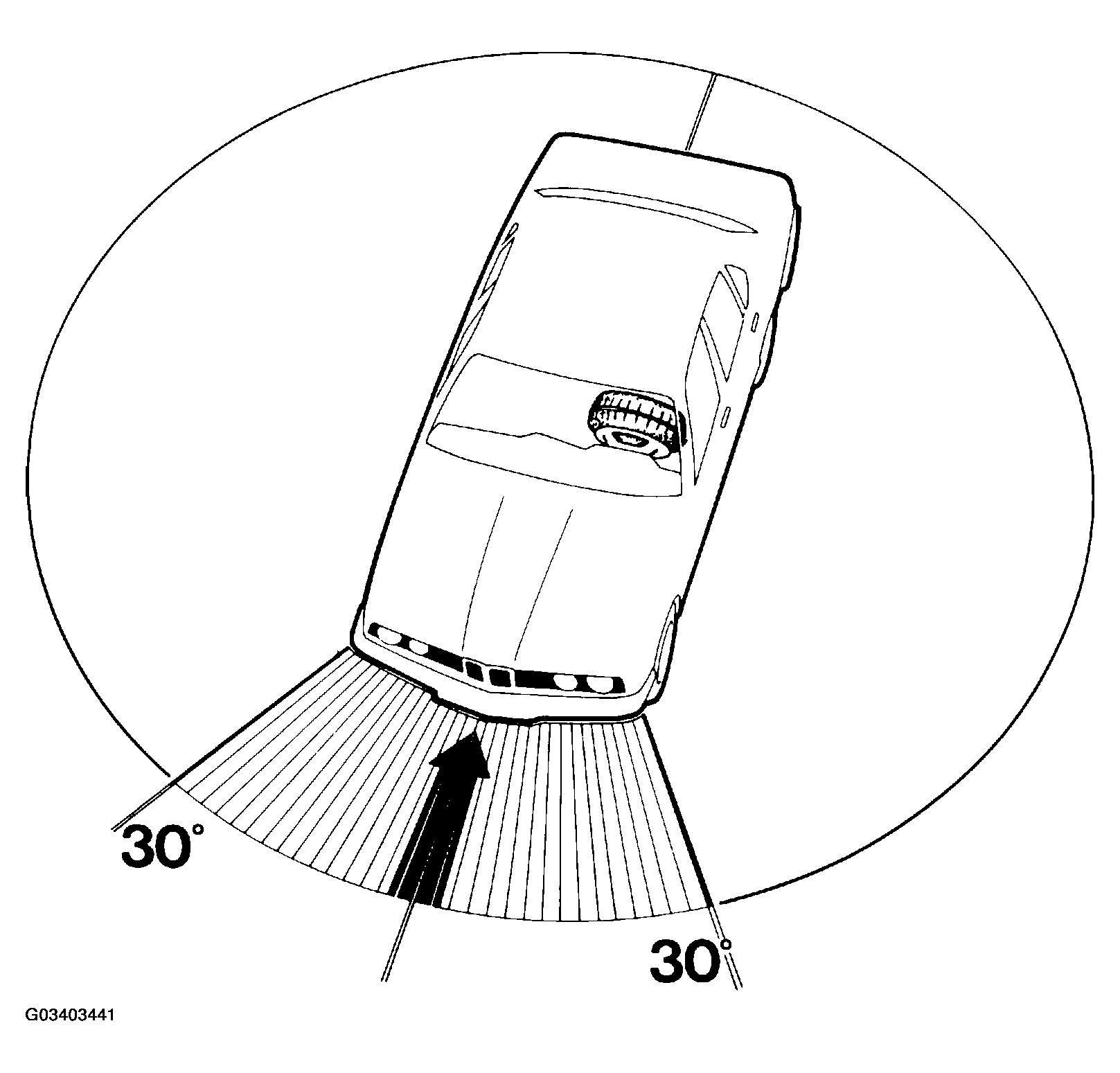

Fig 1: Identifying Area Of Impact For Activation
G03403441Courtesy of BMW OF NORTH AMERICA, INC.
