System Overview: Notes

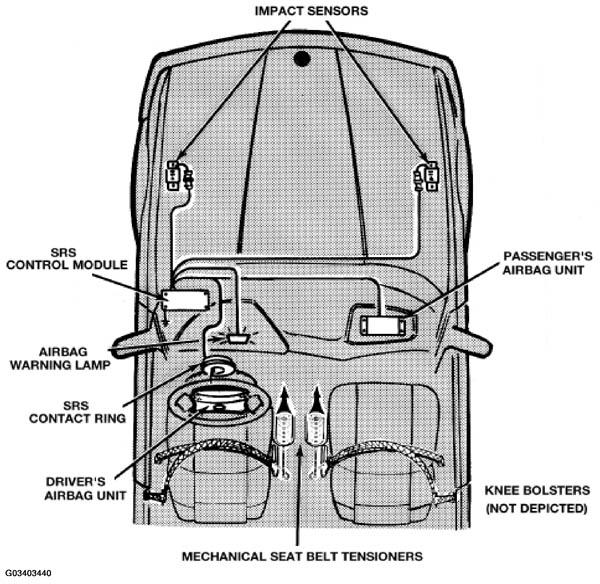

The early SRS consists of the following components:
- Driver's air bag unit with gas generator - mounted in the center of the steering wheel.
- Passenger's front air bag was added beginning with 1993 model year E32/E31.
- Contact ring - under the steering wheel
- Front Impact Sensors - mounted on the left and right wheel housings.
- Control module.
- SRS warning lamp.
