Rollover Sensor

The rollover sensor in mounted on the longitudinal axis of the vehicle, behind the left backrest. It contains the sensors and control electronics for roll bar deployment.

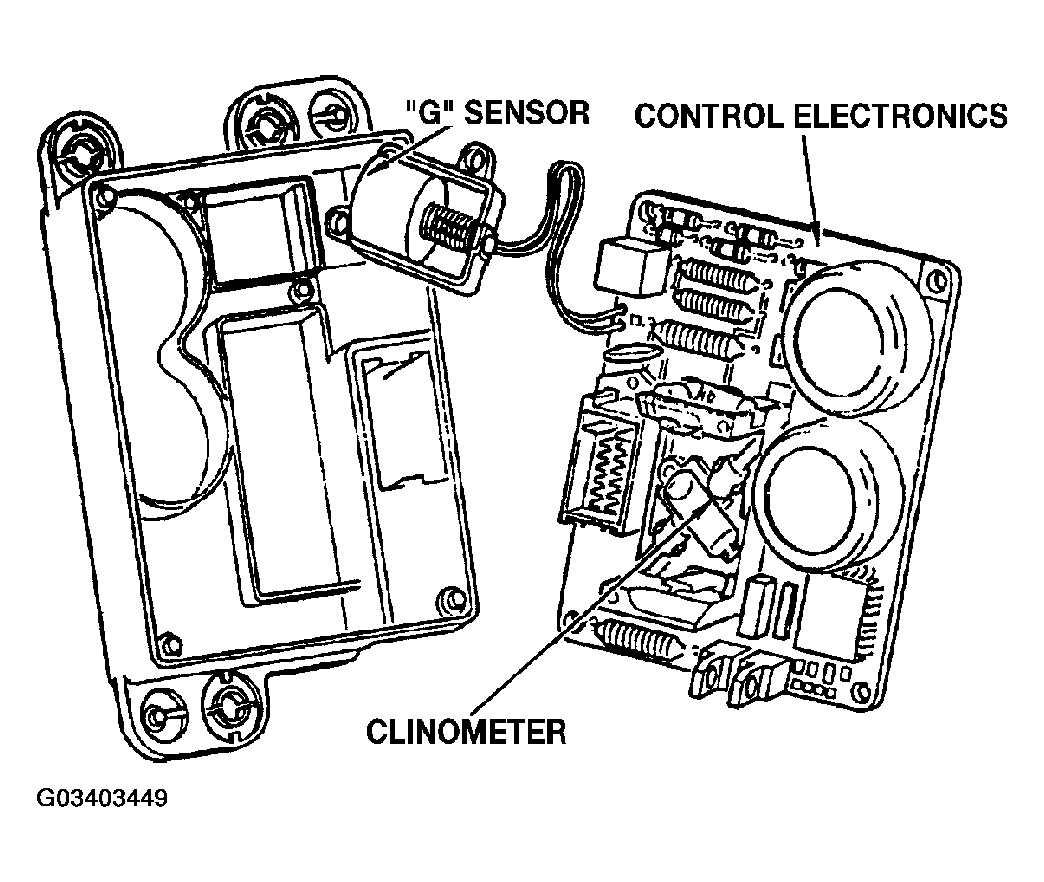

Fig 1: Identifying Rollover Sensor
G03403449Courtesy of BMW OF NORTH AMERICA, INC.
