Steering Column: Disassembly
- Remove steering column. See STEERING COLUMN .
- Remove ring antenna. See RING ANTENNA OF ELECTRONIC IMMOBILIZER .

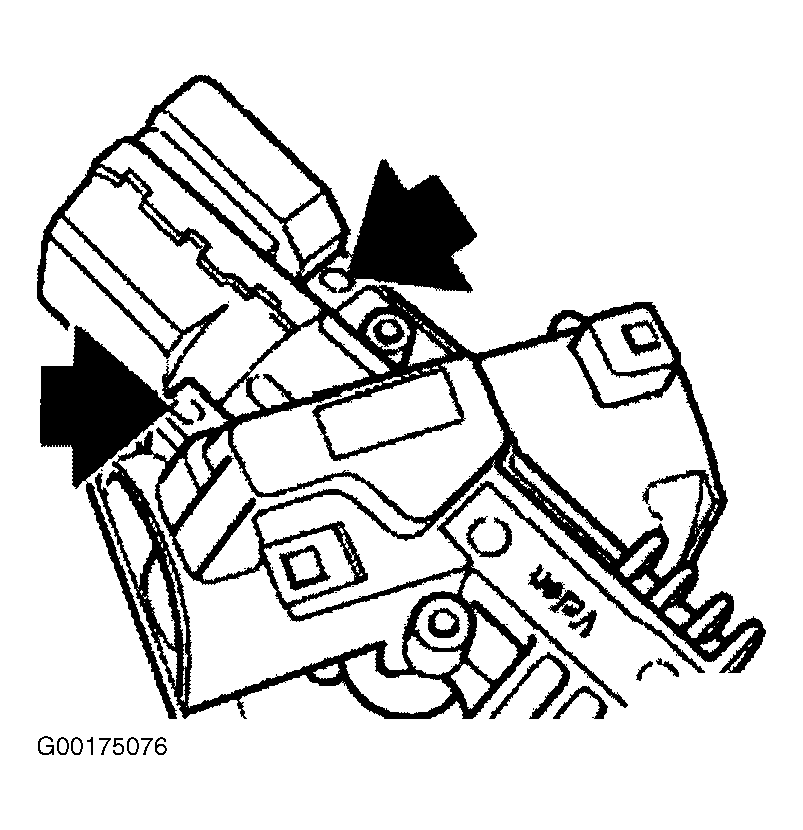

- Remove protective paint and unfasten grub screws. Remove ignition starter switch. See Figure.

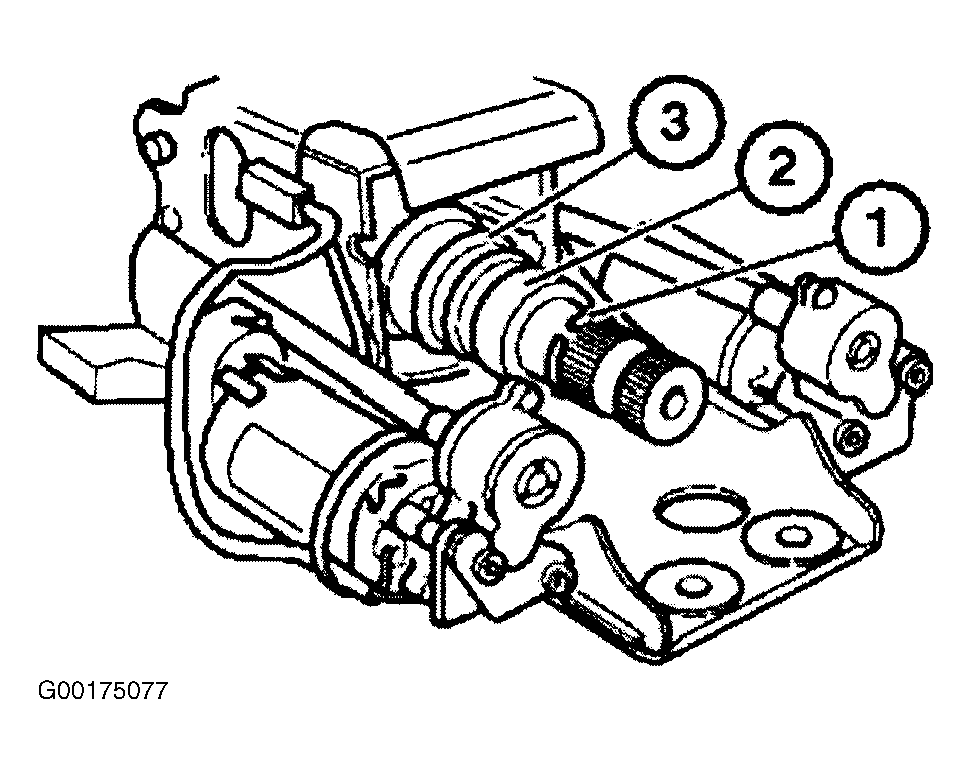

- Lift out snap ring (1) and take off with sleeve (2). See Fig 1.
- Lift out and remove steering spindle bearing. Take out bearing inner sleeve. See Figure.
- Remove shear-off screws with tool, e.g. chisel. See Fig 2.
- Remove lock cylinder. See STEERING WHEEL LOCK CYLINDER .
- Remove steering angle sensor (1) from steering spindle. See Figure.

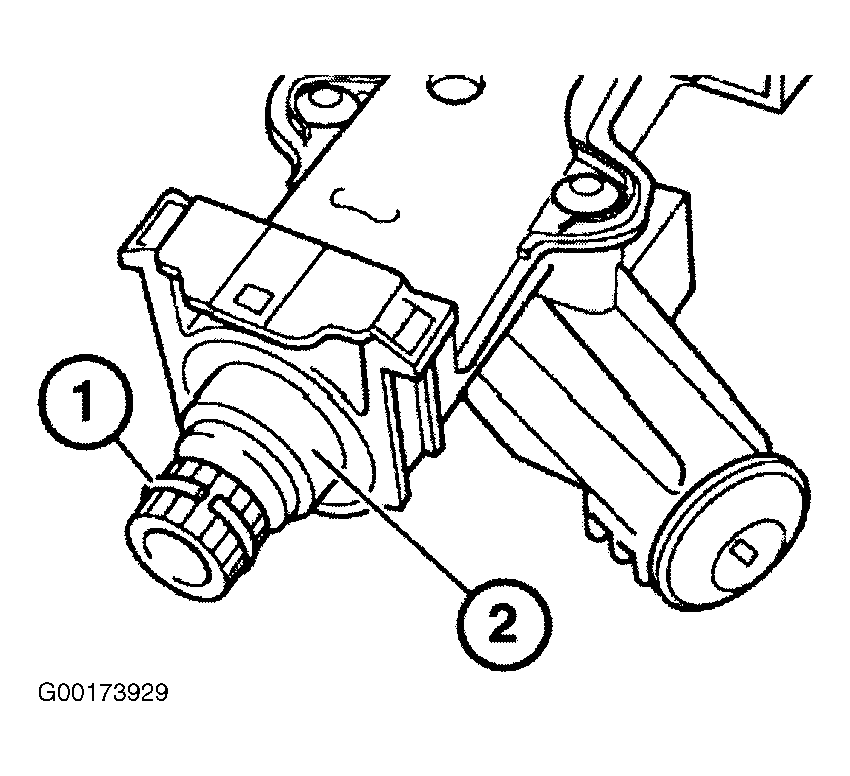

- Lift out snap ring (1). Remove end collar (2) and spring (3). Remove steering spindle and pull out steering column tube. See Fig 3.
- Knock lower steering spindle bearing out of outer tube.

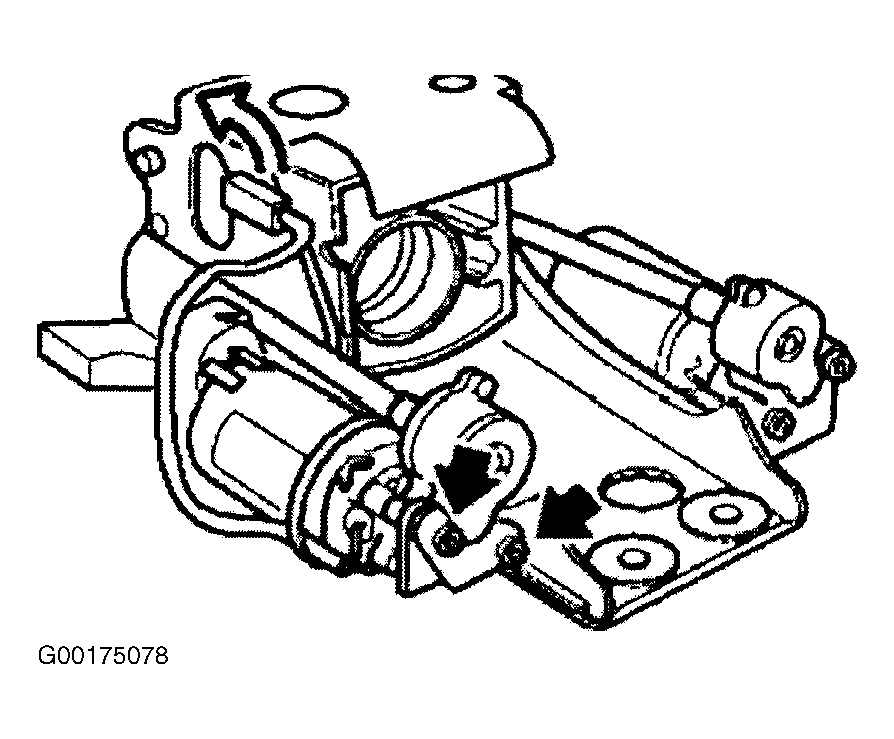

- Unfasten screws. Twist connector to remove from bracket. Remove gearbox motor. See Fig 4.

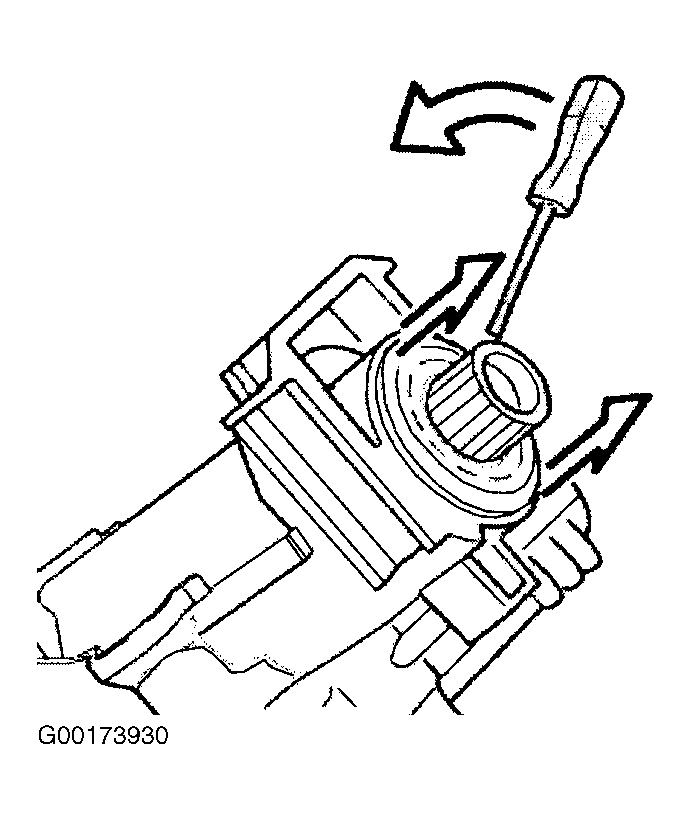

- Remove shaft. See Fig 5.

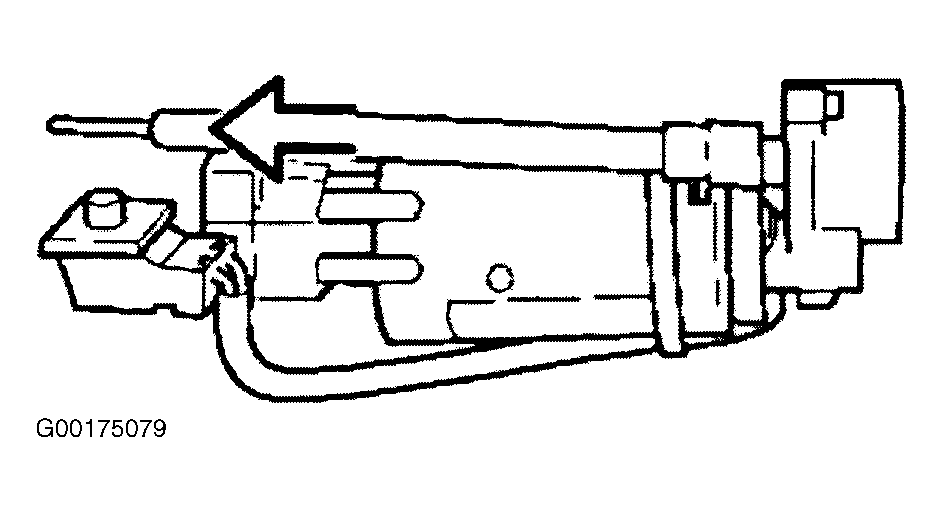

- Disconnect torsion springs (8) from both sides. Slacken nut (1). Remove axial grooved ball bearing (2) and clamping disc (3). Remove retainer (4). See Fig 6.

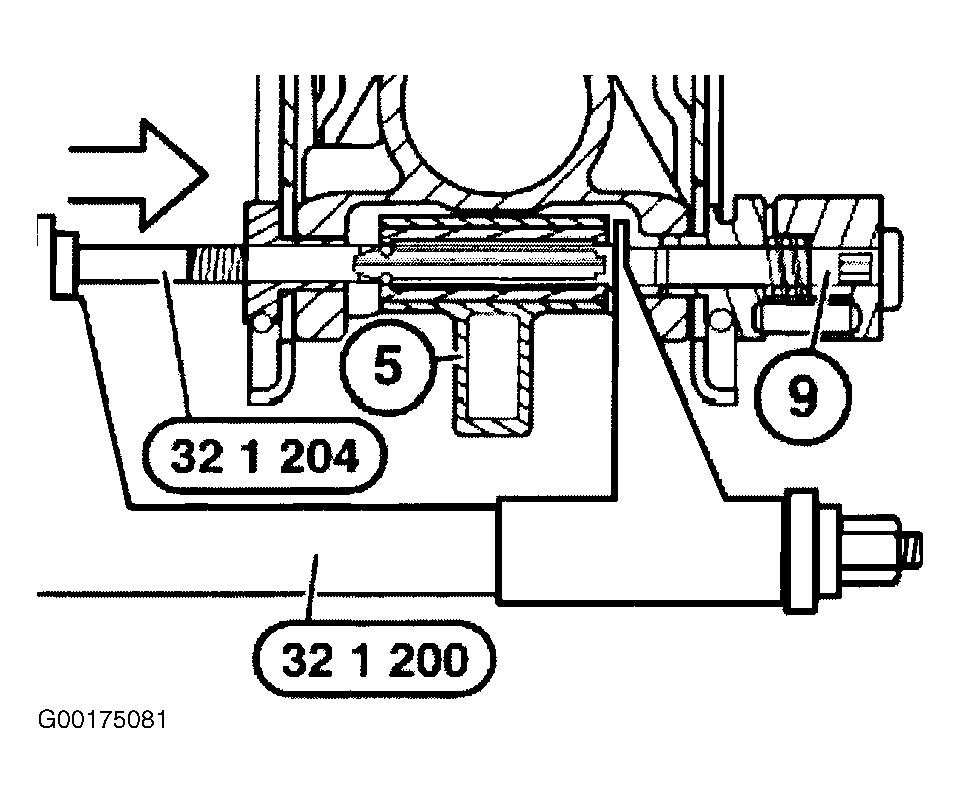

- Press clamping fixture (9) out of adjusting lever (5) with special tool (32 1 200) and insert (32 1 204). Grip drive of special tool with open-end wrench. See Fig 7.
