Steering Column: Removal

Disconnect negative battery cable.
Remove steering wheel. See STEERING WHEEL .
Remove lower trim from instrument panel.
Take off collar (1). See Fig 1.
Remove upper section of steering column trim. See STEERING COLUMN UPPER TRIM SECTION .
Remove cable for interlock from steering lock if necessary. See Fig 2.

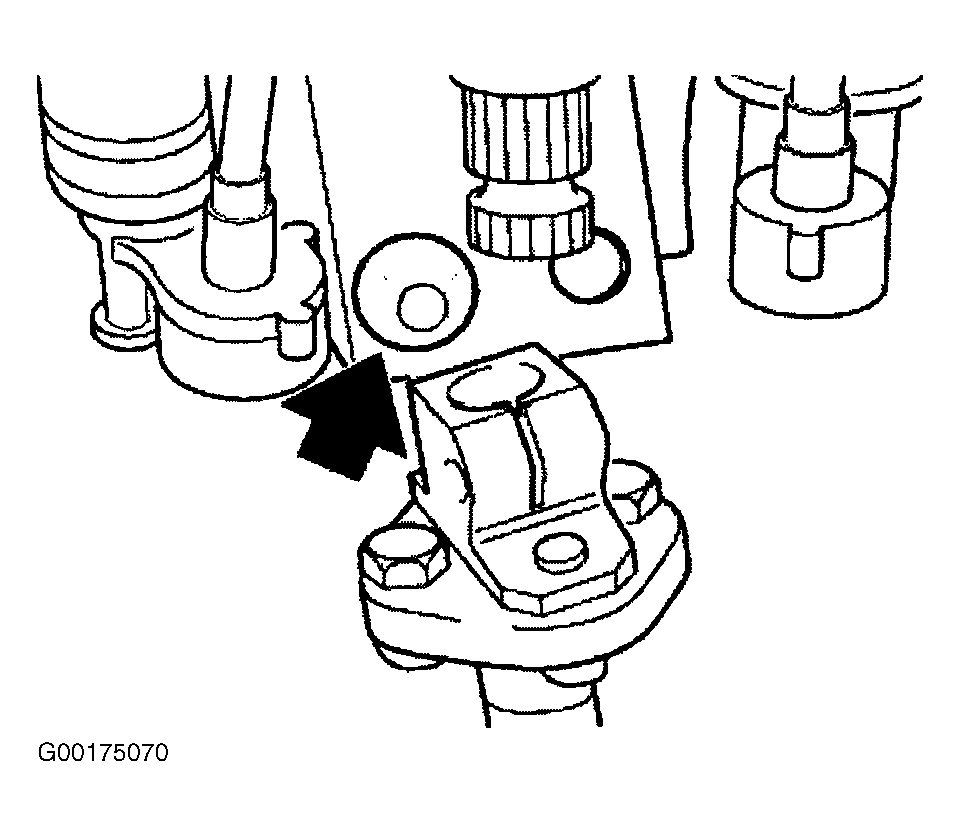

Remove clamping bolt. Press down on steering spindle. See Figure.
Loosen shear-off screw with or mill off screw head. See Fig 3.
Unfasten all lines leading to steering column from their respective brackets. Unscrew screw. Unlock connector from ignition starter switch and remove. See Fig 4.
Unfasten screws (3) for mechanical adjustment. See Fig 5.
Unfasten screws on support tube. Remove steering column.

Fig 1: Taking Off Collar

Courtesy of BMW OF NORTH AMERICA, INC.

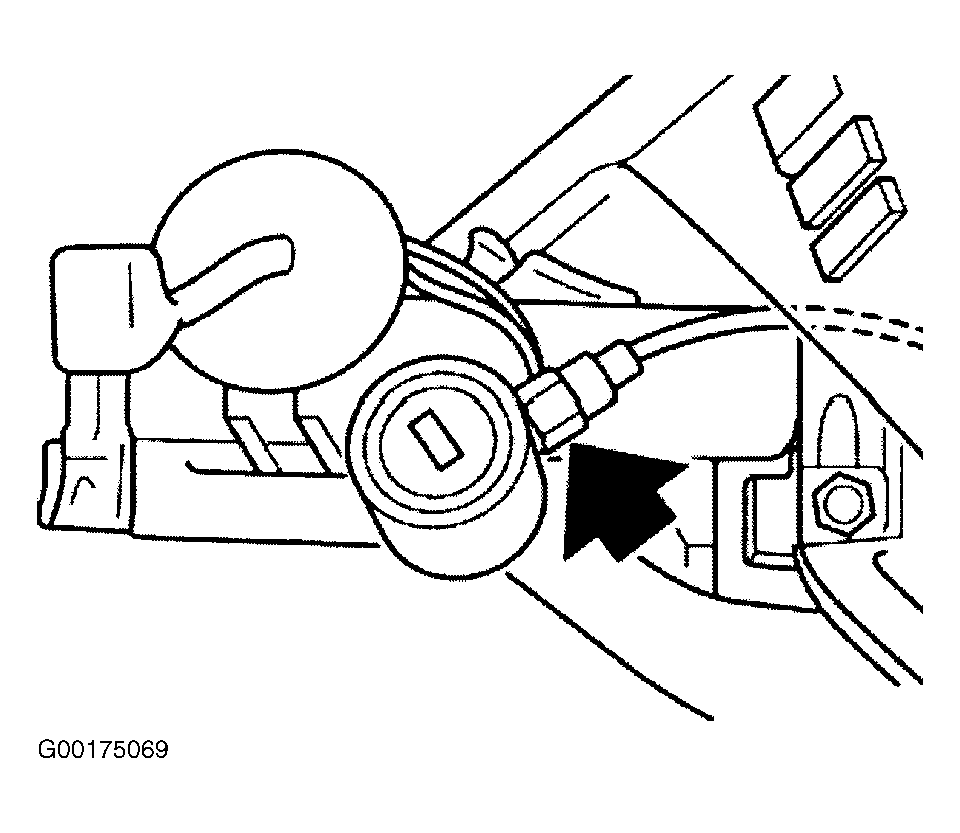

Fig 2: Removing Cable For Interlock

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Locating Shear-off Screw

Courtesy of BMW OF NORTH AMERICA, INC.

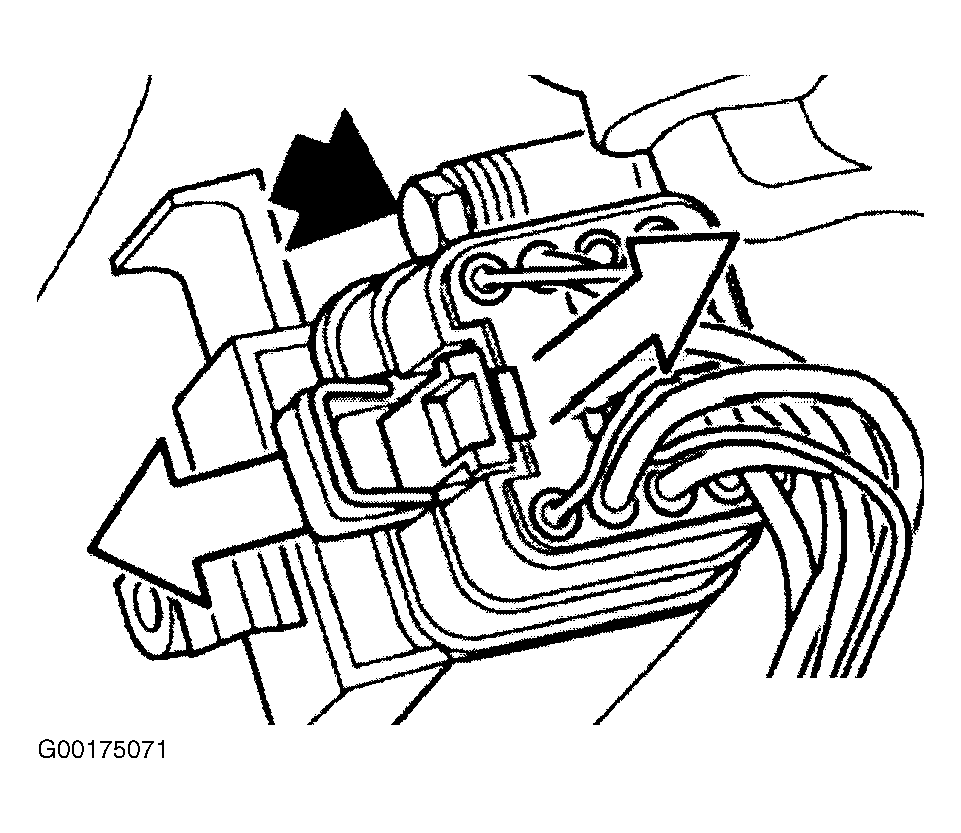

Fig 4: Removing Connector From Ignition Starter Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Identifying Mechanical Adjustment Components

Courtesy of BMW OF NORTH AMERICA, INC.
