Shift Programs
BMW EH transmissions have selectable shift programs (or modes) to suit driver needs and operating conditions. There are 3 basic shift programs available:
- Economy Program - The economy program is the default program which is adopted every time the vehicle is started. When in economy mode, the operating priority is for maximum economy and shift comfort. Shifts will take place at low engine RPM and road speed. The economy mode is indicated by an "A" on the program switch. The cluster will display an "E" to indicate economy mode.
- Manual Mode (Winter Mode) - Manual mode is used to start out the vehicle in a higher gear on slippery surfaces when more traction is needed. A higher gear will reduce torque to the rear wheels. Manual mode can also be used to select a lower gear when needed such as when climbing a hill. Depending upon vehicle application an "M" will appear in the cluster when in Manual Mode or an asterisk (*) symbol will appear in the instrument cluster to indicate Winter Mode.
- Sport Mode - Sport Mode provides raised shift points and a more aggressive shift program for the "Enthusiastic" BMW driver. The cluster will display an "S" when in sport mode.

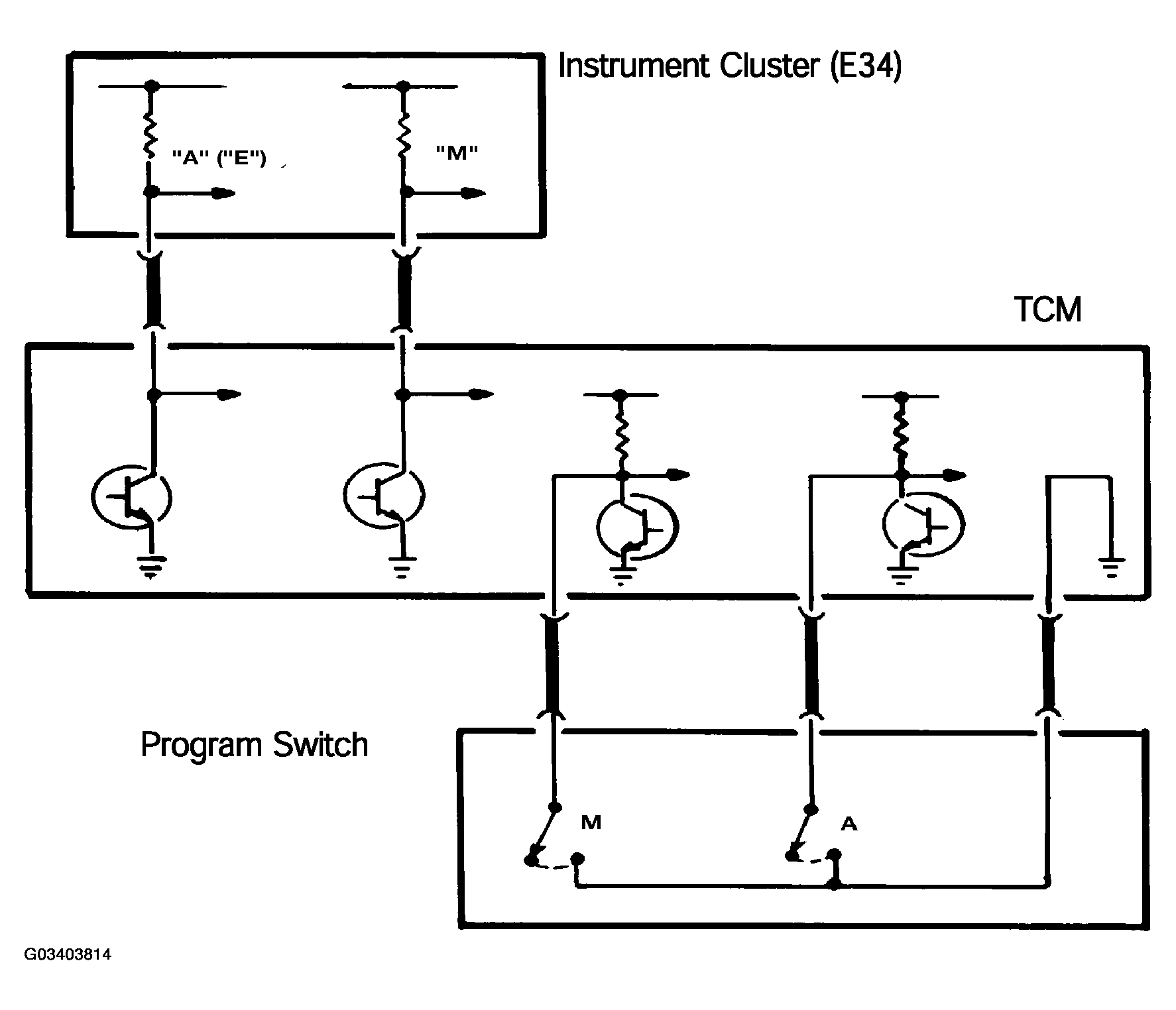

Regardless of vehicle application, the program switch provides a momentary ground to the TCM to switch between modes. There have been numerous designs of the program switch since it's introduction. The program switch configurations are as follows:

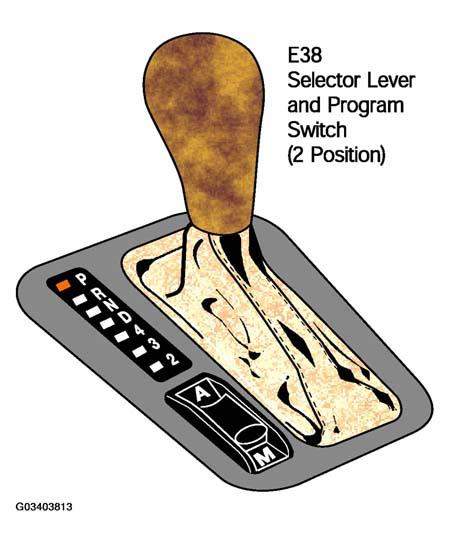

- 2 Position Slide Switch - This switch has the "A" and the "M" selection. Sport mode is achieved by moving the selector lever from "D" to 4, 3 or 2 when in the Economy Mode. The 2 Position slide switch is used on most models. These vehicles usually have a range and program display located in the instrument cluster.
- 2 Position Rocker Switch - This switch operates the same as the slide switch, but it is used exclusively on the E36. The E36 does not have a program indicator in the cluster. The rocker switch will illuminate, indicating the current program.

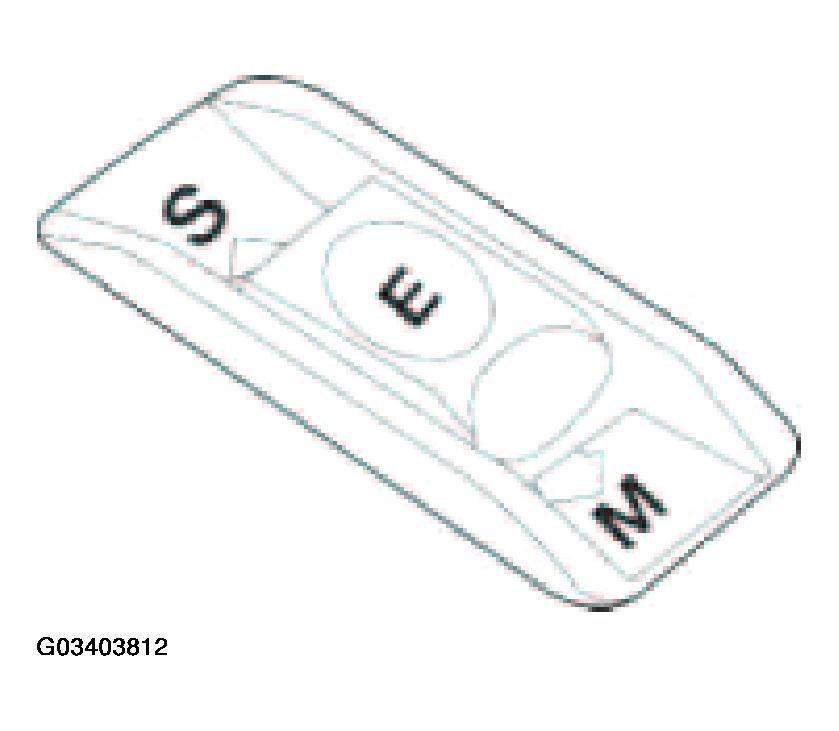

- 3 Position Slide Switch - This switch has the added position for sport mode. The shifter does not have to be moved out of drive (D) to be in sport mode. This switch is used on the E36 M3 and the 4HP22/24 EH (Version Late E-7).
- 3 Position Rotary Switch - This switch is used only on the Early 4HP22 EH trans missions (Version Early E-7).
- No Program Switch - On some vehicles with AGS features, there is no program switch. Shift modes are obtained by moving the shift lever out of "D" range or automatically by adaptive shift functions. (Example E39)
