Torque Converter: Notes
In standard transmissions the crankshaft is linked to the transmission input shaft via the clutch assembly. Power flows from the crankshaft through the flywheel. The pressure plate transfers power to the clutch disc which is splined to the transmission input shaft. The pressure plate is used to disconnect (or interrupt) power flow to the transmission input shaft. Because the engine is mechanically connected to the driveline, power flow must be interrupted when the vehicle is stationary. Otherwise the engine would stall.
In automatic transmissions, there is a fluid coupling between the engine and transmission. This fluid coupling is more commonly referred to as the torque converter. In the torque converter there is no rigid connection between the engine and transmission (Except for lock up clutch). In order to understand the operation of the torque converter, we must first start with the components.

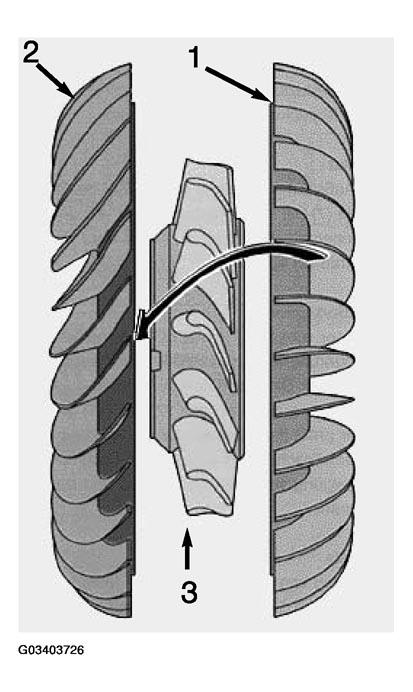

The breakdown of the components are as follows:
- The Impeller (1), which is rigidly connected to the torque converter housing.
- The Turbine (2) which is splined to the input shaft (turbine shaft) of the transmission.
- The Stator (3) which has a one-way clutch. The inner race of the one-way clutch is splined to a stationary shaft attached to the transmission.
The addition of the stator allows the fluid coupling to be referred to as a torque converter. The stator provides for a multiplication of torque at low speeds. Without the stator there would be no multiplication of torque.
When the engine is running, the impeller which is directly connected to the converter housing, rotates at engine speed. Fluid is directed from the impeller blades to the turbine blades. The fluid drives the turbine which is splined to the input (turbine) shaft of the transmission. This functions the same way as a waterfall acting on a paddle wheel. The ratio of the impeller speed to turbine speed is approximately 1.1 to 1. This ratio is improved to 1:1 with the addition of the torque converter clutch which is discussed later.
