Transmission Control Module
The TCM receives inputs, processes information and actuates the output elements to provide optimal shift points. The TCM is programmed for maximum shift comfort and fuel economy. The TCM on most BMW vehicles is located in the E-Box next to the ECM (DME).

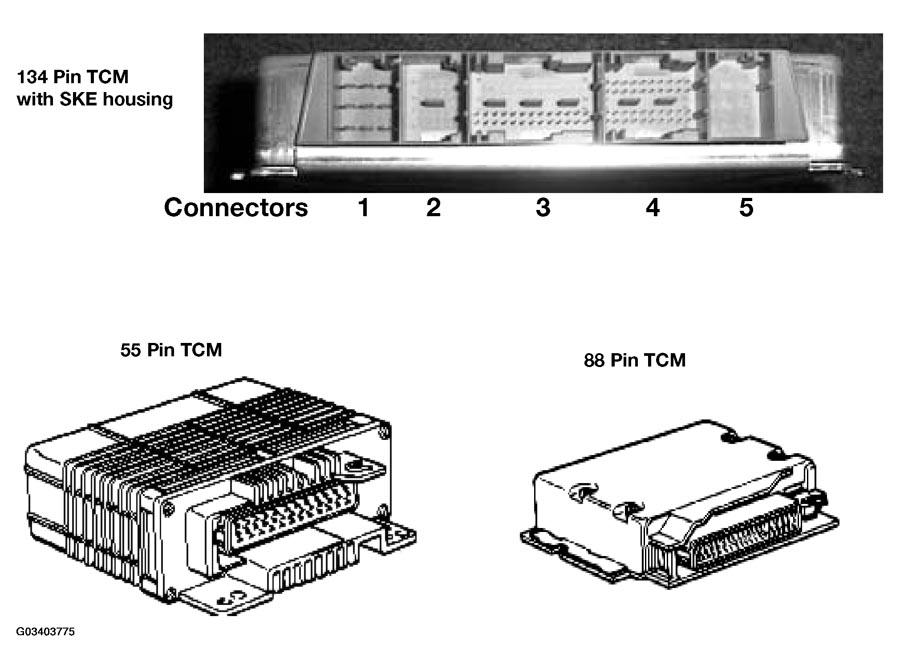

There are several types of TCM housings:
- 35 Pin TCM (TCU) - used on the 4HP transmissions
- 55 Pin TCM used on the A4S310R (THM-R1)
- 88 Pin TCM used on all others up to 98
- 134 Pin TCM used on all BMW transmission from the 99 model year. (Note- the 134 pin TCM was introduced on the 98 Models equipped with the A5S440Z).
The 134 Pin TCM is also referred to as SKE (Standard Shell Construction). The SKE housing uses 5 separate connectors. On transmission applications only three connectors 1, 3 and 4) are used. Connectors 2 and 5 are blank and are NOT used. The connectors are blue in color to avoid confusion with the ECM (DME) connectors which are black.
