Air Bag Module (Front Door): Removal

Remove front door trim panel. See DOOR TRIM PANEL (FRONT)  . Remove screws on air bag module. See Fig 1 . Remove air bag module. Disconnect electrical connection on air bag module. See Fig 2 .

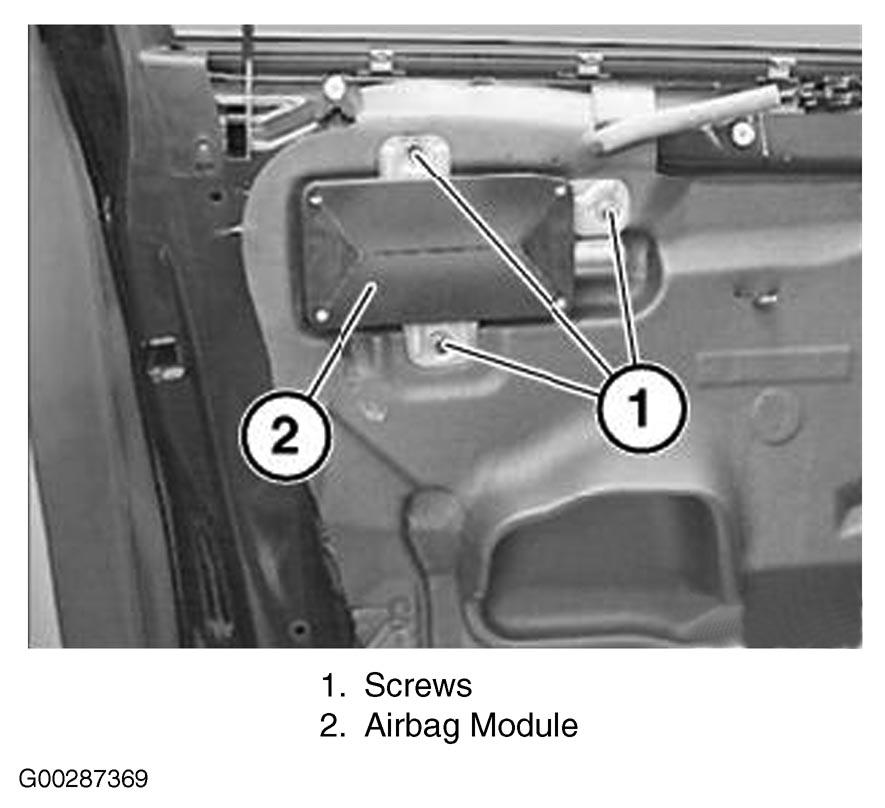

Fig 1: Removing Front Door Trim Panel & Air Bag Module

Courtesy of BMW OF NORTH AMERICA, INC.

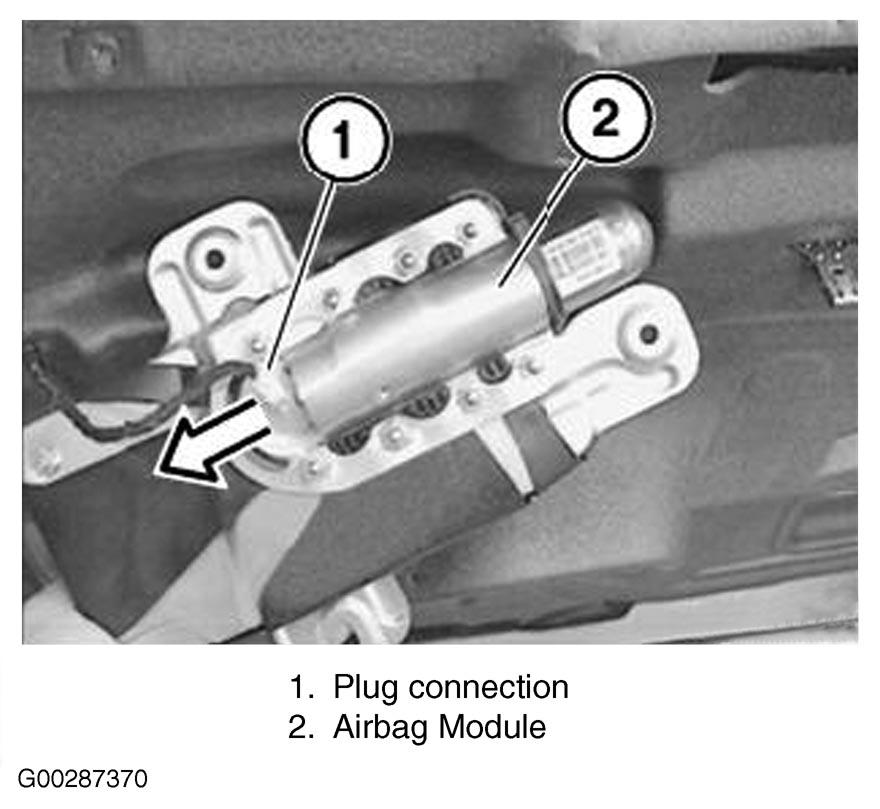

Fig 2: Disconnecting Electrical Connection On Air Bag Module

Courtesy of BMW OF NORTH AMERICA, INC.
