System Components

MS42/MS43 Engine Control Module:  The Engine Control Module (ECM) features a single printed circuit board with two 32-bit microprocessors.

The task of the first processor is to control:

• Engine Load
• Electronic Throttle
• Idle Actuator
• Ignition
• Knock Control

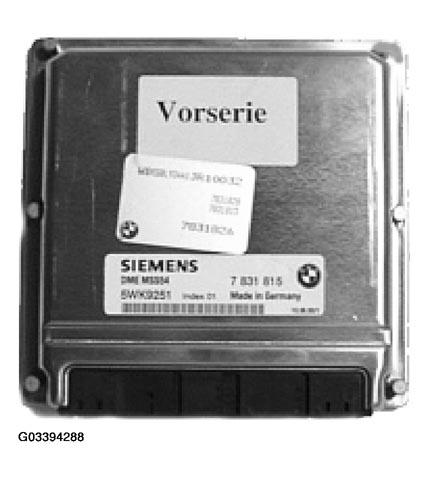

Fig 1: Identifying Engine Control Module

The task of the second processor is to control:

• Air/Fuel Mixture
• Emission Control
• Misfire Detection
• Evaporative Leak Detection

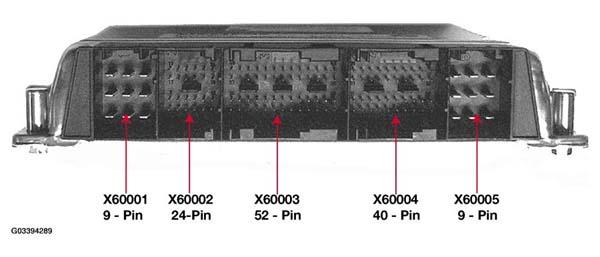

Fig 2: Identifying ECM Connector Terminals

The 134 pin ECM is manufactured by Siemens to BMW specifications. The ECM is the SKE (standard shell construction) housing and uses 5 modular connectors. For testing, use the Universal Adapter Set (break-out box) Special Tool # 90 88 6 121 300.

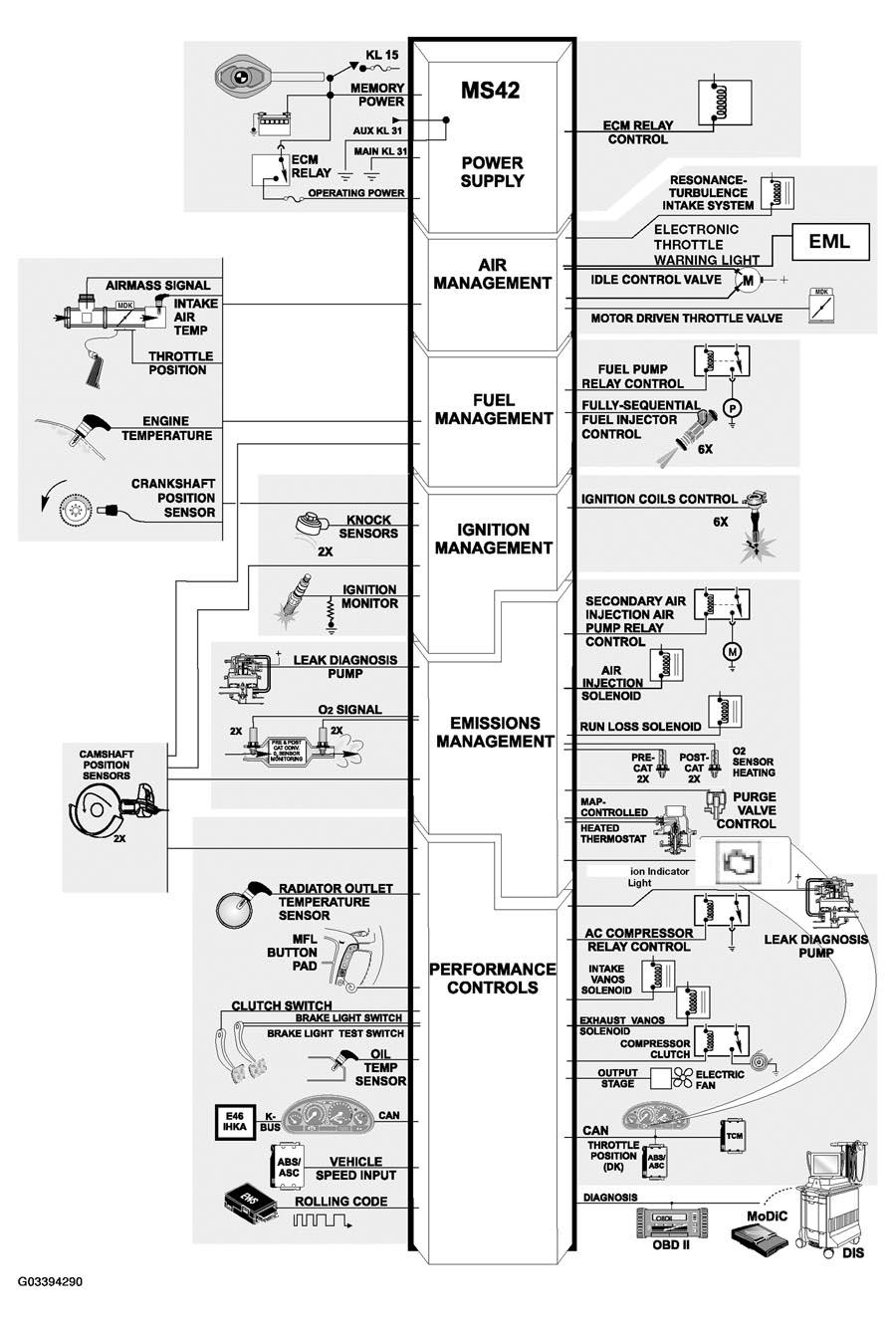

Fig 3: Identifying System Components: Inputs - Processing - Outputs (1 Of 2)

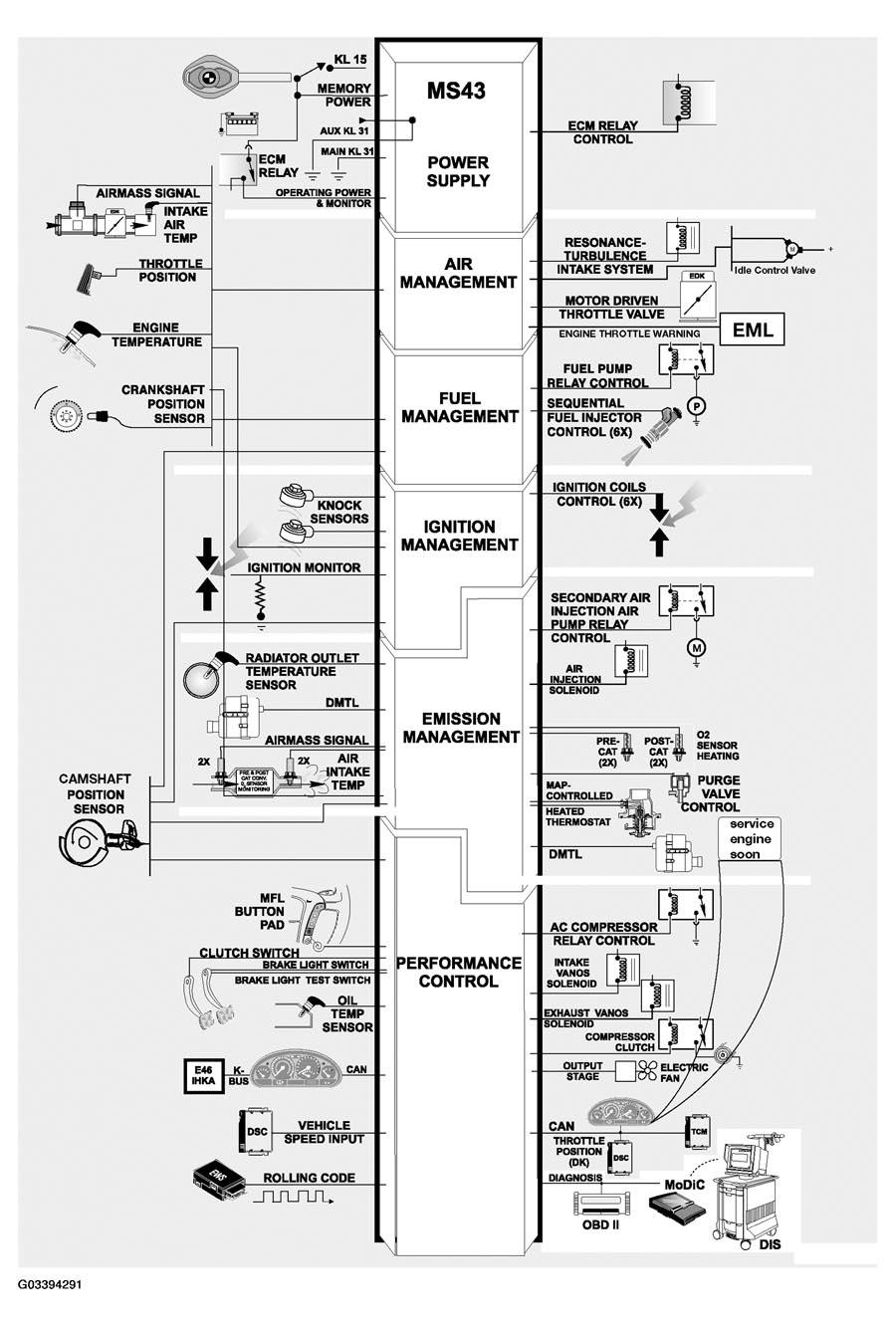

Fig 4: Identifying System Components: Inputs - Processing - Outputs (2 Of 2)
