Freewheel Shifting

In order to prevent an interruption in power flow, freewheel (One Way Clutches) are used to lock members of the planetary gear set. Certain transmissions such as the 4HP22/24, A4S270/310R and the A5S360R use freewheel shifting on all gear shifts. Transmissions such as A5S310Z, A5S440Z, A5S560Z and GA6HP26Z use freewheel shifting for only specific shifts. Other shifts in these transmissions use overlap shifting technology.

The demonstrate how the freewheel is used, we will examine freewheel "H" in the 4HP22/24 transmission.

In third gear, the sun gear is rotating clockwise. Freewheel "H" is overrun (unlocked) allowing the sun gear to rotate. Clutch "C" is active which locks the outer race of freewheel "H" to the case. During a 3/2 downshift, clutch "B" is released. The sun gear is held from rotating counter clockwise by freewheel "H" and the C' clutch. Freewheel "H" is used to stop the counter clockwise rotation of the sun gear before the C' clutch can engage. This prevents an interruption of power flow during the 3/2 downshift. If freewheel "H" fails to operate, there would be an increase in engine RPM from 3rd to 2nd gear.

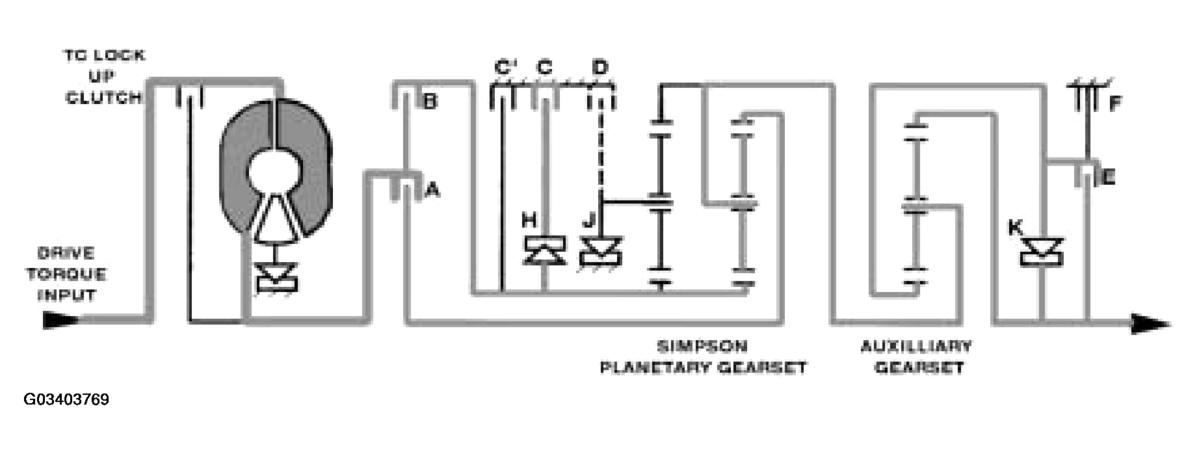

Fig 1: Identifying Power Flow Freewheel Shifting Schematic - Second Gear

Courtesy of BMW OF NORTH AMERICA, INC.

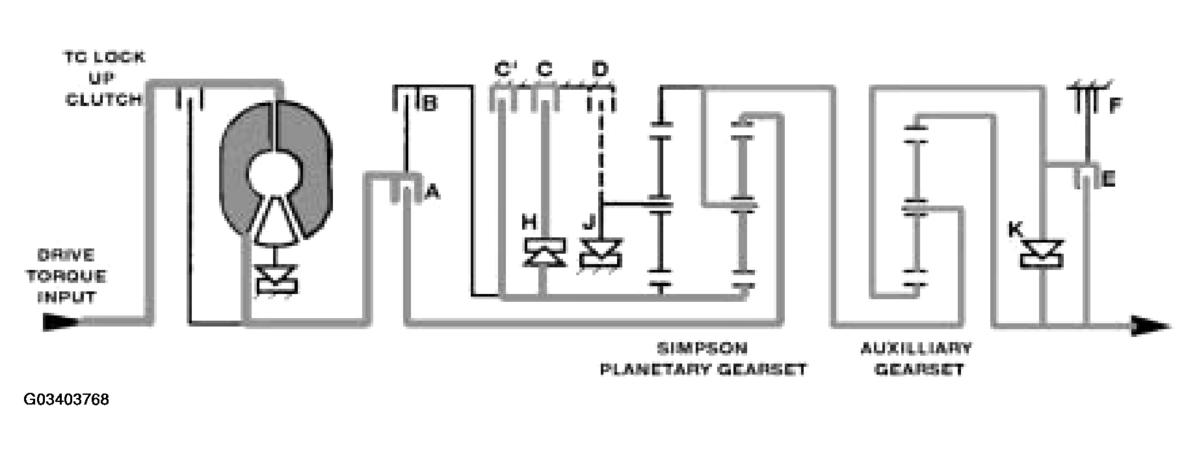

Fig 2: Identifying Power Flow Freewheel Shifting Schematic - Third Gear

Courtesy of BMW OF NORTH AMERICA, INC.
