Mode 6

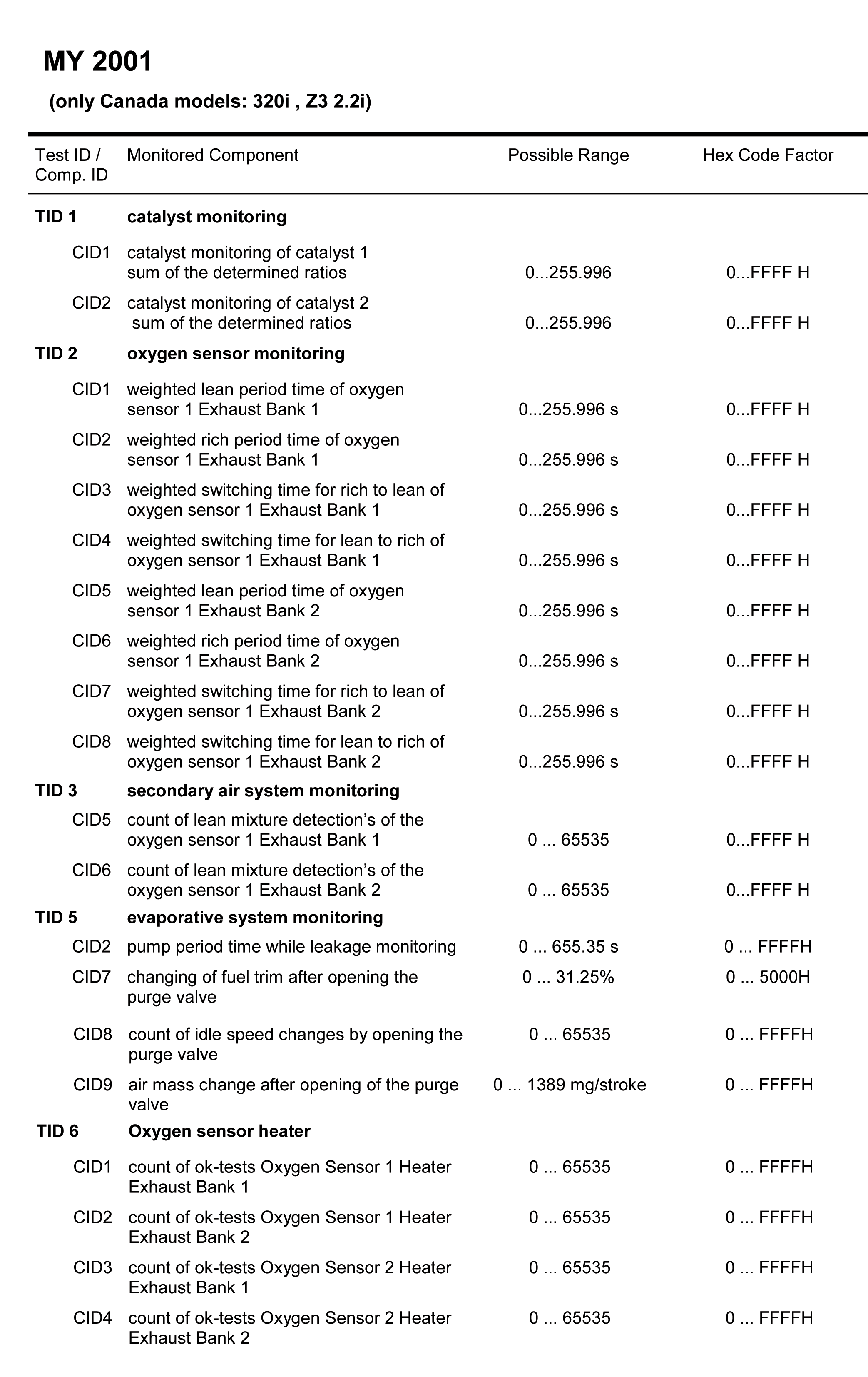

Fig 1: 2001 Mode 6 Canada (Models: 320i & Z3 2.2i)

Courtesy of BMW OF NORTH AMERICA, INC.

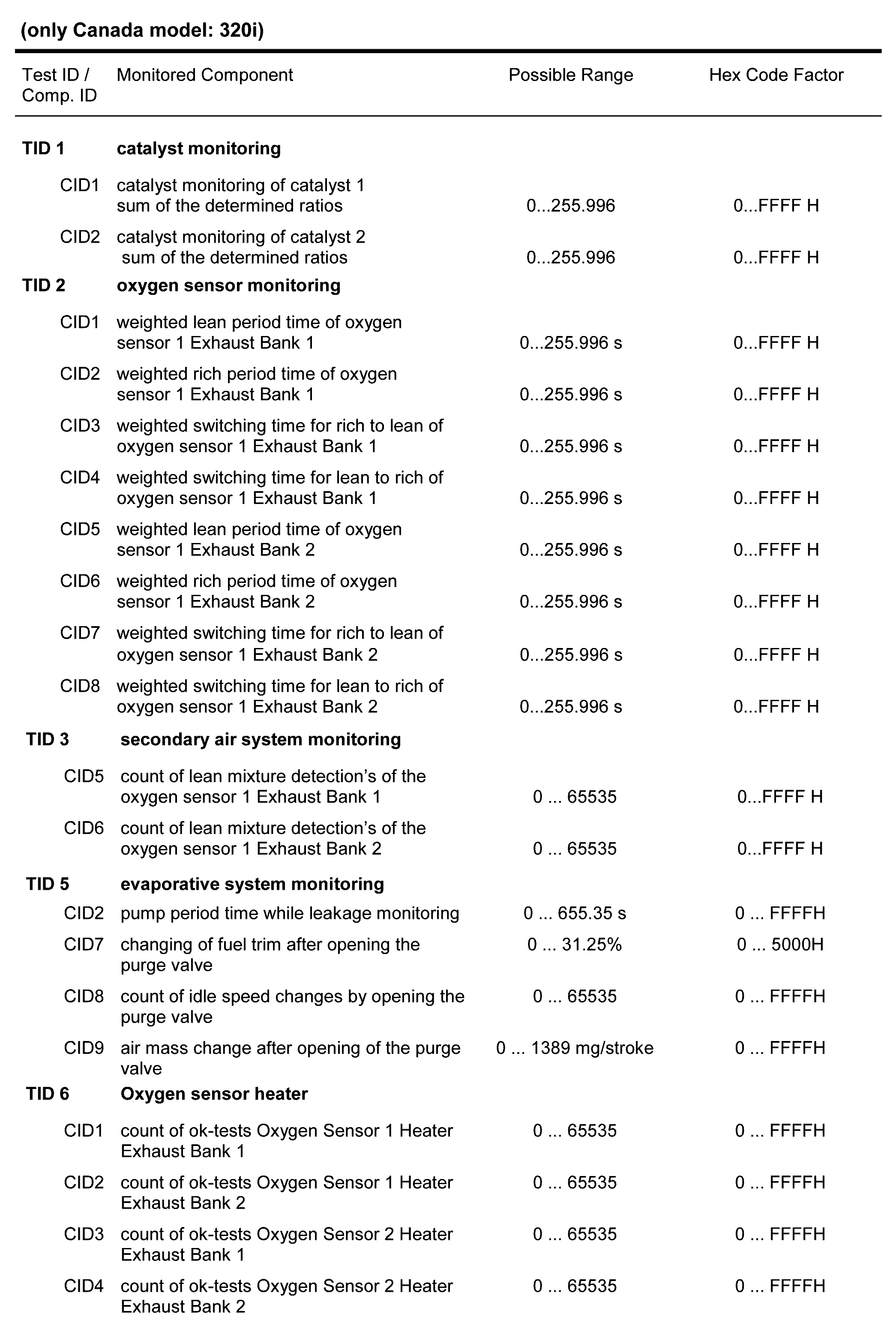

Fig 2: 2001 BMW Mode 6 Canada (Model: 320i)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: 2001 BMW Mode 6 Engine Type M4B25 LEV (Models: Z3 2.5L, 325i, 325Ci, 325Ci Cabr., 325i Touring, 325xi, 325xiT, 525i, 525 Touring)

Courtesy of BMW OF NORTH AMERICA, INC.

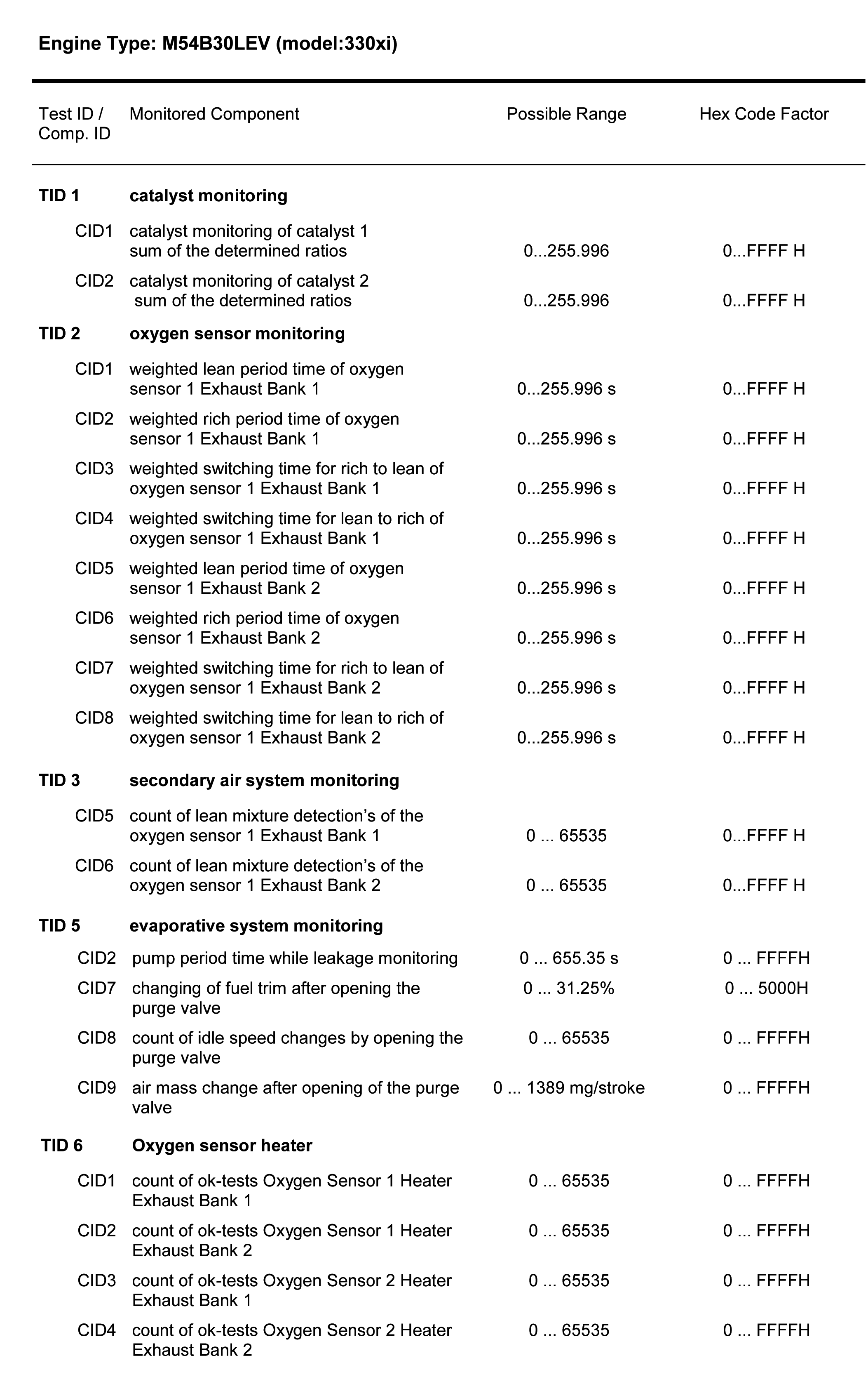

Fig 4: 2001 BMW Mode 6 Engine Type M54B30LEV (Model: 330xi)

Courtesy of BMW OF NORTH AMERICA, INC.

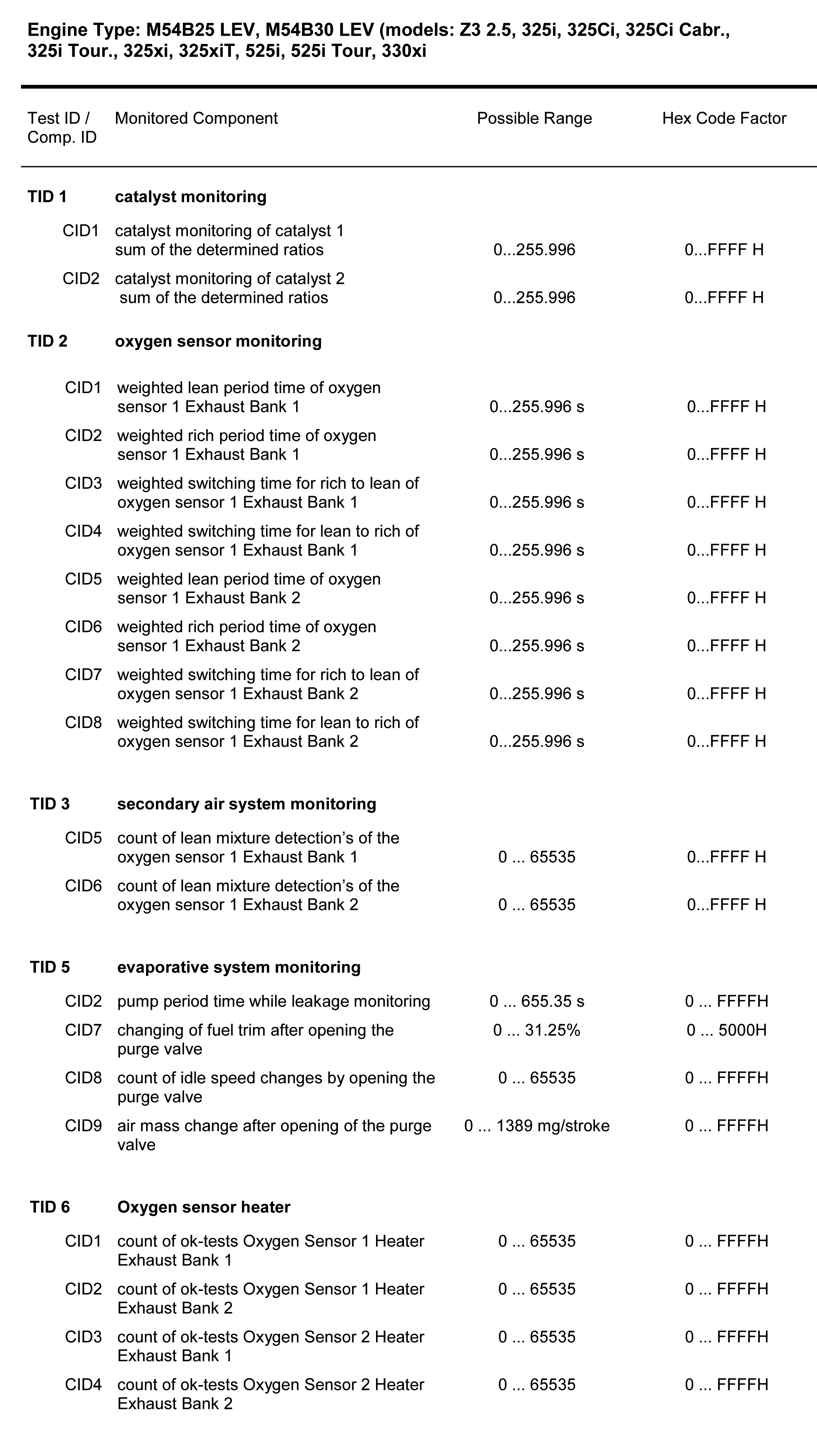

Fig 5: 2001 BMW Mode 6 Engine Type M54B25 LEV, M54B30 LEV (Models: Z3 2.5L, 325i, 325Ci, 325Ci Cabr., 325i Tour., 325xi, 325xiT, 525i, 525i Tour, 330xi)

Courtesy of BMW OF NORTH AMERICA, INC.

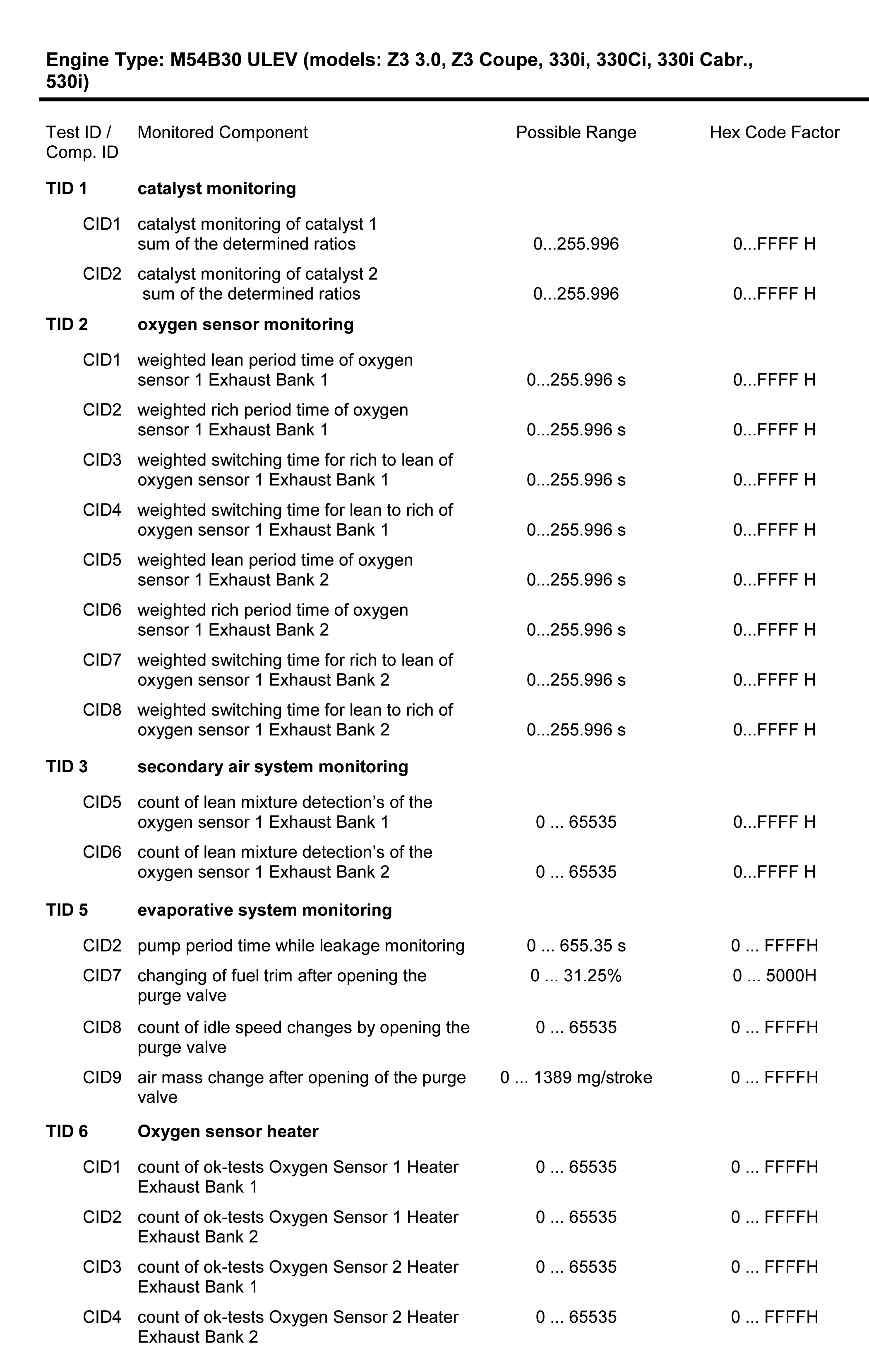

Fig 6: 2001 BMW Mode 6 Engine Type M54B30 ULEV (Models: Z3 3.0L, Z3 Coupe, 330i, 330Ci, 330i Cabr., 530i)

Courtesy of BMW OF NORTH AMERICA, INC.

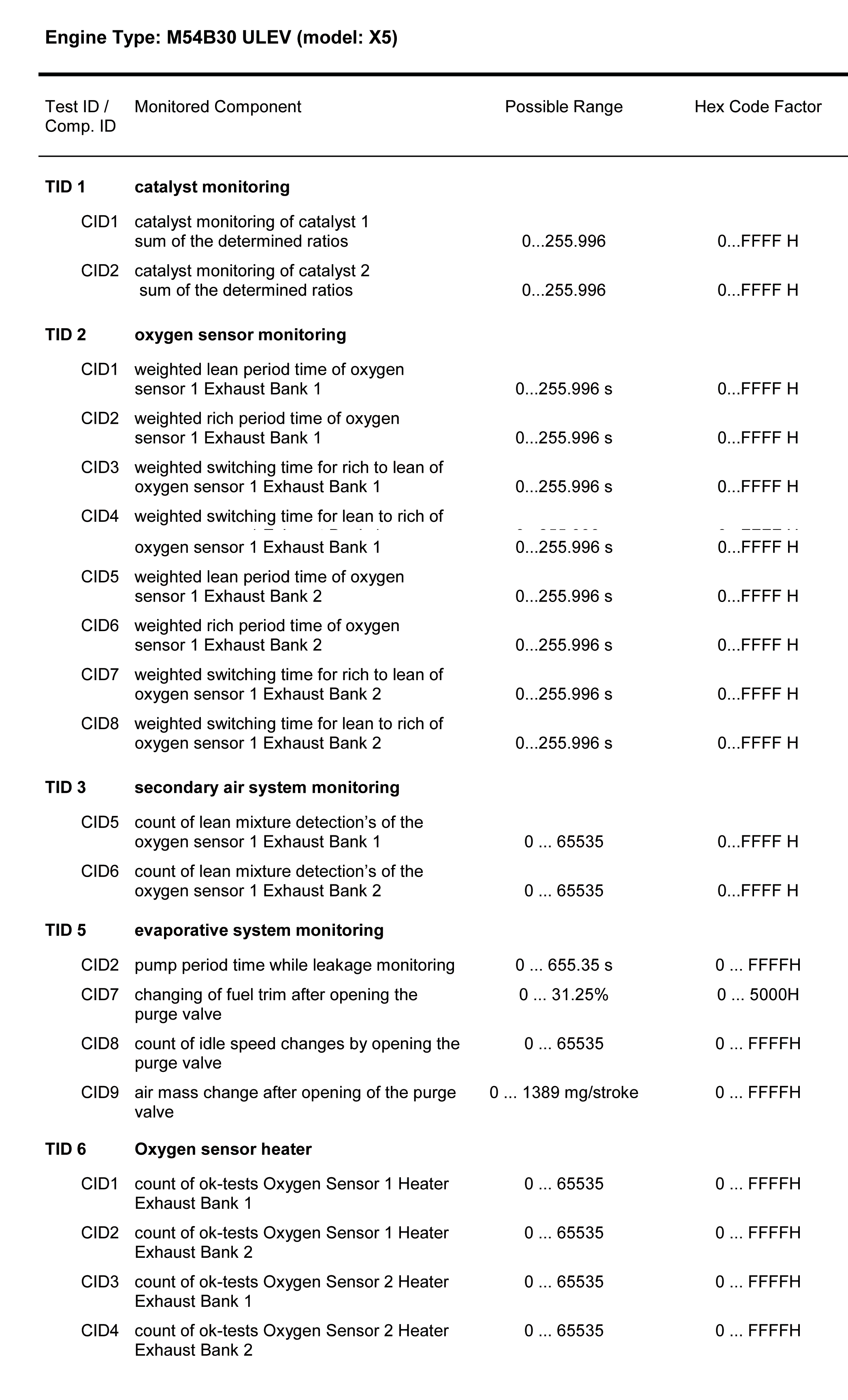

Fig 7: 2001 BMW Mode 6 Engine Type M54B30 ULEV (Model: X5) (Cont.)

Courtesy of BMW OF NORTH AMERICA, INC.

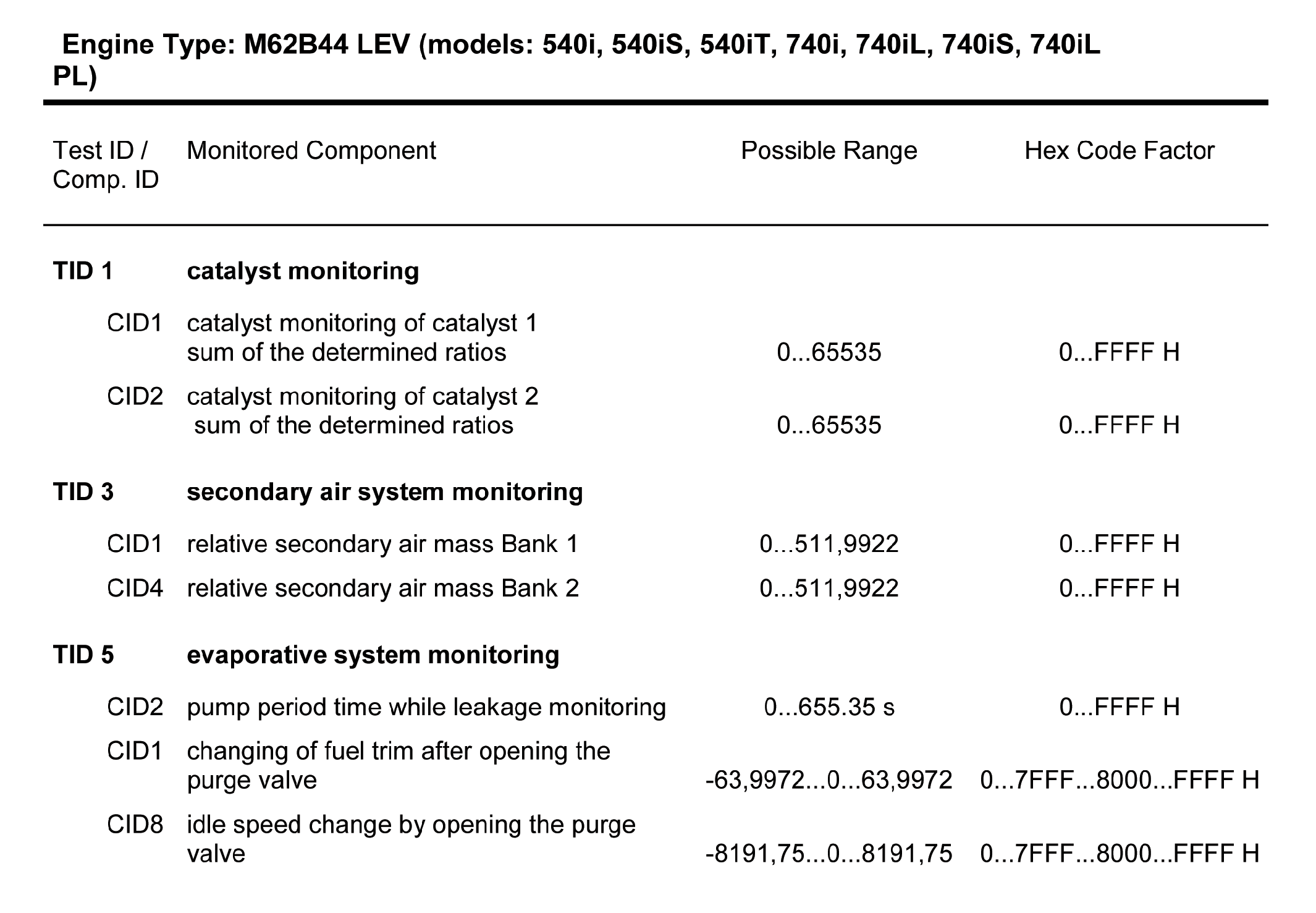

Fig 8: 2001 BMW Mode 6 Engine Type M62B44 LEV (Models: 540i, 540iS, 540iT, 740i, 740iL, 740iS, 740iL)

Courtesy of BMW OF NORTH AMERICA, INC.

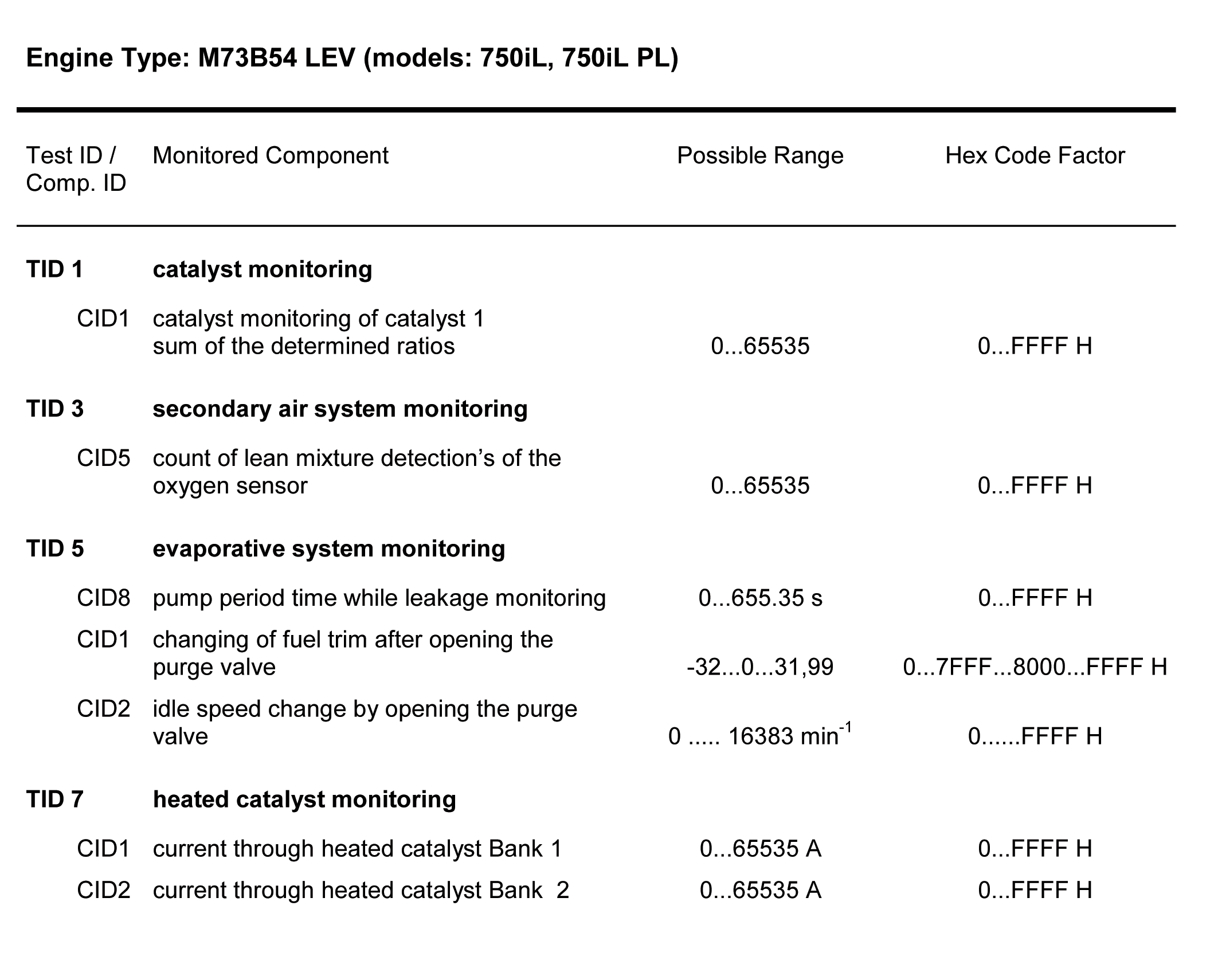

Fig 9: 2001 BMW Mode 6 Engine Type M73B54 LEV (Model: 750iL)

Courtesy of BMW OF NORTH AMERICA, INC.

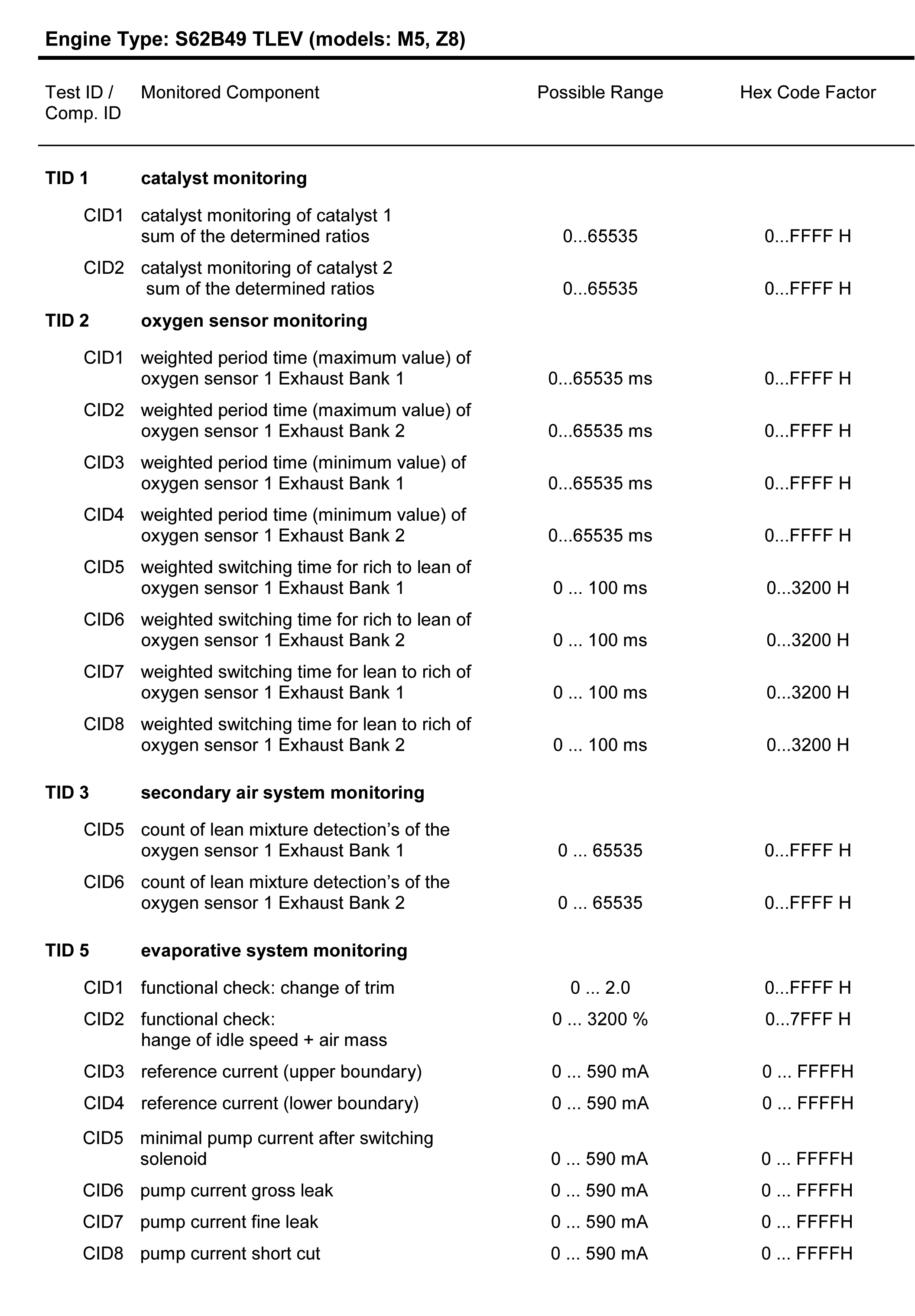

Fig 10: 2001 BMW Mode 6 Engine Type S62B49 TLEV (Models: M5, Z8)

Courtesy of BMW OF NORTH AMERICA, INC.

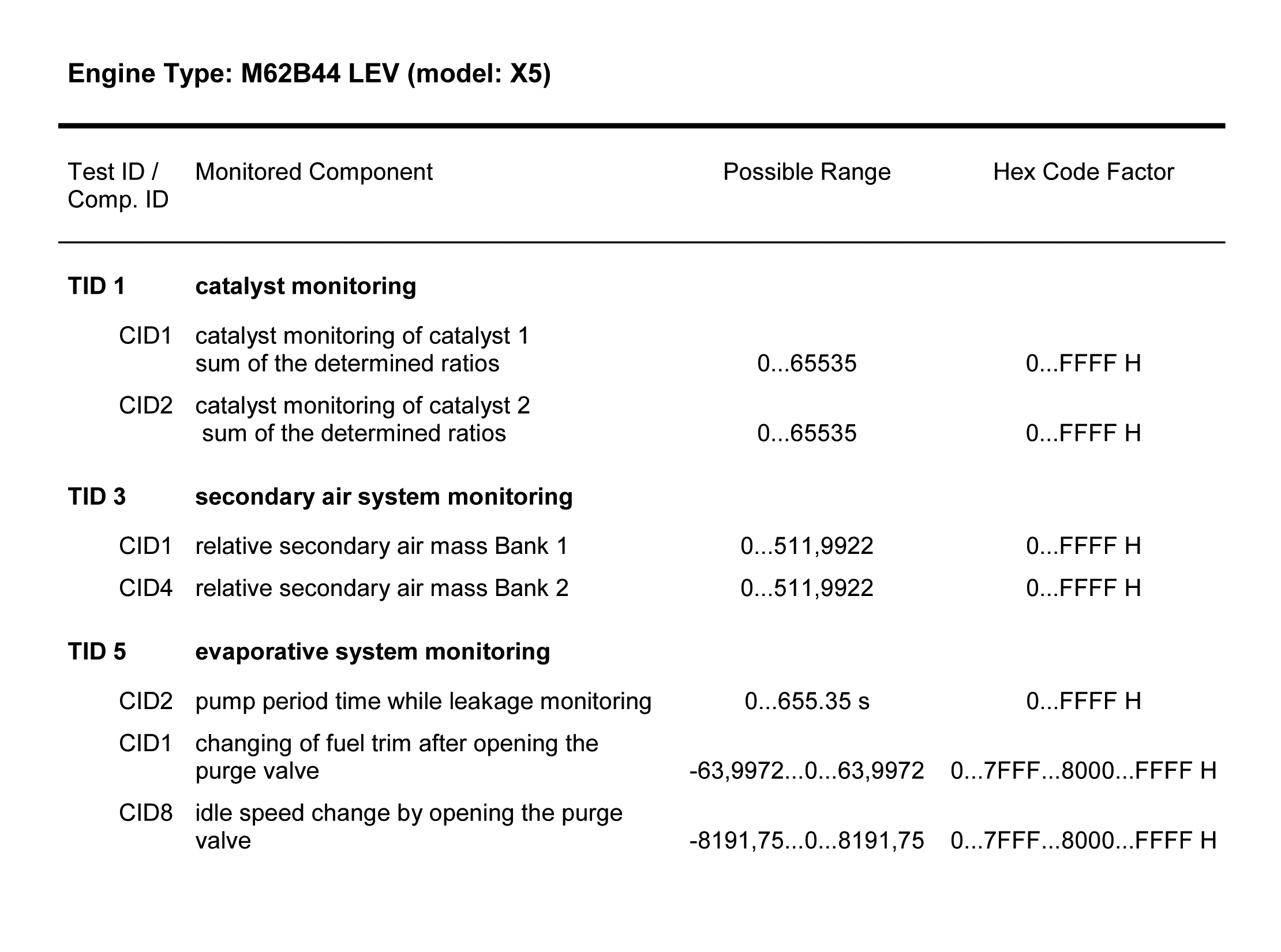

Fig 11: 2001 BMW Mode 6 Engine Type M62B44 (Model: X5)

Courtesy of BMW OF NORTH AMERICA, INC.

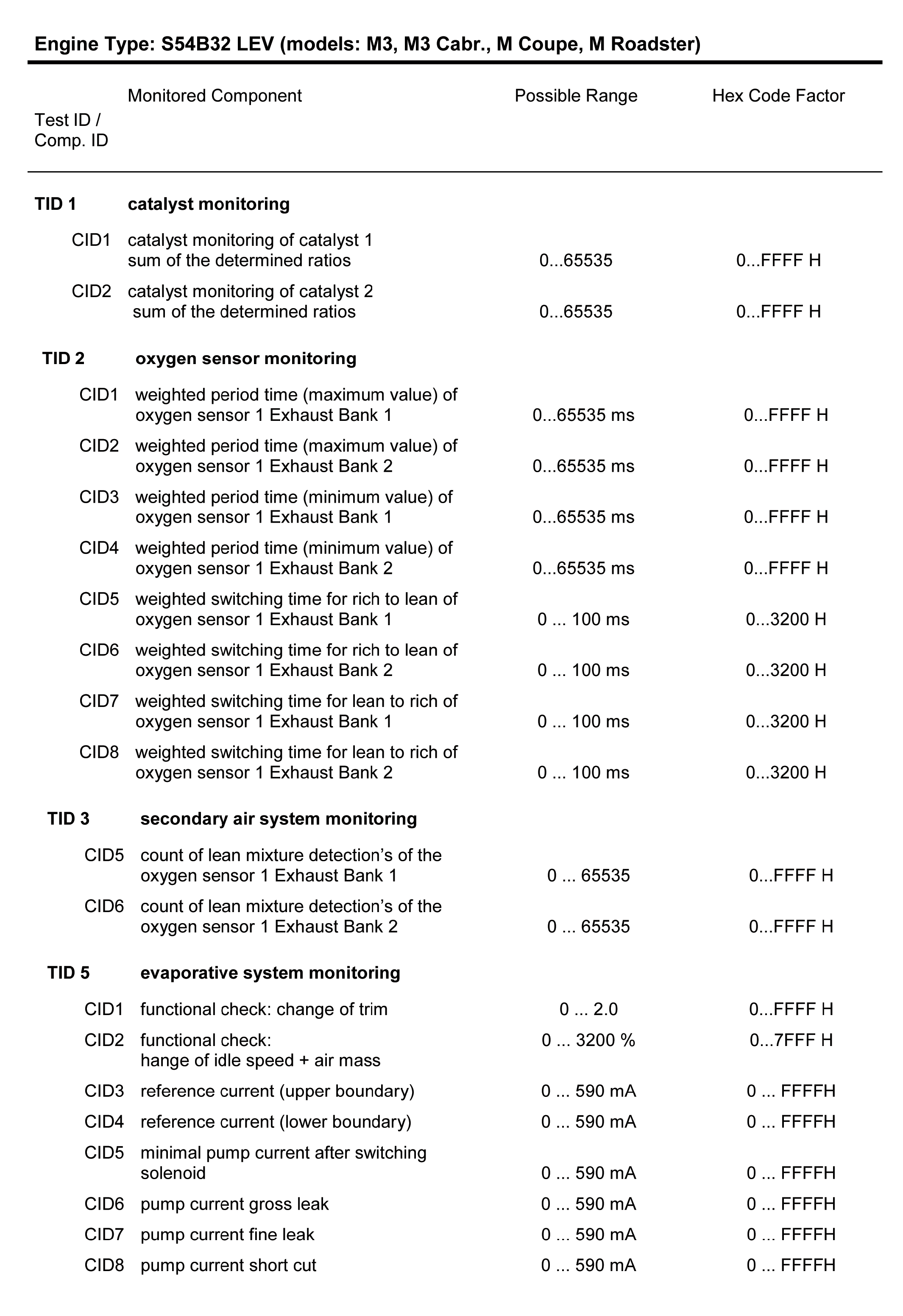

Fig 12: 2001 BMW Mode 6 Engine Type S54B32 LEV (Models: M3, M3 Cabr., M Coupe, M Roadster)

Courtesy of BMW OF NORTH AMERICA, INC.
