12 13... Further fault patterns with evaluation

Evaluation of sparking period and ignition voltage peaks at idling speed.

1. Normal combustion period.
2. Normal ignition voltage peak.

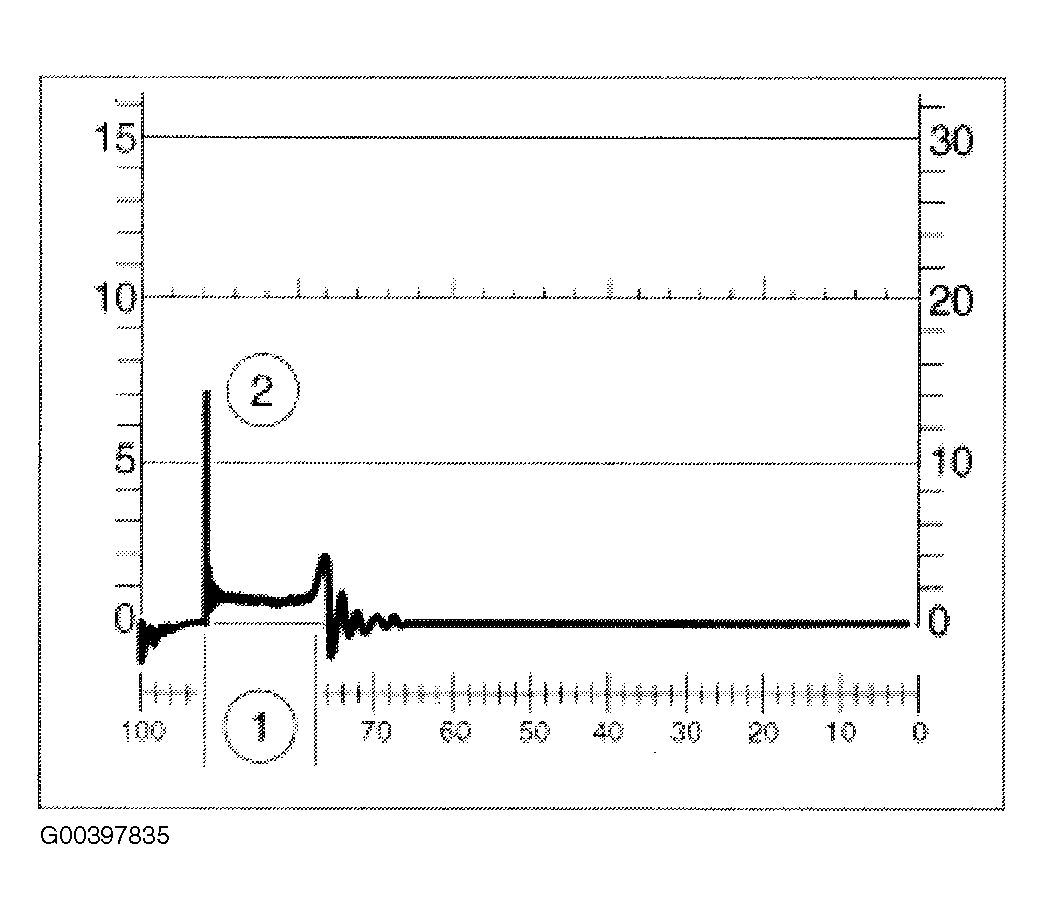

Fig 1: Fault Pattern Of Normal System

Courtesy of BMW OF NORTH AMERICA, INC.

Ignition system is OK.

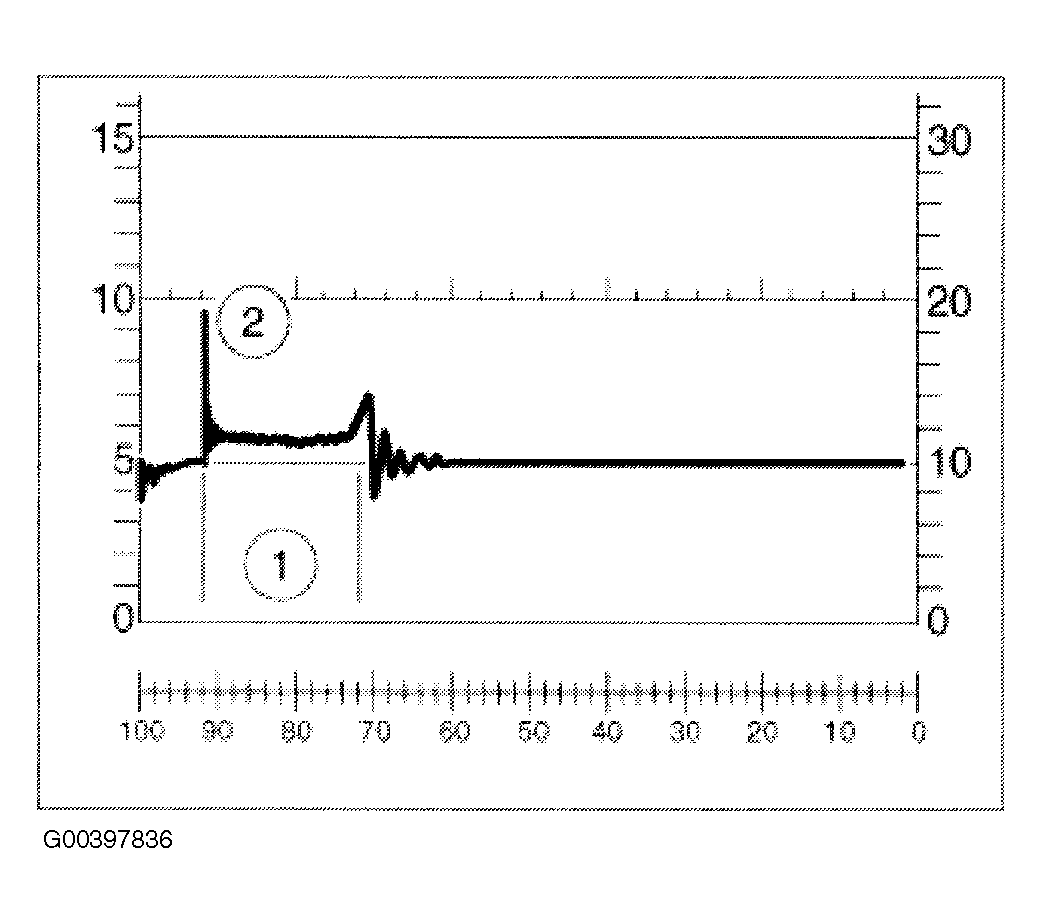

Long sparking period (1) with low ignition voltage peak (2). Indicates low compression.

Fig 2: View Of Long Sparking Period

Courtesy of BMW OF NORTH AMERICA, INC.

Fluctuating sparking period: Indicates contamination on spark plug (shunt).

Short sparking period (1) with high ignition voltage peak.

Fig 3: View Of Short Sparking Period

Courtesy of BMW OF NORTH AMERICA, INC.

Constant but short sparking period: indicates defective ignition lead.
