Summary Of Check Control Messages For Power Module

The following is a summary of all of the possible Check Control messages relevant to the Power Module:

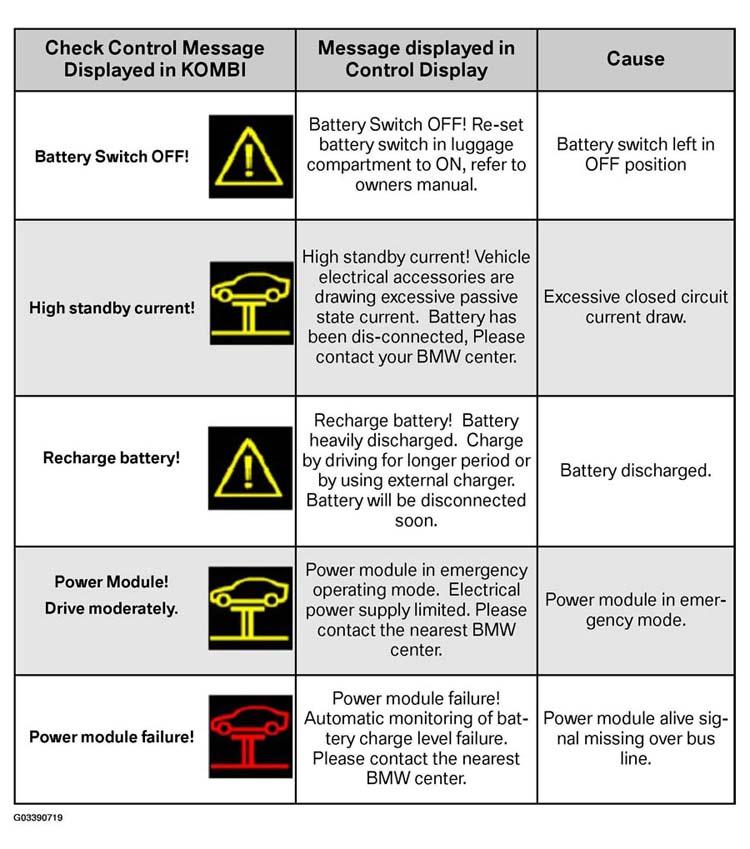

Fig 1: Summary Of Check Control Messages For Power Module

Courtesy of BMW OF NORTH AMERICA, INC.
