Speech Processing System - Overview
>>
Speech Processing System (SVS)
>>
System Overview
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Overview

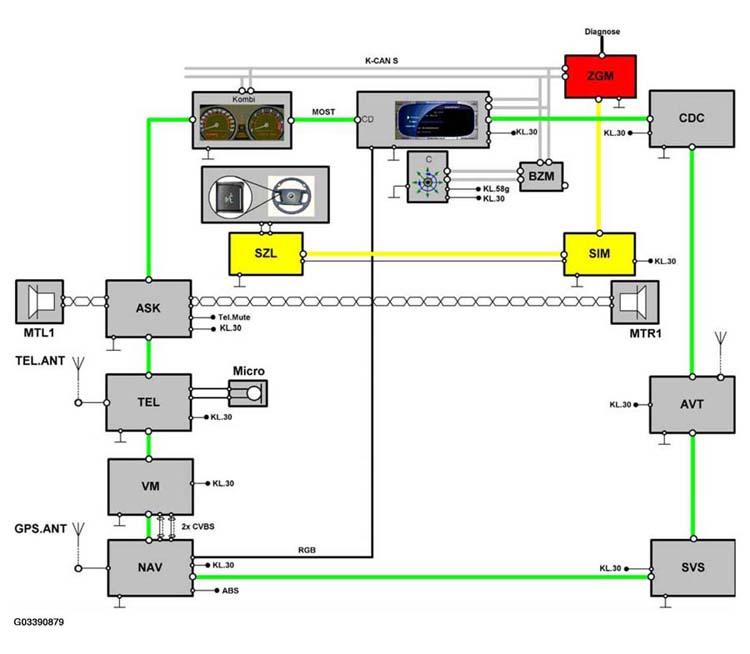

Fig 1: Identifying System Overview Schematic
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
