Tools and Equipment

The DIS/MoDIC as well as a reputable hand held multimeter can be used when testing inputs/components. It is best to make the checks at the ECM connection, this method includes testing the wiring harness.

The correct Universal Adapter for the MS S54 application should be used (#90 88 6 121 300). This will ensure the pin connectors and the harness will not be damaged.

When installing the Universal Adapter to the ECM (located in the Electronics Box in the engine compartment), make sure the ignition is switched off.

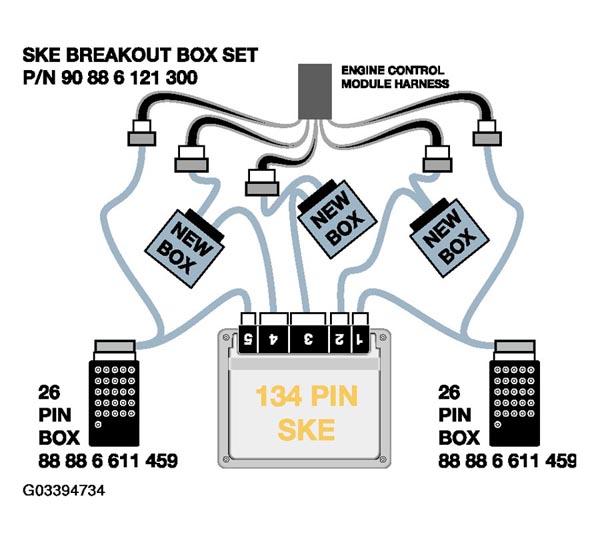

Fig 1: Identifying ECM Harness

Courtesy of BMW OF NORTH AMERICA, INC.

When Testing the Secondary Ignition System, use the High Tenision clip of the DIS. Refer to the HELP button for additional (on screen) connections.

CAUTION: Observe Safety Precautions, High Voltage is Present with the Engine Running

The Spark Plugs should be properly installed and torqued using the following Special Tools:

12 1 200 Torque Adapter (prevents over tightening)
12 1 171 Spark Plug Socket

NOTE: Never use airtools for removal or installation!

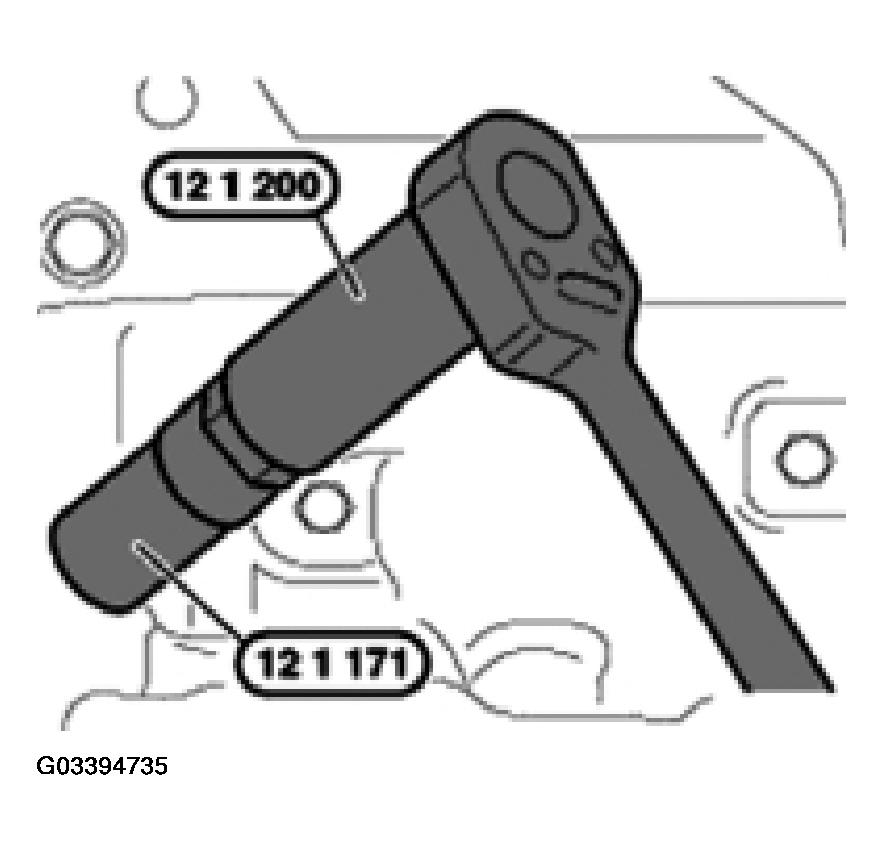

Fig 2: Identifying Spark Plug Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.
