Siemens MS 43.0 Engine Control System Overview I-P-O

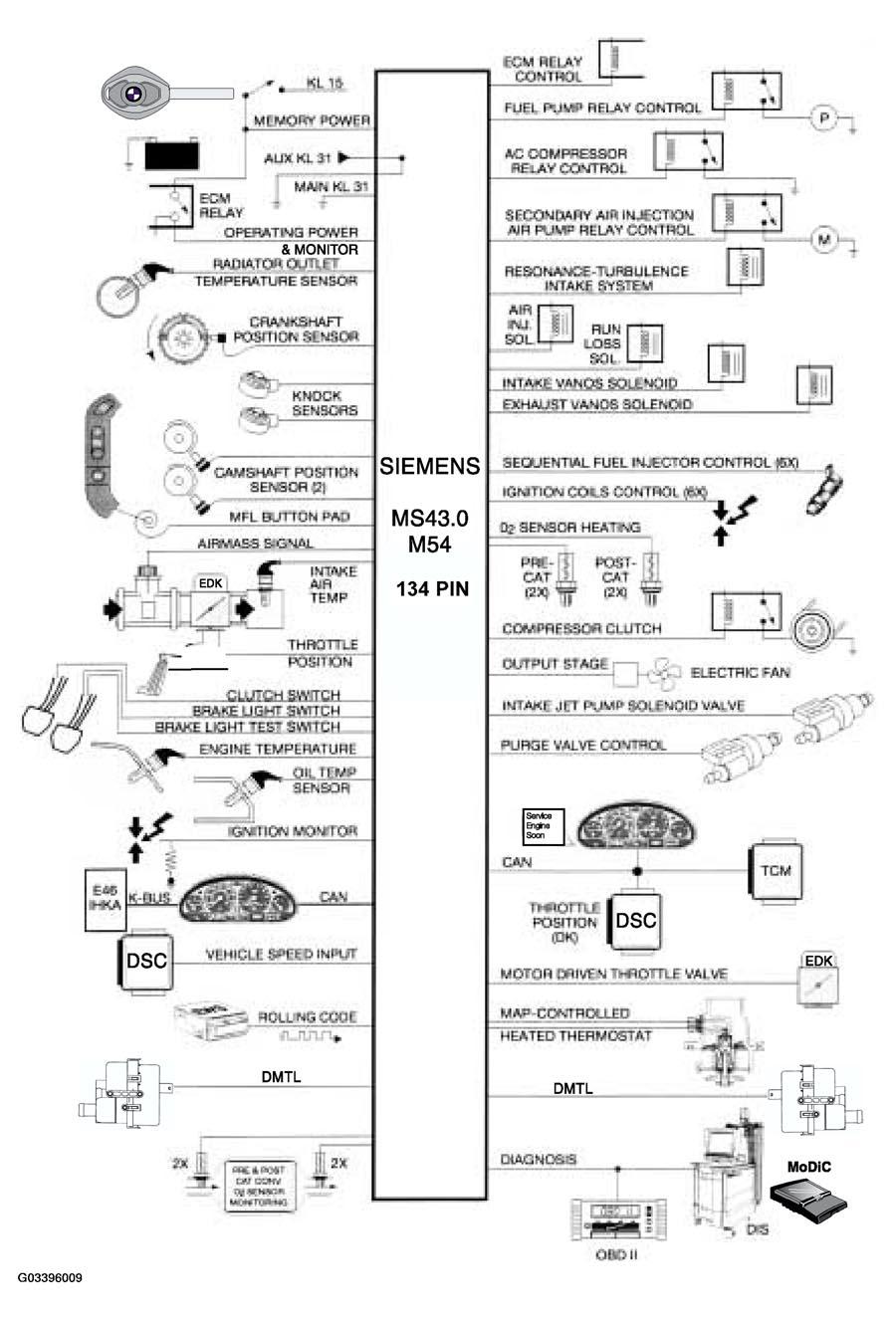

Fig 1: Siemens MS 43.0 Engine Control System Communication Diagram
G03396009Courtesy of BMW OF NORTH AMERICA, INC.
