Check Control Messages

The graphic symbols appear in the information display field of the KOMBI. The following symbols are possible:

The red airbag symbol is activated when there is a fault in the driver or front passenger airbag.

The yellow airbag symbol is activated in the event of faults in the side airbags, the head airbags as well as the seatbelt tensioner or belt tension limiter.

The yellow service symbol is activated in the event of faults in the fuel pump circuit.

The following Check Control messages are for start of production E65:

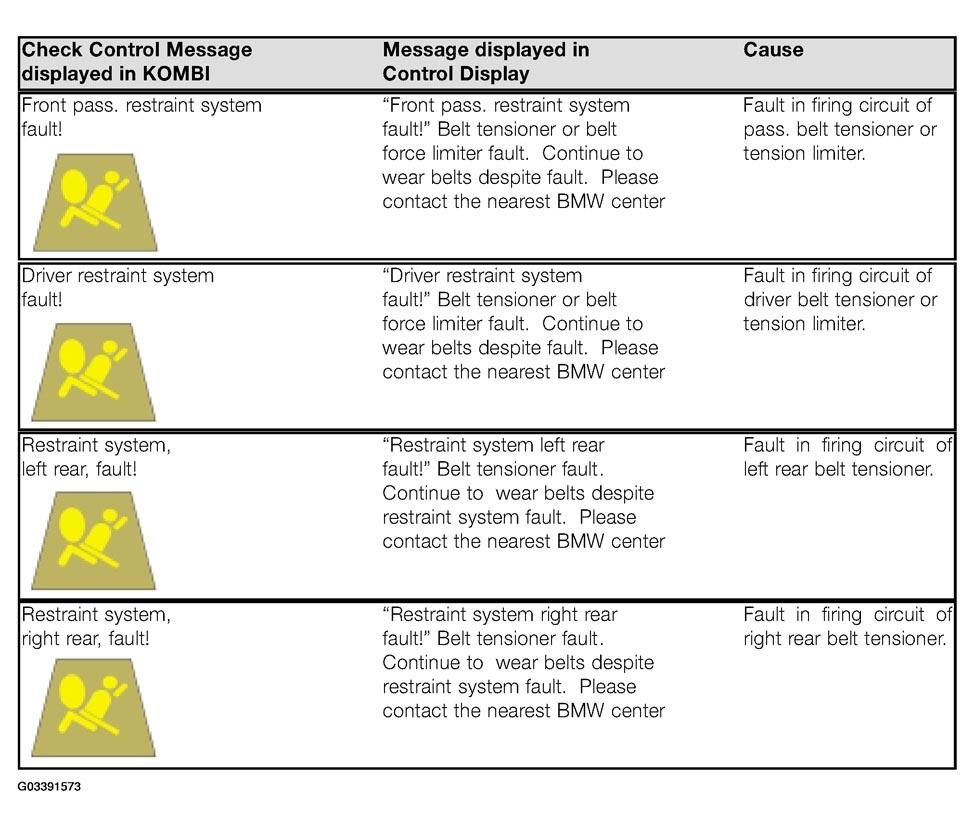

Fig 1: Check Control Messages Chart (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

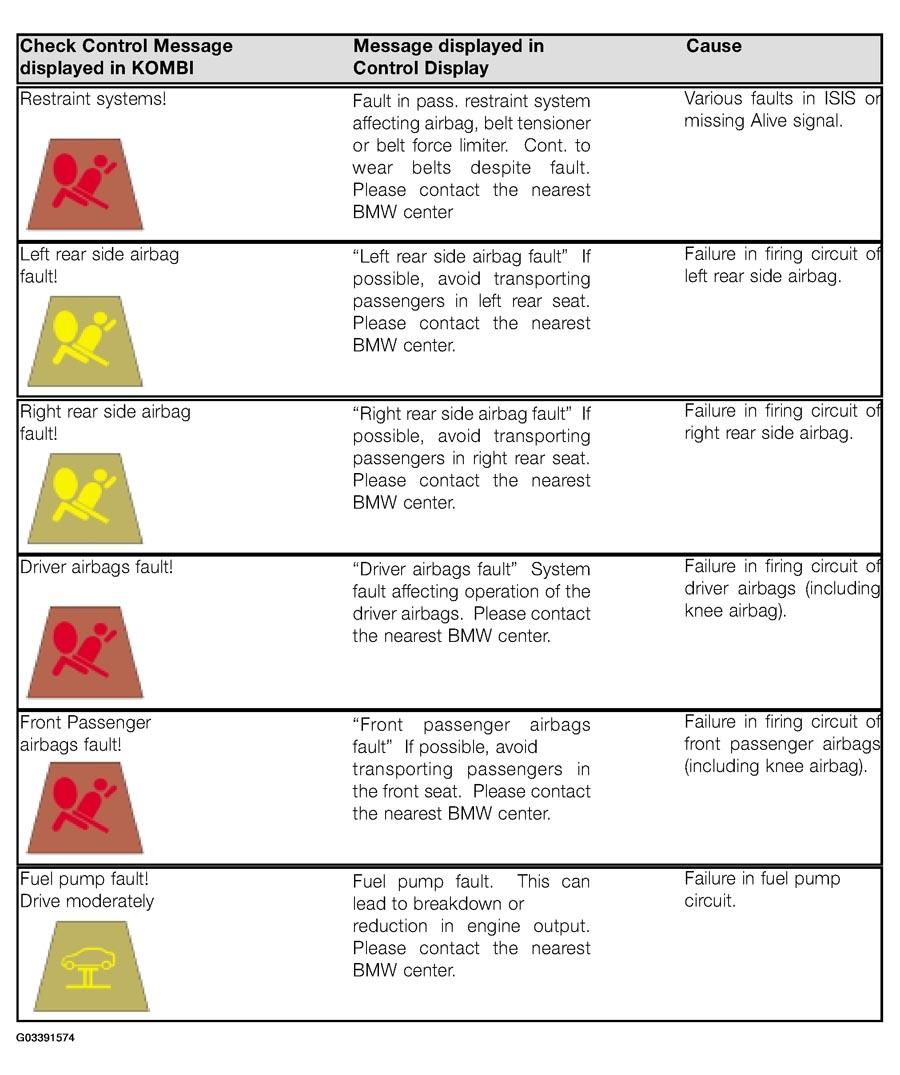

Fig 2: Check Control Messages Chart (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.
