Camber Adjustment: Rear

  1. Replace nut (1) and tighten down. Ensure eccentric washer is correctly located (2). See Fig 1 . Tighten nut (1) to specification. See TORQUE SPECIFICATIONS  .
  2. Release nut (1) again by 1/2 to 1 turn.
  3. Adjust camber with eccentric screw. See Fig 2 . Adjust to specification. See WHEEL ALIGNMENT SPECIFICATIONS  .
    4. CAUTION: If the nut (1) is tightened down more than 10 times during adjustment, it must be replaced again. The self-locking effect becomes too slight.
  4. Tighten nut (1). Ensure eccentric washer is correctly located (2). See Fig 1 . Tighten to specification. See TORQUE SPECIFICATIONS  .
  5. Adjust toe-in. See TOE-IN ADJUSTMENT  .

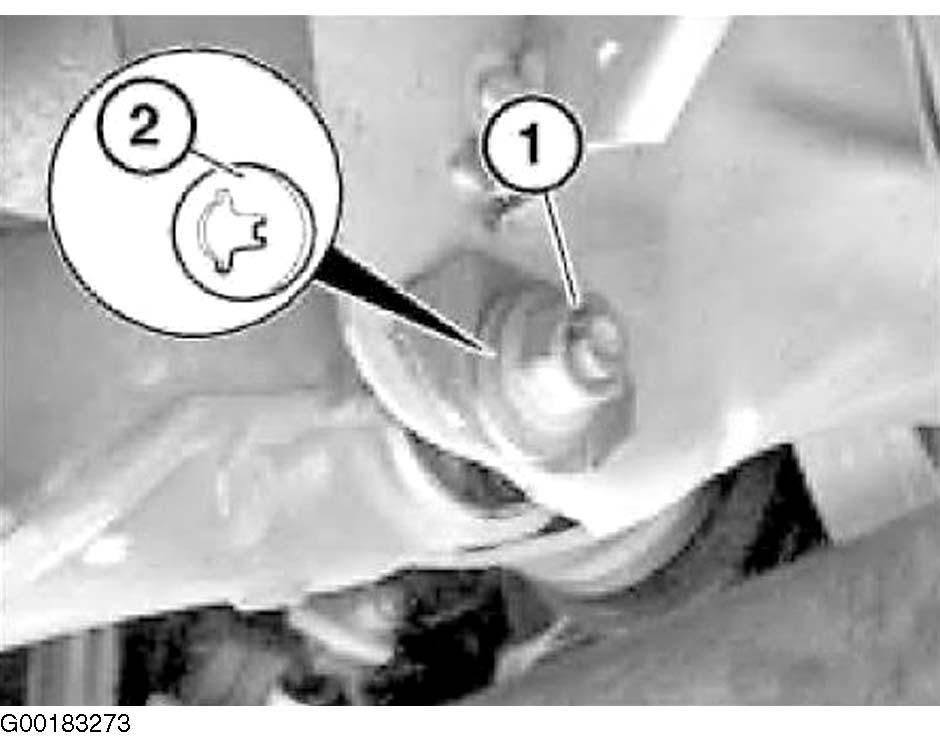

Fig 1: Locating Nut & Eccentric Washer
G00183273Courtesy of BMW OF NORTH AMERICA, INC.

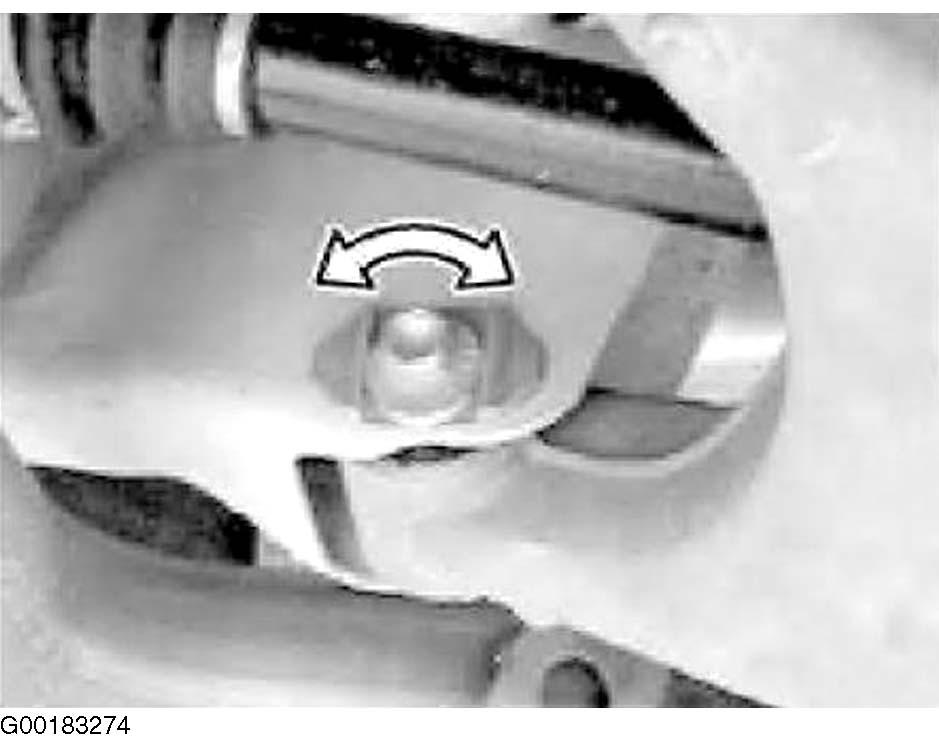

Fig 2: Adjusting Camber (Rear)
G00183274Courtesy of BMW OF NORTH AMERICA, INC.
