Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

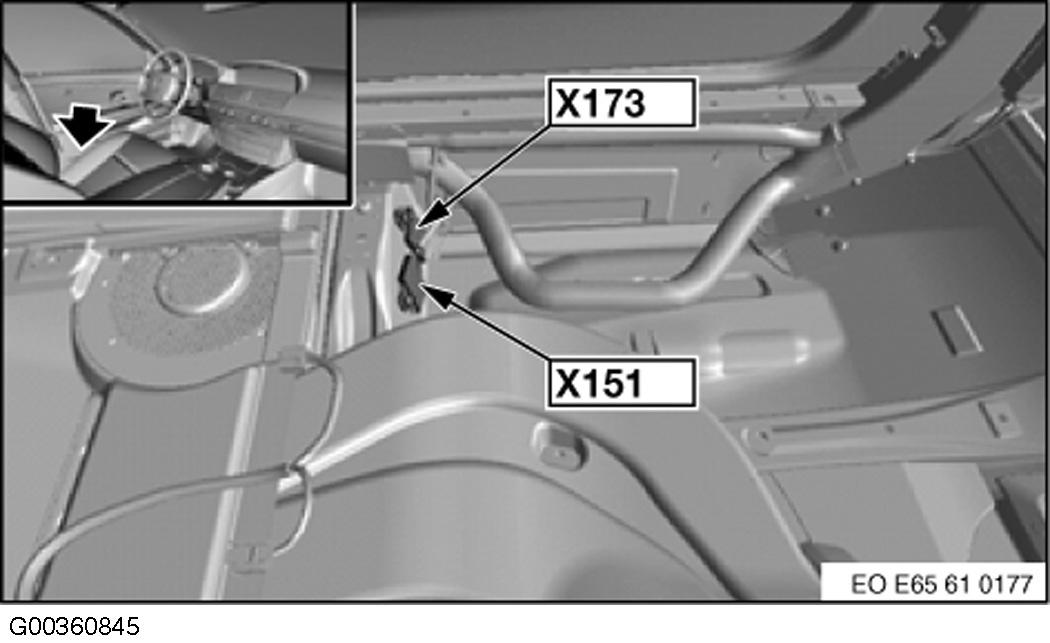

Fig 1: Below Left Front Seat

G00360845

Courtesy of BMW OF NORTH AMERICA, INC.

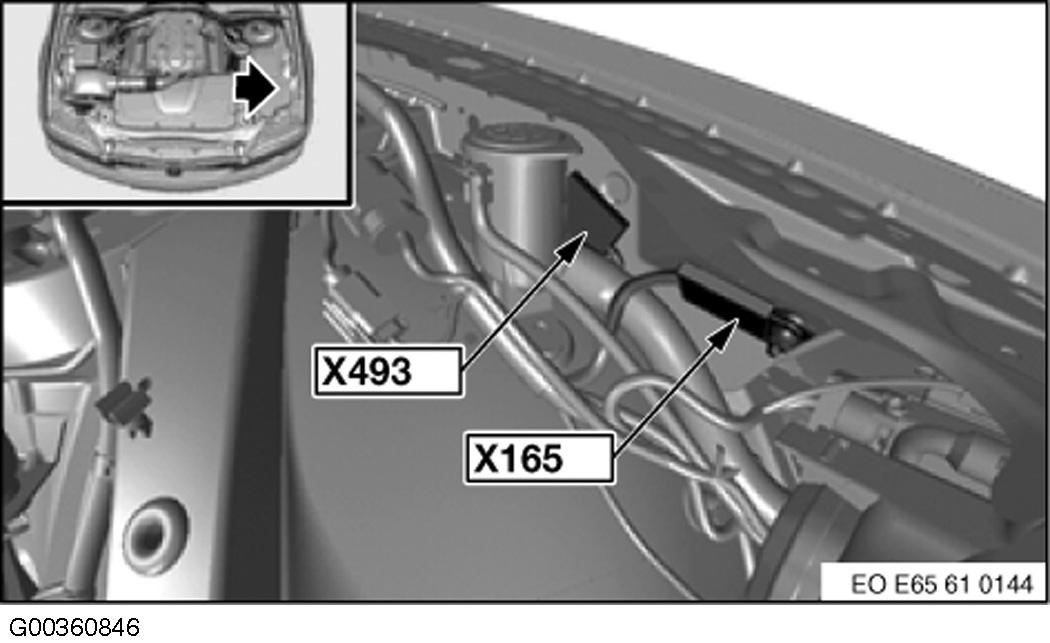

Fig 2: Left Front Of Engine Compartment

G00360846

Courtesy of BMW OF NORTH AMERICA, INC.

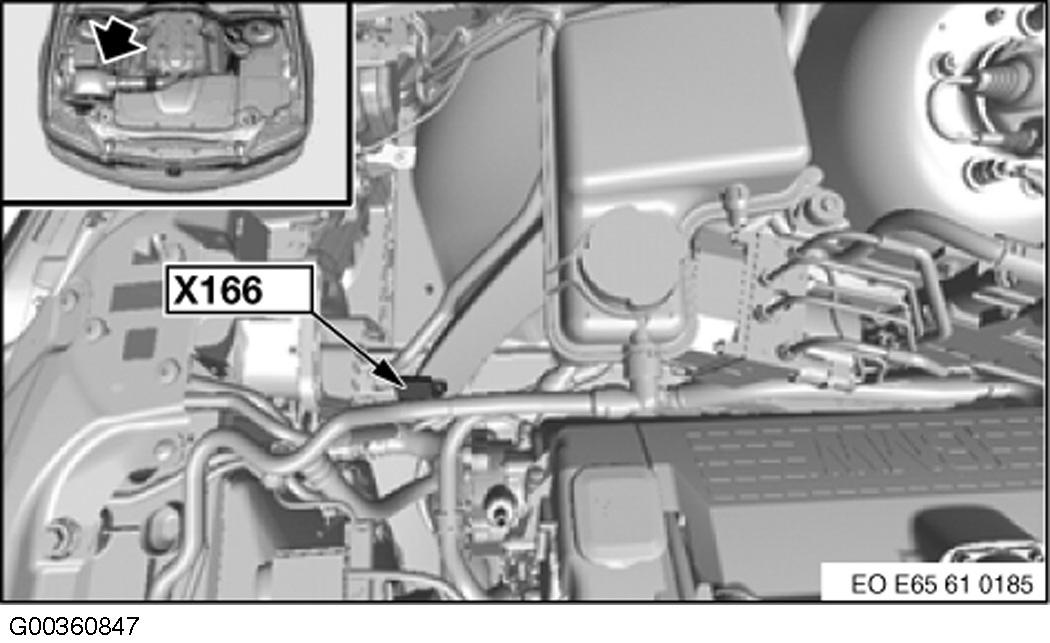

Fig 3: Right Side Of Engine Compartment

G00360847

Courtesy of BMW OF NORTH AMERICA, INC.

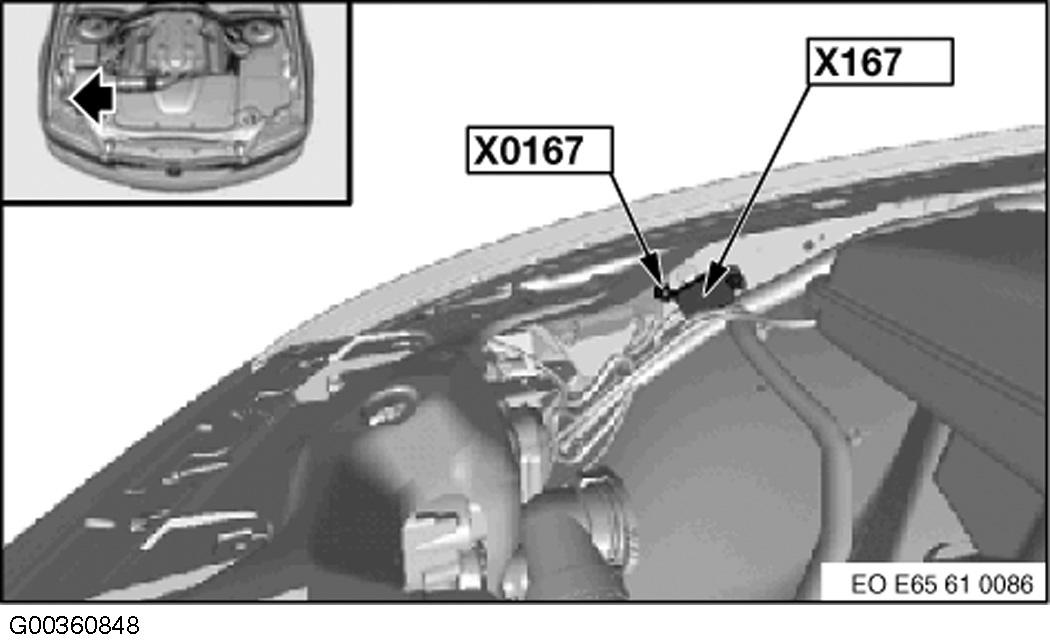

Fig 4: Right Front Of Engine Compartment

G00360848

Courtesy of BMW OF NORTH AMERICA, INC.

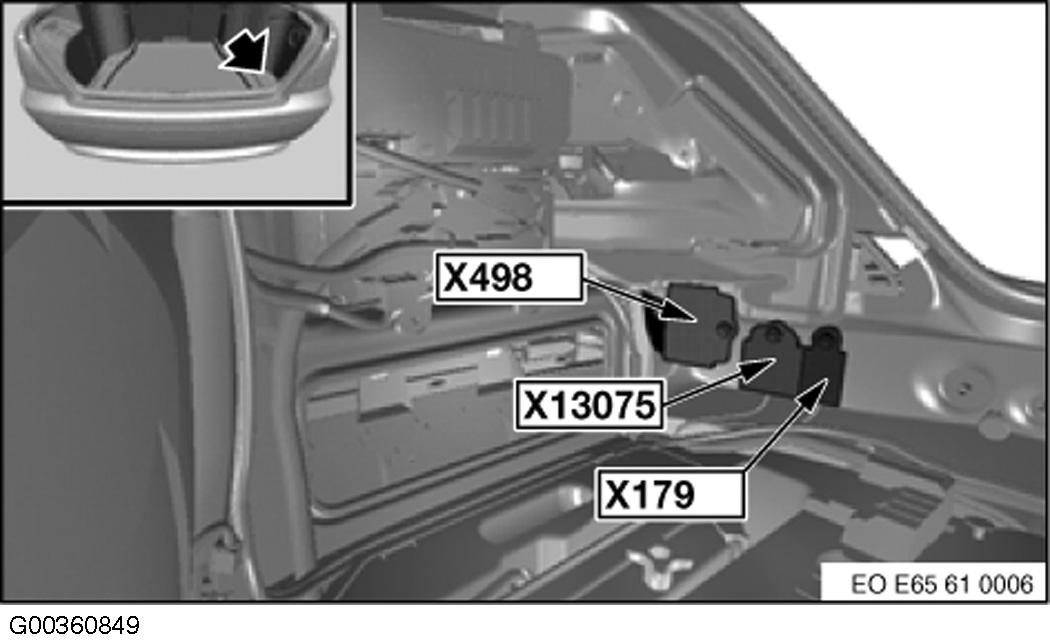

Fig 5: Right Rear Of Luggage Compartment

G00360849

Courtesy of BMW OF NORTH AMERICA, INC.

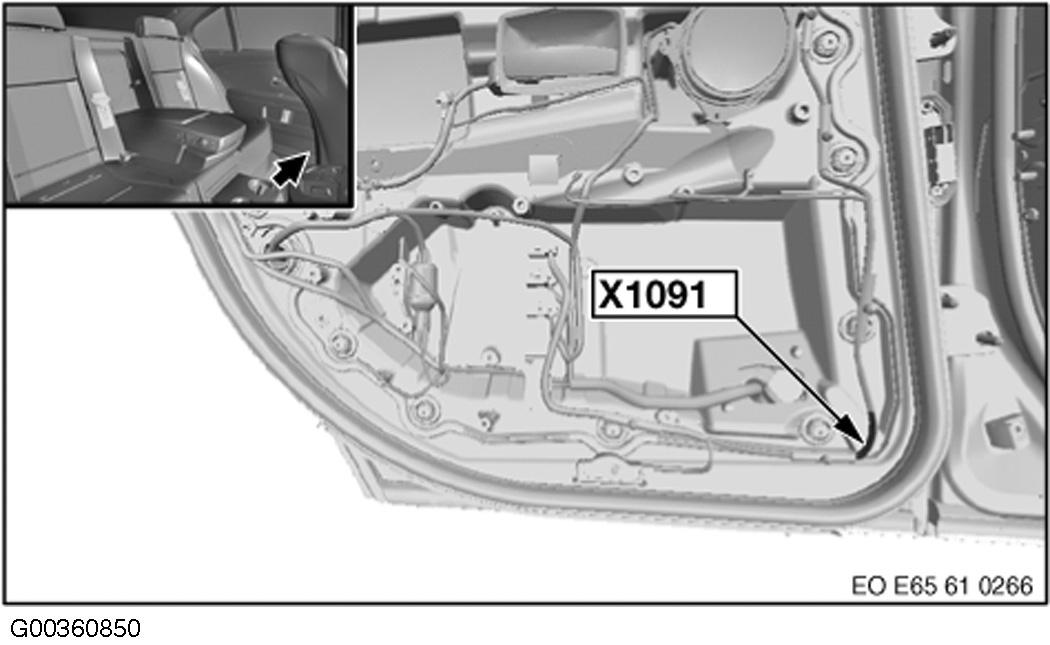

Fig 6: Left Rear Door

G00360850

Courtesy of BMW OF NORTH AMERICA, INC.

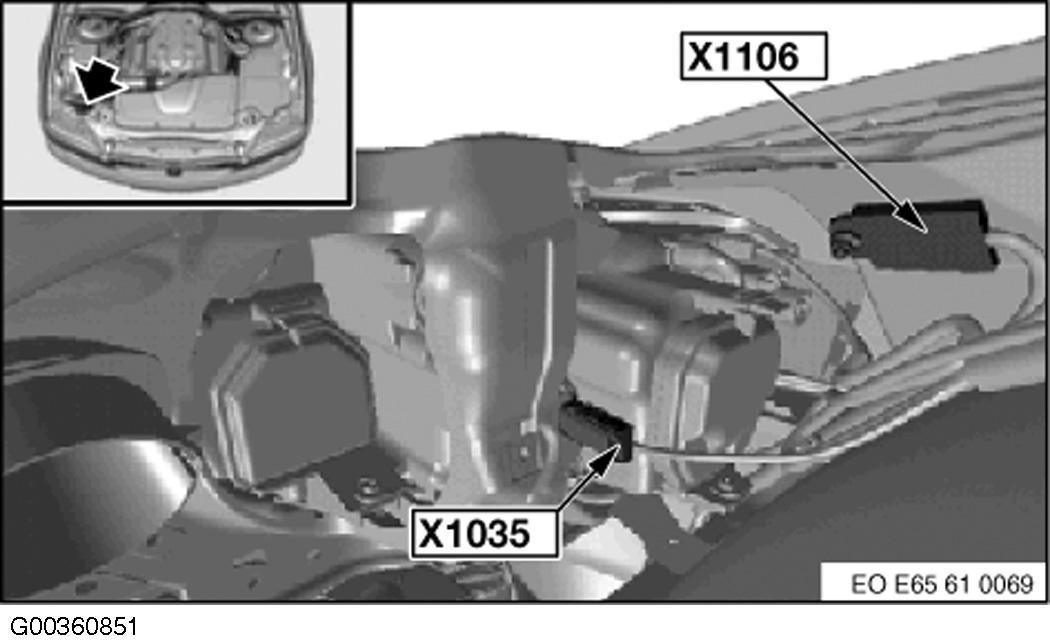

Fig 7: Right Front Of Engine Compartment

G00360851

Courtesy of BMW OF NORTH AMERICA, INC.

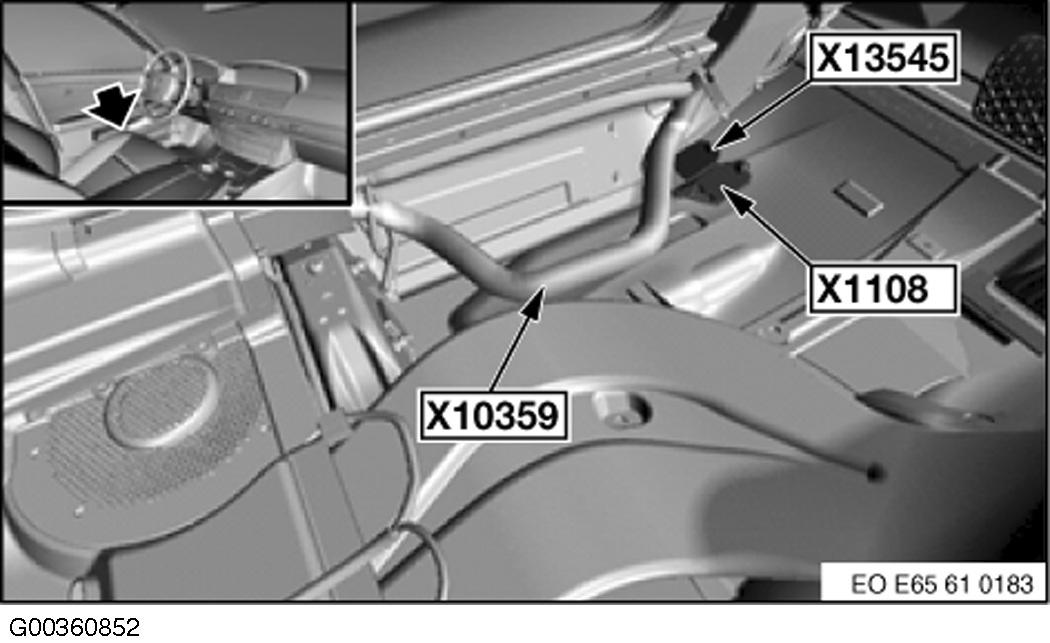

Fig 8: Left Front Door Sill

G00360852

Courtesy of BMW OF NORTH AMERICA, INC.

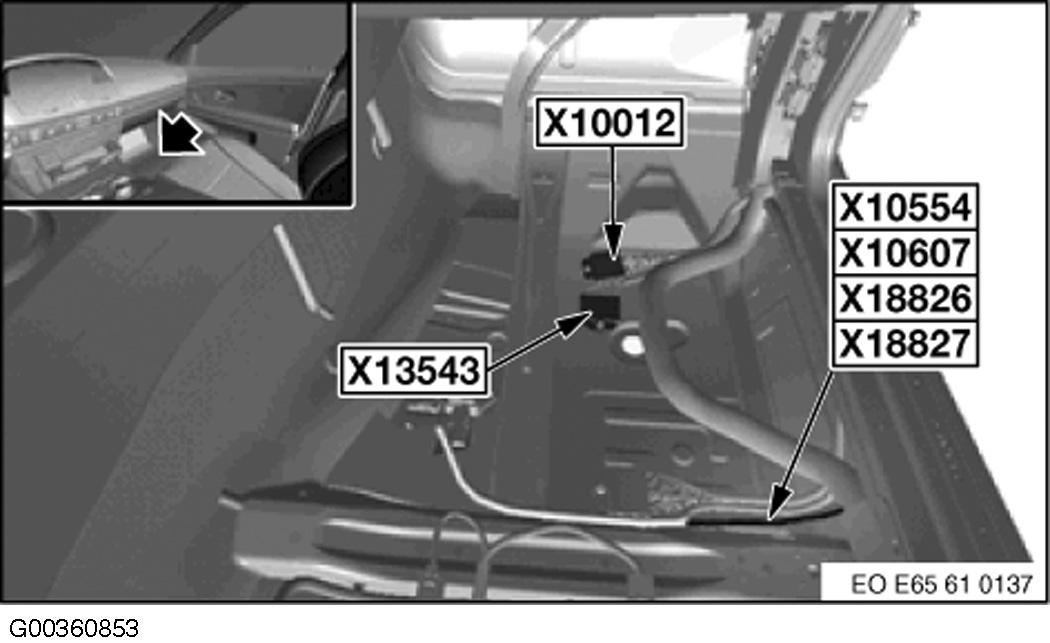

Fig 9: Right Footwell

G00360853

Courtesy of BMW OF NORTH AMERICA, INC.

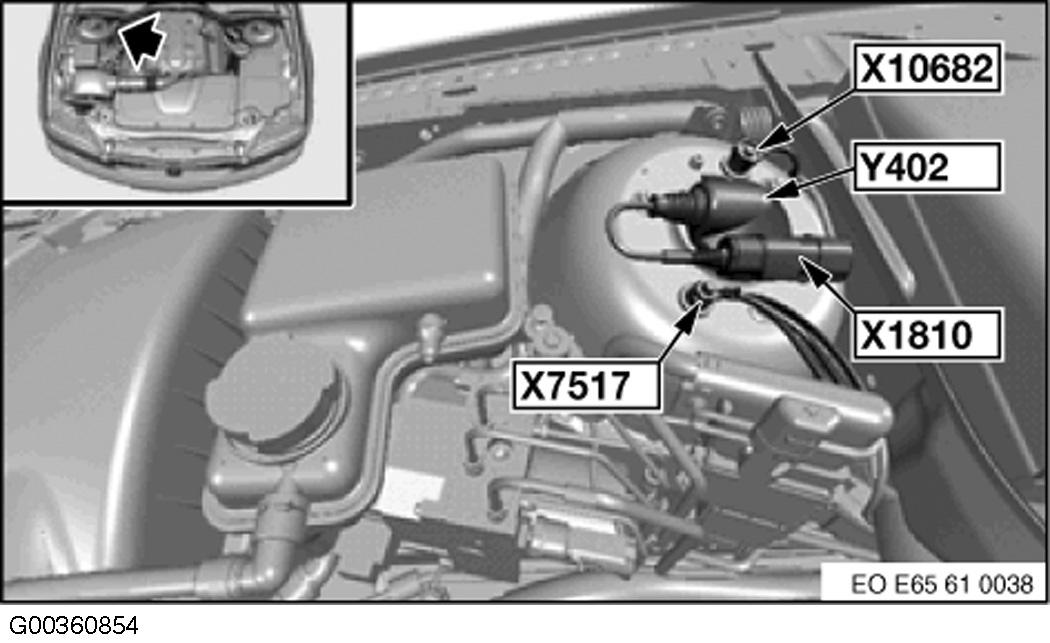

Fig 10: Right Rear Of Engine Compartment

G00360854

Courtesy of BMW OF NORTH AMERICA, INC.

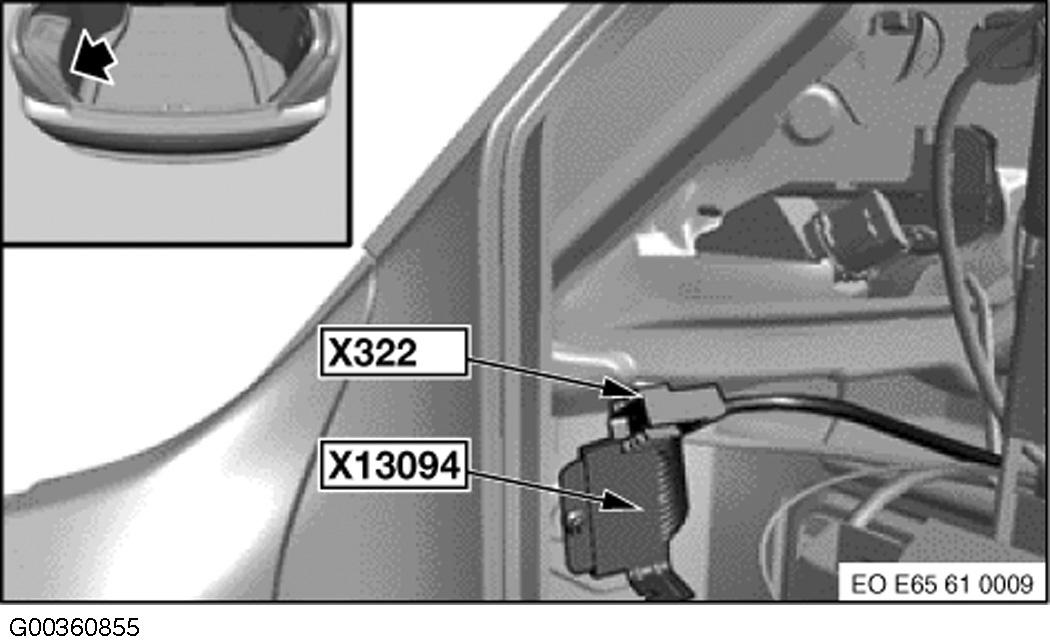

Fig 11: Left Rear Of Luggage Compartment

G00360855

Courtesy of BMW OF NORTH AMERICA, INC.

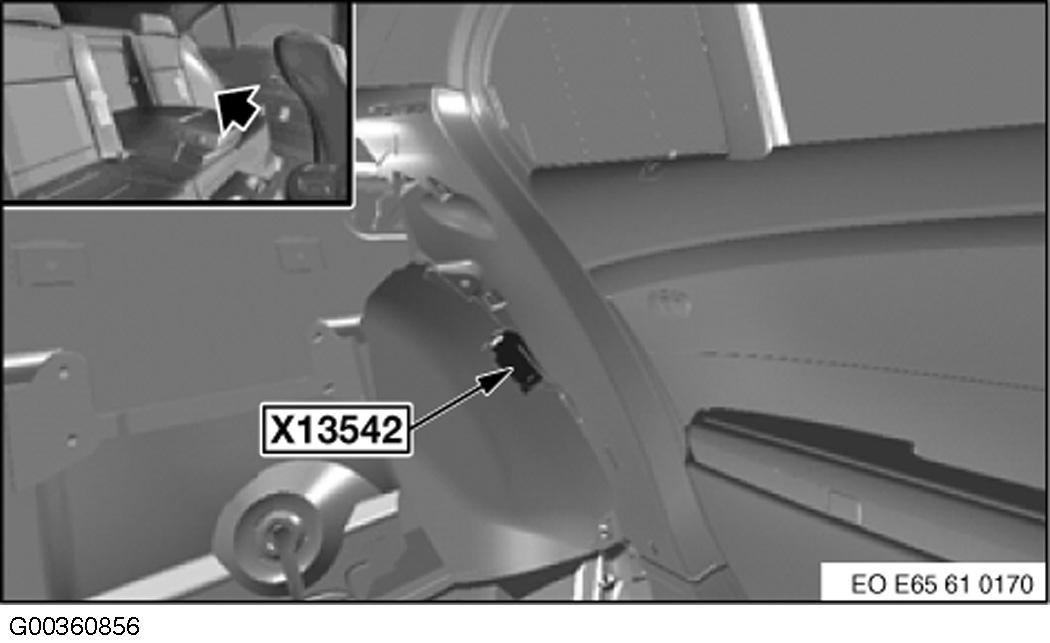

Fig 12: Behind Left Rear Seat

G00360856

Courtesy of BMW OF NORTH AMERICA, INC.

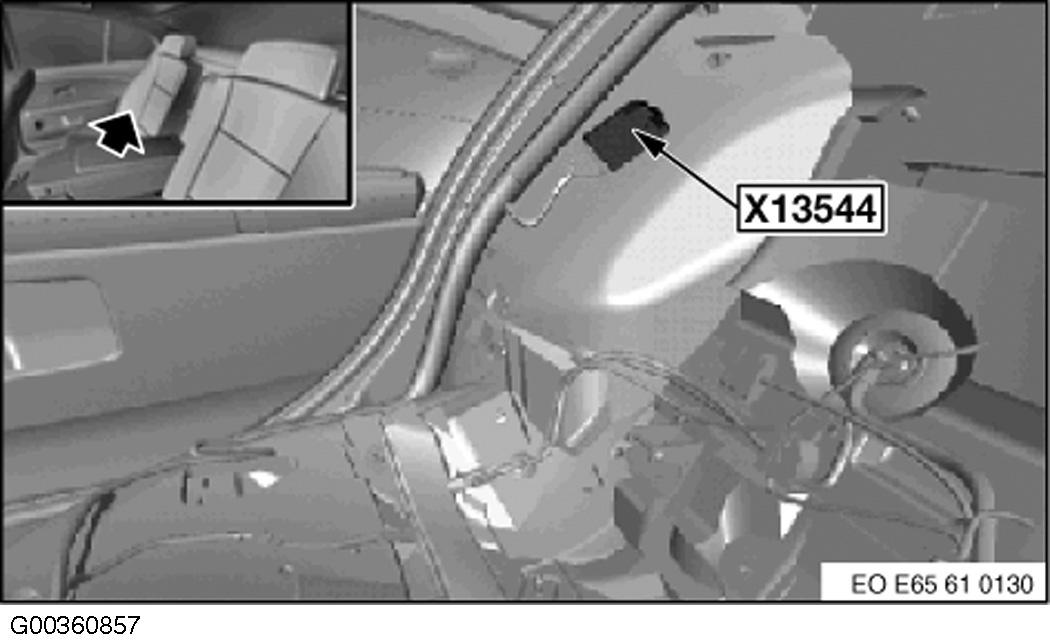

Fig 13: Behind Right Rear Seat

G00360857

Courtesy of BMW OF NORTH AMERICA, INC.

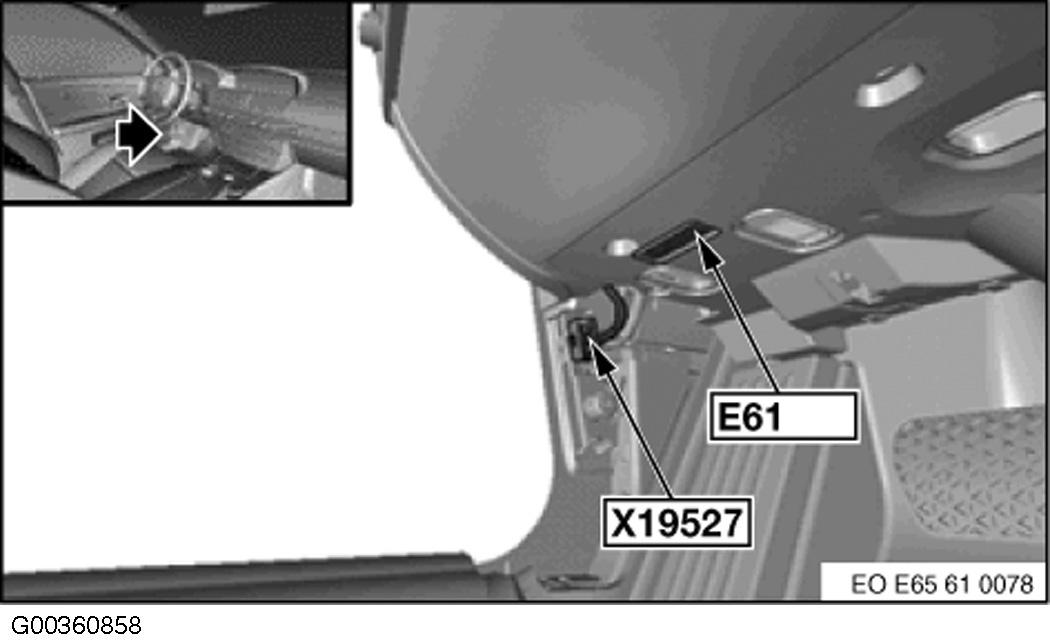

Fig 14: Left Side Of Dash

G00360858

Courtesy of BMW OF NORTH AMERICA, INC.

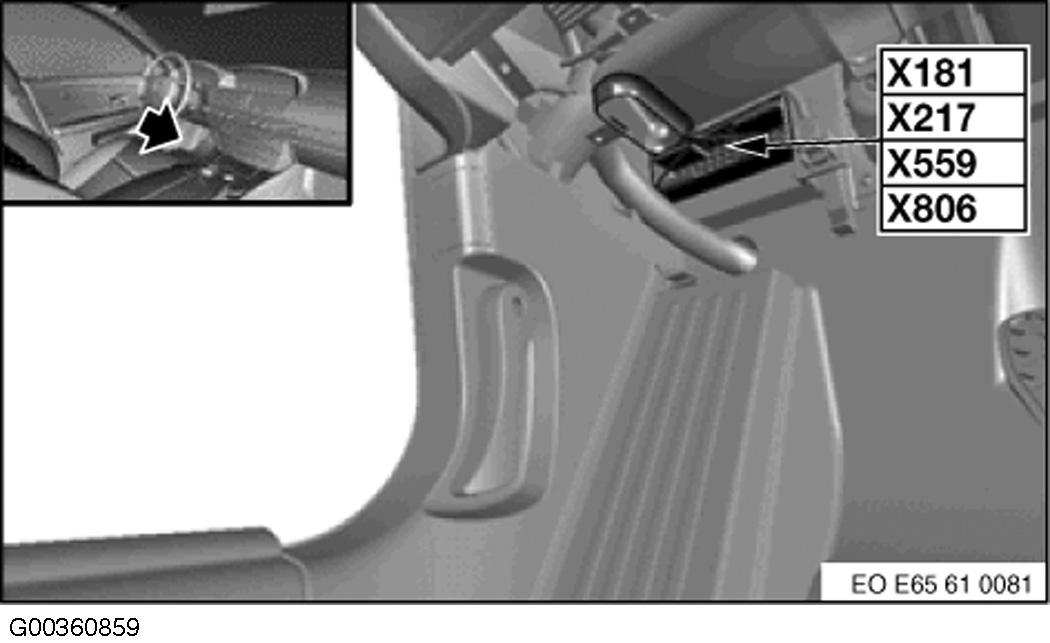

Fig 15: Left Side Of Dash

G00360859

Courtesy of BMW OF NORTH AMERICA, INC.

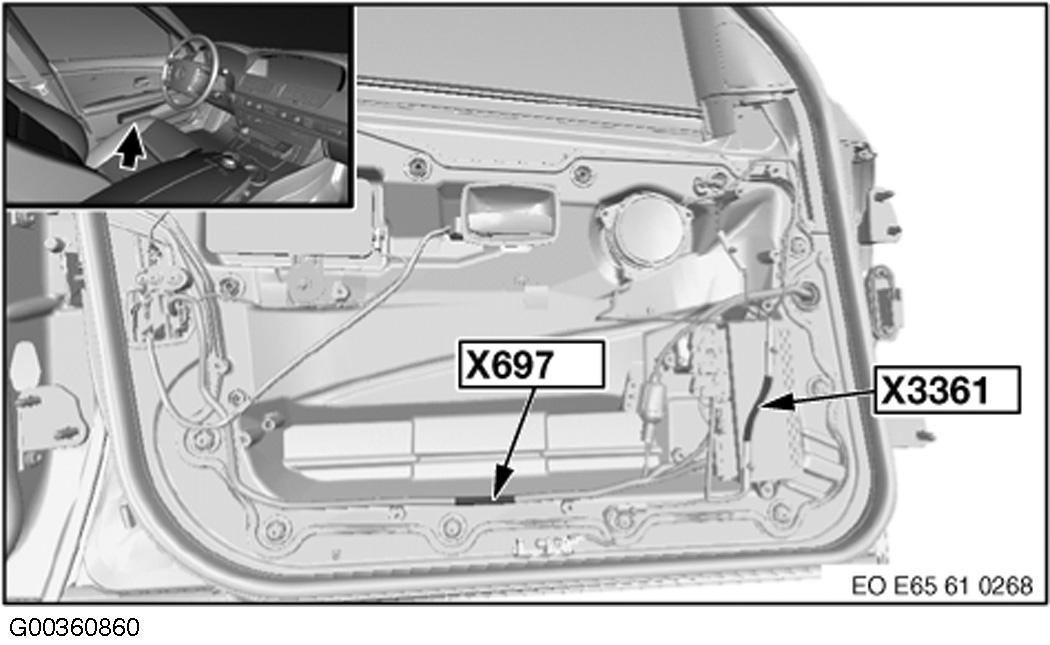

Fig 16: Driver's Door

G00360860

Courtesy of BMW OF NORTH AMERICA, INC.

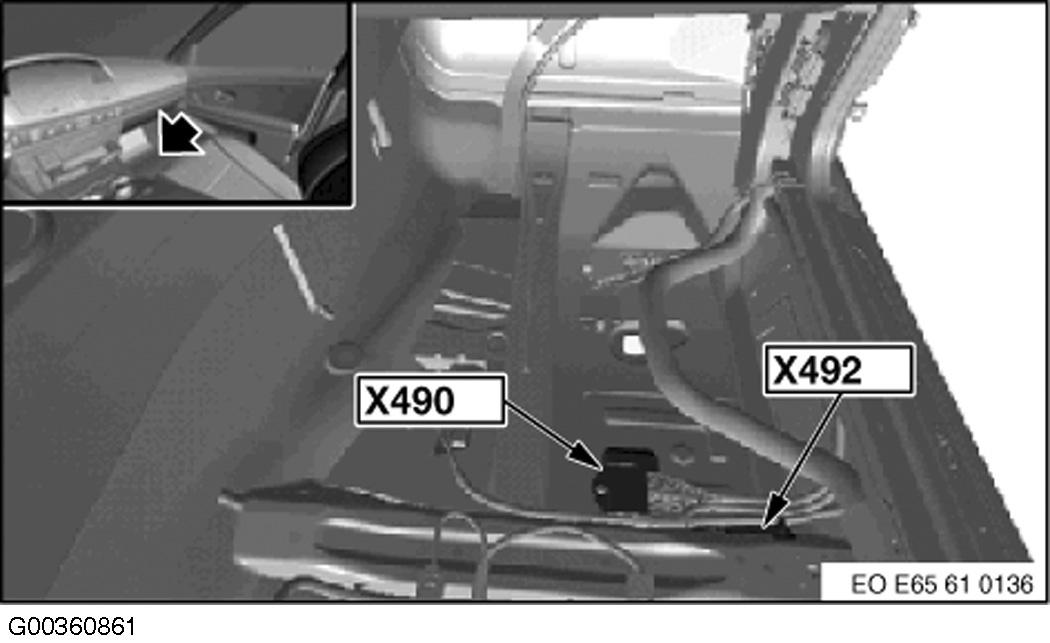

Fig 17: Under Right Front Seat

G00360861

Courtesy of BMW OF NORTH AMERICA, INC.

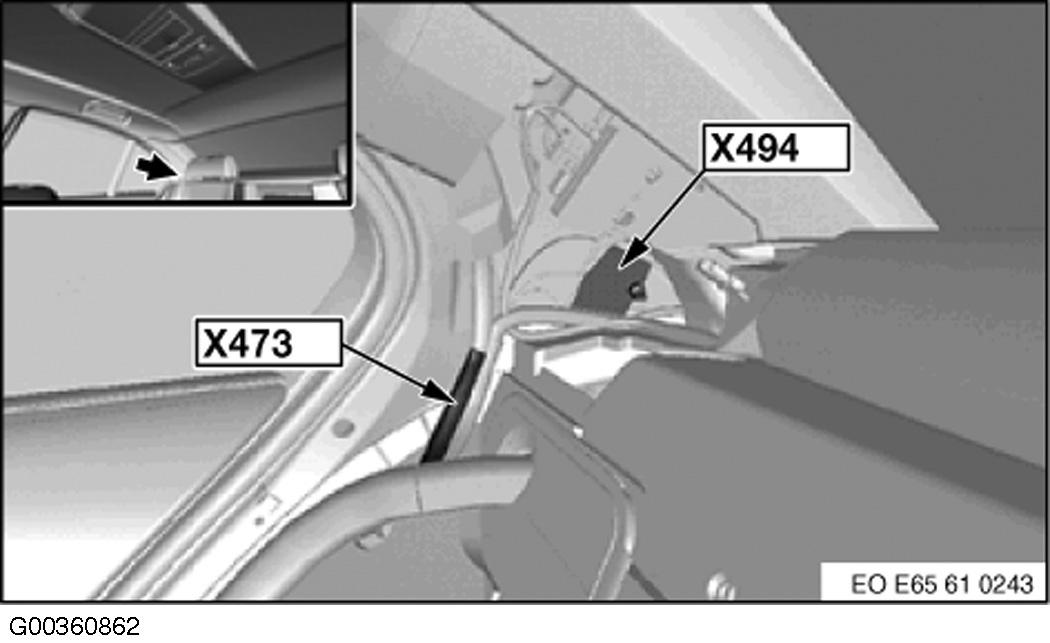

Fig 18: Right Rear Package Self

G00360862

Courtesy of BMW OF NORTH AMERICA, INC.

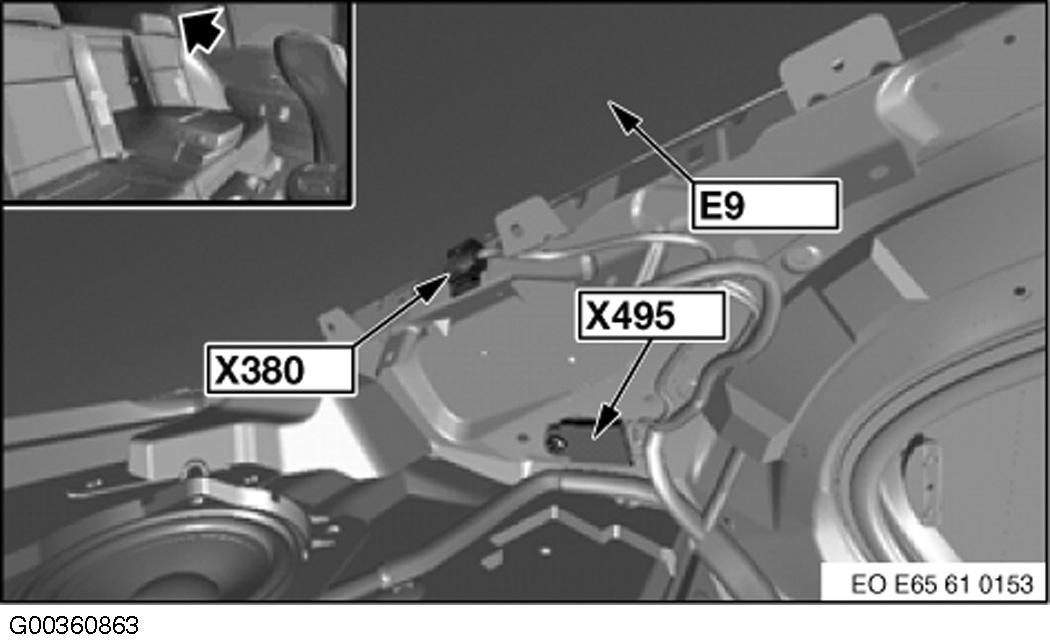

Fig 19: Left Rear Package Self

G00360863

Courtesy of BMW OF NORTH AMERICA, INC.

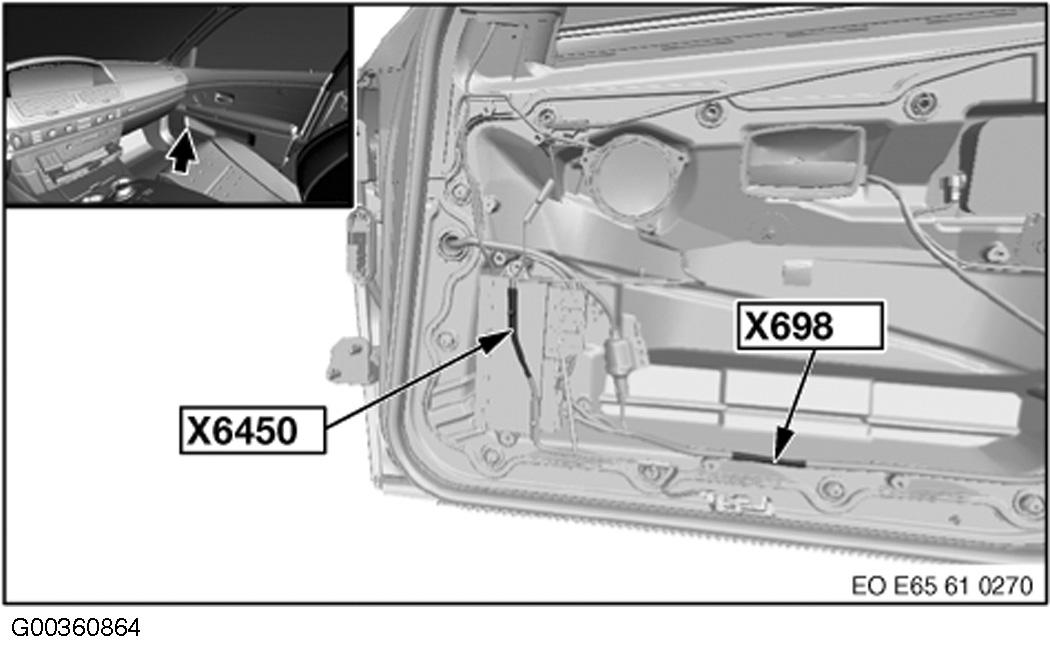

Fig 20: Right Front Door

G00360864

Courtesy of BMW OF NORTH AMERICA, INC.

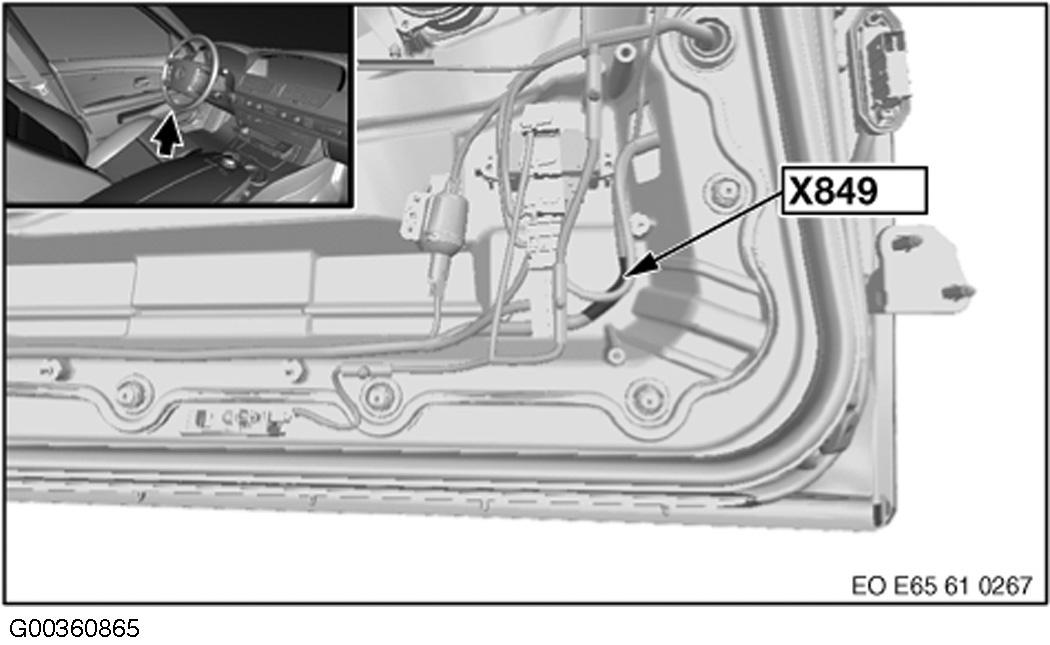

Fig 21: Driver's Door

G00360865

Courtesy of BMW OF NORTH AMERICA, INC.

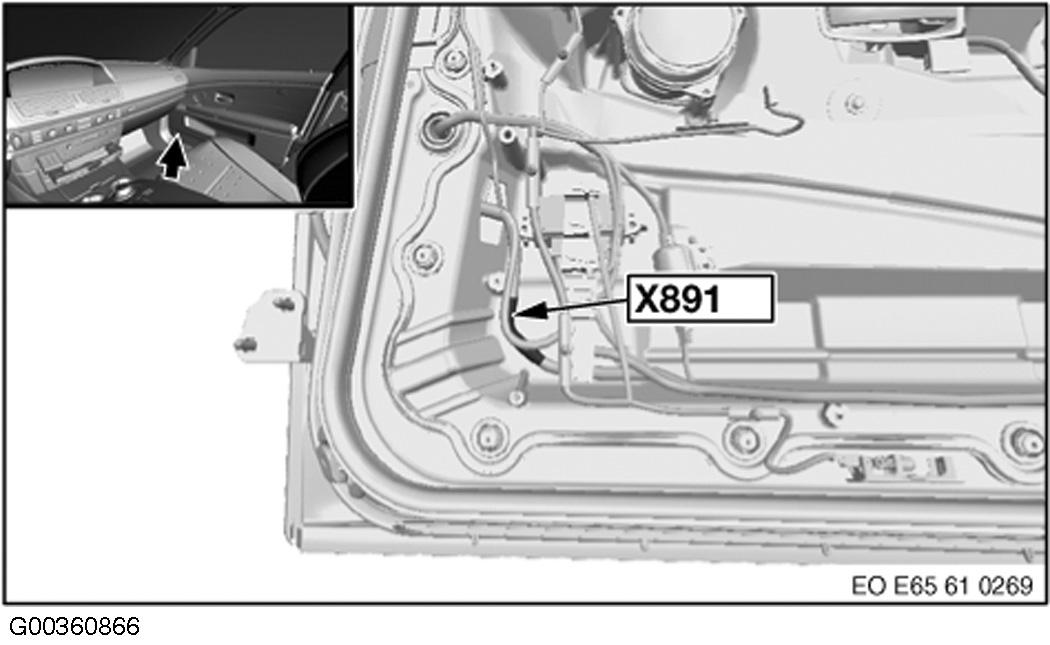

Fig 22: Right Front Door

G00360866

Courtesy of BMW OF NORTH AMERICA, INC.

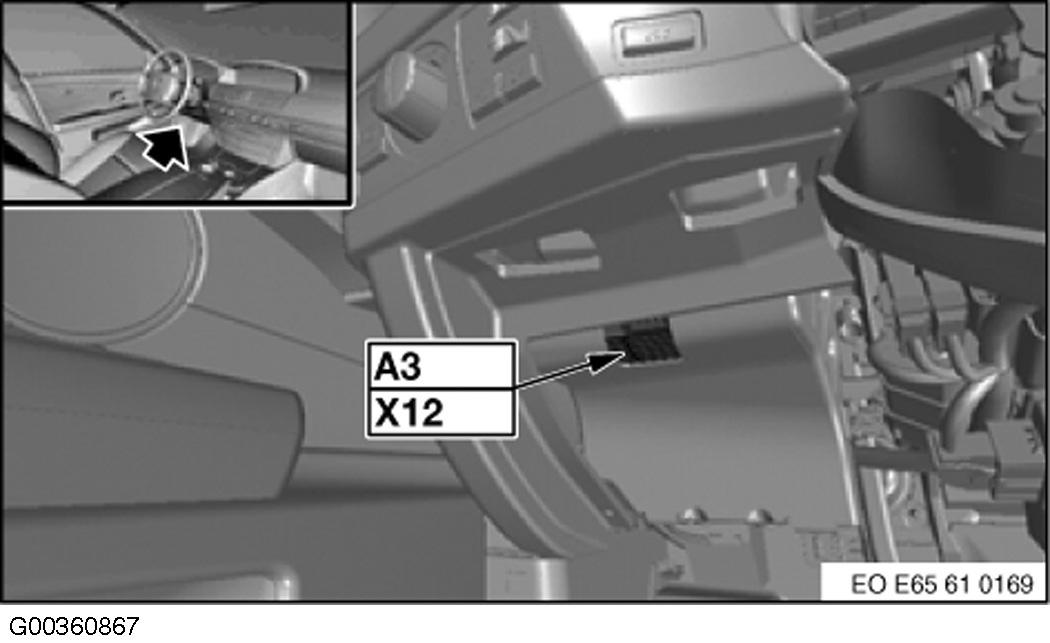

Fig 23: Left Side Of Dash

G00360867

Courtesy of BMW OF NORTH AMERICA, INC.

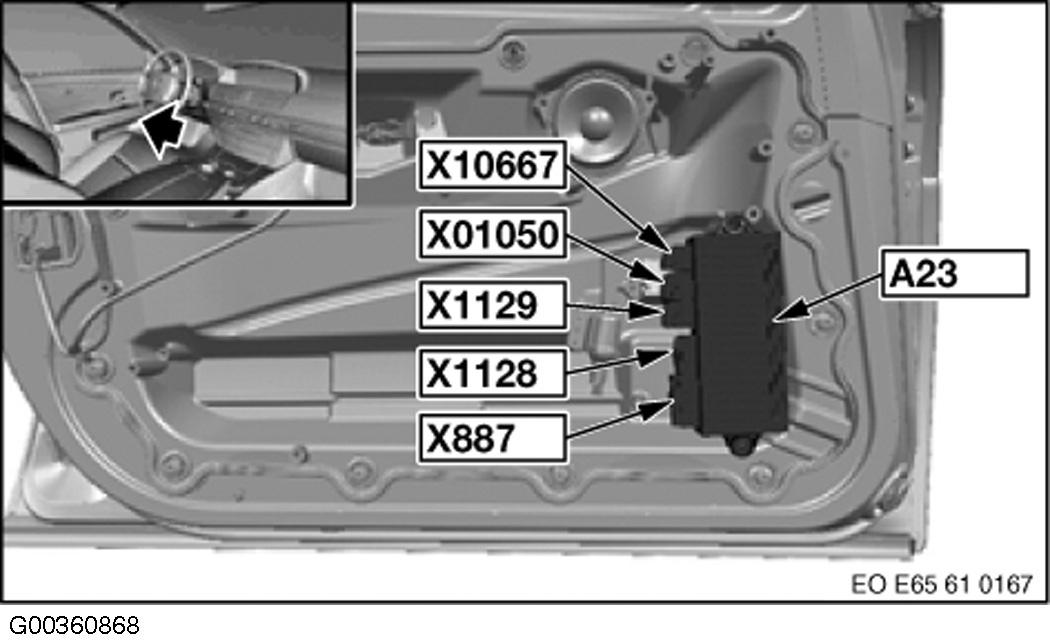

Fig 24: Driver's Door

G00360868

Courtesy of BMW OF NORTH AMERICA, INC.

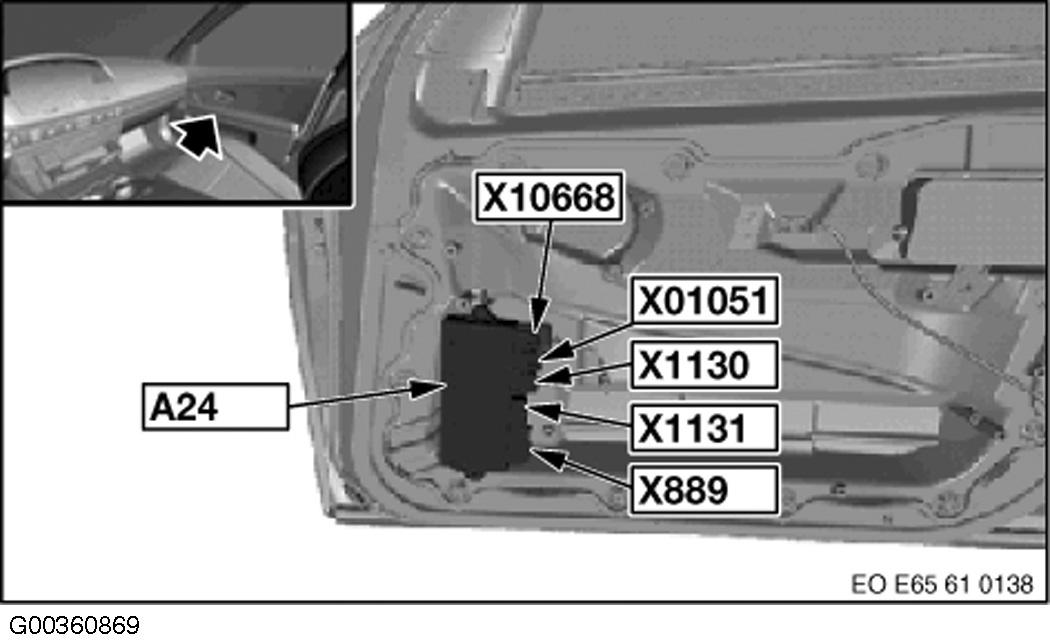

Fig 25: Right Front Door

G00360869

Courtesy of BMW OF NORTH AMERICA, INC.

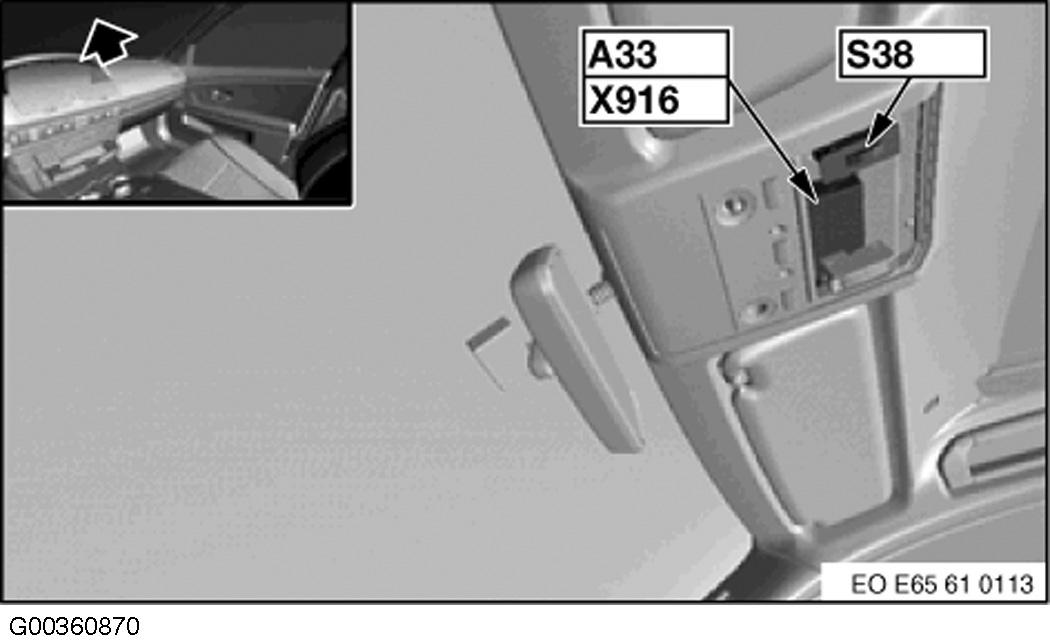

Fig 26: Front Of Roof

G00360870

Courtesy of BMW OF NORTH AMERICA, INC.

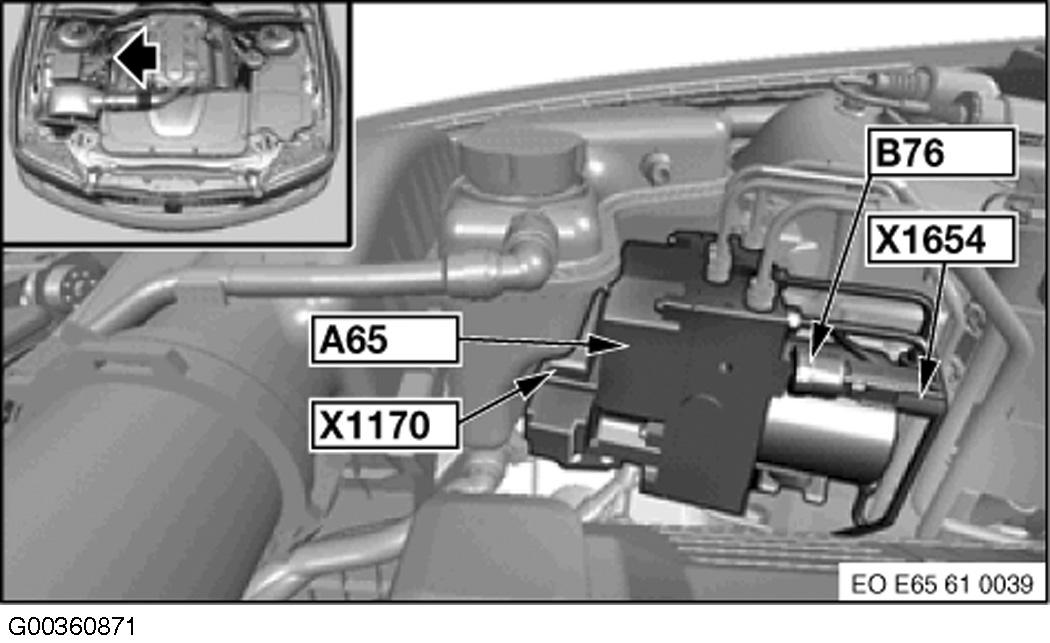

Fig 27: Right Side Of Engine Compartment

G00360871

Courtesy of BMW OF NORTH AMERICA, INC.

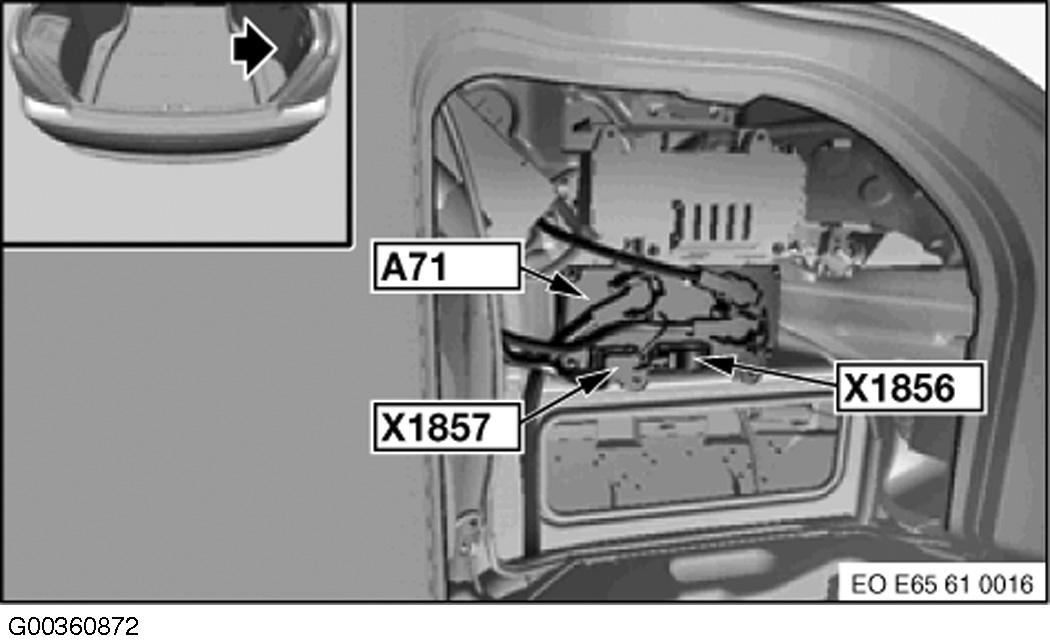

Fig 28: Right Rear Of Luggage Compartment

G00360872

Courtesy of BMW OF NORTH AMERICA, INC.

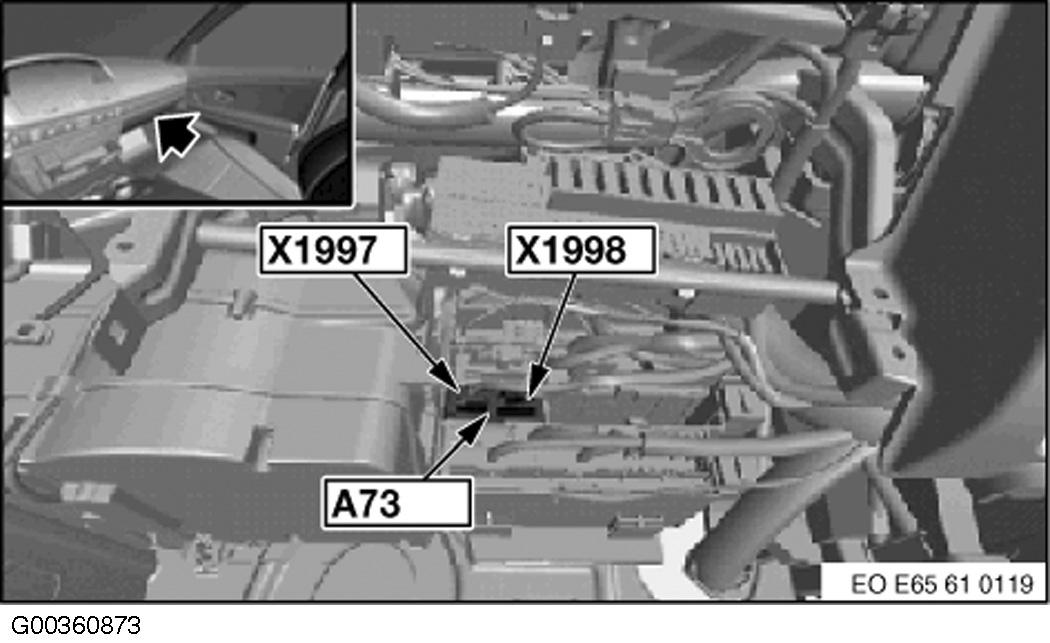

Fig 29: Right Side Of Dash

G00360873

Courtesy of BMW OF NORTH AMERICA, INC.

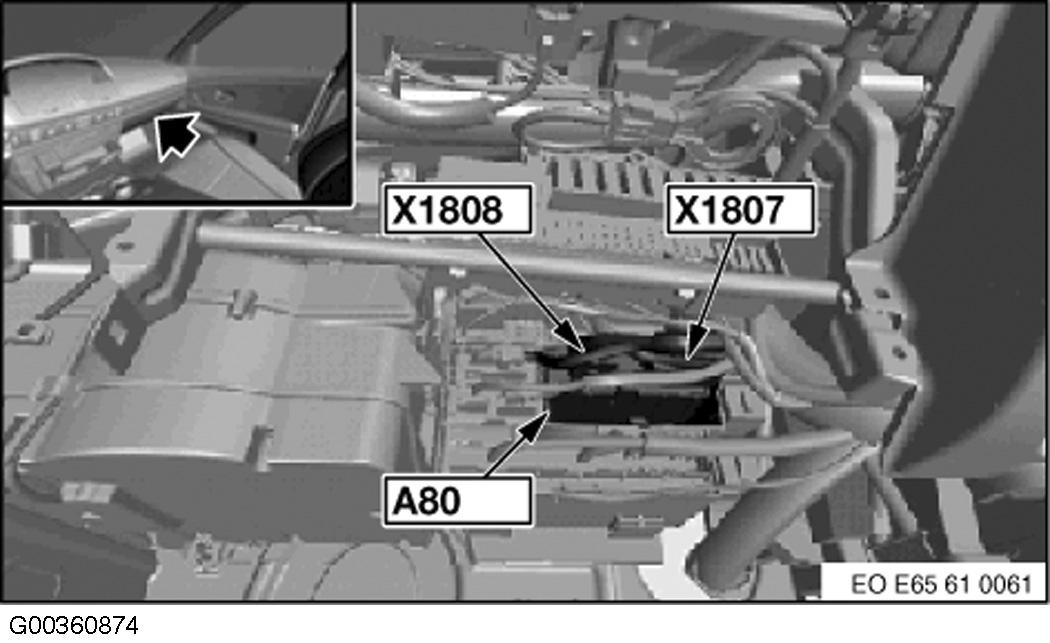

Fig 30: Right Side Of Dash

G00360874

Courtesy of BMW OF NORTH AMERICA, INC.

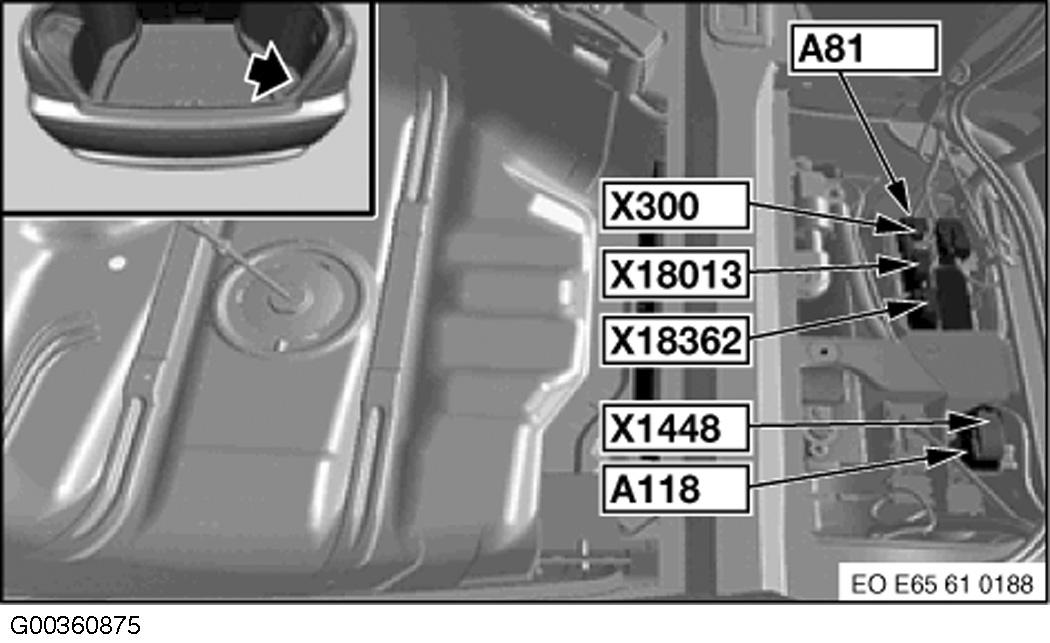

Fig 31: Right Rear Of Luggage Compartment

G00360875

Courtesy of BMW OF NORTH AMERICA, INC.

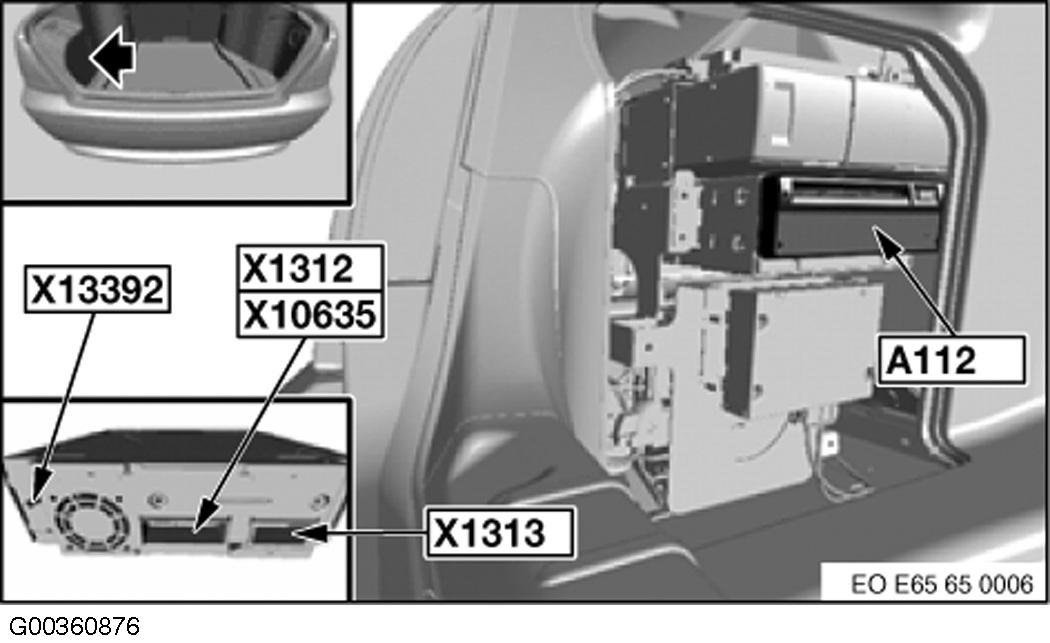

Fig 32: Left Rear Of Luggage Compartment

G00360876

Courtesy of BMW OF NORTH AMERICA, INC.

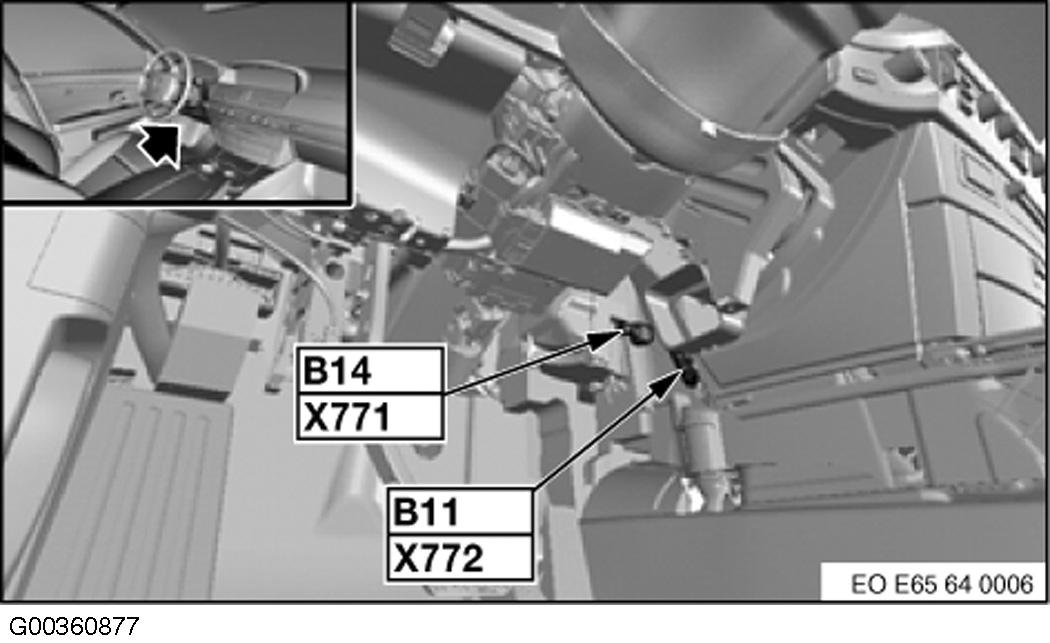

Fig 33: Behind Center Of Dash

G00360877

Courtesy of BMW OF NORTH AMERICA, INC.

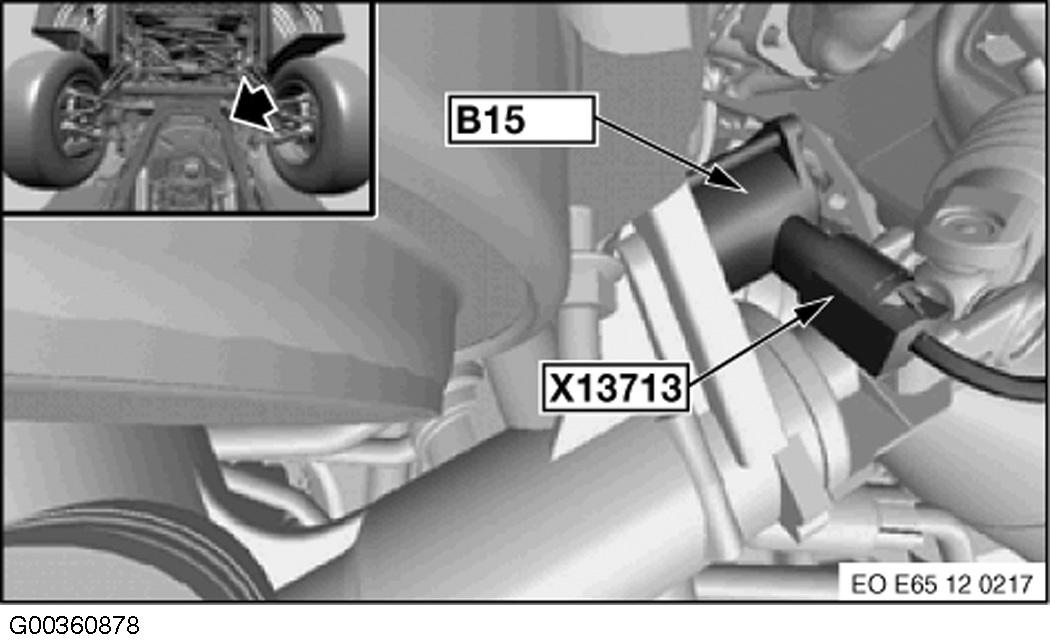

Fig 34: Under Left Front Of Vehicle

G00360878

Courtesy of BMW OF NORTH AMERICA, INC.

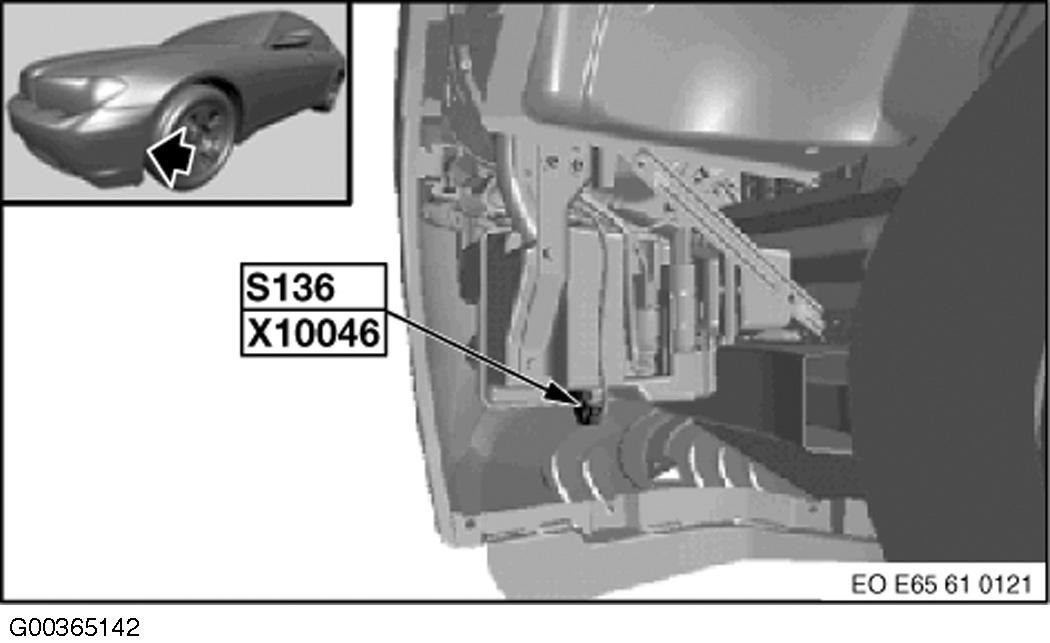

Fig 35: Left Front Wheelwell

G00360879

Courtesy of BMW OF NORTH AMERICA, INC.

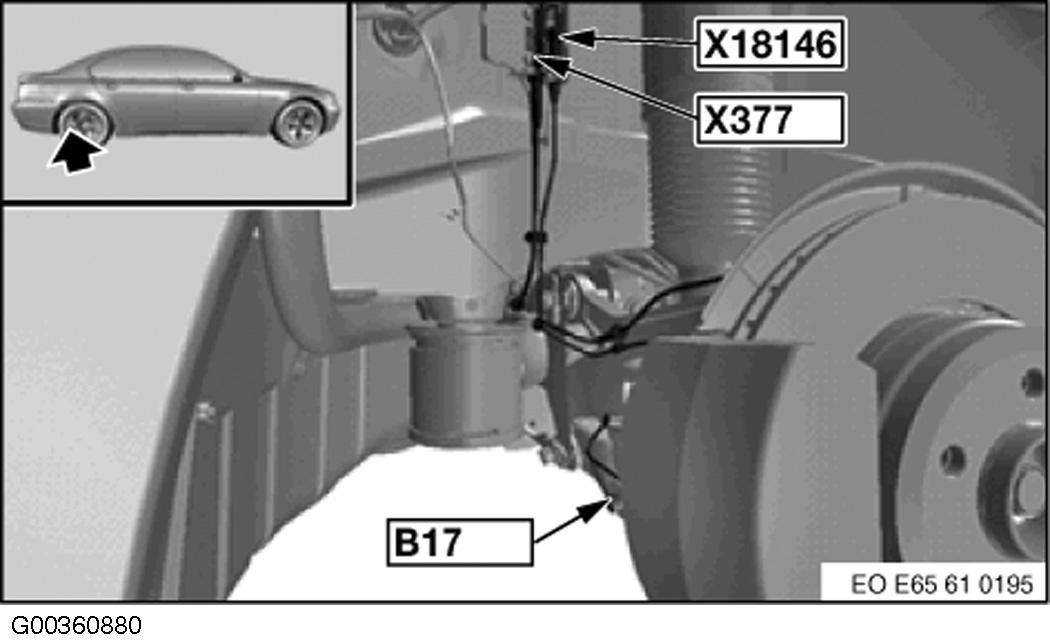

Fig 36: Right Rear Wheelwell

G00360880

Courtesy of BMW OF NORTH AMERICA, INC.

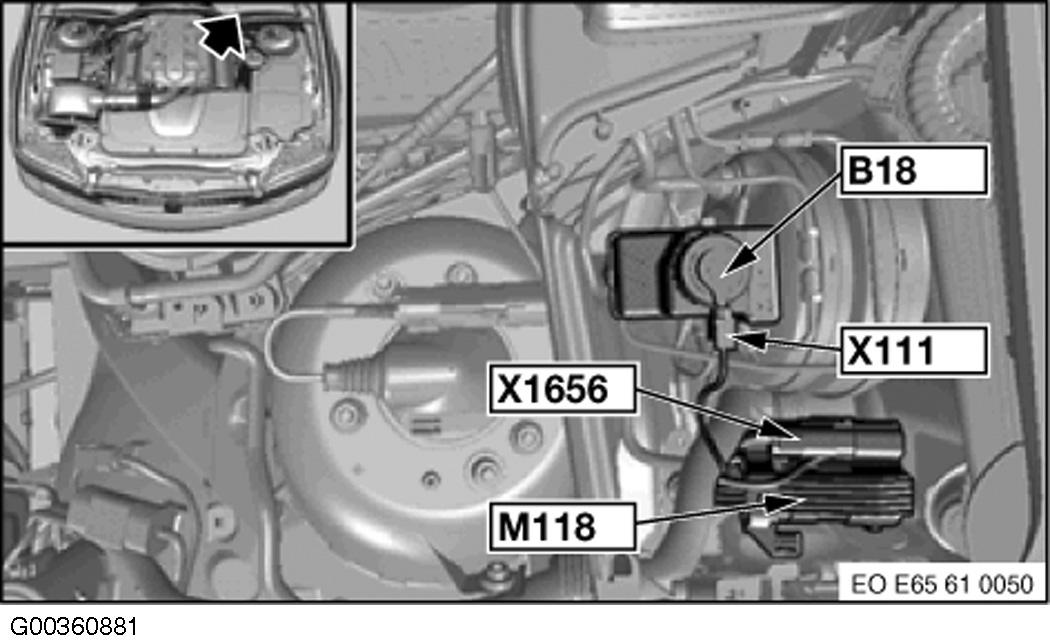

Fig 37: Left Rear Of Engine Compartment

G00360881

Courtesy of BMW OF NORTH AMERICA, INC.

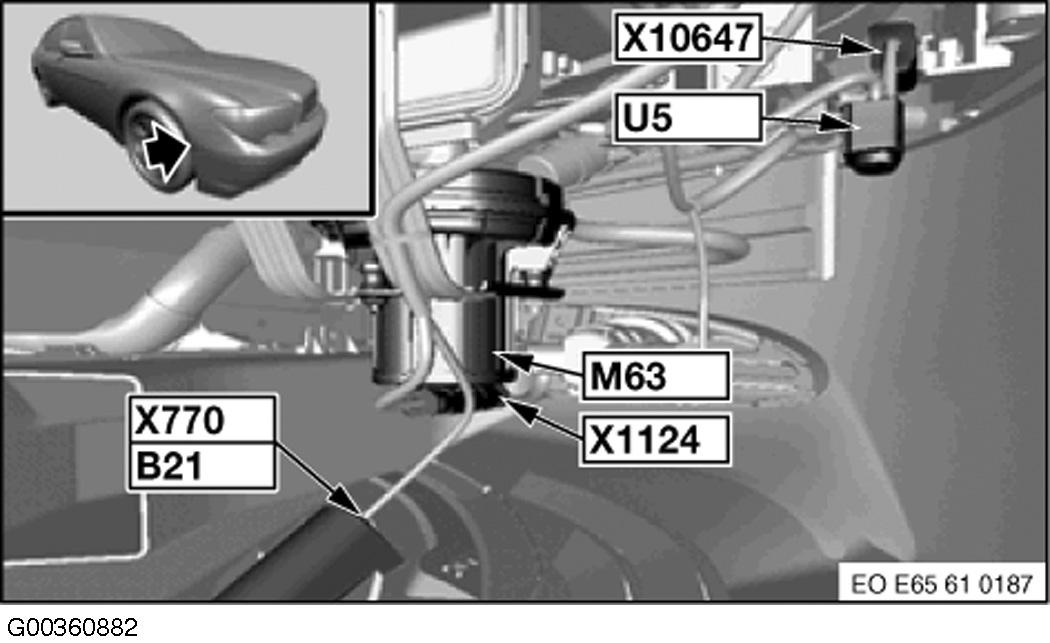

Fig 38: Right Front Wheelwell

G00360882

Courtesy of BMW OF NORTH AMERICA, INC.

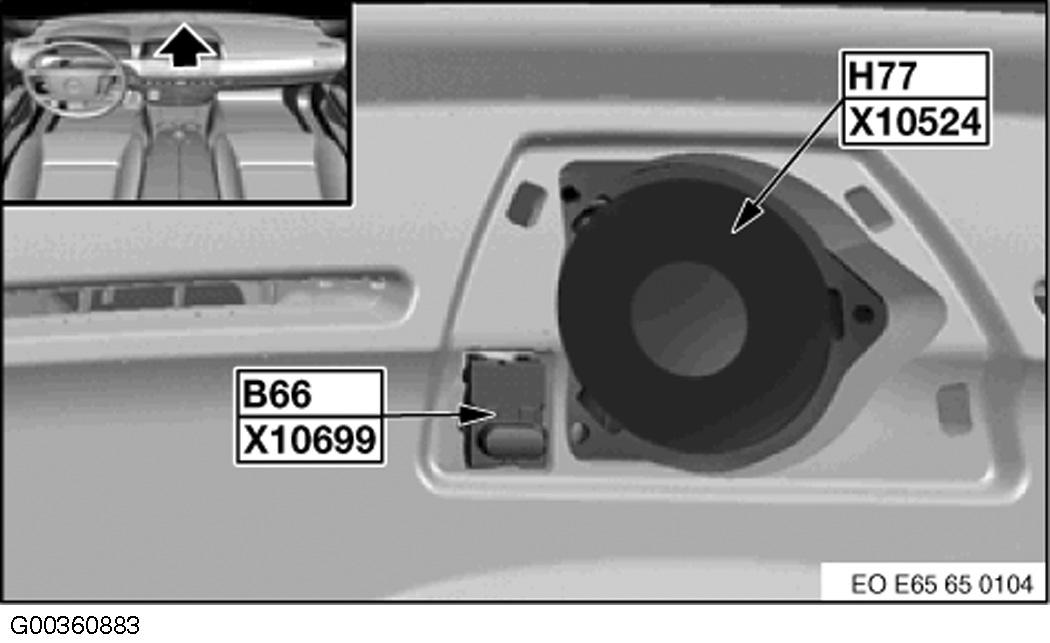

Fig 39: Top Center Of Dash

G00360883

Courtesy of BMW OF NORTH AMERICA, INC.

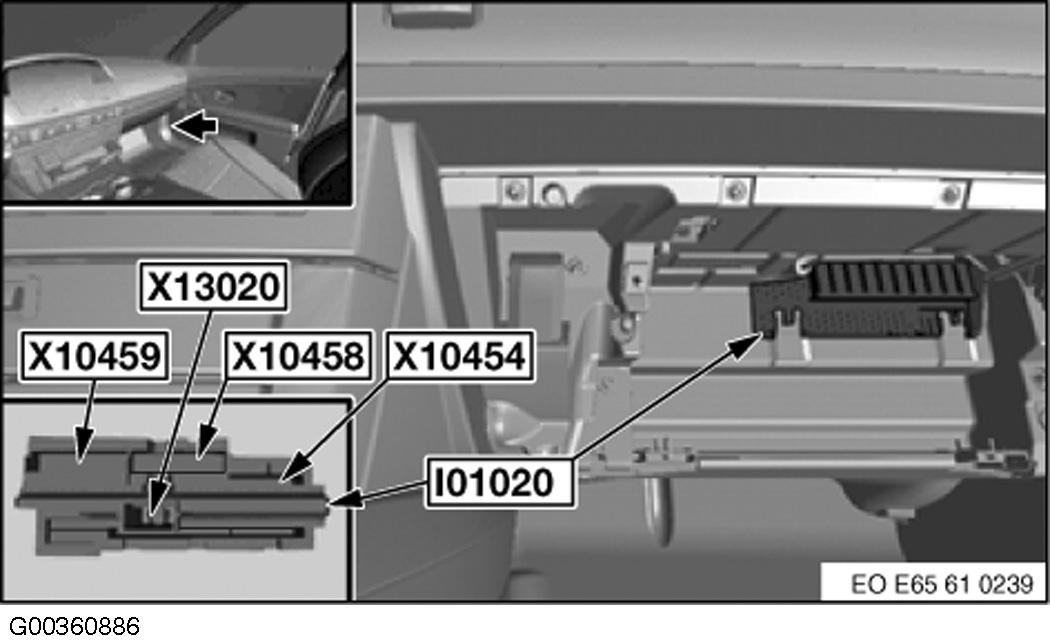

Fig 40: Right Side Of Dash

G00360886

Courtesy of BMW OF NORTH AMERICA, INC.

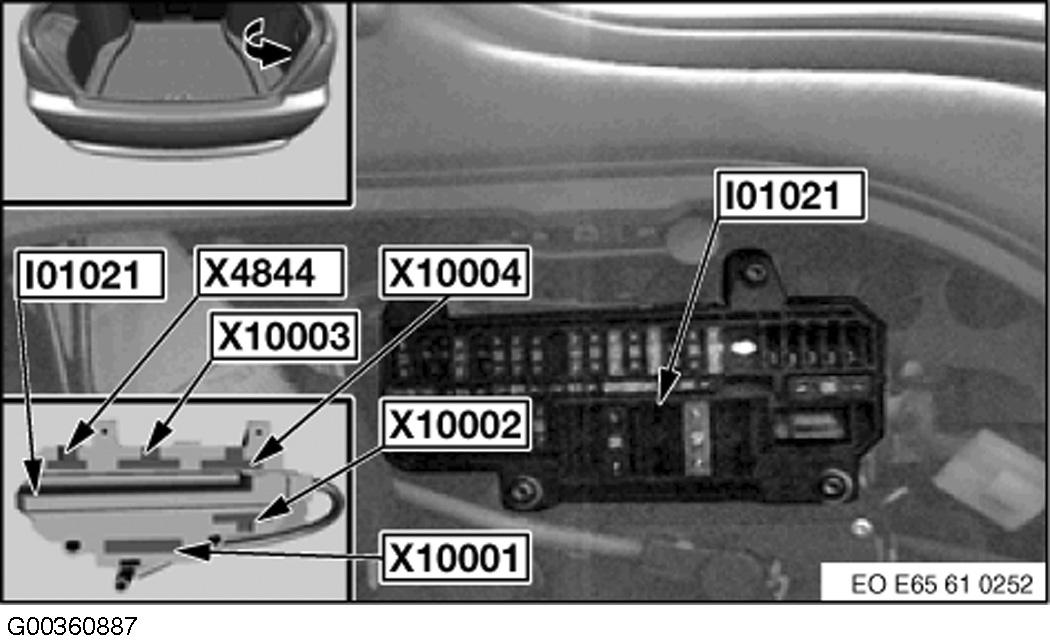

Fig 41: Right Rear Of Luggage Compartment

G00360887

Courtesy of BMW OF NORTH AMERICA, INC.

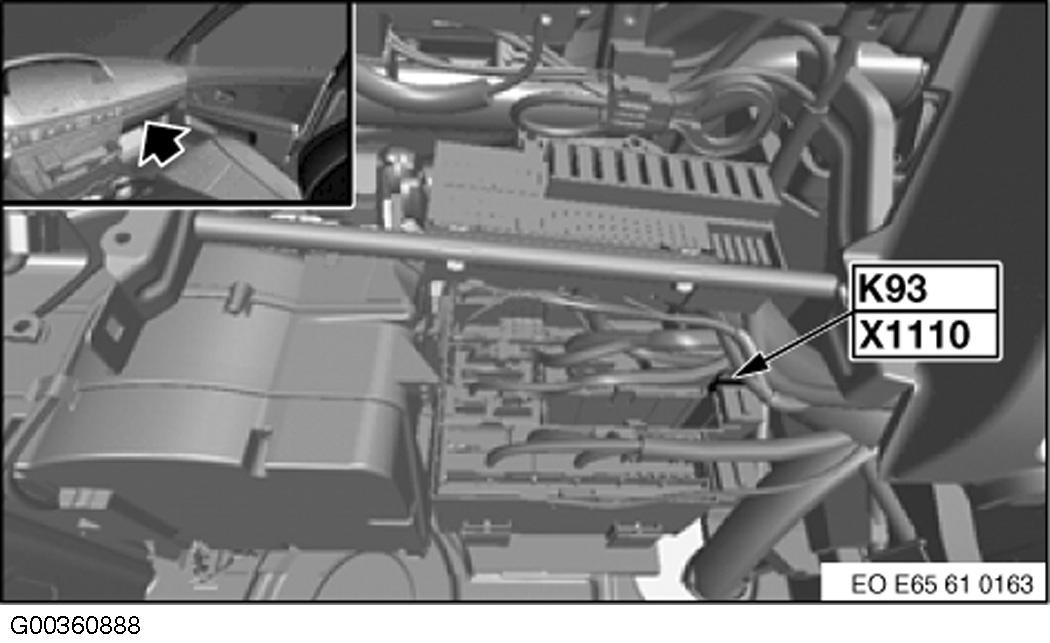

Fig 42: Right Side Of Dash

G00360888

Courtesy of BMW OF NORTH AMERICA, INC.

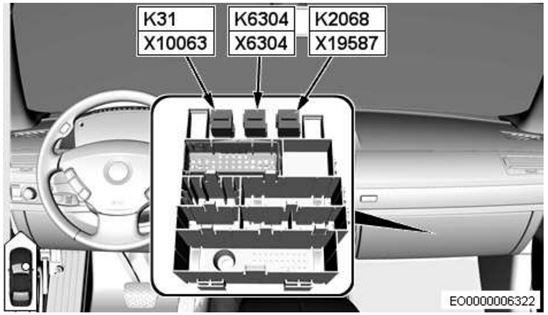

Fig 43: Right Side Of Dash

G00360889

Courtesy of BMW OF NORTH AMERICA, INC.

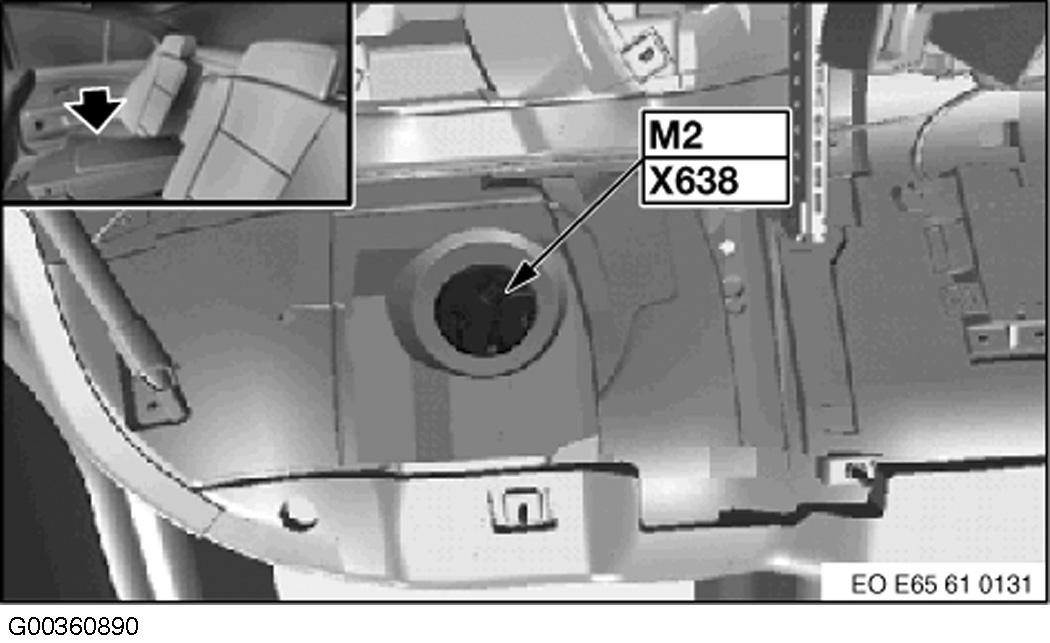

Fig 44: Below Right Rear Seat

G00360890

Courtesy of BMW OF NORTH AMERICA, INC.

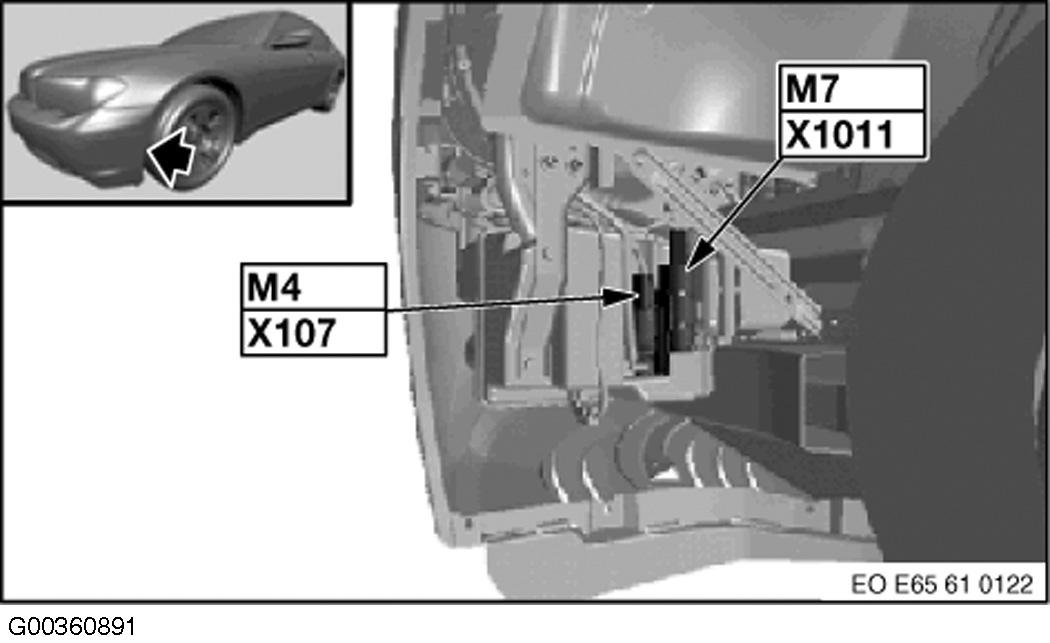

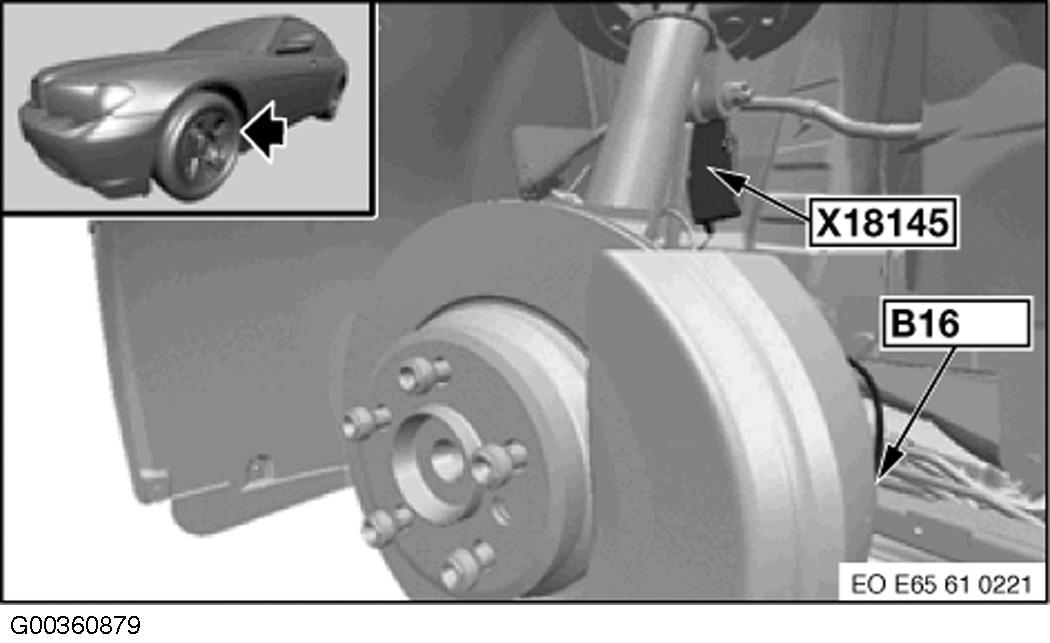

Fig 45: Left Front Wheelwell

G00360891

Courtesy of BMW OF NORTH AMERICA, INC.

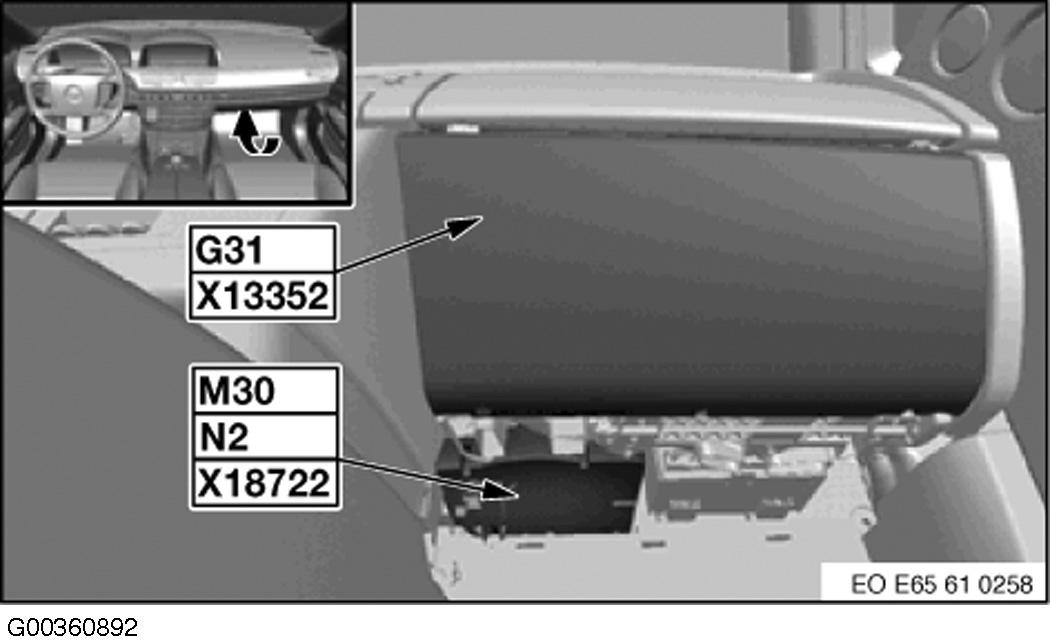

Fig 46: Right Side Of Dash

G00360892

Courtesy of BMW OF NORTH AMERICA, INC.

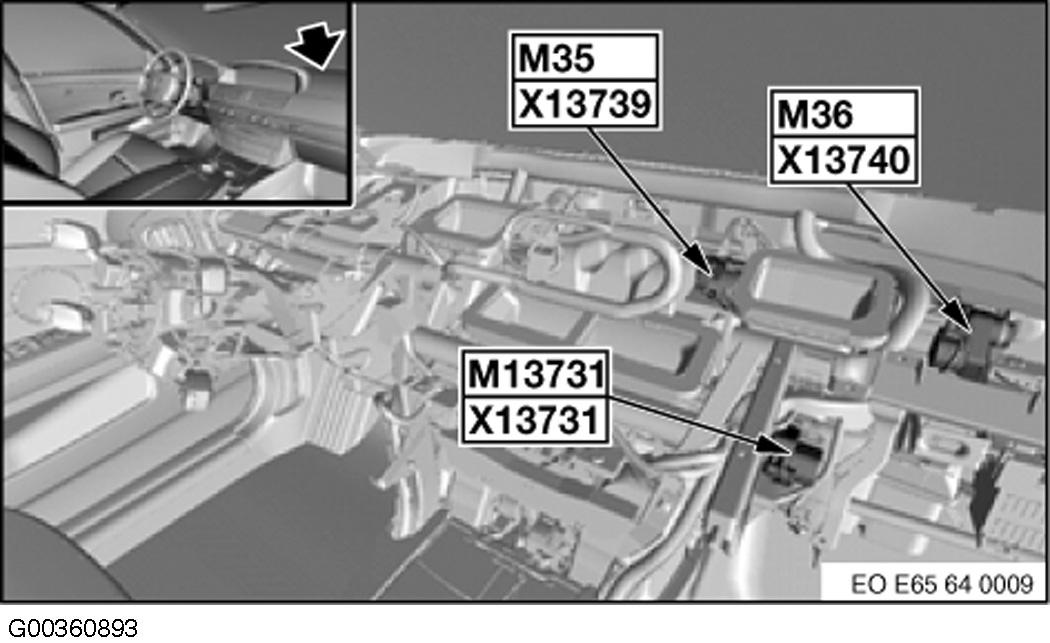

Fig 47: Right Side Of Dash

G00360893

Courtesy of BMW OF NORTH AMERICA, INC.

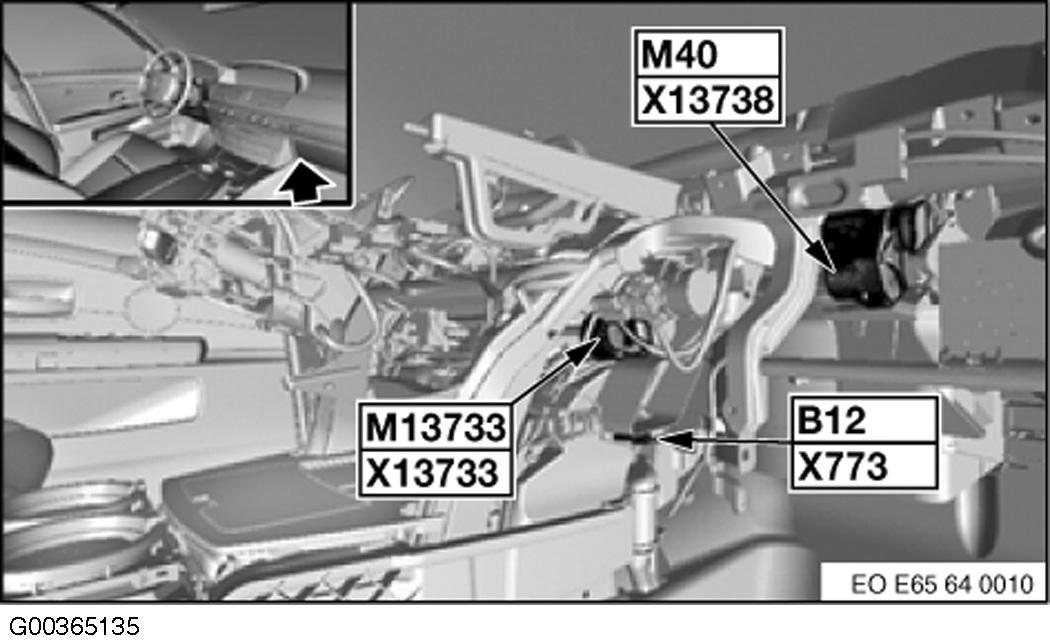

Fig 48: Center Of Dash

G00365135

Courtesy of BMW OF NORTH AMERICA, INC.

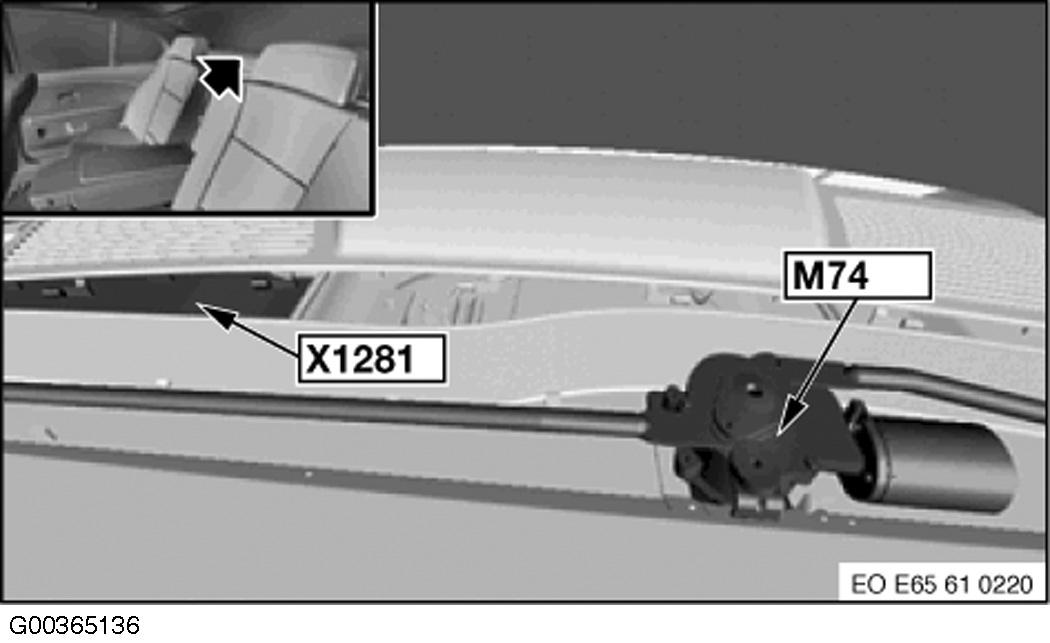

Fig 49: Rear Window Shelf

G00365136

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 50: Right Side Of Dash

G00365137

Courtesy of BMW OF NORTH AMERICA, INC.

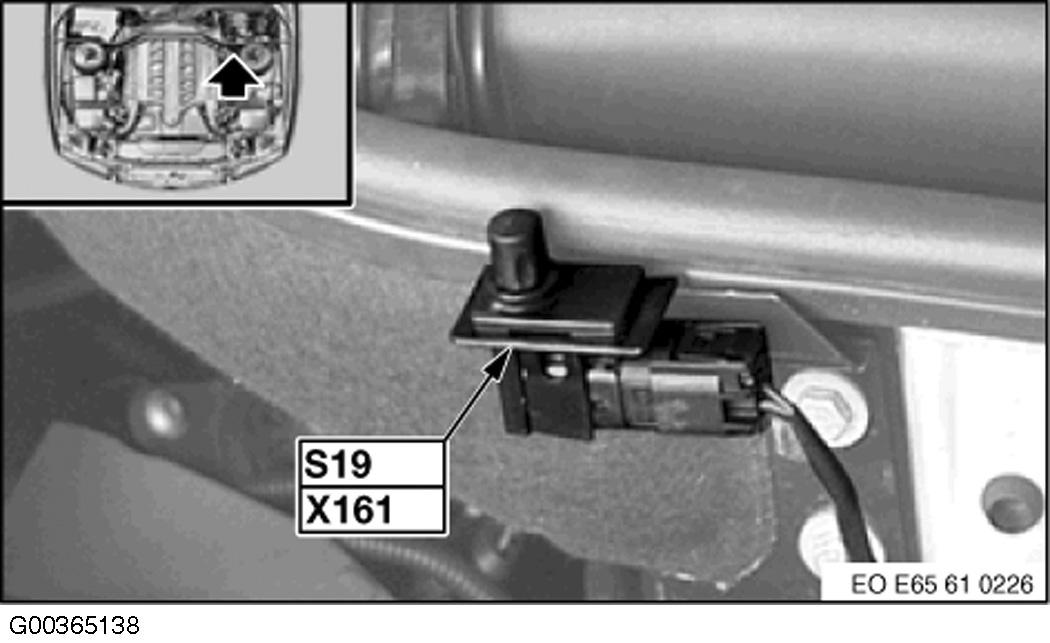

Fig 51: Left Rear Of Engine Compartment

G00365138

Courtesy of BMW OF NORTH AMERICA, INC.

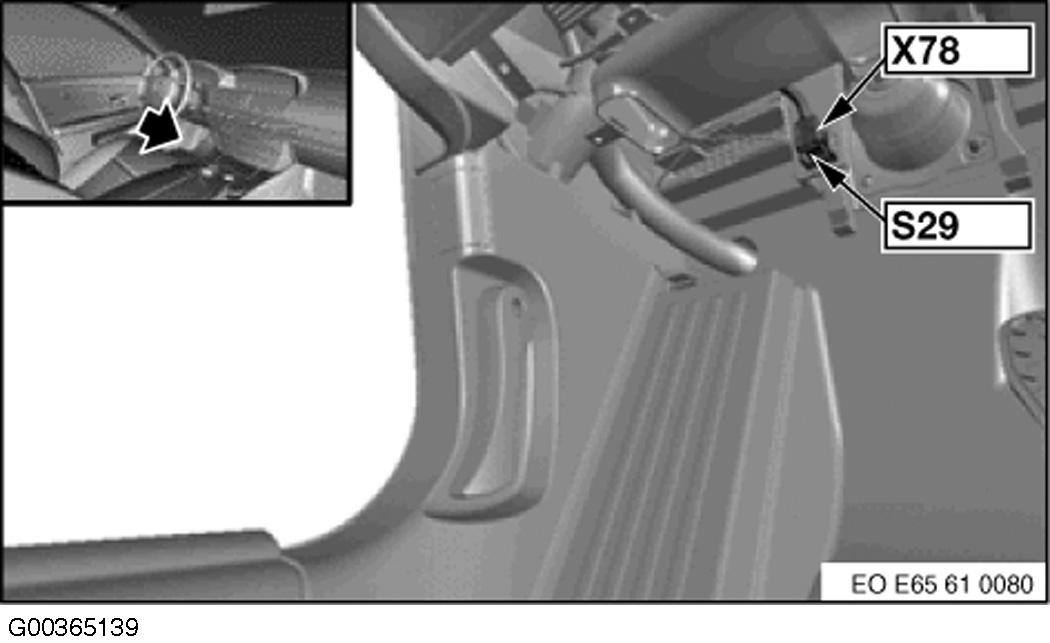

Fig 52: Left Side Of Dash

G00365139

Courtesy of BMW OF NORTH AMERICA, INC.

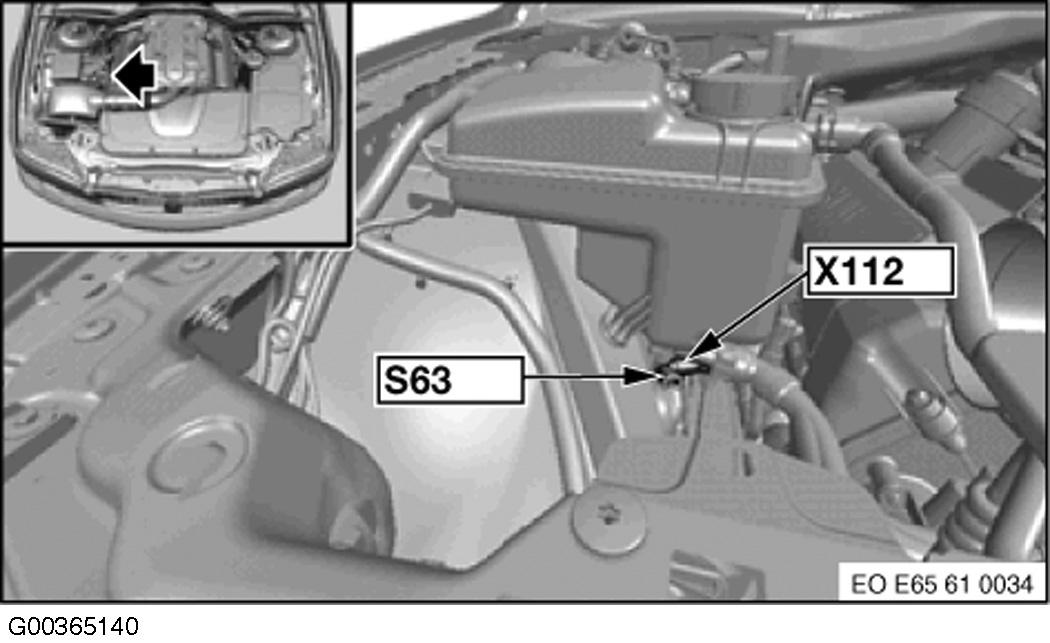

Fig 53: Right Side Of Engine Compartment

G00365140

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 54: Left Rear Of Engine Compartment

G00365141

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 55: Left Front Wheelwell

G00365142

Courtesy of BMW OF NORTH AMERICA, INC.

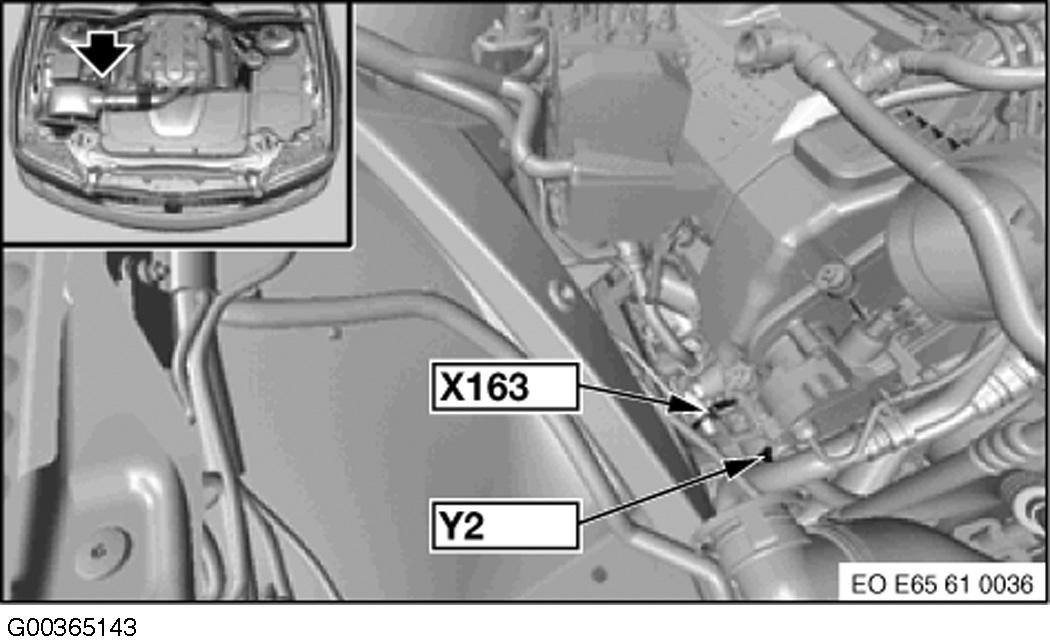

Fig 56: Right Side Of Engine Compartment

G00365143

Courtesy of BMW OF NORTH AMERICA, INC.

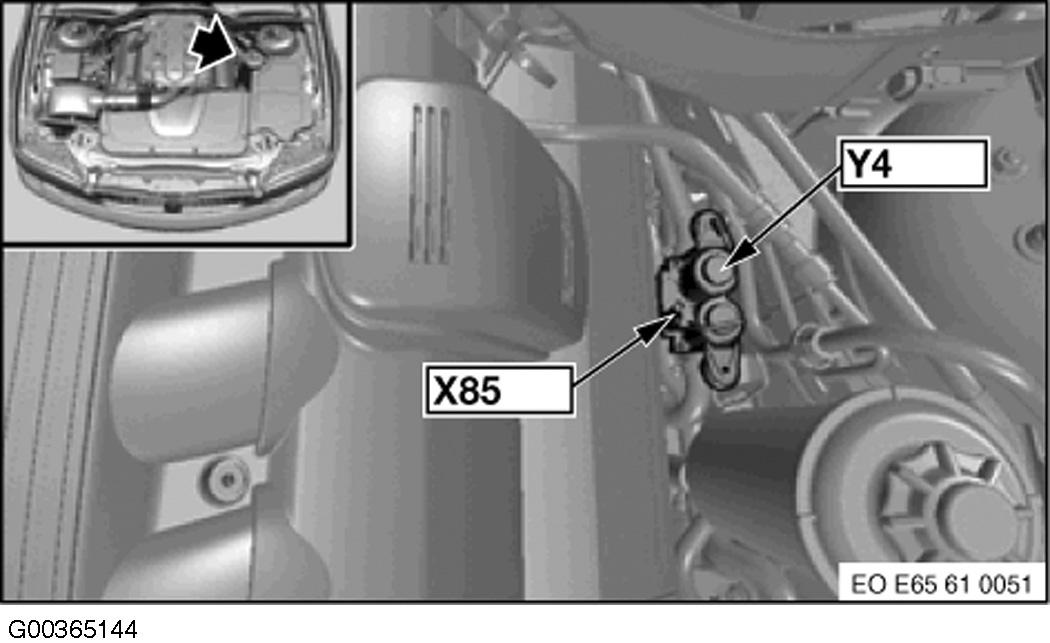

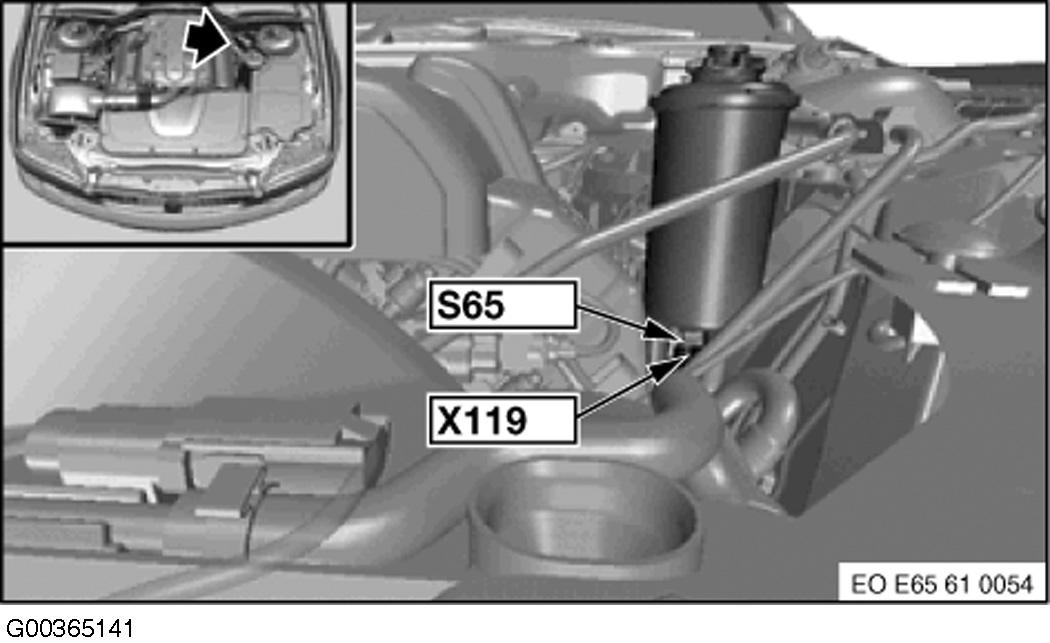

Fig 57: Left Rear Of Engine Compartment

G00365144

Courtesy of BMW OF NORTH AMERICA, INC.

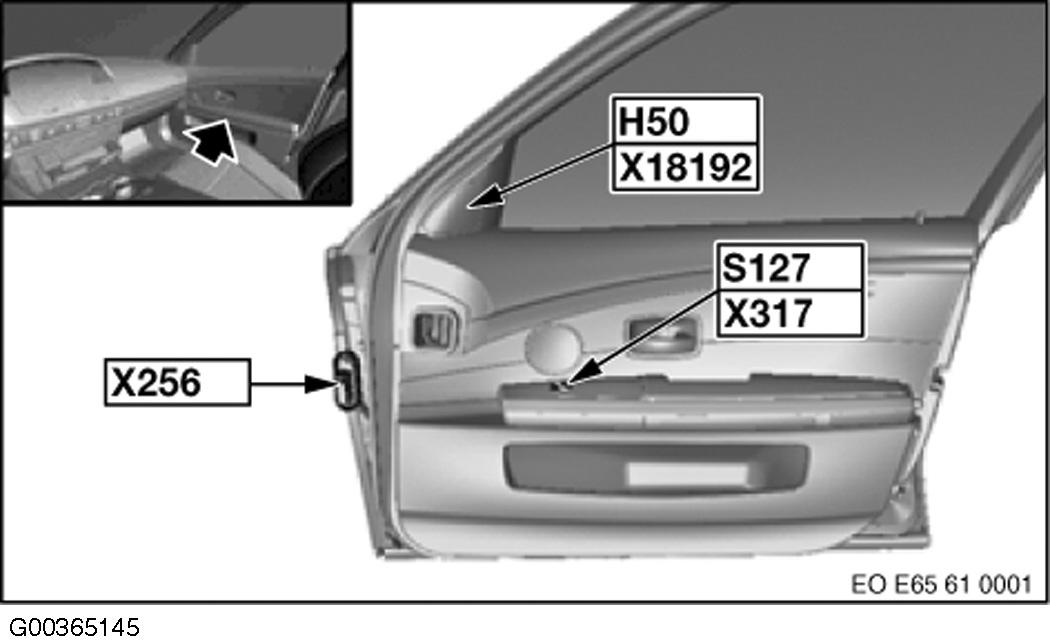

Fig 58: Right Front Door

G00365145

Courtesy of BMW OF NORTH AMERICA, INC.

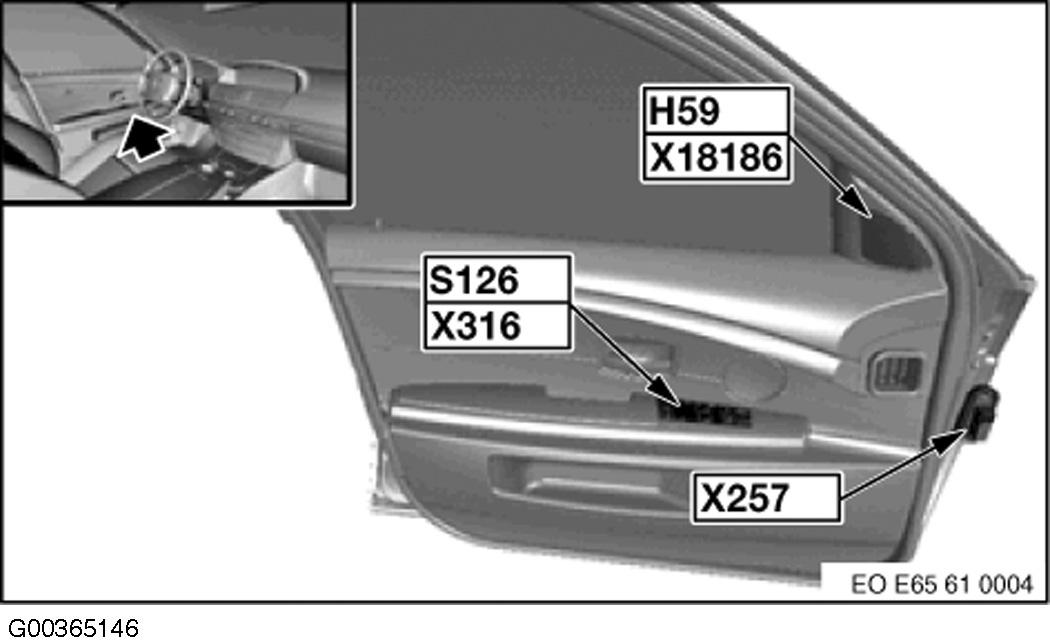

Fig 59: Left Front Door

G00365146

Courtesy of BMW OF NORTH AMERICA, INC.

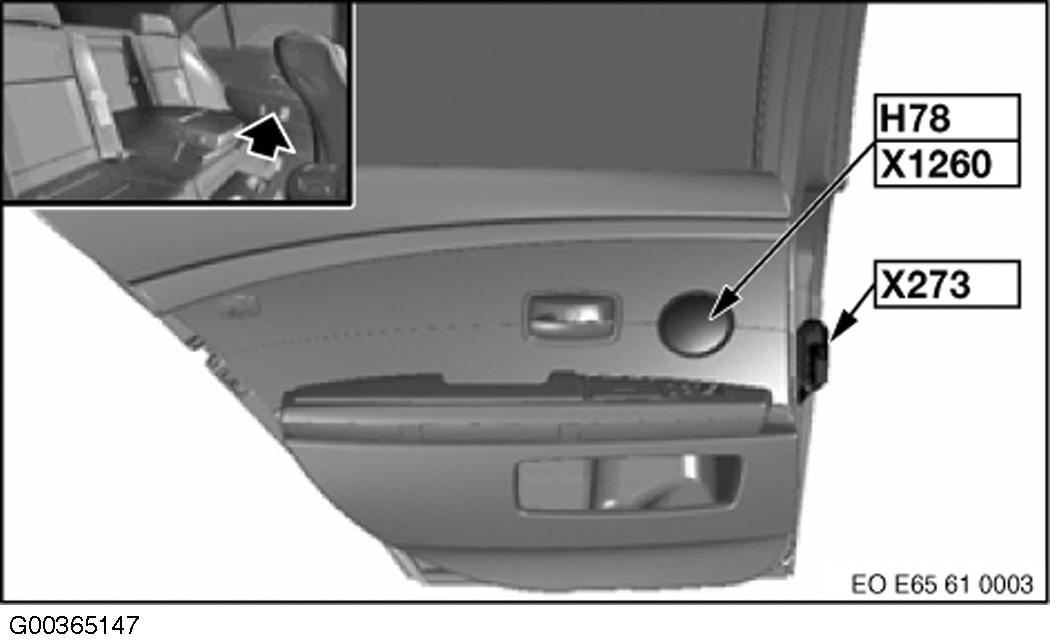

Fig 60: Left Rear Door

G00365147

Courtesy of BMW OF NORTH AMERICA, INC.

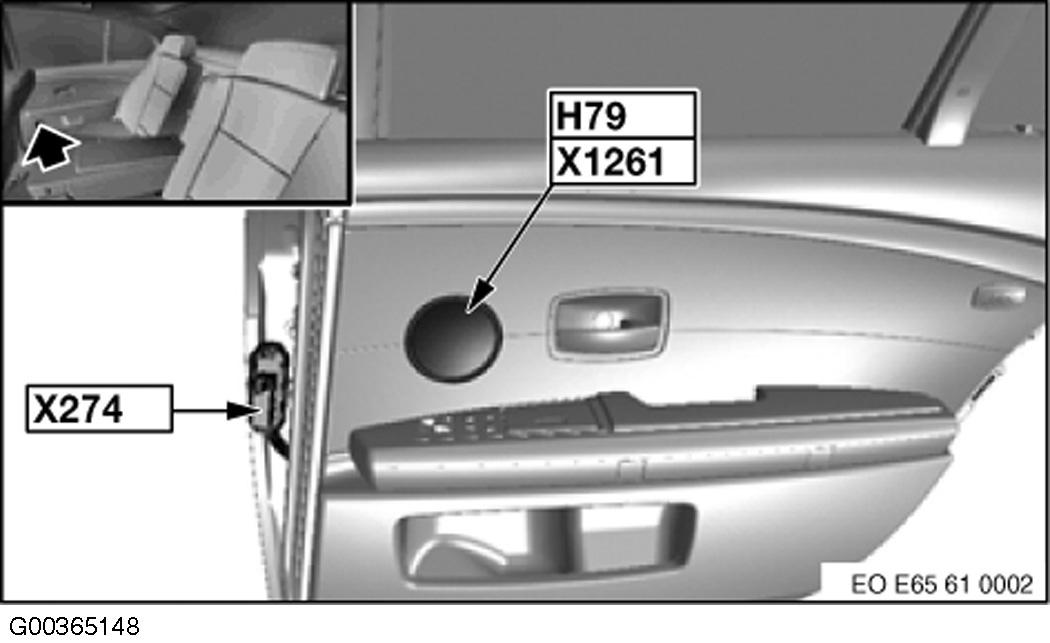

Fig 61: Right Rear Door

G00365148
