Check Control Message

The CBS produces a Check Control message that indicates the brake lining wear at the front or rear axle. When the brake linings are worn, this is shown as follows:

• The general brake warning lamp and the variable control lamp come on in the instrument cluster.
• The variable control lamp shows the symbol of a car on a lifting platform.

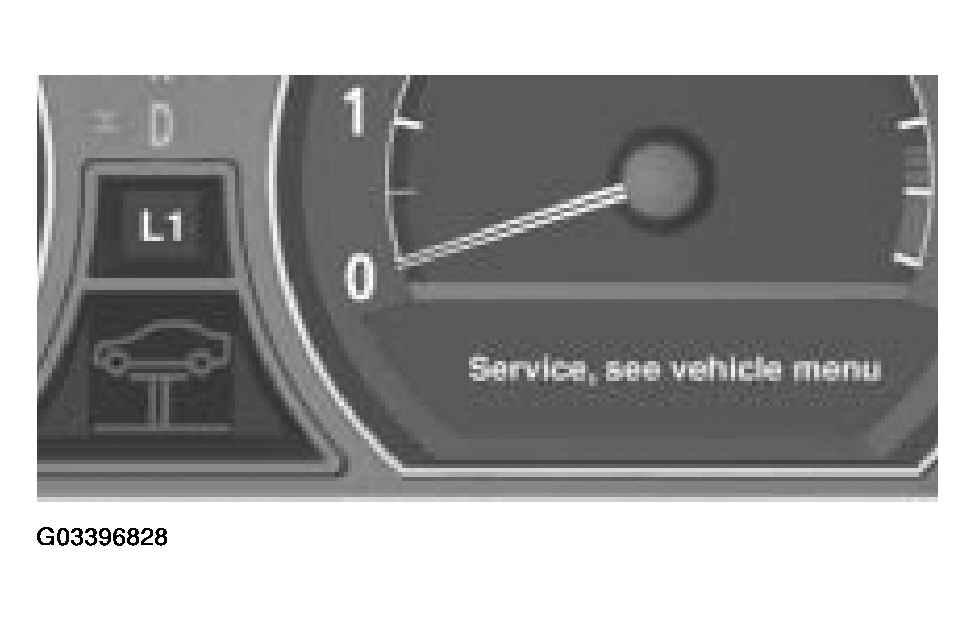

  Fig 1: Identifying Variable Control Lamp Shows Symbol Of Car On Lifting Platform

  Courtesy of BMW OF NORTH AMERICA, INC.

A brief Check Control message appears: "Service, see Vehicle menu." For more detailed information, the user can access the Control Display.
