Toe-In Adjustment: Rear

NOTE: A change of camber always involves a change of toe. Adjust camber first. See CAMBER ADJUSTMENT  .
  1. Replace nut (1). Ensure eccentric washer (2) is correctly located. See Fig 1 . Tighten nut (1) to specification. See TORQUE SPECIFICATIONS  .
  2. Release nut (1) again by 1/2 to 1 turn.
  3. Adjust toe with eccentric screw (3) precisely to specification. See WHEEL ALIGNMENT SPECIFICATIONS  .
    4. CAUTION: If the nut is tightened down more than 10 times during adjustment, it must be replaced again. The self-locking effect becomes too slight.
  4. Ensure eccentric washer is correctly located (2). See Fig 1 . Tighten nut (1) to specification. See TORQUE SPECIFICATIONS  .

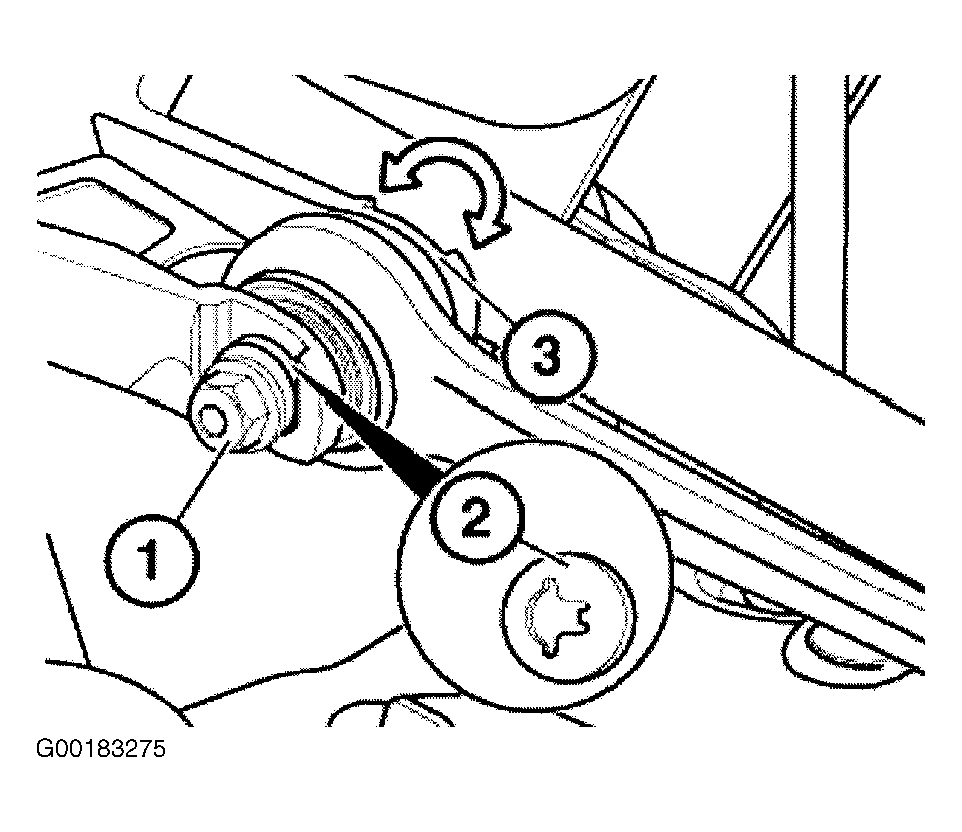

Fig 1: Locating Nut & Eccentric Washer
G00183275Courtesy of BMW OF NORTH AMERICA, INC.
