Wiring Diagrams

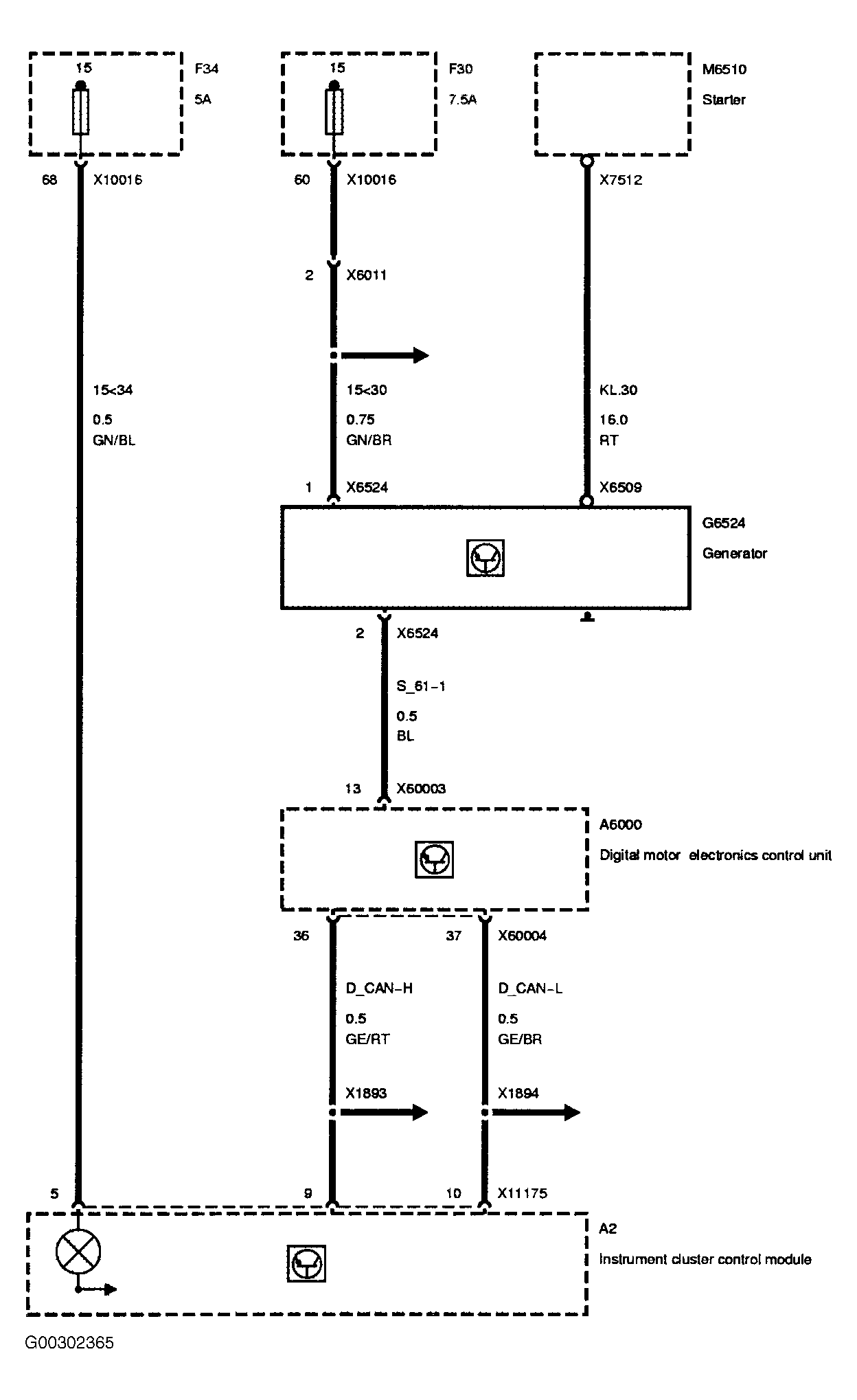

Fig 1: Wiring Diagram Charging System (2001-04 325i, 325Ci, 325xi, 330i, 330Ci & 330xi)
Courtesy of BMW OF NORTH AMERICA, INC.

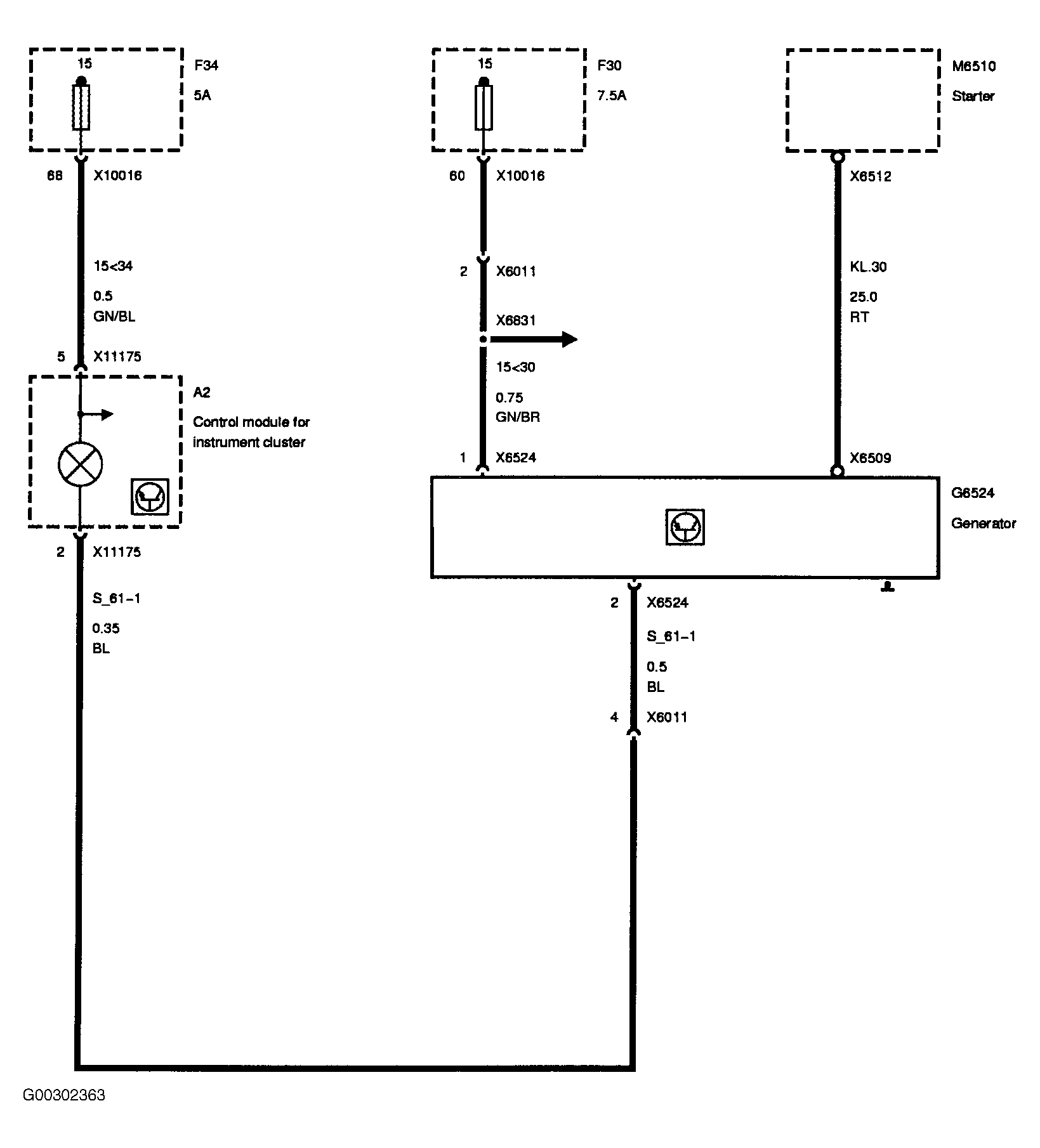

Fig 2: Wiring Diagram Charging System (2001-03 M3)
Courtesy of BMW OF NORTH AMERICA, INC.

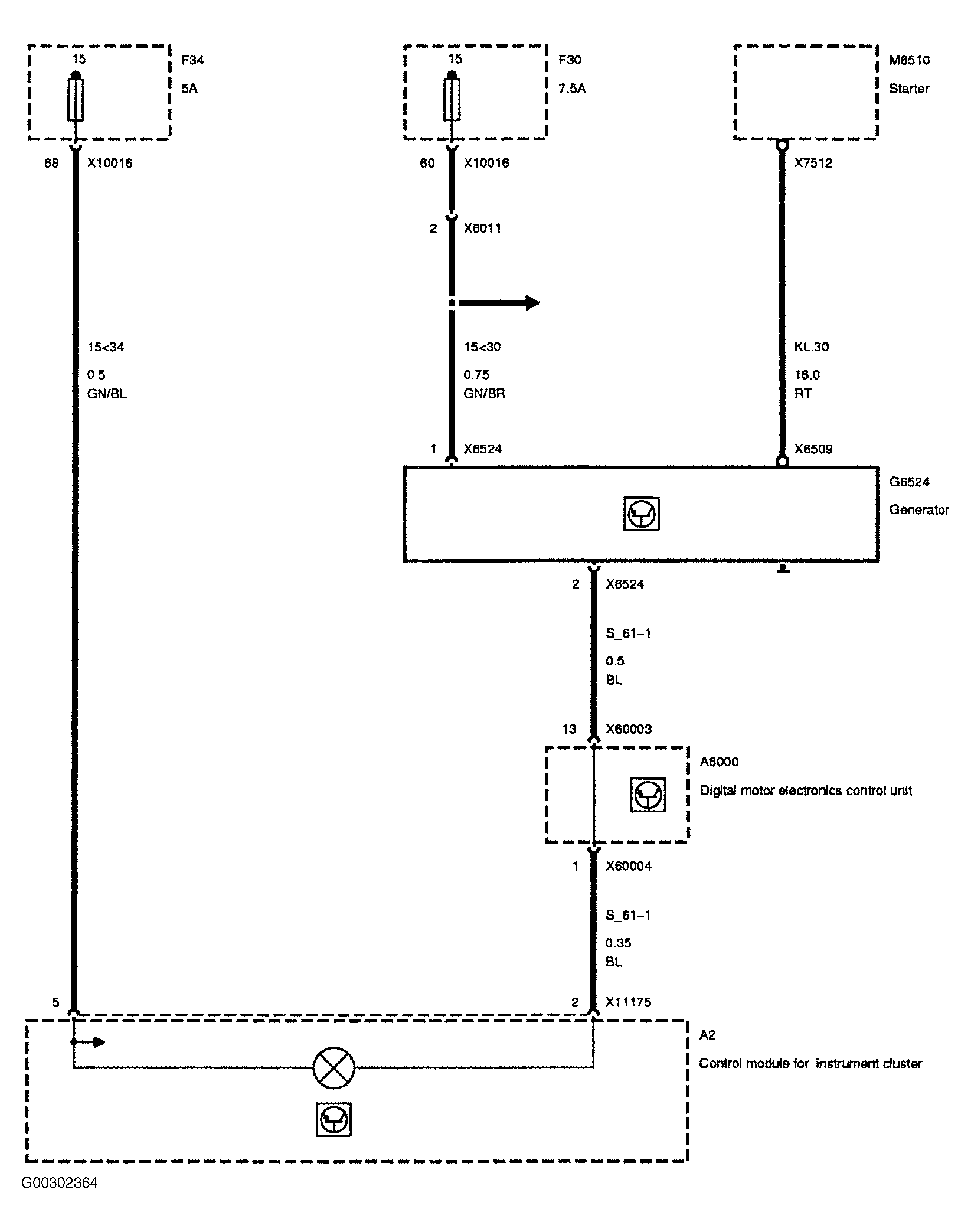

Fig 3: Wiring Diagram Charging System (2004 M3)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
