13 00 002 Checking Function Of Digital Engine Electronics (DME)

Diagnostic Connector In Engine Compartment:

Connect up MoDiC or BMW DIS.

Interrogate DME fault memory.

Note down fault messages stored in memory.

Further information on troubleshooting in line with DIS or MoDiC instructions.

Fig 1: Identifying Interrogate DME Fault Memory

Courtesy of BMW OF NORTH AMERICA, INC.

OBD Socket (1) In Driver's Footwell:

Same procedure as above.

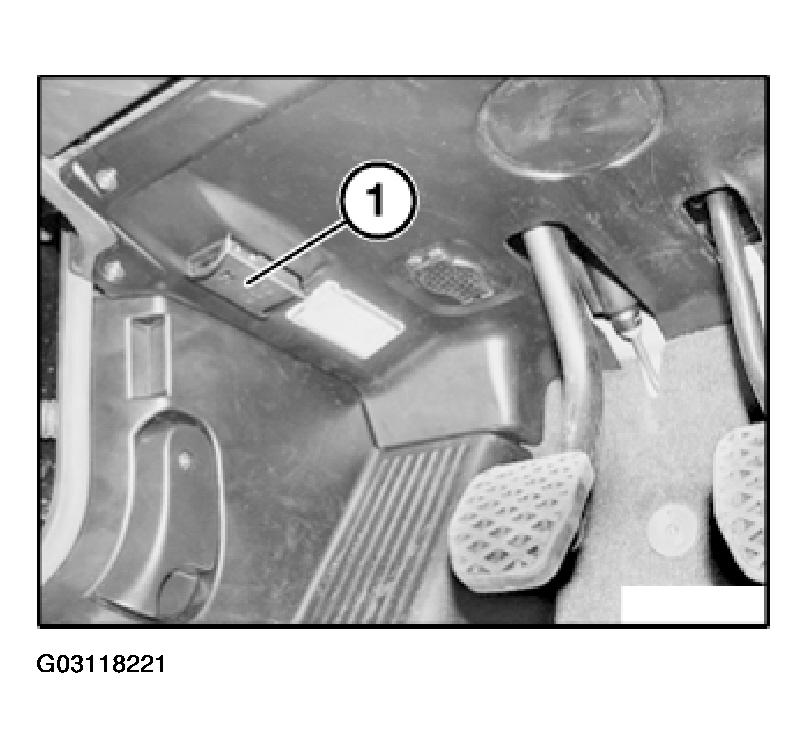

Fig 2: Identifying OBD Socket In Driver's Footwell

Courtesy of BMW OF NORTH AMERICA, INC.
