Principle of Operation

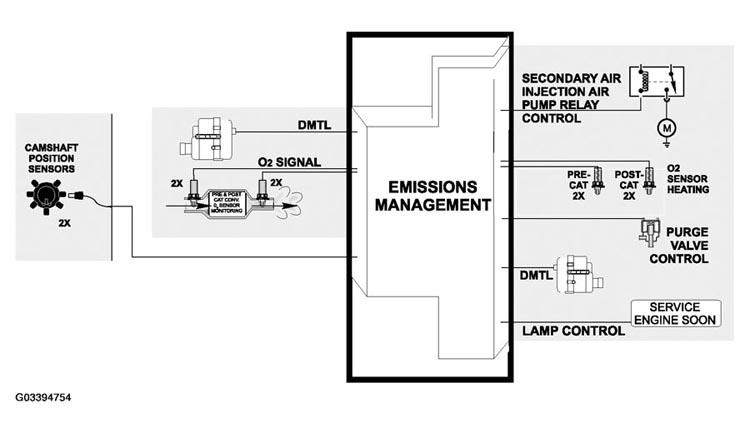

Emissions Management controls evaporative and exhaust emissions. The ECM monitors the fuel storage system for evaporative leakage and controls the purging of evaporative fuel. The ECM monitors and controls the exhaust emissions by regulating the combustible mixture and after treating by injecting fresh air into the exhaust system. The catalytic converter further breaks down remaining combustible exhaust gases and is monitored by the ECM for catalyst efficiency.
The Evaporative Leakage Detection is performed on the fuel storage system by the DM TL pump which contains an integral DC motor that is activated by the ECM. The ECM monitors the pump motor operating current as the measurement for detecting leaks.
The pump also contains an ECM controlled change over valve that is energized closed during a Leak Diagnosis test. The ECM only initiates a leak diagnosis test every second time the criteria are met. The criteria is as follows:
- Engine OFF with ignition switched OFF.
- ECM still in active state or what is known as "follow up mode" (ECM Relay energized, ECM and components on-line for extended period after key off).
- Prior to Engine/Ignition switch OFF condition, vehicle must have been driven for a minimum of 20 minutes.
- Prior to minimum 20 minute drive, the vehicle must have been OFF for a minimum of 5 hours.
- Fuel Tank Capacity must be between 15 and 85% (safe approximation between 1/4 - 3/4 of a tank).
- Ambient Air Temperature between -7°C & 35°C (20°F & 95°F)
- Altitude < 2500m (8,202 feet).
- Battery Voltage between 11.5 and 14.5 Volts
When these criteria are satisfied every second time, the ECM will start the Fuel System Leak Diagnosis Test. The test will typically be carried out once a day ie:, once after driving to work in the morning, when driving home in the evening, the criteria are once again met but the test is not initiated. The following morning, the test will run again.
