Tools And Equipment

The DIS/MoDIC as well as a reputable hand held multimeter can be used when testing inputs/components.

It is best to make the checks at the ECM connection, this method includes testing the wiring harness.

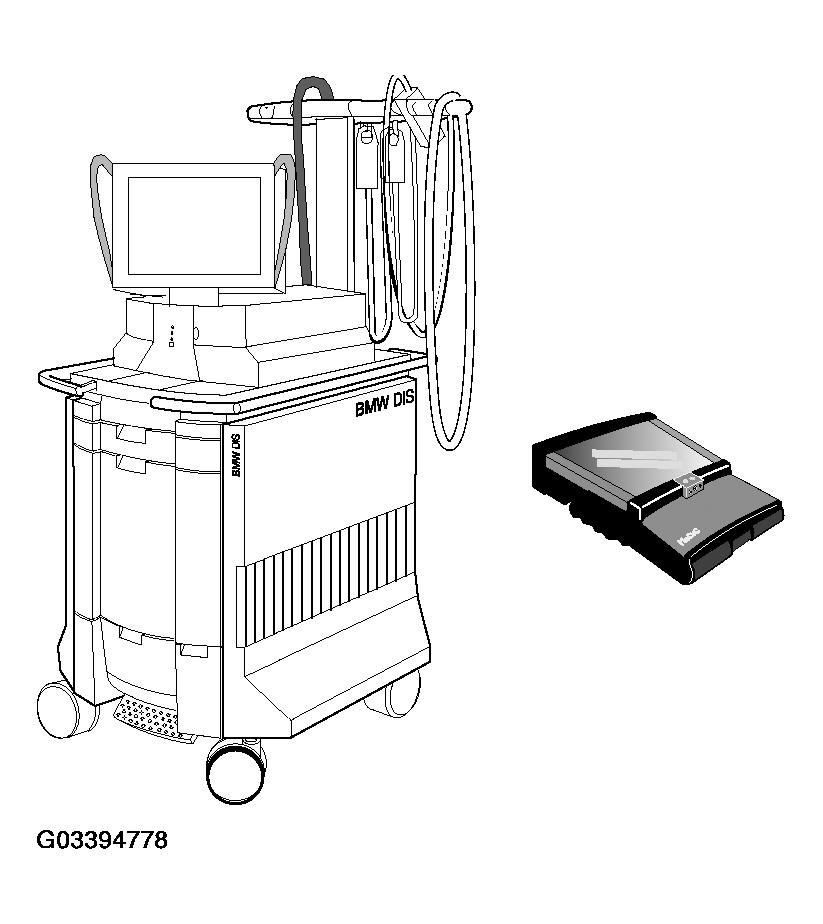

Fig 1: Identifying Tools And Equipment

Courtesy of BMW OF NORTH AMERICA, INC.

The correct Universal Adapter for the MS S54 application should be used (#90 88 6 121 300). This will ensure the pin connectors and the harness will not be damaged.

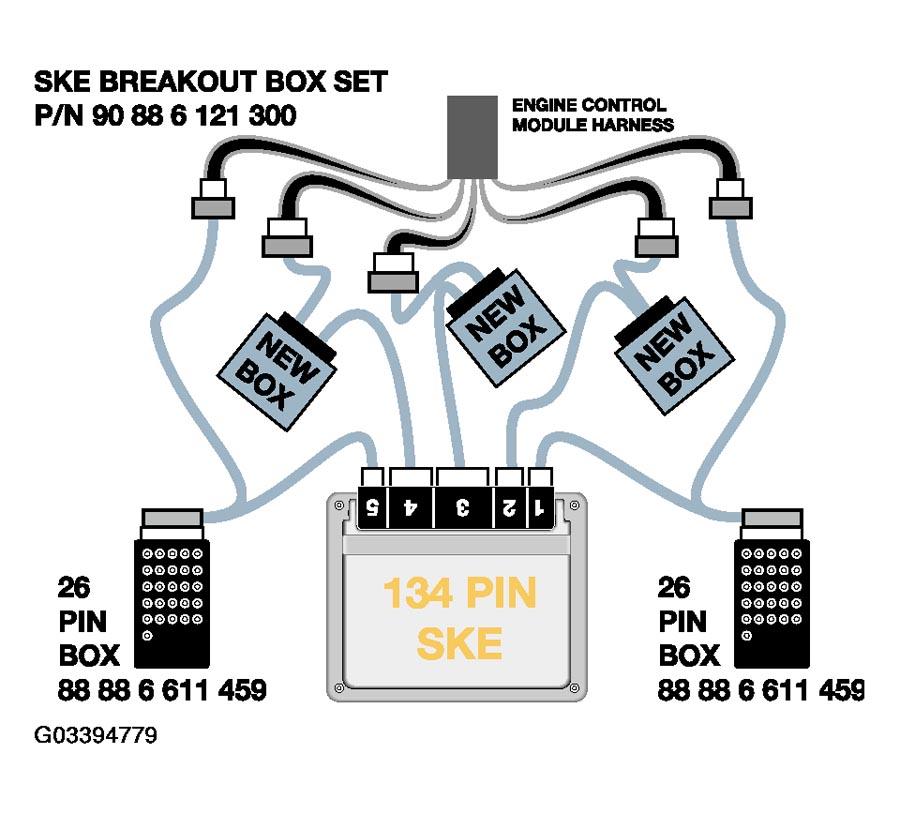

Fig 2: Identifying ECM Harness

Courtesy of BMW OF NORTH AMERICA, INC.

When installing the Universal Adapter to the ECM (located in the Electronics Box in the engine compartment), make sure the ignition is switched off.
