Engine/Vehicle Speed Limitation

For engine/vehicle speed limitation, the ECM will deactivate injection for individual cylinders, allowing a smoother limitation transition. This prevents over-rev when the engine reaches maximum RPM (under acceleration), and limits top vehicle speed (approx. 128 mph).

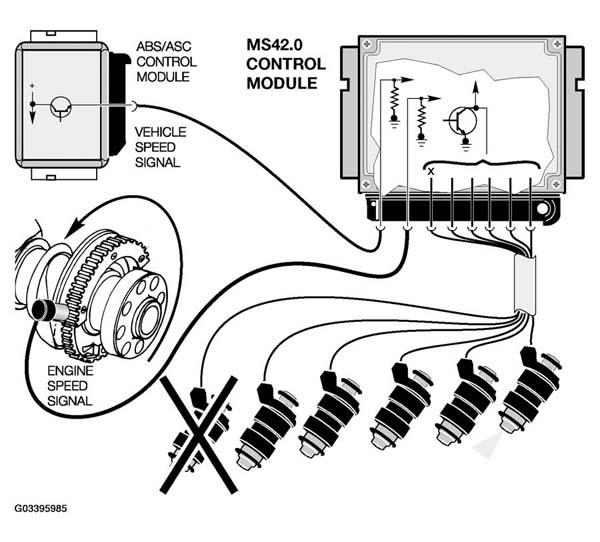

Fig 1: Engine/Vehicle Speed Limitation Communication Diagram

Courtesy of BMW OF NORTH AMERICA, INC.
