Fuel Injector Valves

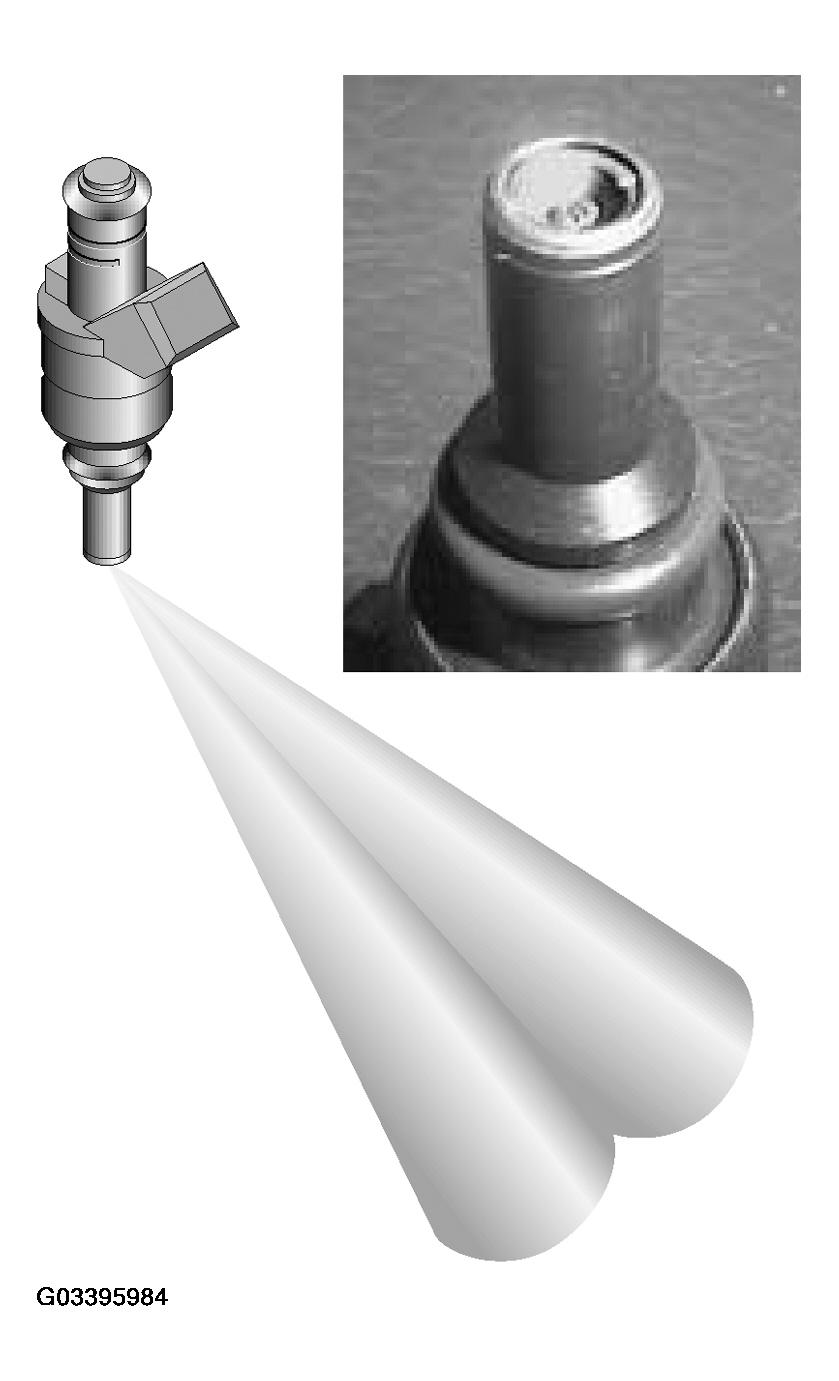

The fuel injectors which are supplied by Siemens Inject at an angle (dual cone spray pattern). The tip of the injector is fitted with a directional angle "plate" with dual outlets. The lower portion of the injector body is now jacketed in metal. The ECM control of the injectors remains unchanged from the previous Siemens MS41.1 system.
