Satellite Sensors

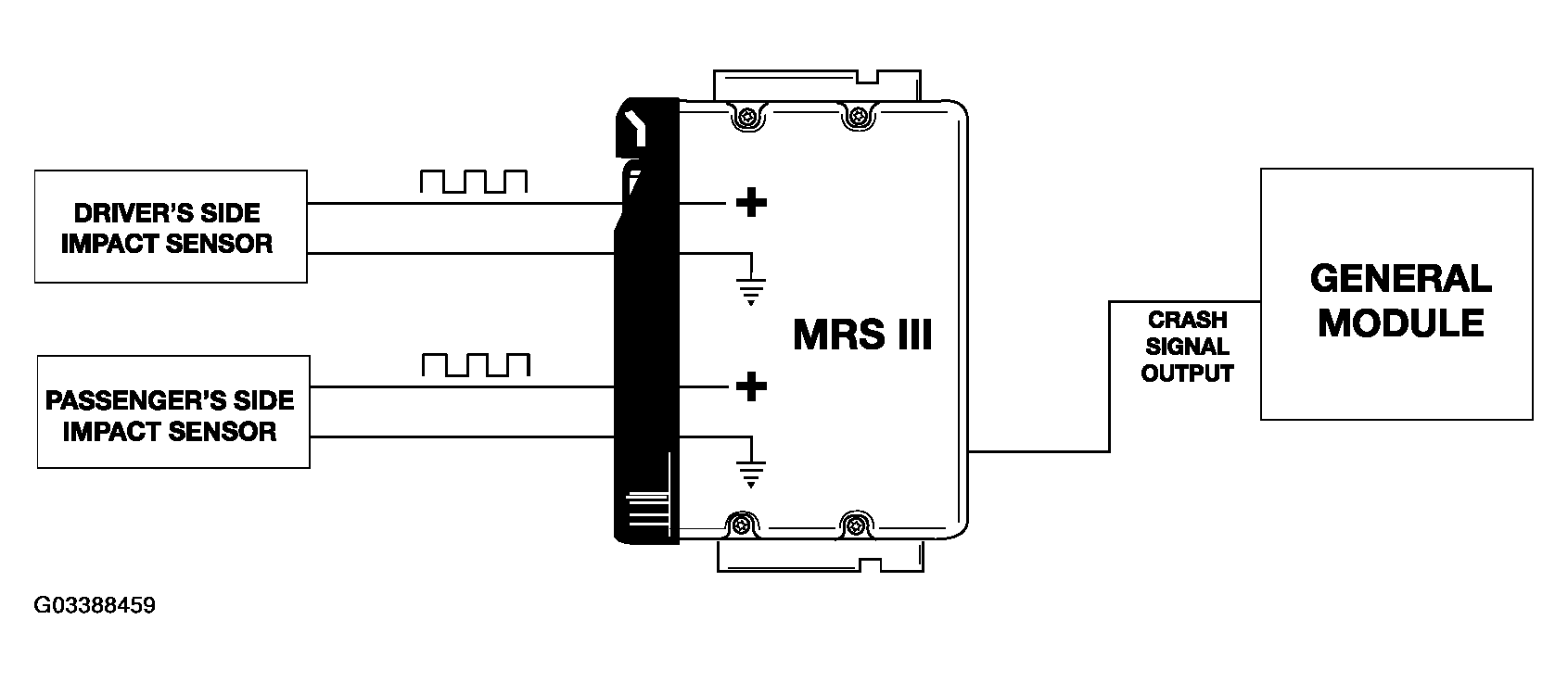

The satellite sensors are mounted below the driver's and passenger's front seats on the seat frame. The function of the sensors is to detect the severity of side impacts and signal the MRS III control module, through a pulse modulated signal, in the event of a crash. The control module uses this input signal along with its internal impact sensor signal to determine the deployment of the side/head airbags.

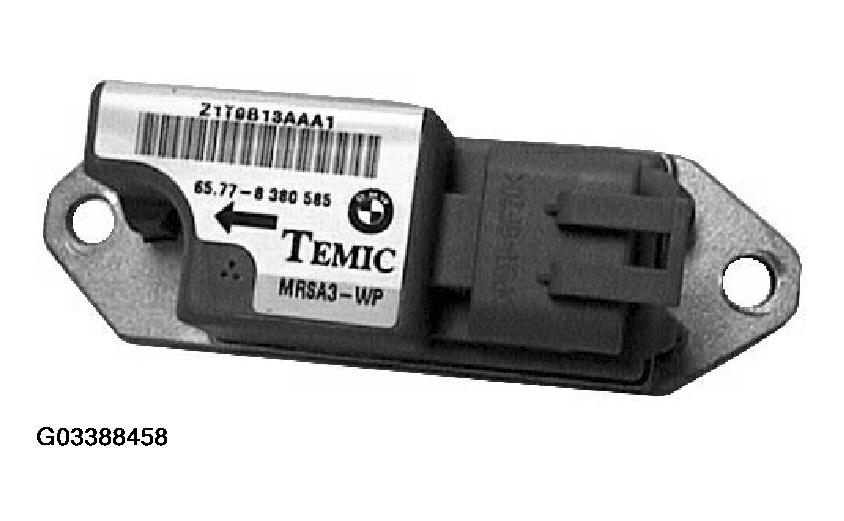

As with the control modules, the satellite sensors are manufacturer specific. The Temic sensors in the X5 have a three wire connector which will not interchange with the Bosch sensors. Only two of the wires are used for the satellite sensor's operation. The signal for deployment of the bags is carried over the power wire of the sensor.
