Tools Needed

To test a battery following tools are needed:

• DVOM Digital Volt Ohm Meter.
• Battery Load Tester (i.e. Snap On VAT 60).
• DISplus or MoDic.
• Battery Draw Test Special Tool PN 61 2 300.
• Closed Circuit Measurement Adapter PN 90 88 6 612 310.
• Temperature Compensating Hydrometer.

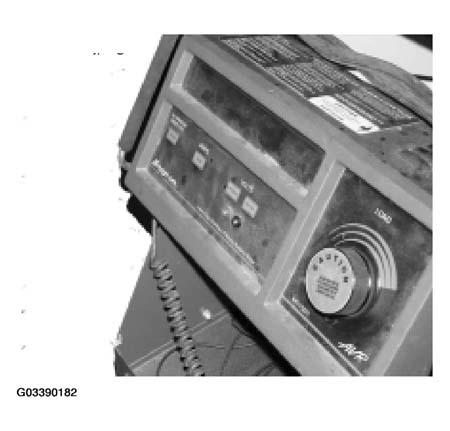

Fig 1: Identifying Battery Load Tester

Courtesy of BMW OF NORTH AMERICA, INC.

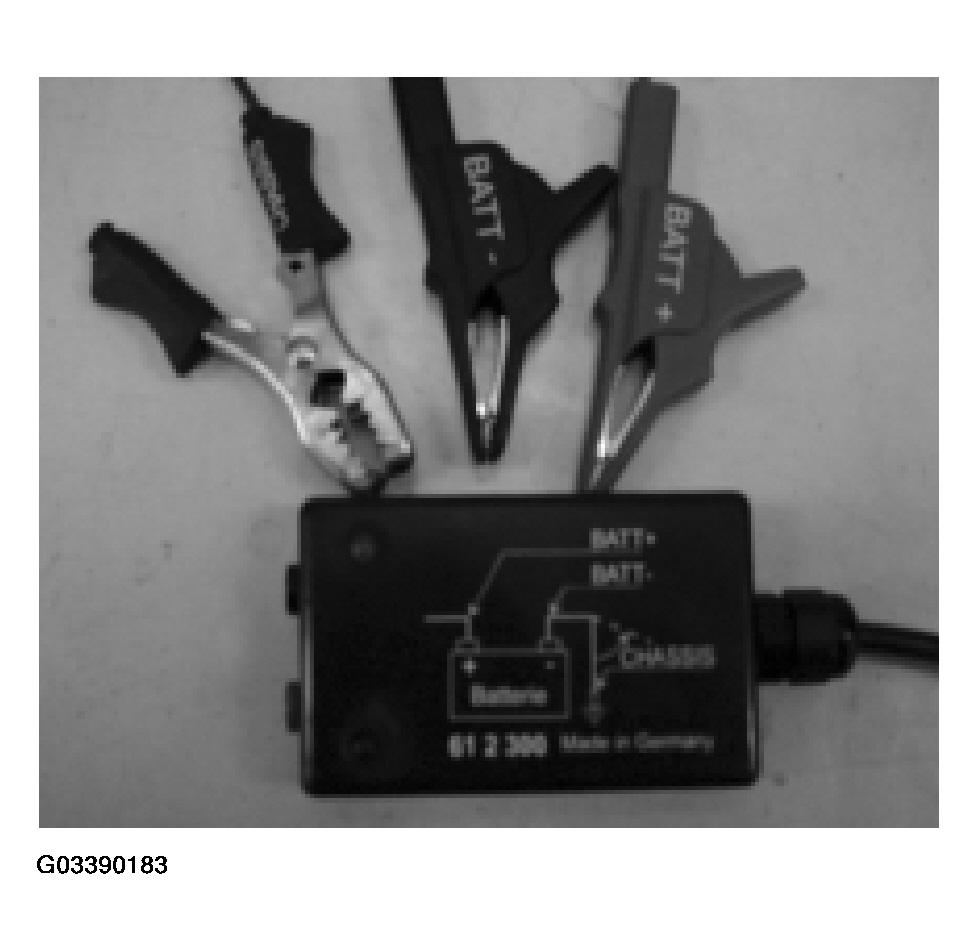

Fig 2: View Of Draw Test Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Identifying Temperature Compensating Hydrometer

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 4: View Of Closed Circuit Measurement Adapter

Courtesy of BMW OF NORTH AMERICA, INC.
