Starting Systems: Solenoid: Notes

The Solenoid performs the following functions:

Pull the pinion to engage the flywheel.
Hold the pinion engaged with the flywheel during starting rotation.
Complete the electrical circuit from the battery to the brushes of the starter.
Cause the pinion to retract from the flywheel.

Two windings are used to pull and hold the pinion engaged to the flywheel.

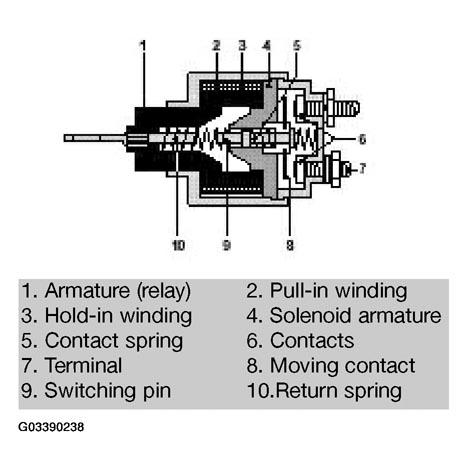

Fig 1: Identifying Solenoid Components

Courtesy of BMW OF NORTH AMERICA, INC.

Pull-In Winding- The stronger of the two windings, used to pull the pinion into engagement. This winding is released when the starter circuit is completed.

Hold-In Winding- Used to help the pull-in winding move the pinion initially, then holds the pinion engaged to the flywheel.

Signal 50 is received at the solenoid, energizing both windings. The windings cause the armature to be drawn into the coils, pressing on a spring, causing the moving contacts to close. The pull-in winding is released, the starter begins to turn. When signal 50 is released, the power is lost to the hold-in winding, spring pressure forces the armature out of the coil, the moving contacts are opened and the pinion returns to the rest position.

Workshop Hint:

The starter motor does not begin to spin until after the pinion is engaged in the flywheel.

This aids in the meshing of the pinion and flywheel

Workshop Hint:

Battery voltage is critical.

The combination of the pull-in winding and the hold-in winding may have sufficient power to engage the pinion. When the moving contacts are completed and the increased load of the starter motor is added to the system, low voltage will cause the hold-in winding to release the pinion. If signal 50 is still present the pull-in winding will again assist in pulling the pinion into engagement and the cycle starts over again. This gives the "clicking" noise from the starter.
