Compression Test N62: Notes

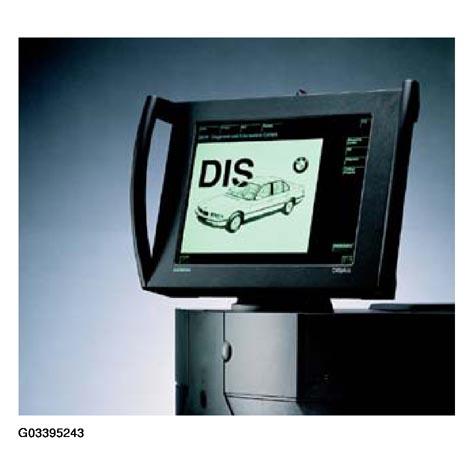

The compression can be tested on the N62 using the DISplus. The DISplus can perform a relative compression test and provide a comprehensive engine analysis report.
The compression test can be done at minimum valve lift as well as at maximum valve lift. This difference between these reading can assist in determining the root cause such as wear in Valvetronic components.
When performing this test the following connections/cables are needed:
- Diagnostic head (can be hardwired or wireless)
- TD Cable connection to diagnostic head
- 25 Bar Pressure transducer connected to pressure connection #2.

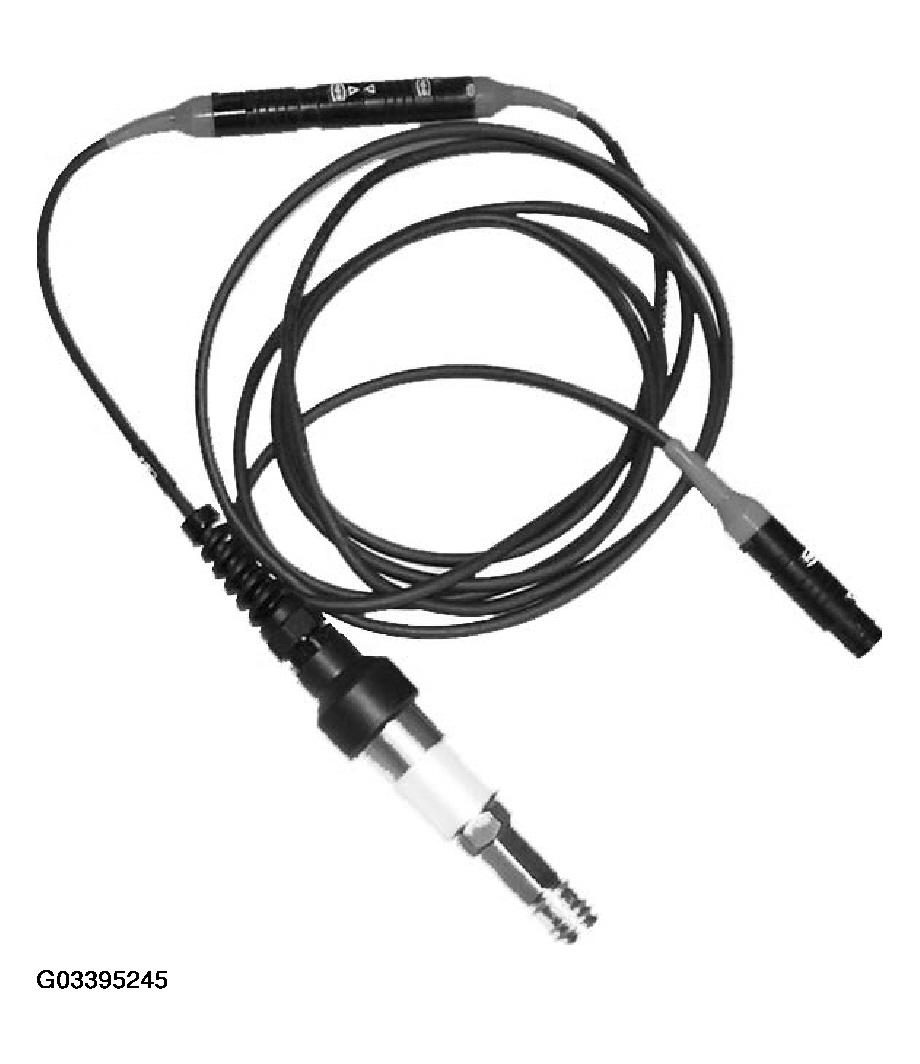

- Compression adapter (quick disconnect)

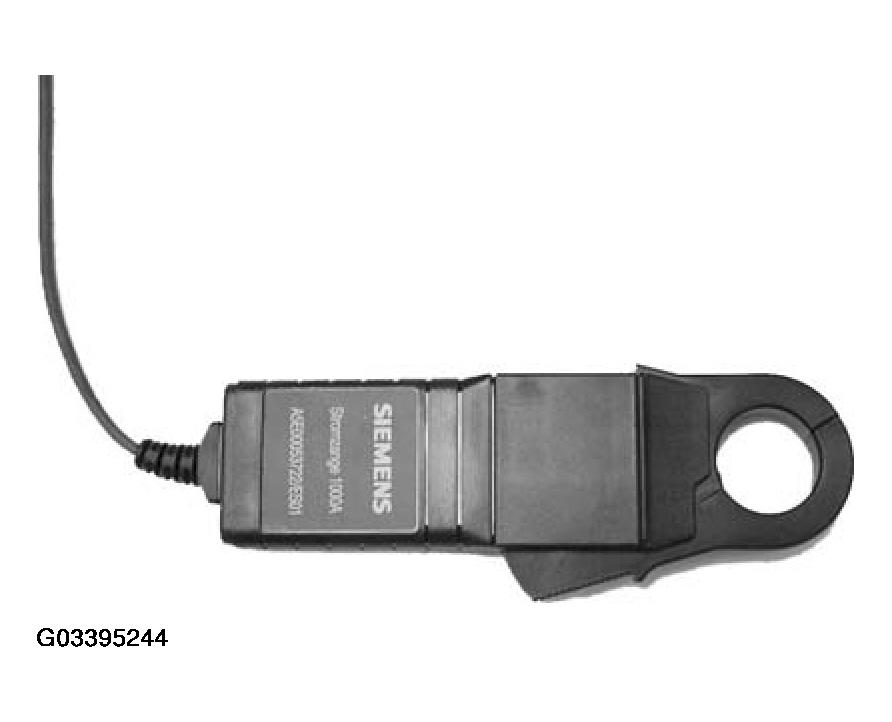

- 1000 Amp clamp
The test module will prompt you to warm up the engine to 90°C. Once warmed up, you will be directed to run the engine at idle to set the minimum valve lift. Follow the on screen prompts. Once the minimum valve lift has been obtained (0.2 to 0.4 mm), disconnect both VVT motors to lock in the minimum adjustment.
Once this step in completed, shut the engine off and remove the #1 spark plug. Install the compression adapter into the spark plug hole. (Note: any cylinder can be used as long as the DISplus is set to the cylinder in use). Follow prompts until test is completed.
Once the test is completed, perform the same steps for the maximum valve lift. Compare the results, the results from the test at maximum valve lift should be slightly higher. Any cylinders that show low results on the minimum valve lift test which show improvements when the maximum valve lift test is performed should be checked for Valvetronic wear concerns.

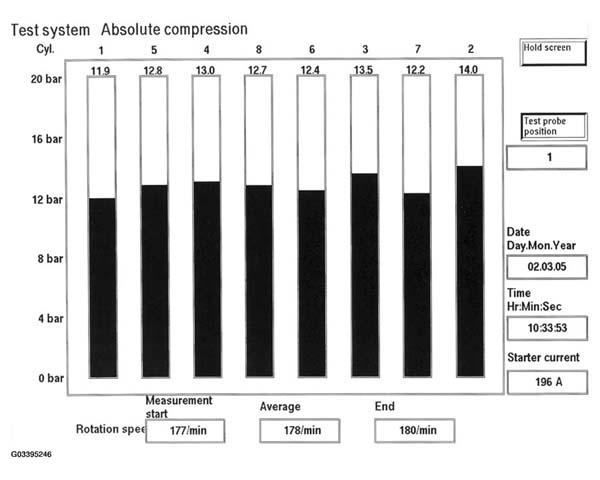

During the final analysis potion of this test module, there may be on screen recommendations of repairs involving eccentric shaft or intermediate lever replacement. There may be a recommendation of changes to the classification of intermediate levers as well.
