Camber Adjustment: Rear

  1. Replace and tighten down disc collar nut. See Fig 1 .
  2. Tighten disc collar nut to specification. See TORQUE SPECIFICATIONS  .
  3. Release disc collar nut by 1/2 to 1 turn.
  4. Adjust camber with eccentric screw. See Fig 2 . Adjust camber to specification. See WHEEL ALIGNMENT SPECIFICATIONS  .
    5. CAUTION: If the disc collar nut is tightened down more than 10 times during adjustment, it must be replaced. The self-locking effect becomes too slight.
  5. Tighten down disc collar nut to specification. See TORQUE SPECIFICATIONS  .
  6. Adjust toe-in. See REAR  under TOE-IN ADJUSTMENT.

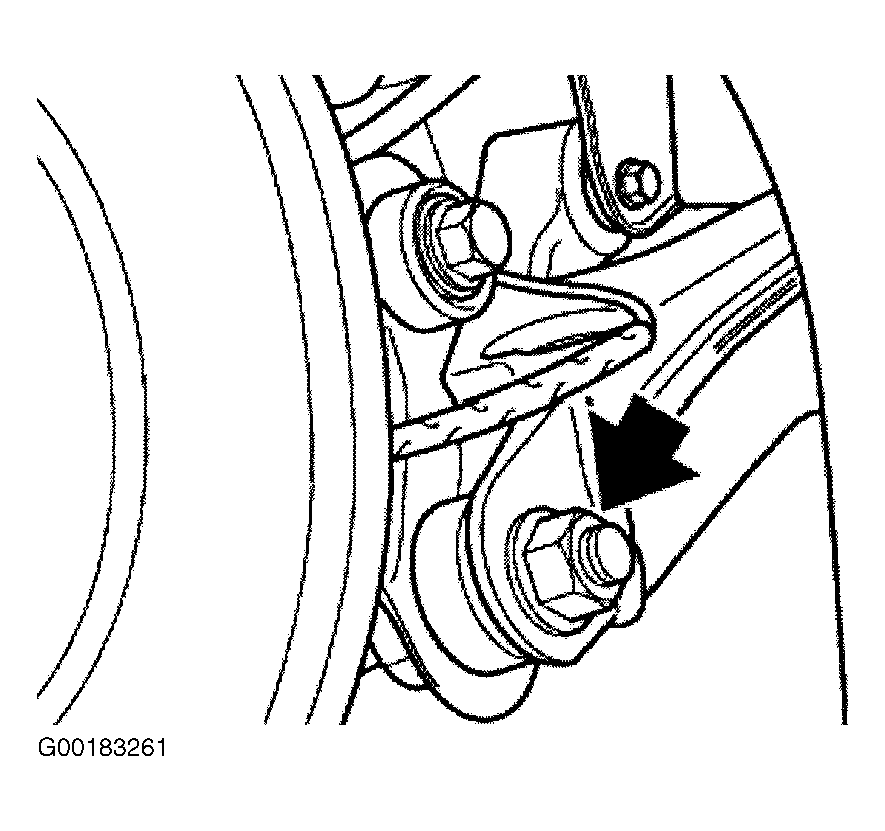

Fig 1: Locating Disc Collar Nut
G00183261Courtesy of BMW OF NORTH AMERICA, INC.

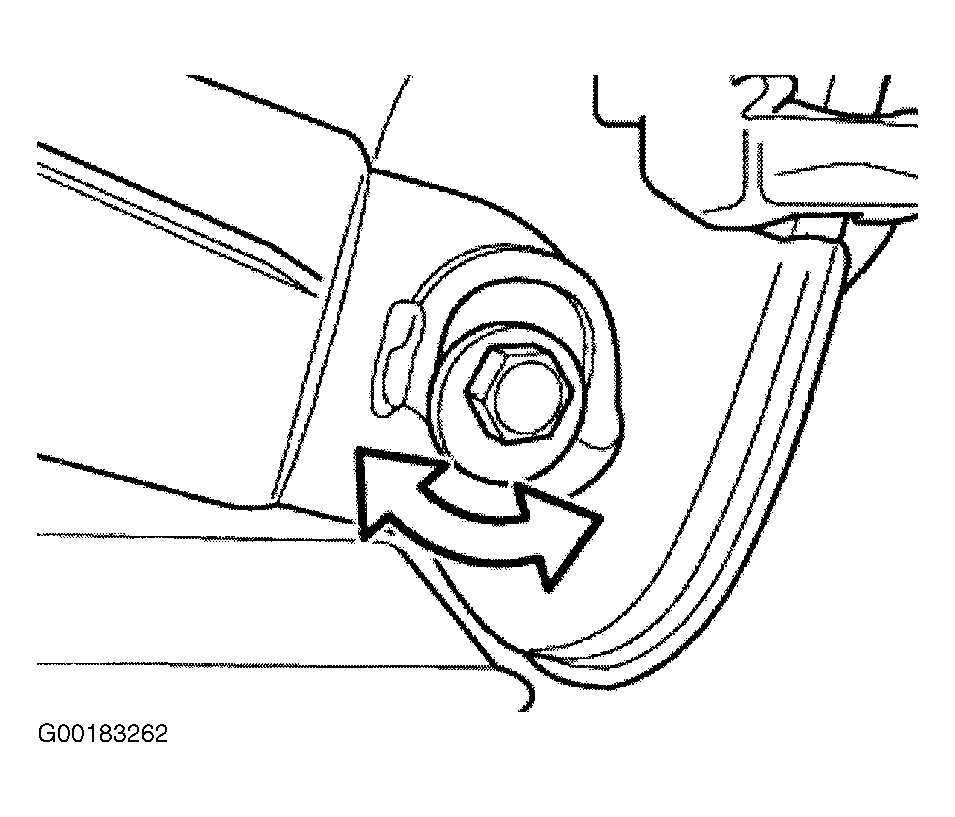

Fig 2: Adjusting Camber
G00183262Courtesy of BMW OF NORTH AMERICA, INC.
