Toe-In Adjustment: Rear

NOTE: Any change in camber always involves a change in toe. The camber must always be adjusted first. See REAR  under CAMBER ADJUSTMENT.
  1. Replace and tighten down disc collar nut. See Fig 1 .
  2. Tighten disc collar nut to specification. See TORQUE SPECIFICATIONS  .
  3. Release disc collar nut again by 1/2 to 1 turn.
  4. Adjust toe-in with eccentric screw. See Fig 2 . Adjust to specification. See WHEEL ALIGNMENT SPECIFICATIONS  .
    5. CAUTION: If the disc collar nut is tightened down more than 10 times during adjustment, it must be replaced. The self-locking effect becomes too slight.
  5. Tighten down disc collar nut to specification. See TORQUE SPECIFICATIONS  .

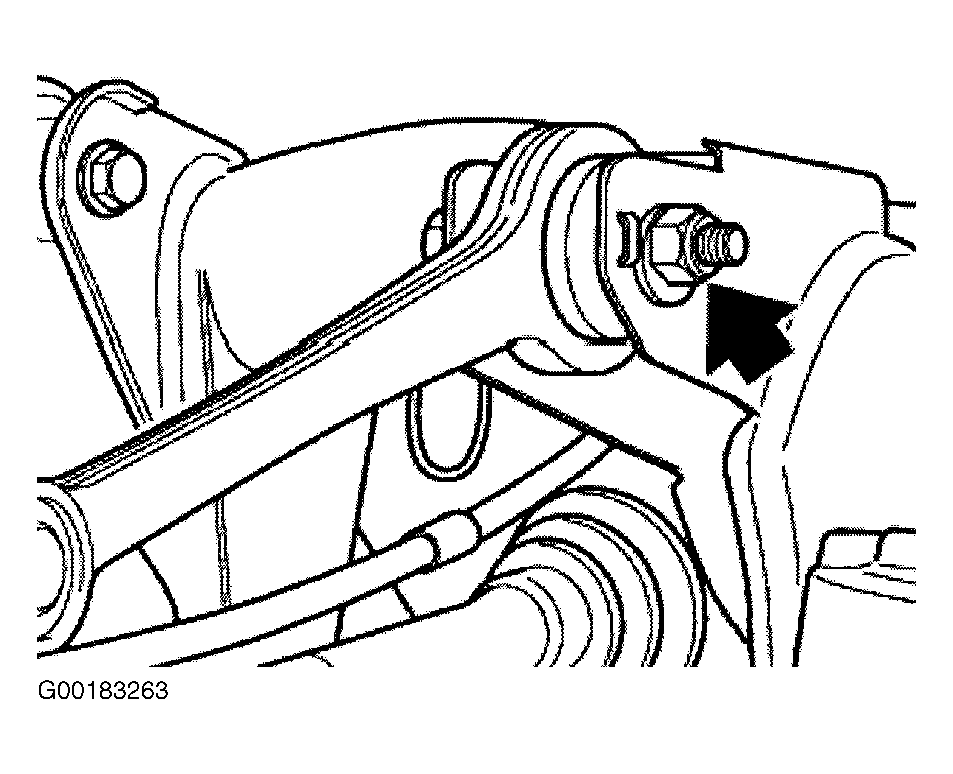

Fig 1: Locating Rear Disc Collar Nut
G00183263Courtesy of BMW OF NORTH AMERICA, INC.

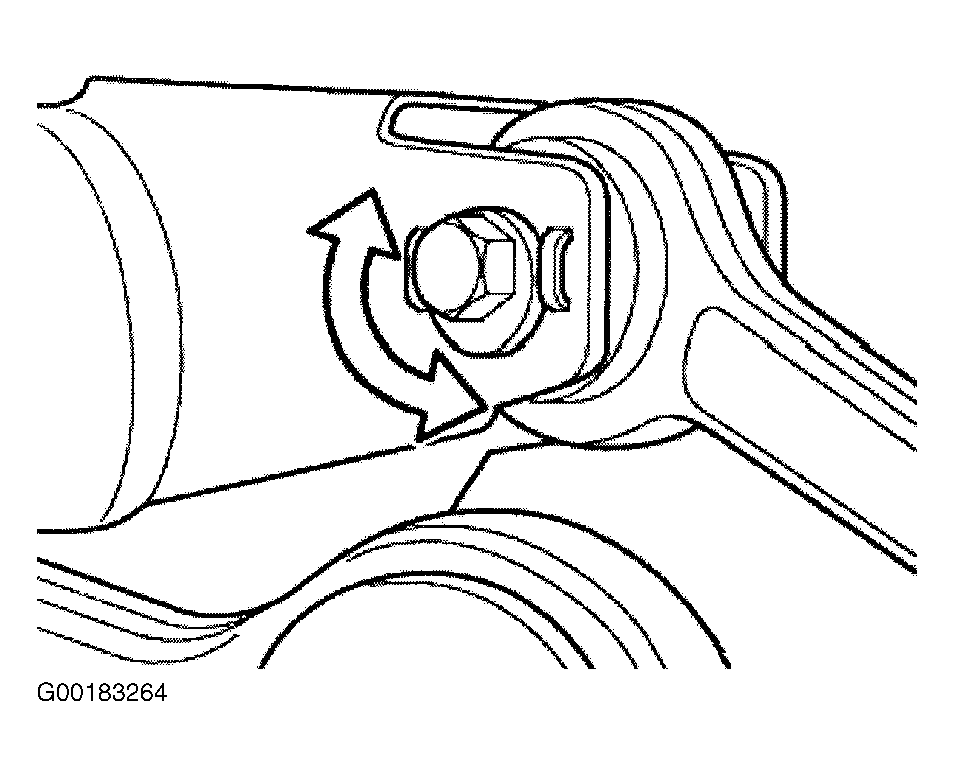

Fig 2: Adjusting Toe-In
G00183264Courtesy of BMW OF NORTH AMERICA, INC.
