AC Compressor Load Sensing (Hydramatic Transmissions)

When the AC Compressor is switched on, additional load is placed on the engine. To compensate for the additional load, the TCM modifies line pressure and shift points. On the THMR-1, the TCM receives these signals via a direct connection to the AC compressor control circuit.

On vehicles equipped with CAN bus technology, the "AC on" signal is sent to the TCM from the DME as a CAN bus message.

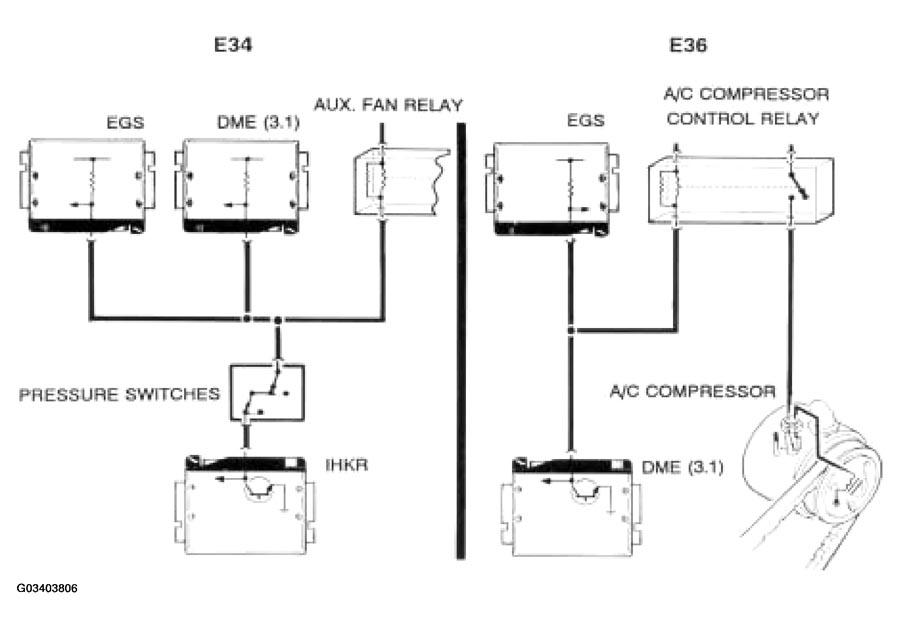

Fig 1: Identifying AC Compressor Load Sensing (Hydramatic Transmissions)

Courtesy of BMW OF NORTH AMERICA, INC.
