Fuel System

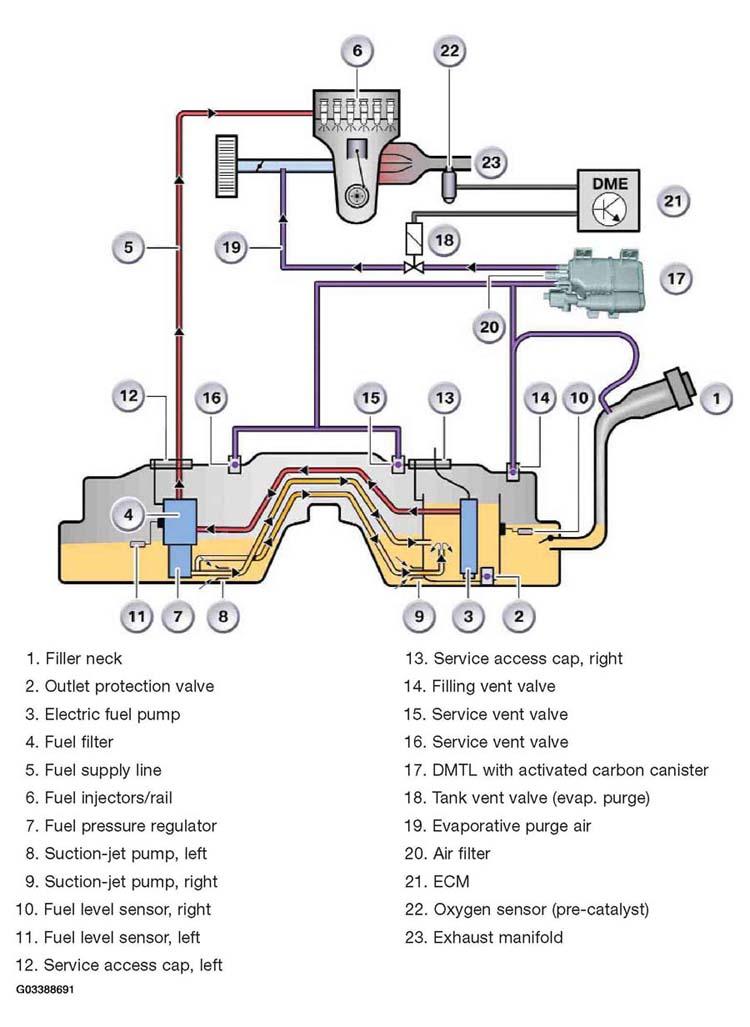

Fig 1: Identifying Fuel System Components
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
