61 13... Repairing Ribbon Cables

NOTE:

For Special Tool identification, see Special tools required: .

Special Tools Required:

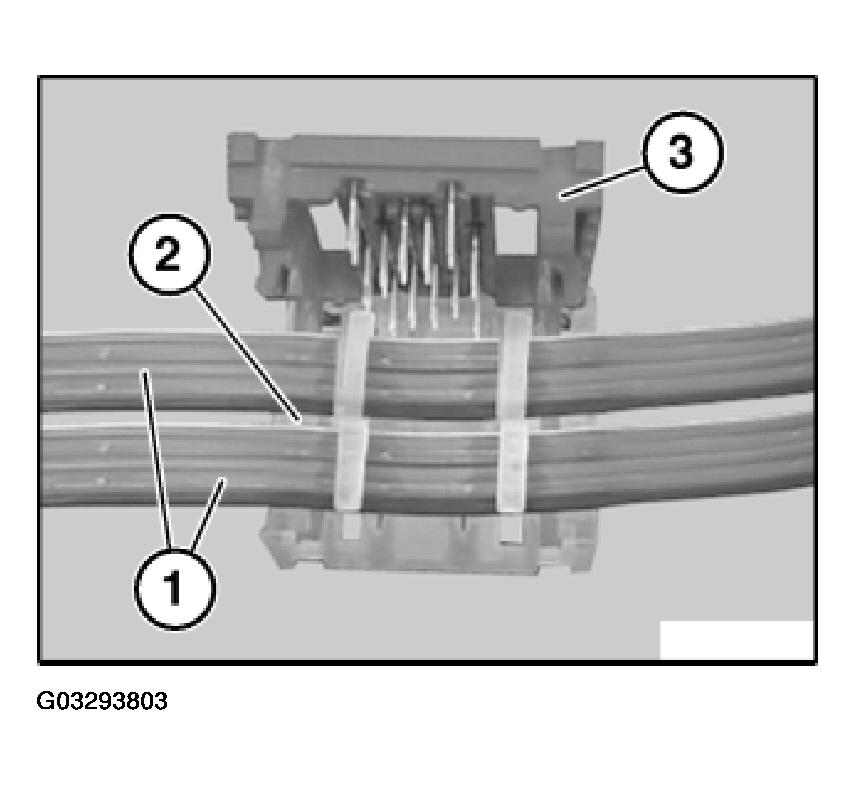

Place ribbon cables (1) in connector housing (2) and close cover (3).

Fig 1: Ribbon Cables, Connector Housing And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

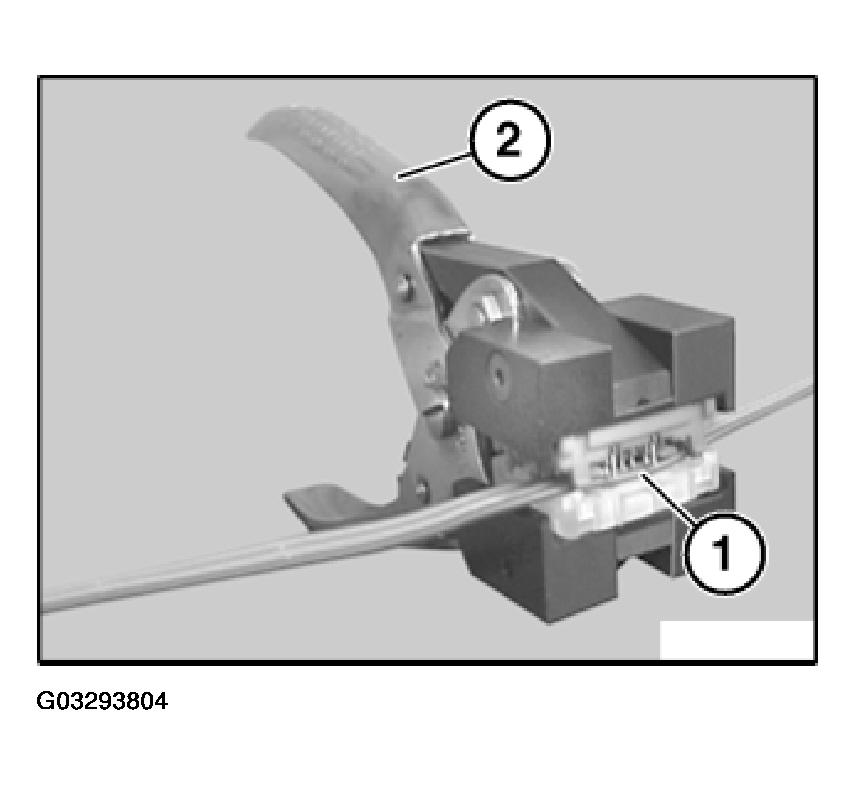

Place connector housing (1) in pliers (2) 61 1 190.

Close pliers (2).

Fig 2: Connector Housing And Special Tool (61 1 190)

Courtesy of BMW OF NORTH AMERICA, INC.
