11 00 ... Securing Engine In Installation Position With Special Tool (N73)

NOTE:

Special Tools Required:

Necessary Preliminary Tasks:

Remove acoustic cover.
Secure engine hood in service position. Refer to 51 00... SERVICE POSITION OF ENGINE HOOD .

Assemble special tool 00 0 200 with special tools 00 0 201 / 00 0 202 / 00 0 203 / 00 0 204 / 00 0 208 and fit.

Secure special tool 11 0 000 to front and rear lifting eyes and to special tool 00 0 200.

NOTE: The supports (1) of special tool 00 0 208 must rest on the bolt connection of both side walls. Risk of damage .

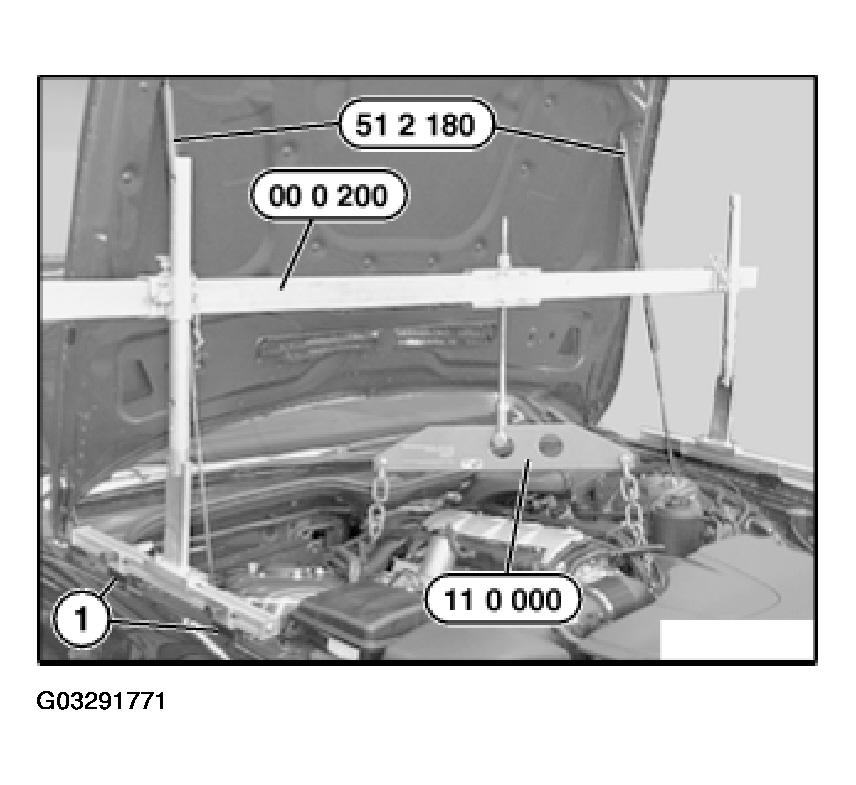

Fig 1: Assembling Special Tool And Fitting To Engine

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screws (1 and 2).

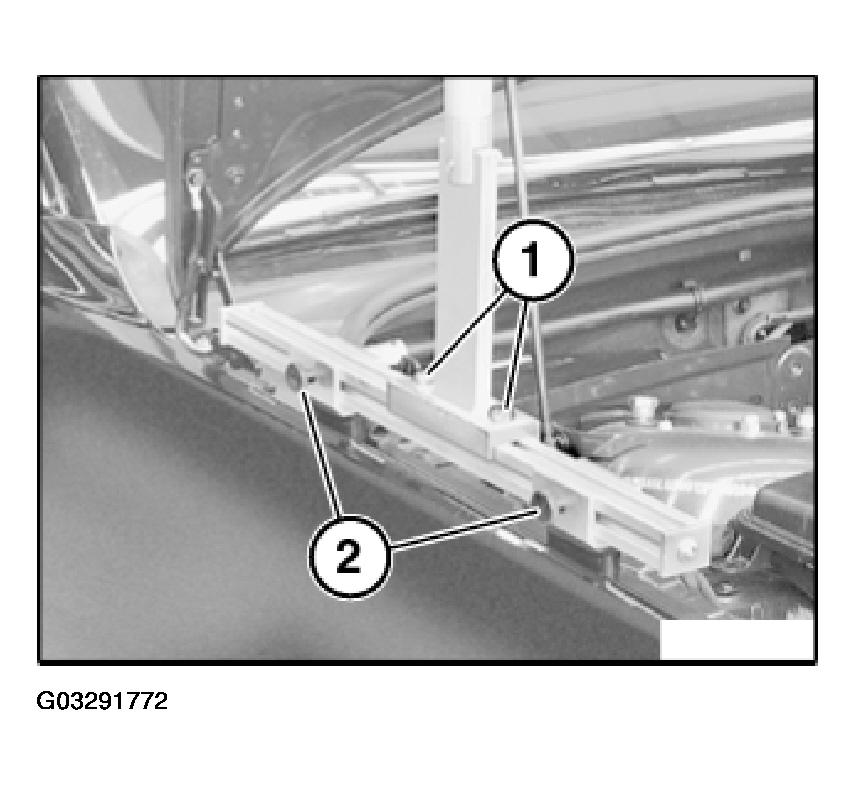

Fig 2: Tightening Cross Member Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release engine mounts at top left and right.

Raise engine with special tool 00 0 200 approx. 10 mm.

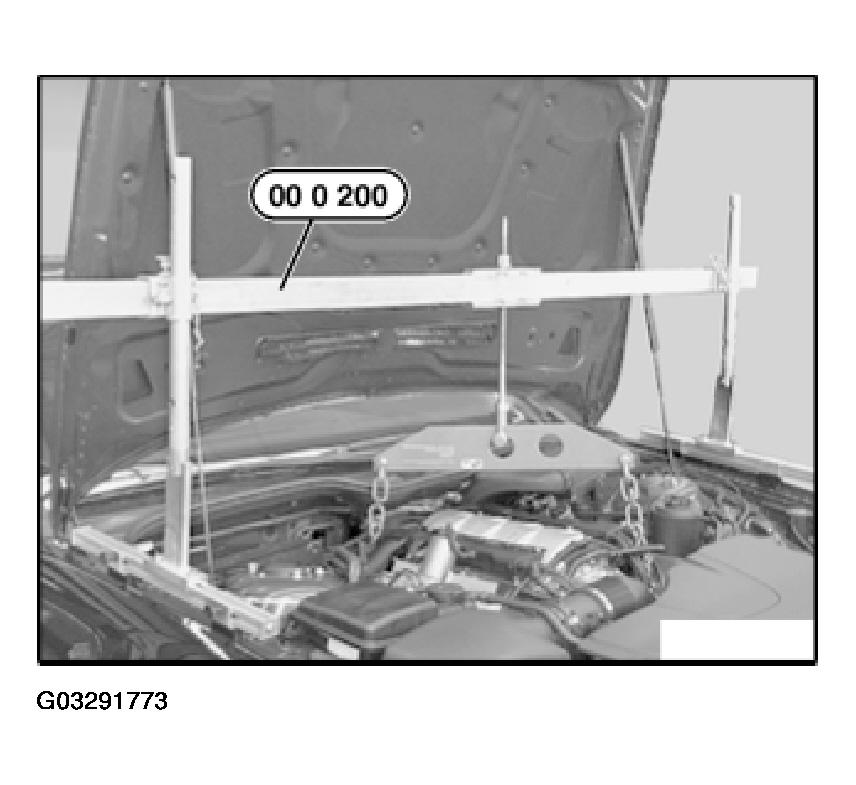

Fig 3: Raising Engine With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
