Mode 6 Data

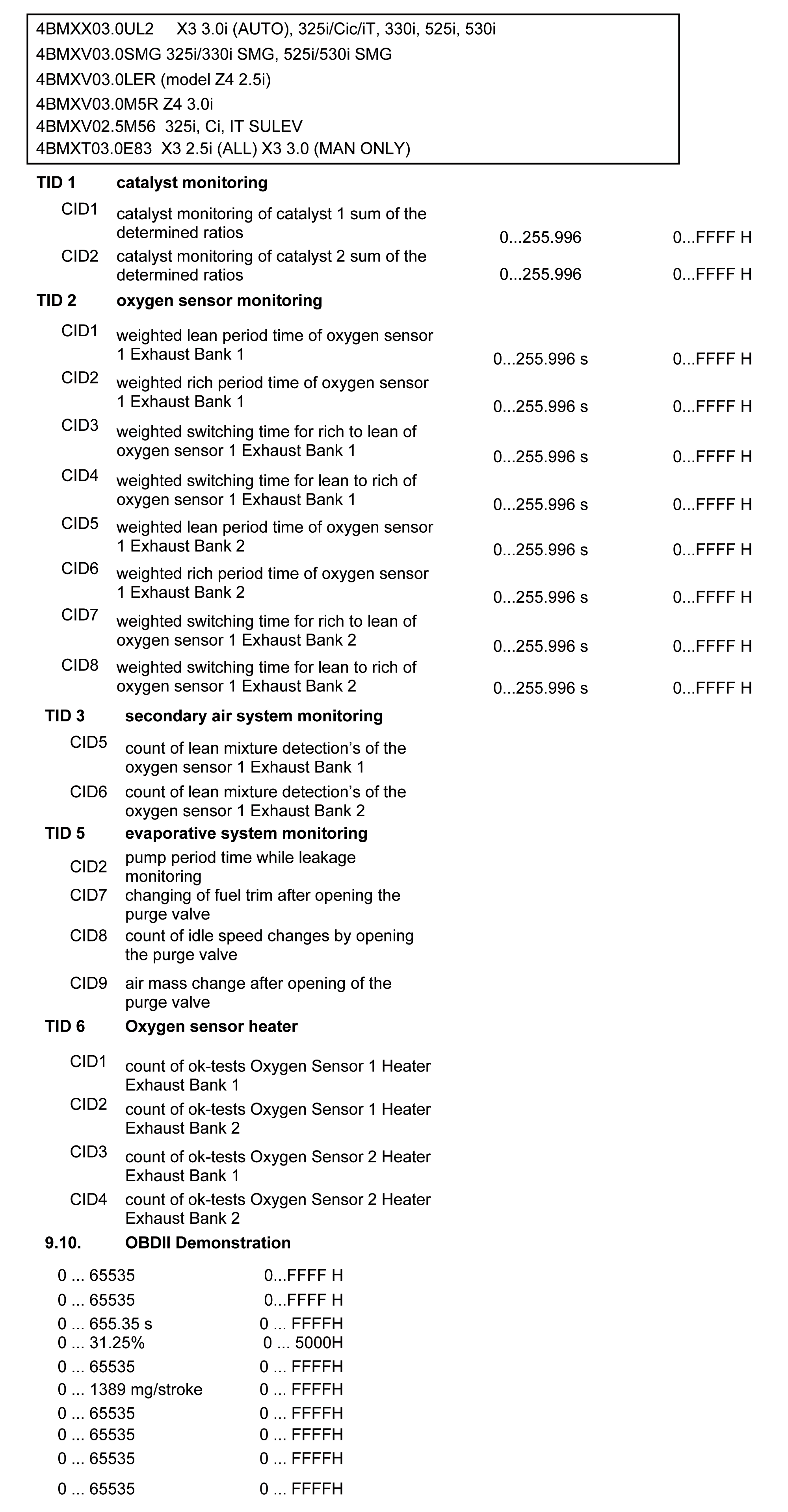

Fig 1: 2004 BMW Mode 6 Data (1 Of 6)

G00433041

Courtesy of BMW OF NORTH AMERICA, INC.

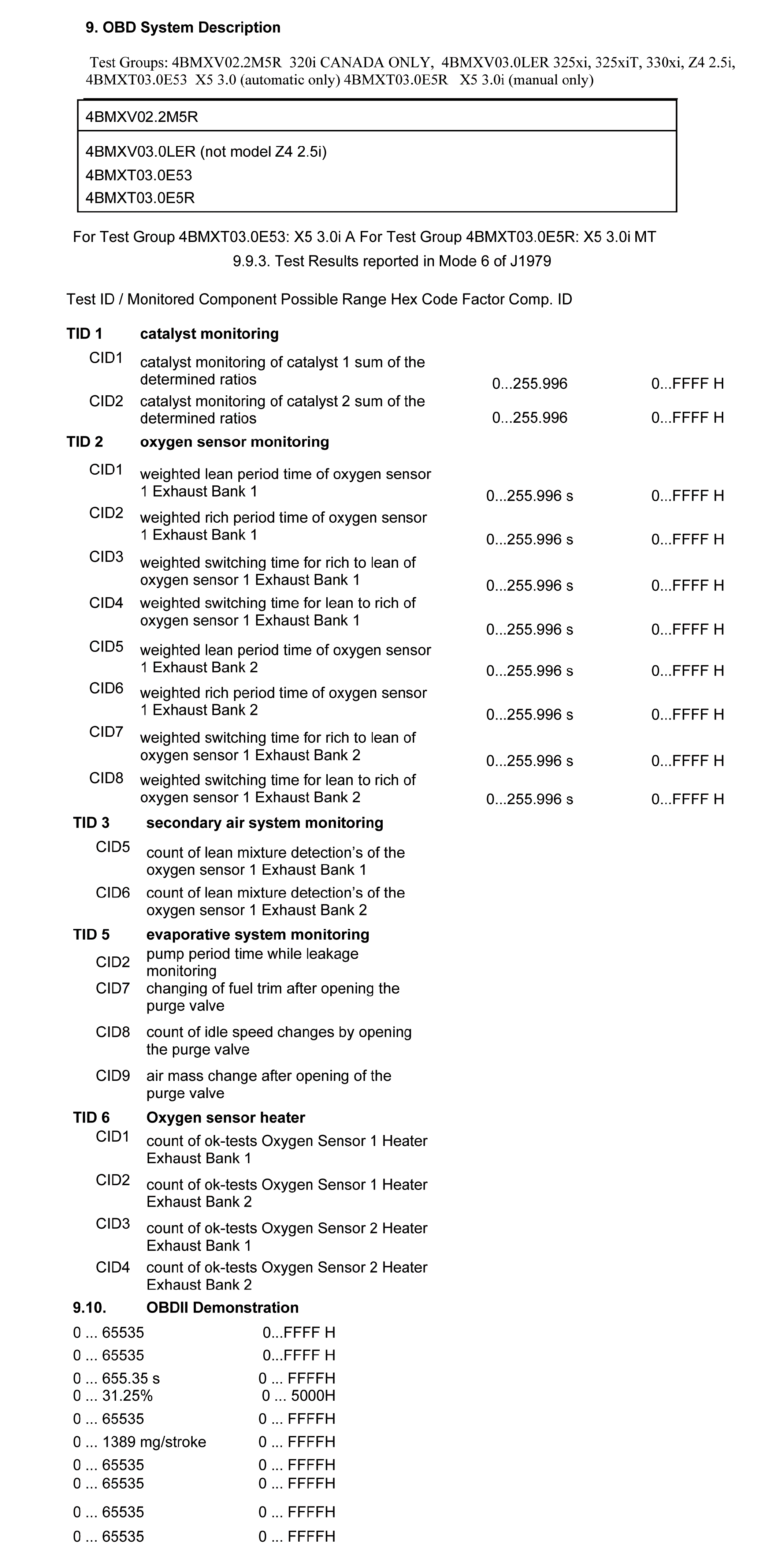

Fig 2: 2004 BMW Mode 6 Data (2 Of 6)

G00433042

Courtesy of BMW OF NORTH AMERICA, INC.

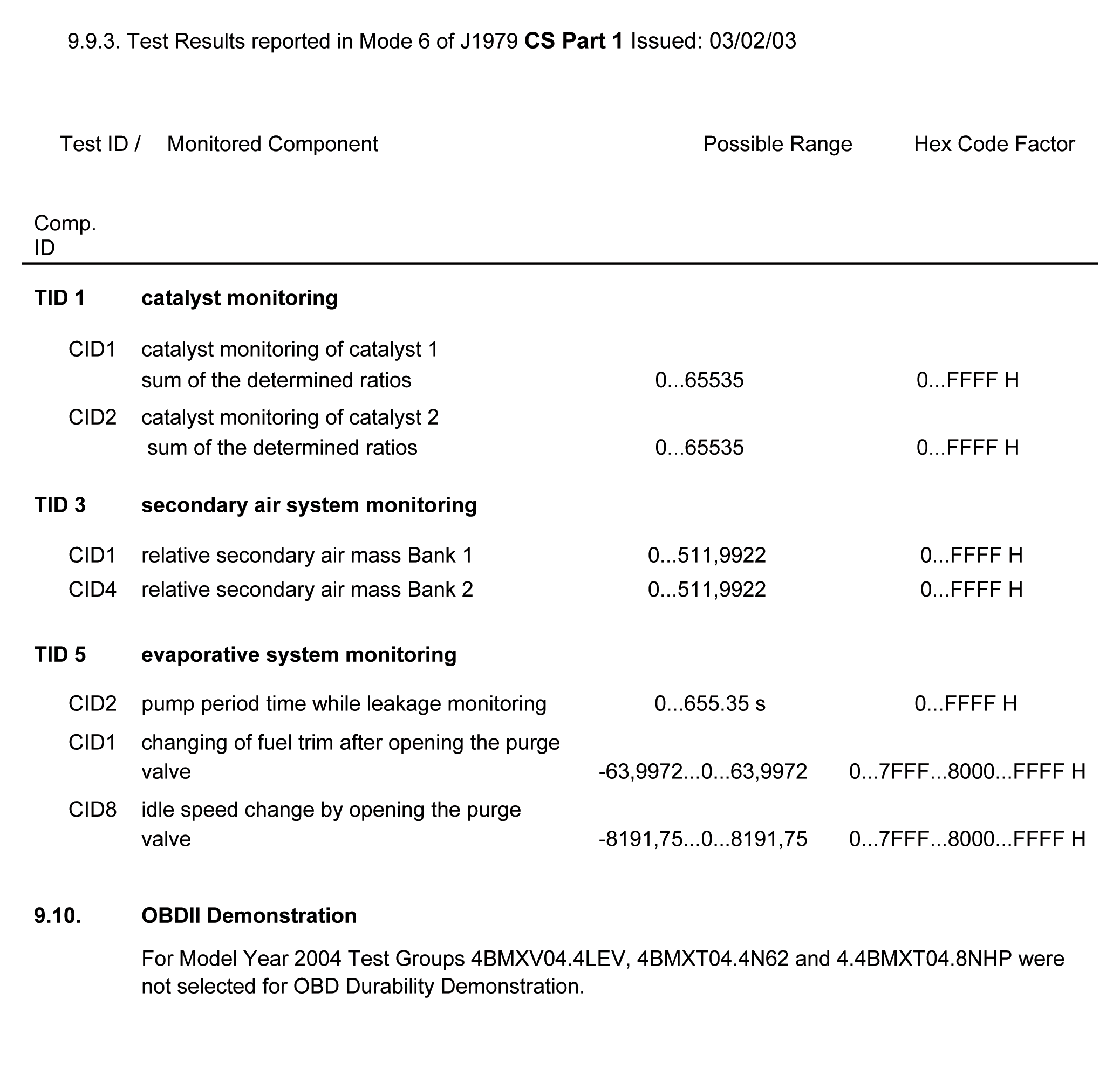

Fig 3: 2004 BMW Mode 6 Data (3 Of 6)

G00433043

Courtesy of BMW OF NORTH AMERICA, INC.

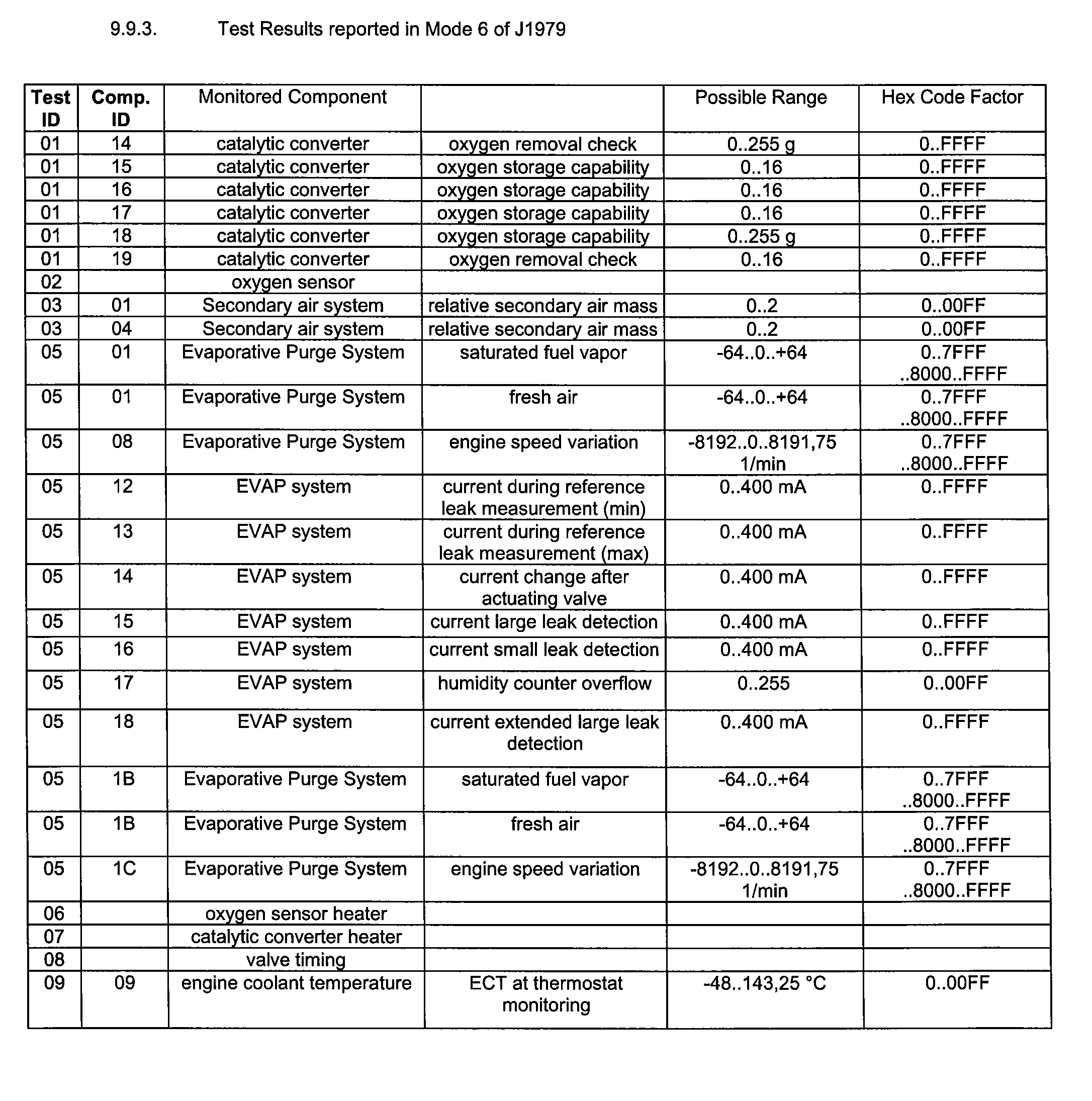

Fig 4: 2004 BMW Mode 6 Data (4 Of 6)

G00105152

Courtesy of BMW OF NORTH AMERICA, INC.

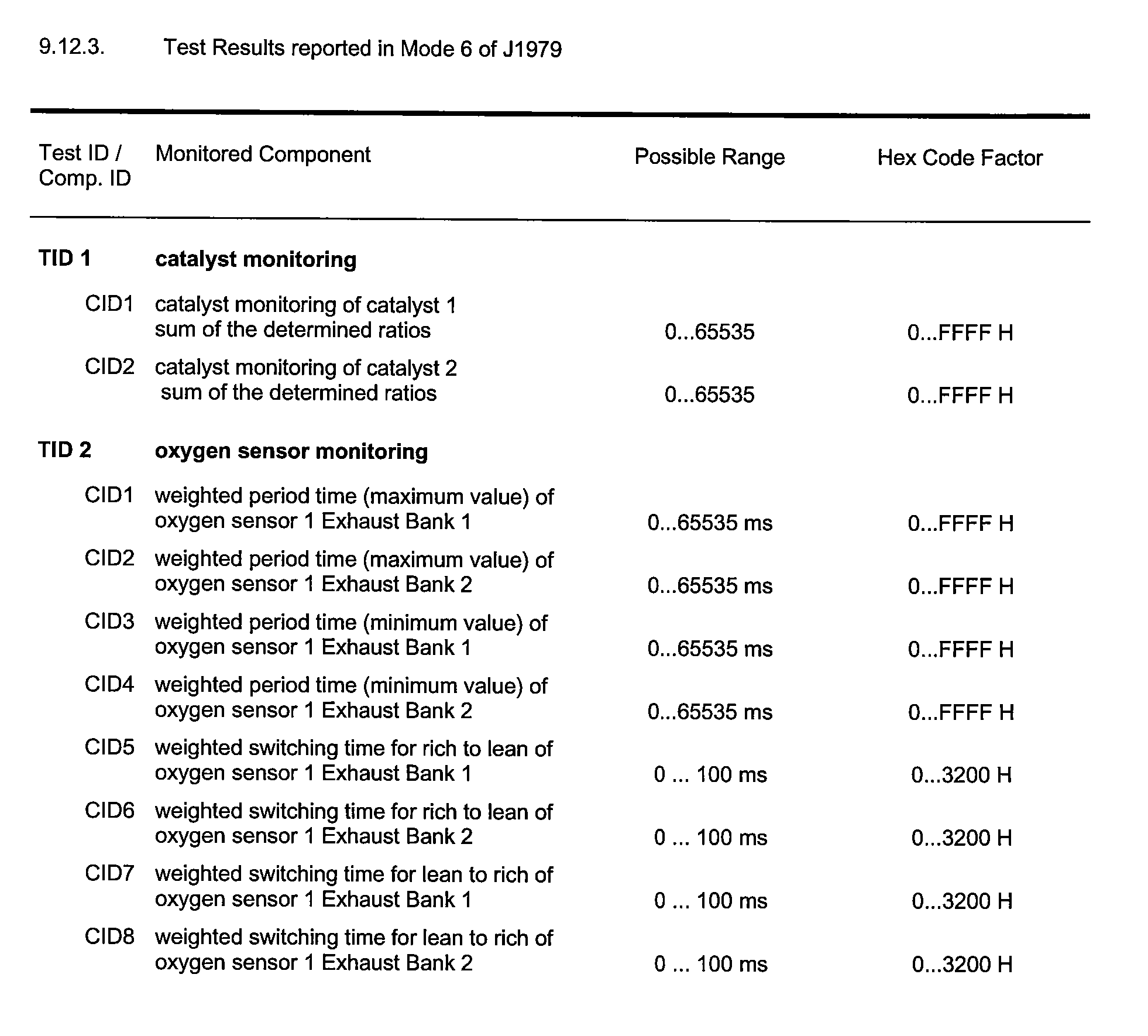

Fig 5: 2004 BMW Mode 6 Data (5 Of 6)

G00105153

Courtesy of BMW OF NORTH AMERICA, INC.

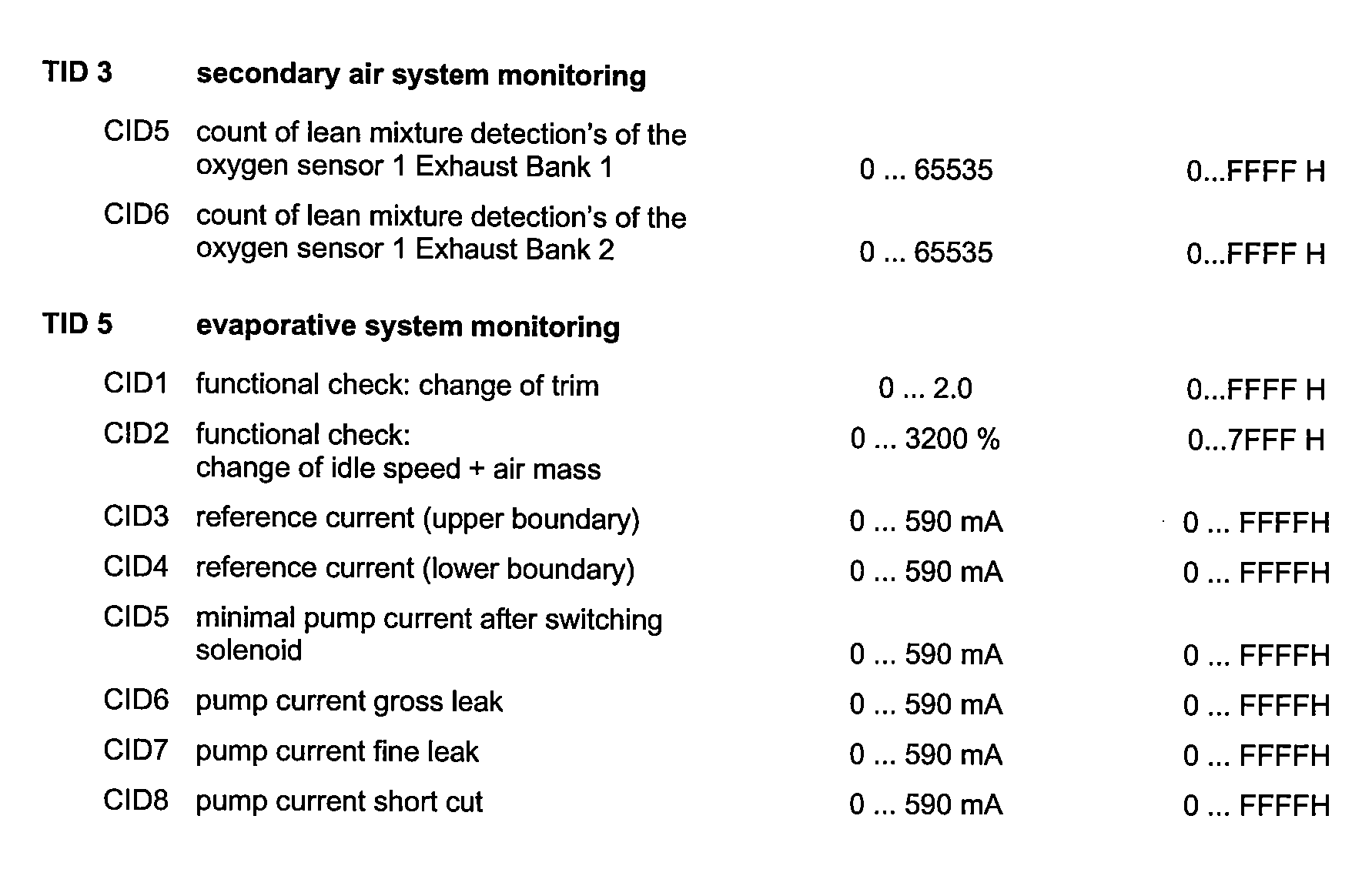

Fig 6: 2004 BMW Mode 6 Data (6 Of 6)

G00105154

Courtesy of BMW OF NORTH AMERICA, INC.
